200W

Three Phase Small AC Gear Motor

Motor Type: Horizonal&Vertical

Power: 1/4HP

Voltage: 1-Phase&3-Phase 220-380V

Gearbox Ratio:3-1800

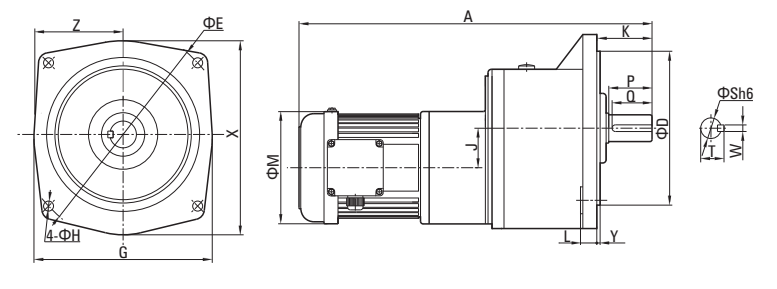

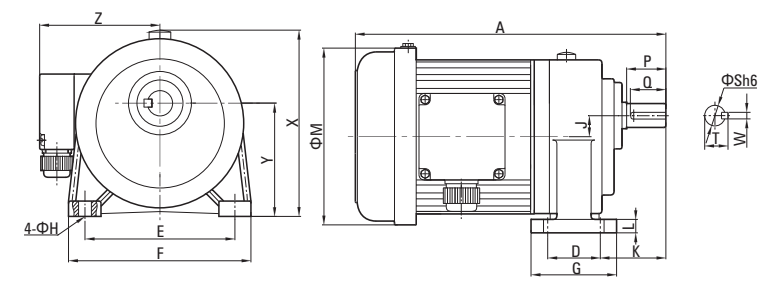

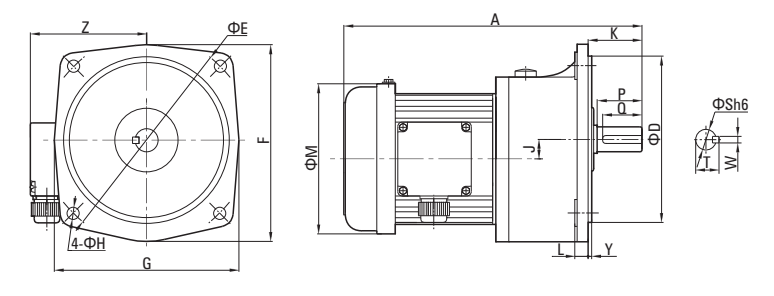

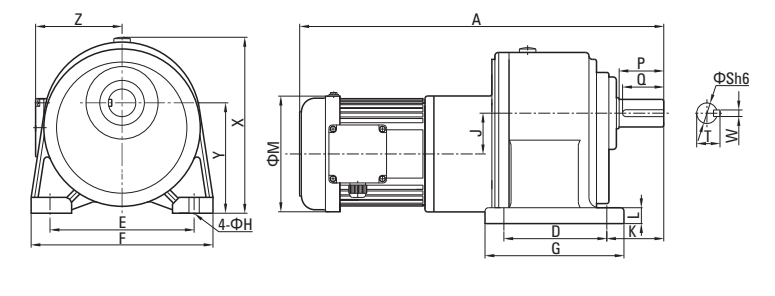

Motor Parameter Table

Power	Box Number	Ratio	A	D	E	F	G	H	J	K	L	M	X	Y	Z	S	P	Q	W	T	Weight
200W 1/4HP	1#	3-10 Standard type	279	40(50)	110(140)	135(120)	65(120)	9	16	50(39.5)	10(12)	130.5	143(/)	88.5(2)	100	18	30	27	5	20.2	7.0
	1#	15-90 Light duty type	279	40(50)	110(140)	135(120)	65(120)	9	16	50(39.5)	10(12)	130.5	143(/)	88.5(2)	100	18	30	27	5	20.2	7.0
	2#	15-90 Standard type	306	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	130.5	161(/)	97.5(3)	100	22	40	35	7	25	9.00
	2#	100-200 Light duty type	306	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	130.5	161(/)	97.5(3)	100	22	40	35	7	25	9.00
	3#	100-200 Standard type	339	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	130.5	184(/)	116(3)	100	28	45	40	7	31.1	9.00
	3#	250-1800 Light duty type (1#+3#)	401	90(170)	140(220)	178(205)	120(195)	12	39	68(58)	17(13)	130.5	184(/)	116(3)	100	28	45	40	7	31.1	18.0
	4#	250-1800 Standard type (2#+4#)	456	130(185)	170(255)	210(239)	165(216)	13	47.5	70(66.5)	18(13)	130.5	216(/)	138.5(3)	100	32	55	50	10	35.5	28.0
	4#	Light duty type	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/

Allowance Torque

Power

Box

Number

Type

100

120

140

160

180

200

200W

1/4HP

Standard type

50Hz

0.30

0.60

1.10

60Hz

0.30

0.50

0.90

Light duty type

50Hz

1.70

2.30

2.80

3.40

60Hz

1.40

1.90

2.30

3.40

Standard type

50Hz

1.50

2.00

2.50

3.00

4.10

4.60

5.10

6.10

7.10

8.10

9.10

60Hz

1.30

1.70

2.10

2.50

3.30

3.80

4.20

5.0

5.90

6.70

7.50

Light duty type

50Hz

10.1

11.6

60Hz

8.40

10.0

11.6

Standard type

50Hz

10.1

12.2

14.2

16.2

18.3

20.3

60Hz

8.40

10.0

11.7

13.4

15.0

16.7

Light duty type

50Hz

60Hz

Power	Box Number	Type		250	300	350	400	450	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700	1800
200W 1/4HP	1#+3#	Light duty type	50Hz	11.2	11.2	11.2	11.2	11.2	11.2	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9
	1#+3#	Light duty type	60Hz	11.2	11.2	11.2	11.2	11.2	11.2	27.1	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9
	2#+4#	Standard type	50Hz	27.1	27.1	27.1	27.1	27.1	27.1	27.1	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8
	2#+4#	Standard type	60Hz	27.1	27.1	27.1	27.1	27.1	27.1	27.1	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8
