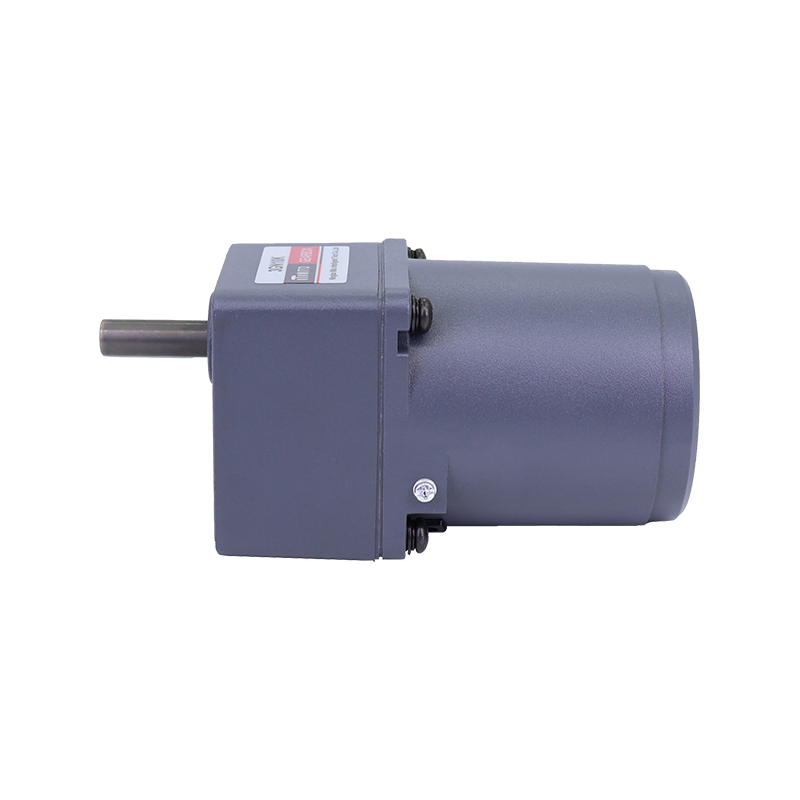

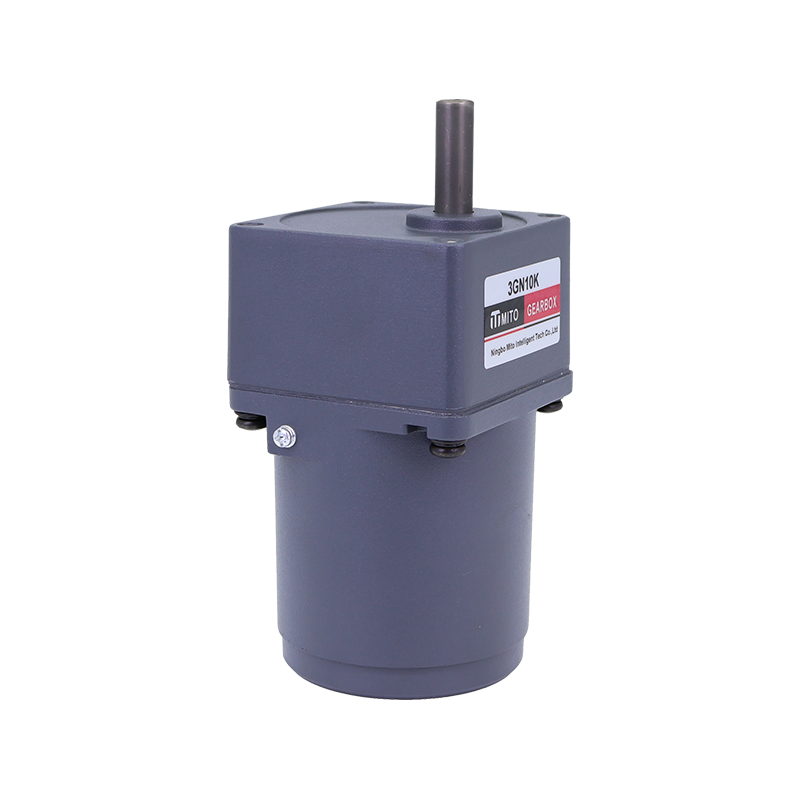

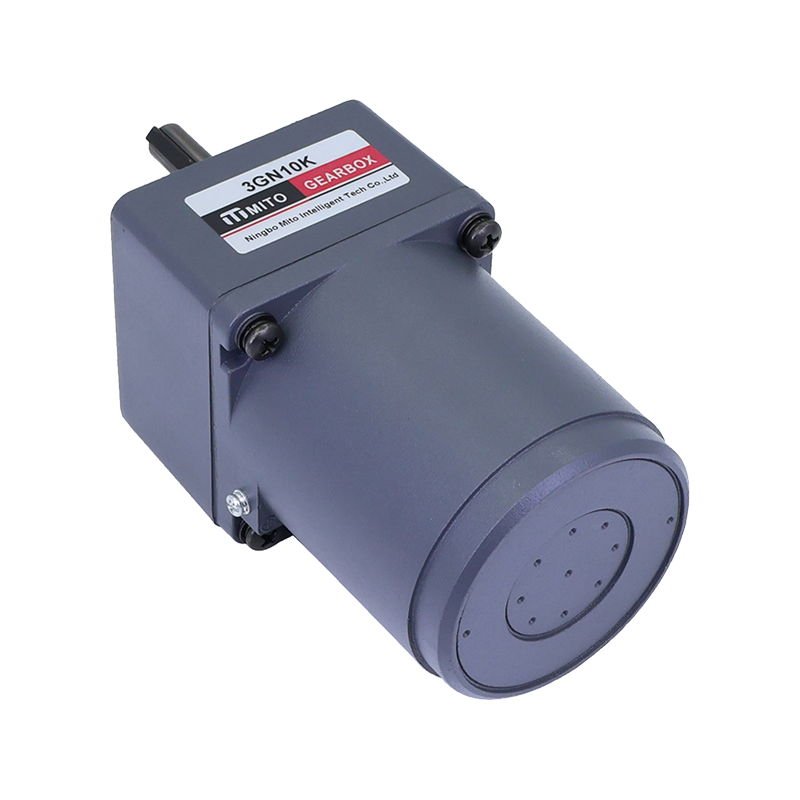

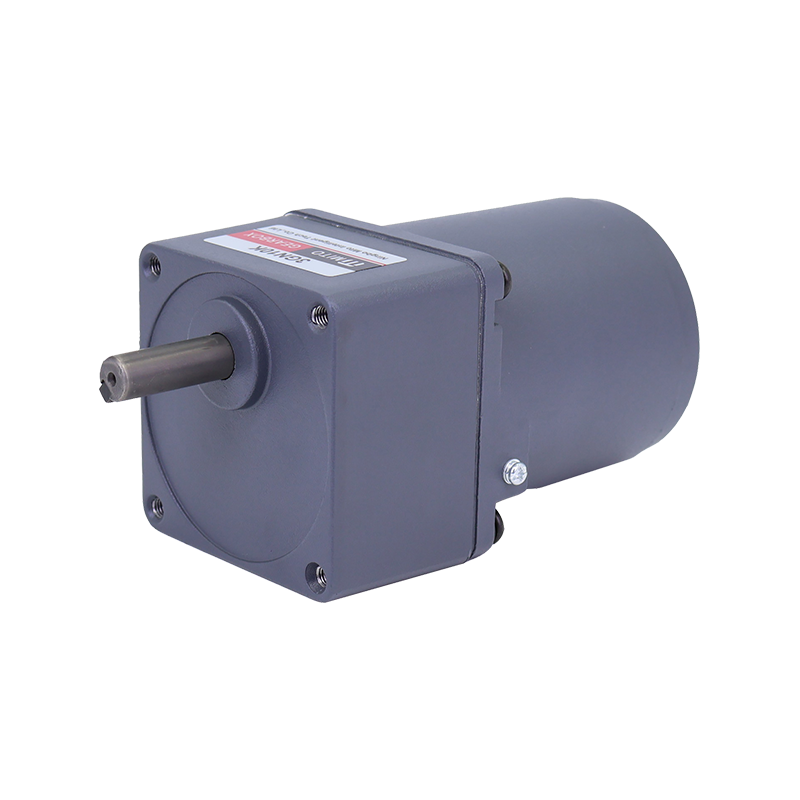

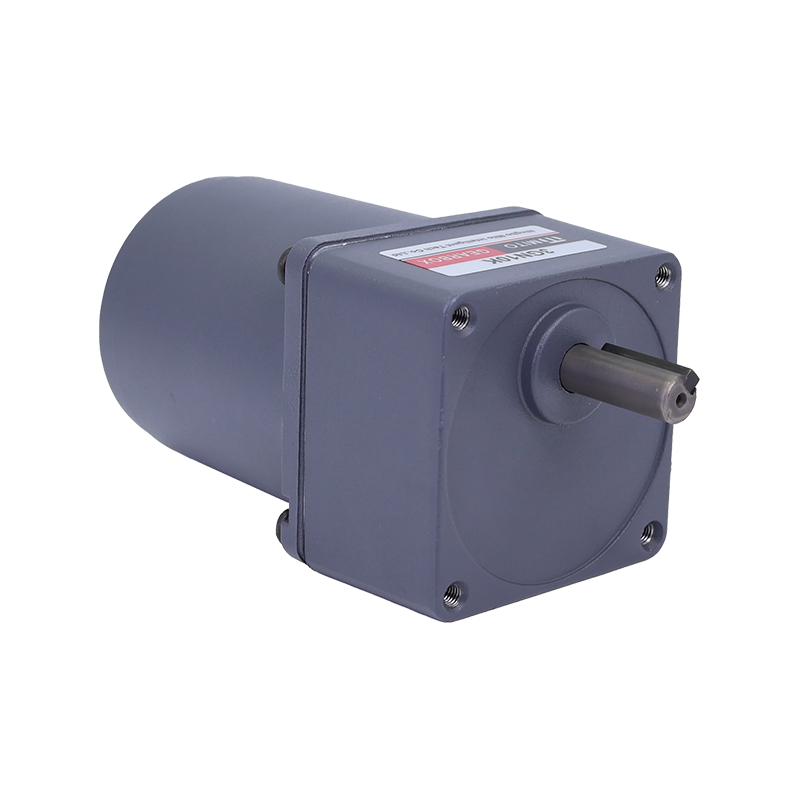

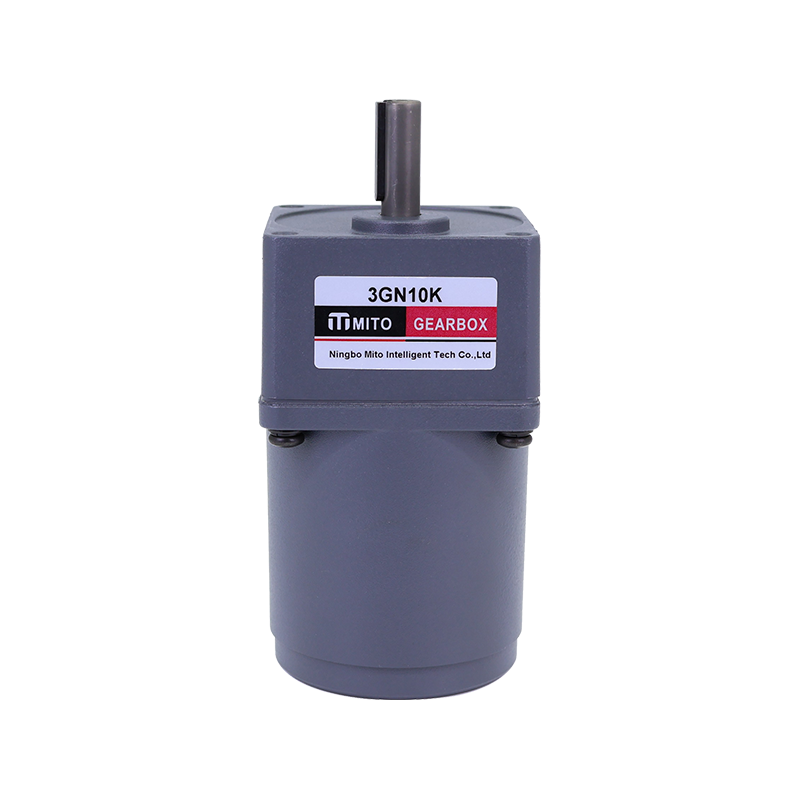

3IK 70mm 15W

Model•Type
Lead Wire Type

Output power
W

Voltage
V

Frequency
Hz

Current
A

Starting Torque
mN.m

Rated
Torque
mN.m

Ratad
Speed
r/min

Capacitor
μF

Pinion Shaft

Round Shaft

3IK15GN-A

3IK15A-A

15

1ph 100

50

0.35

90

125

1200

6.0

60

0.33

85

105

1450

3IK15GN-E

3IK15A-E

15

1ph 110

60

0.30

65

105

1450

5.0

1ph 120

0.32

3IK15GN-C

3IK15A-C

15

1ph 220

50

0.18

90

125

1200

1.2

1ph 230

0.20

3IK15GN-H

3IK15A-H

15

1ph 220

60

0.16

65

1G5

1450

1ph 230

0.15

70

3IK15GN-S

3IK15A-S

15

3ph 220

50

0.14

220

125

1200

-

60

0.12

180

105

1450

3IK15GN-S3

3IK15A-S3

15

3ph 380

50

0.08

220

125

1200

-

60

0.07

180

105

1450

Type Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

200

Speed r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

41

30

25

20

16

15

12.5

10

8.3

7.5

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

9

3IK15GN-A
3IK15GN-E
3IK15GN-C
3IK15GN-H
3IK15GN-S 3IK15GN-S3

3GN□K

50Hz

0.30

0.36

0.51

0.61

0.76

0.91

1.3

1.5

1.8

2.3

2.7

3.3

4.1

5

5

5

5

5

5

5

5

3.06

3.67

5.20

6.22

7.75

9.28

13.2

15.3

18.3

23.4

27.5

33.7

41.8

50

50

50

50

50

50

50

50

60Hz

0.26

0.31

0.43

0.51

0.64

0.77

1.1

1.3

1.5

1.9

2.3

2.8

3.5

4.2

5

5

5

5

5

5

5

2.65

3.16

4.38

5.20

6.53

7.85

11.2

13.2

15.3

19.3

23.4

28.5

35.7

42.8

50

50

50

50

50

50

50
