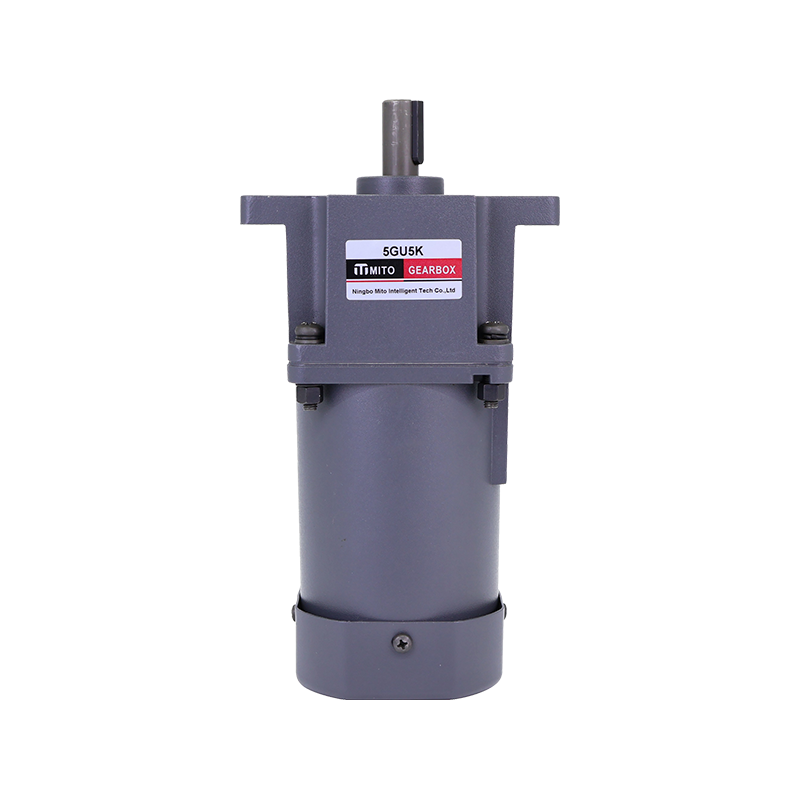

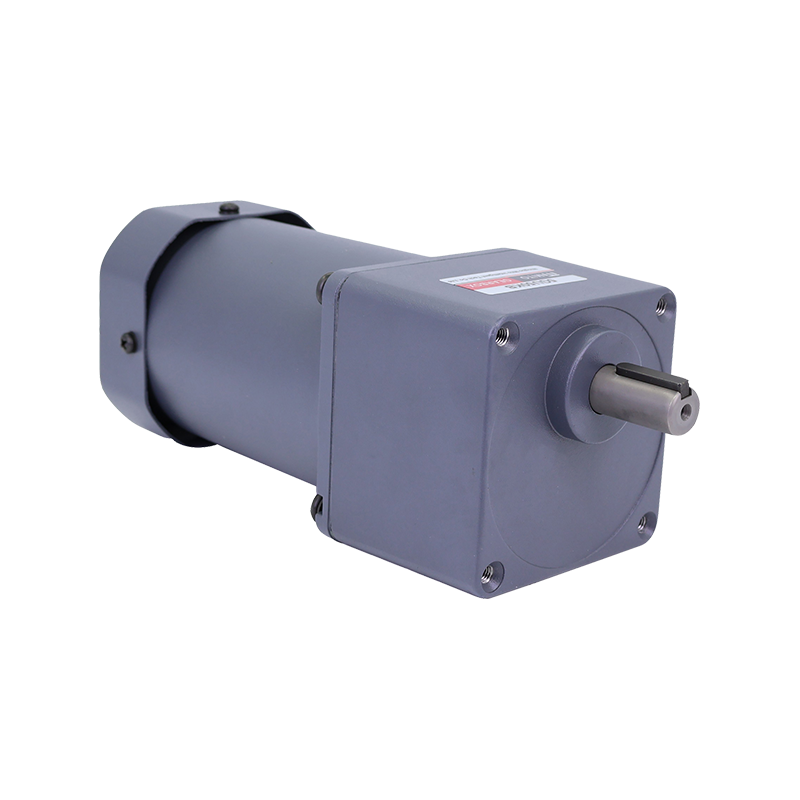

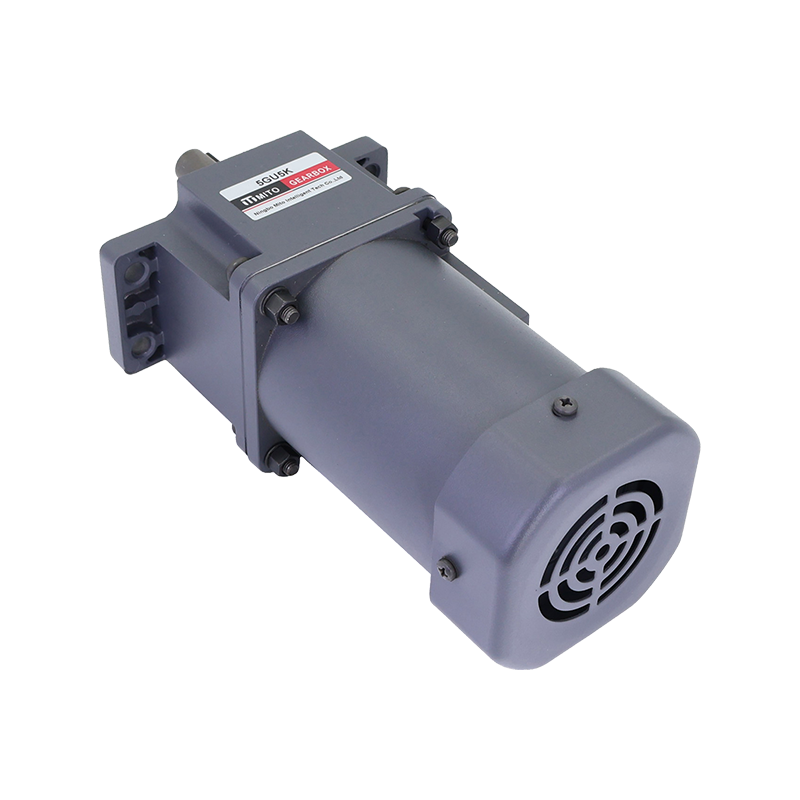

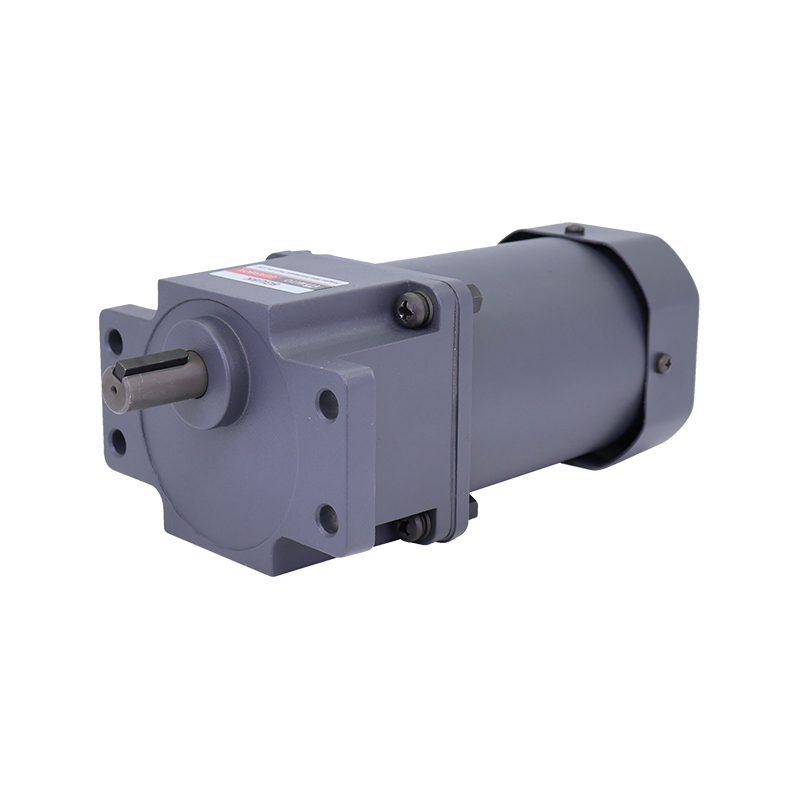

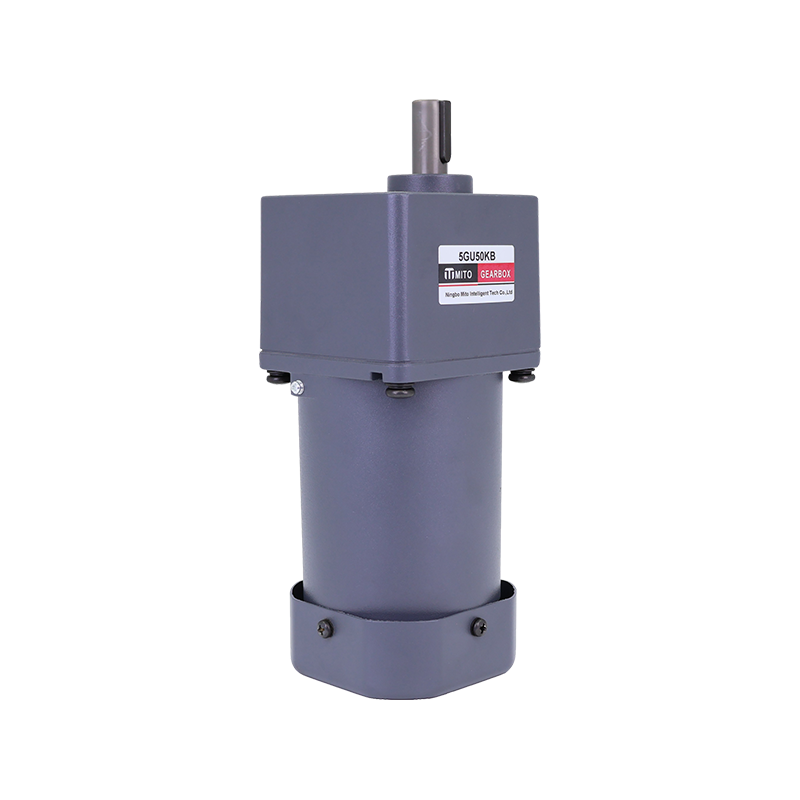

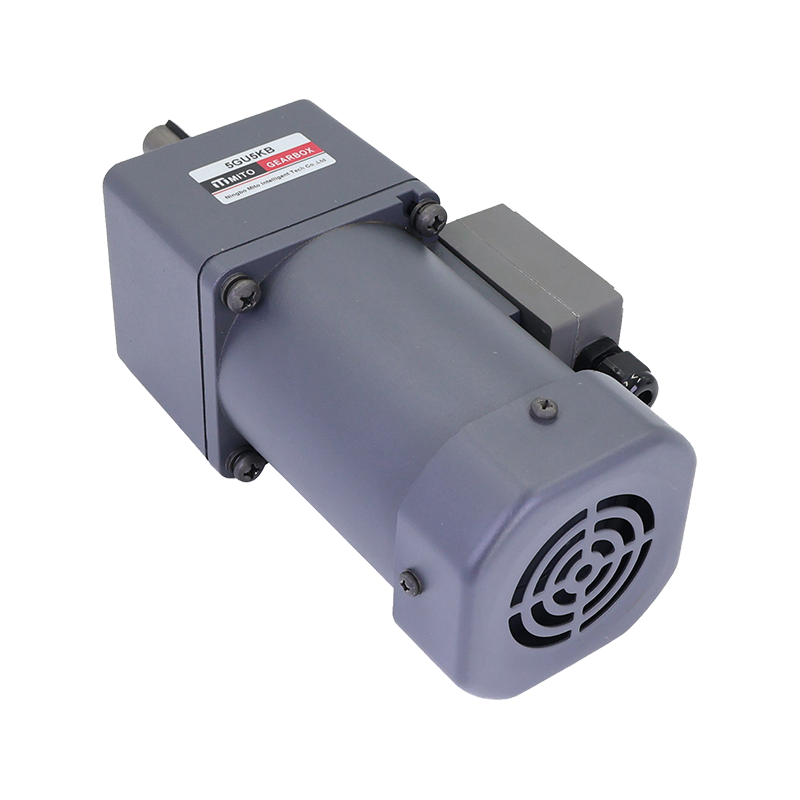

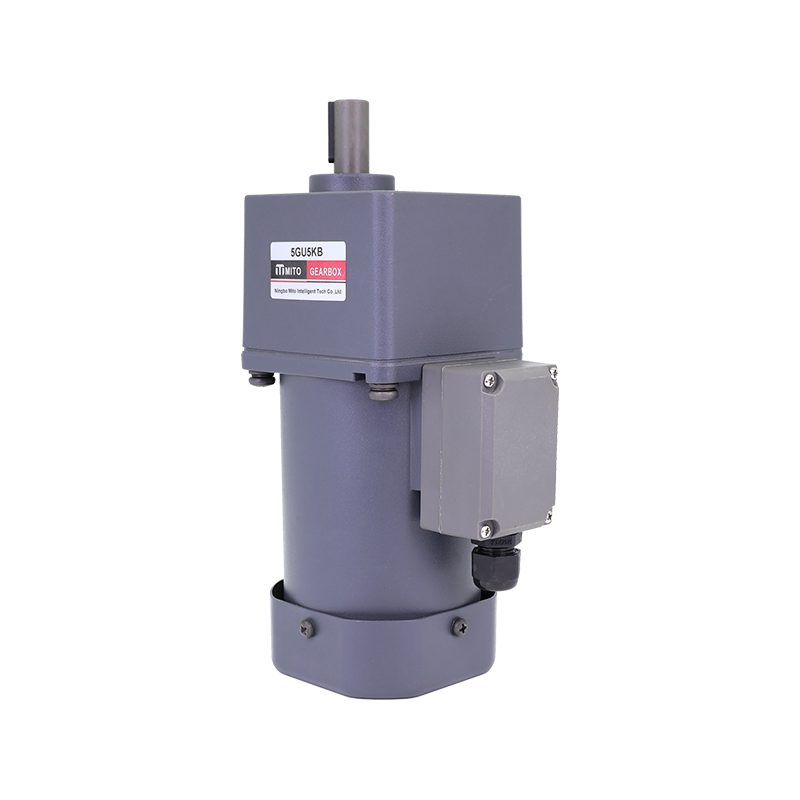

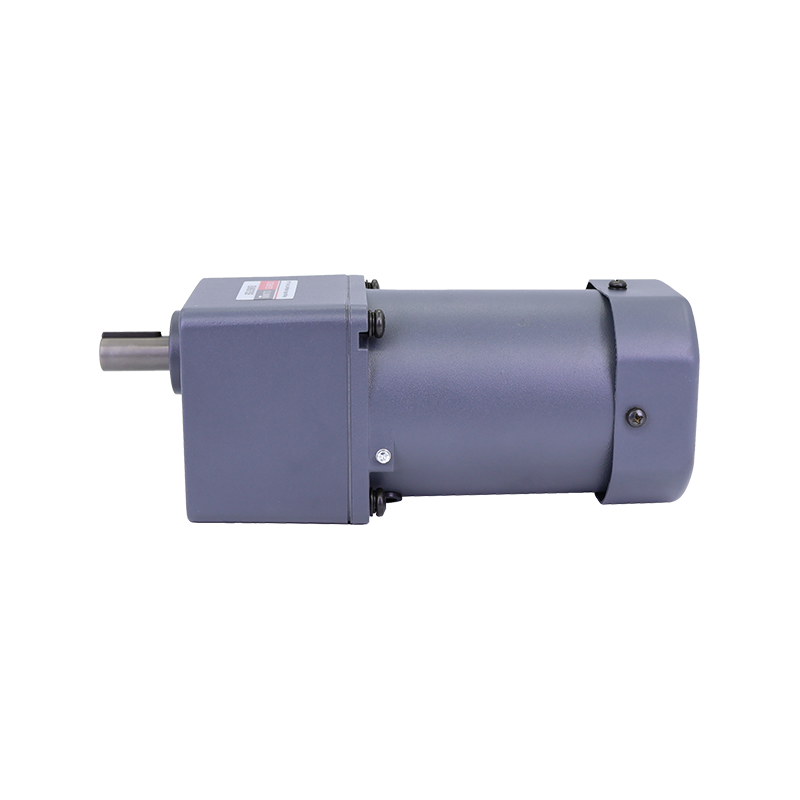

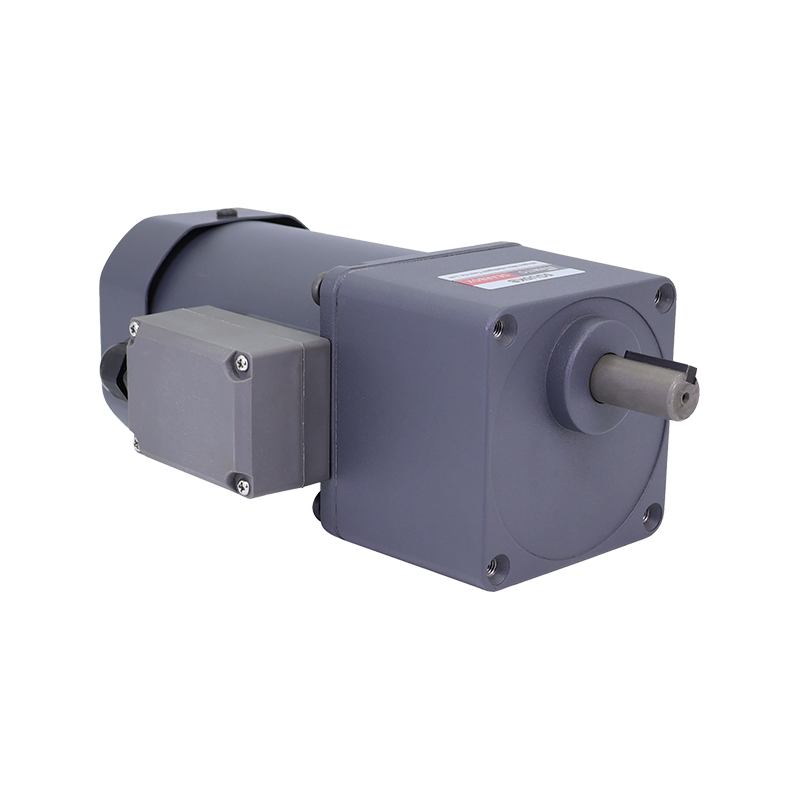

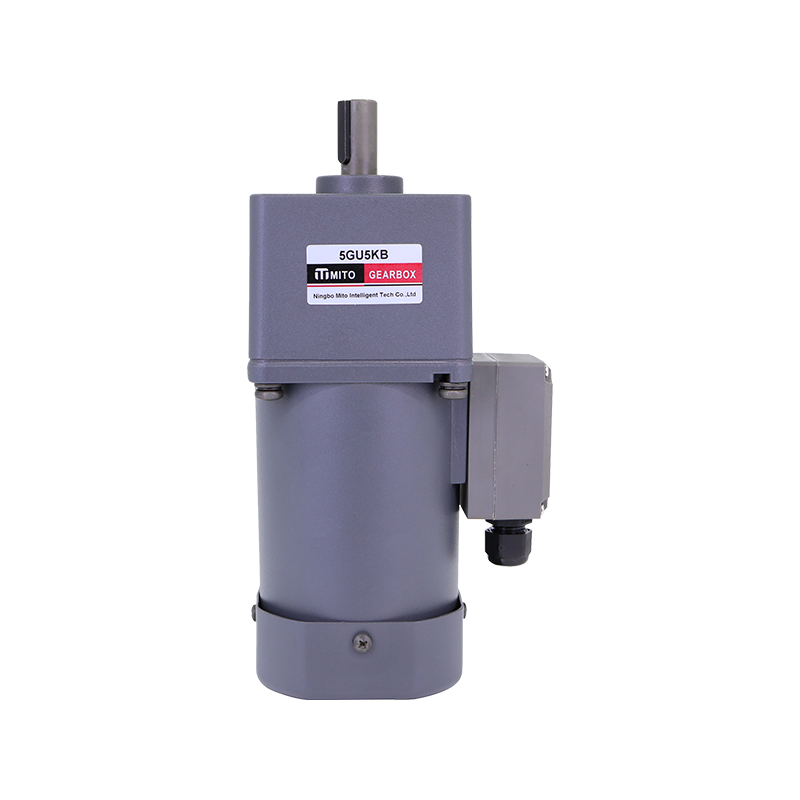

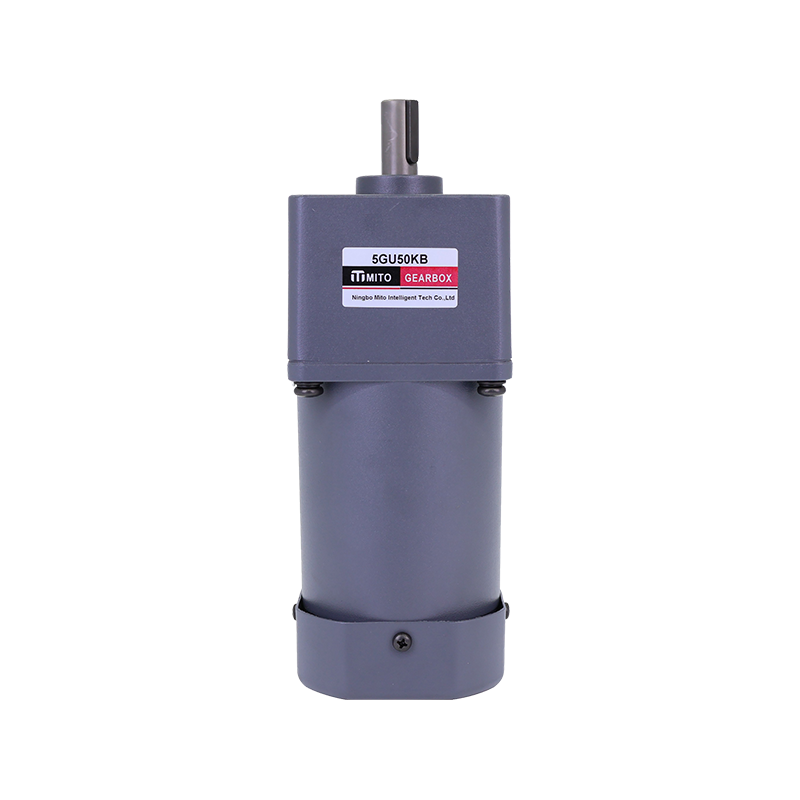

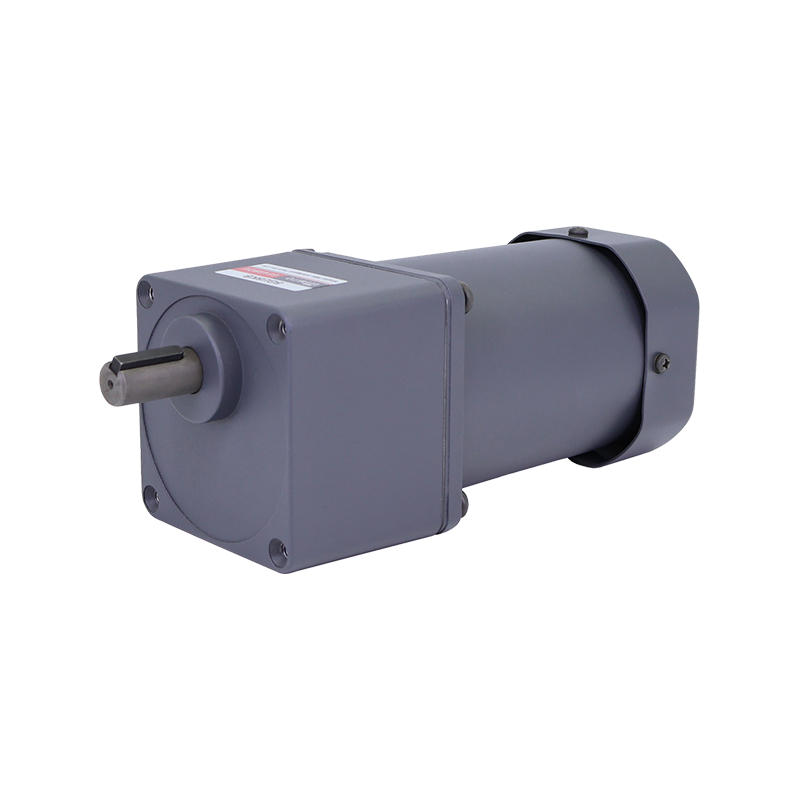

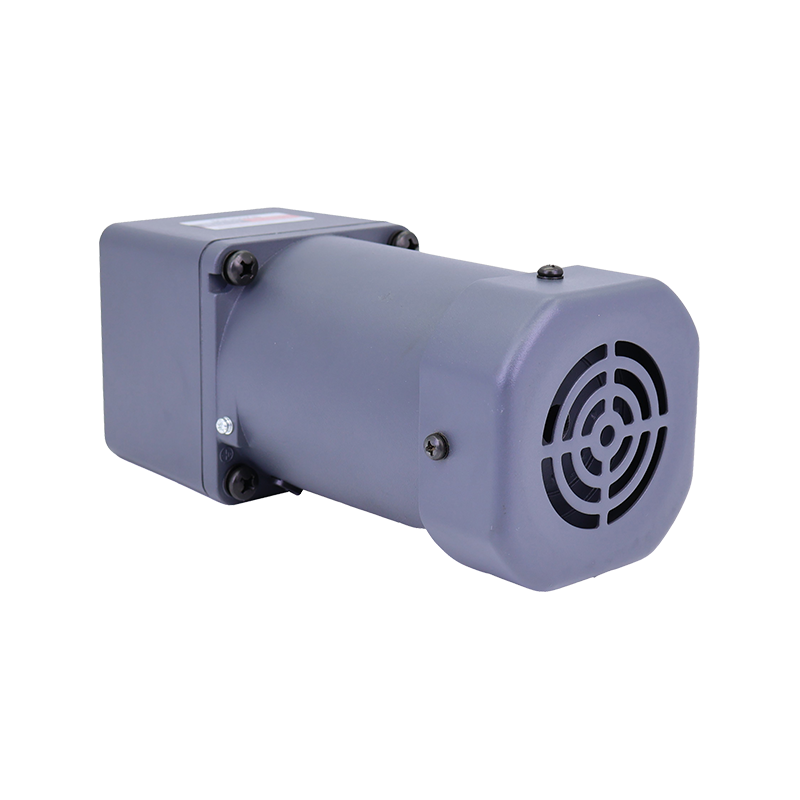

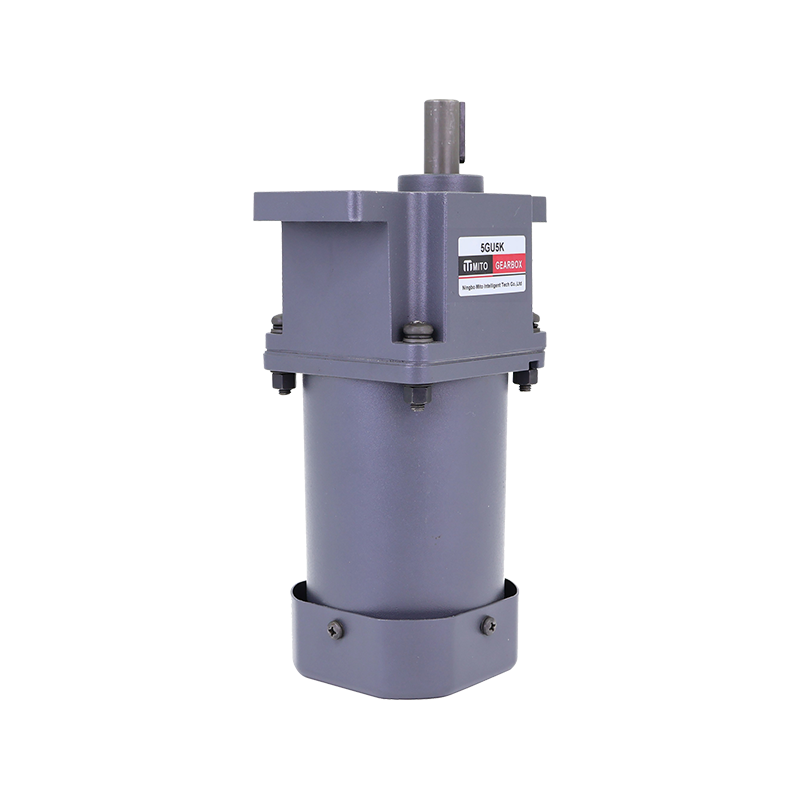

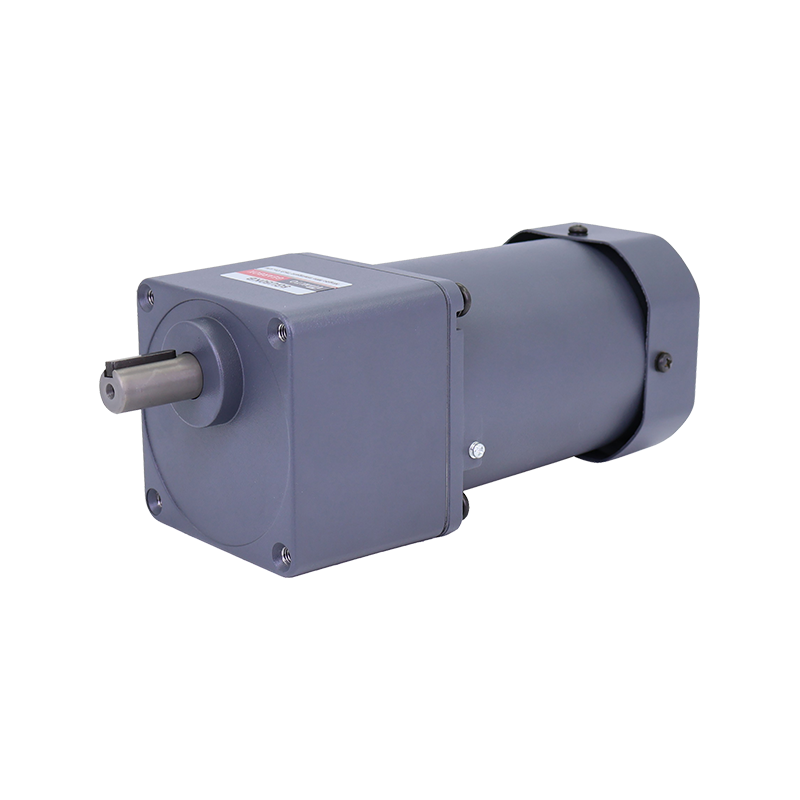

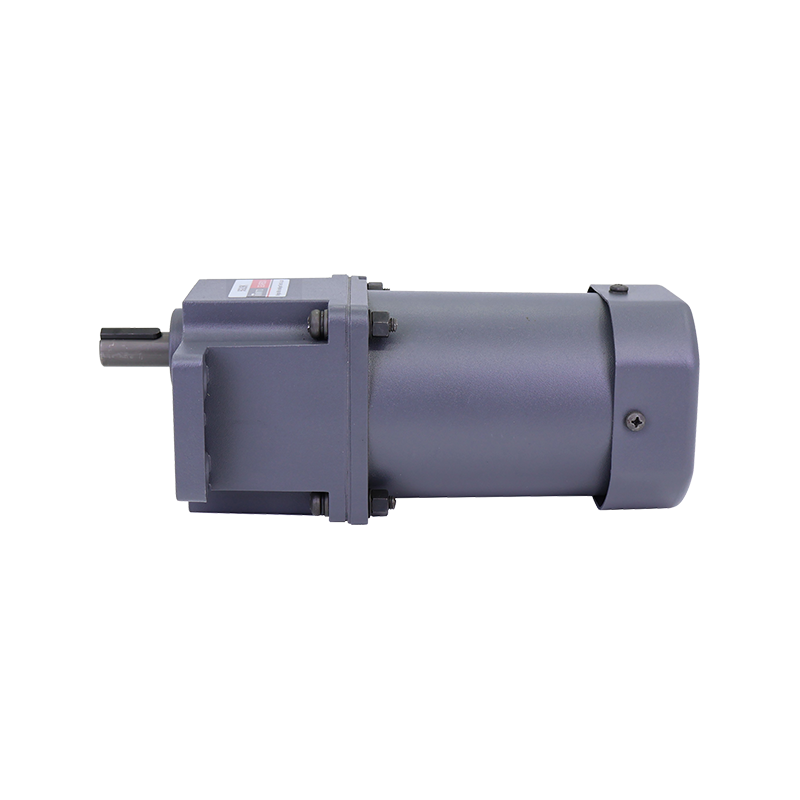

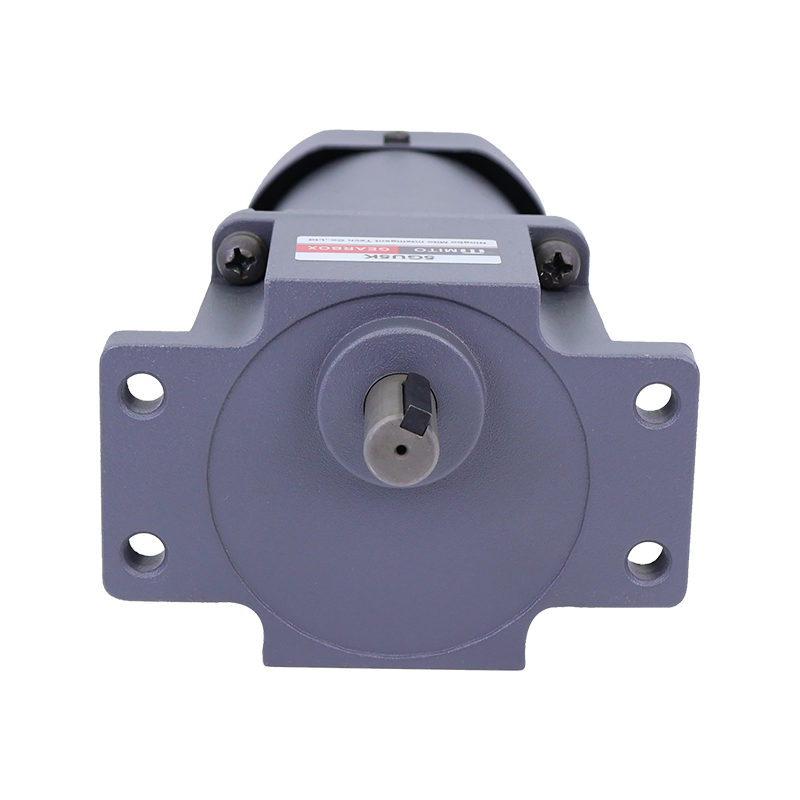

5IK 90mm 60W

AC Induction Motor

Motor Type: 5IK

Power: 60W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Shaft Type: GU shaft

PREV：5IK 90mm 90W NEXT：5IK 90mm 60W
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Model ·Type
Upper: Pinion Shaft
Below: Round Shaft		 Output
Power

W		 Voltage

V		 Frequency


Hz		 Current

A		 Starting
Torque

mN.m		 Rated
Torque

mN.m		 Rated
Speed

r/min		 Capacitor

μF

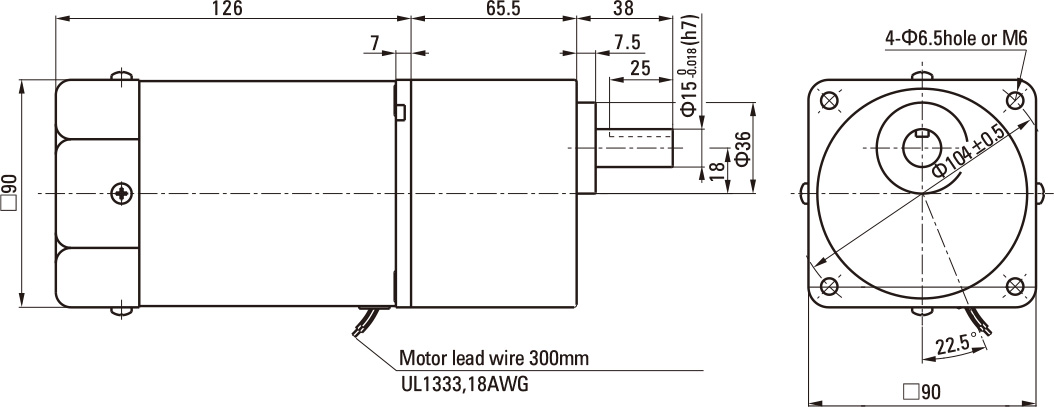

Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
5IK60GU-AF 5IK60GU-AFT 60  1ph 100 50  1.00  320  470  1250  20.0
60  1.10  380  1550
5IK60GU-EF 5IK60GU-EFT 60  1ph 110 60  0.80  300  380  1550  12.0
1ph 120 0.85
5IK60GU-CF 5IK60GU-CFT 60  1ph 220 50  0.50  340  470  1250  4.0
1ph 230 0.55
5IK60GU-HF 5IK60GU-HFT 60  1ph 220 60  0.50  340  380  1550  4.0
1ph 230 0.55
5IK60GU-SF 5IK60GU-SFT 60  3ph 220 50  0.45  1000  470  1250
60  0.40  800  380  1550
5IK60GU-S3F 5IK60GU-S3FT 60  3ph 380 50  0.26  1000  470  1250  -
60  0.23  800  380  1550

Allowance Torque

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5  9  10  12.5  15  18  20  25  30  36  40  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  150  120  100  83  75  60  50  41  37  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  180  144  120  100  90  72  60  50  45  36  30  24  20  18  15  12  10  9
5IK60GU-AFC
5IK60GU-EF□
5IK60GU-CF□
5IK60GU-HF□
5IK60GU-SF□
5IK60GU-S3F□		 5GU□KB
5GU□K		 50Hz 1.10  1.40  1.90  2.30  2.90  3.40  3.61  4.80  5.70  6.80  7.12  8.60  10.0  10.3  11.6  12.4  15.5  18.6  20.0  20.0  20.0  20.0  20.0  20.0
11.2  14.2  19.3  23.4  29.6  34.7  36.8  48.9  58.1  69.3  72.6  87.7  100  105  118  126  158  189  200  200  200  200  200  200
60Hz 0.92  1.10  1.50  1.80  2.30  2.80  3.01  3.80  4.60  5.50  5.73  6.90  8.30  8.30  9.70  10.0  12.5  15.0  18.8  20.0  20.0  20.0  20.0  20.0
9.38  11.2  15.3  18.3  23.4  28.5  30.7  38.7  46.9  56.1  58.4  70.1  84.7  84.6  98.9  102  127  153  192  200  200  200  200  200

Lead Wiring Type

Description
