400W

Three Phase Small AC Gear Motor

Motor Type: Horizonal&Vertical

Power: 1/2HP

Voltage: 1-Phase&3-Phase 220-380V

Gearbox Ratio:3-1800

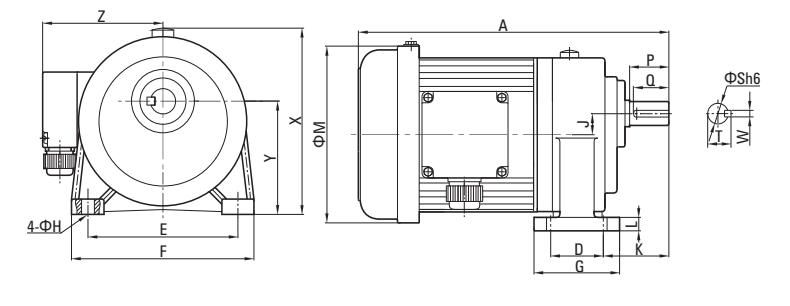

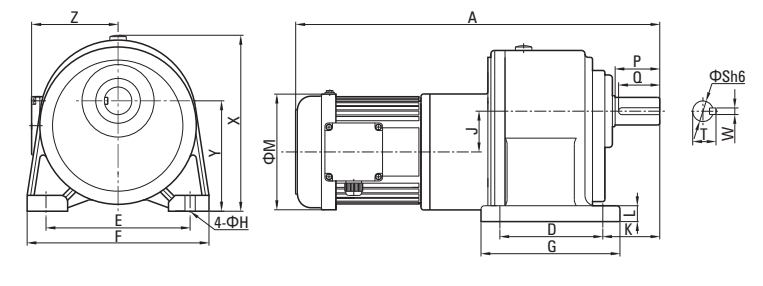

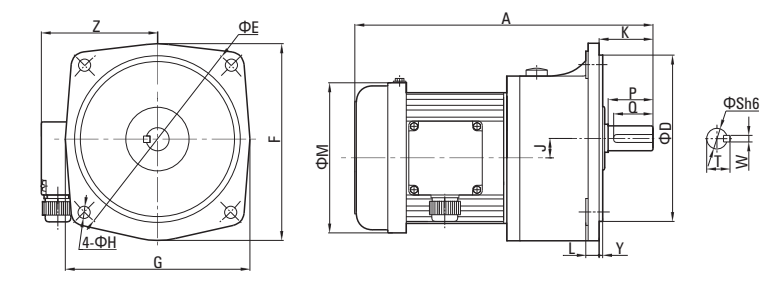

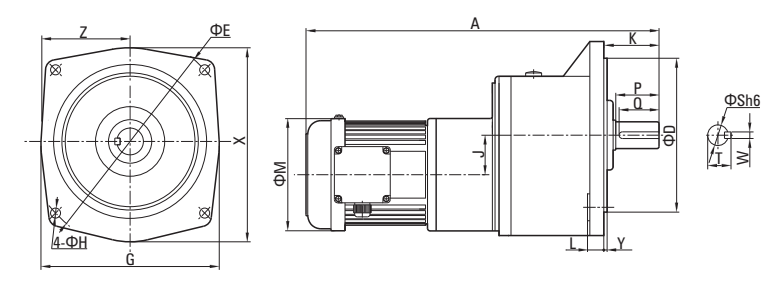

Motor Parameter Table

Power	Box Number	Ratio	A	D	E	F	G	H	J	K	L	M	X	Y	Z	S	P	Q	W	T	Weight
400W 1/2HP	2#	3-10 Standard type	320	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	146	168(/)	97.5(3)	114	22	40	35	7	25	11.5
	2#	15-90 Light duty type	320	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	146	168(/)	97.5(3)	114	22	40	35	7	25	11.5
	3#	15-90 Standard type	352	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	146	184(/)	116(3)	114	28	45	40	7	31.1	14.0
	3#	100-200 Light duty type	352	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	146	184(/)	116(3)	114	28	45	40	7	31.1	14.0
	4#	100-200 Standard type	396	130(185)	170(255)	210(239)	165(216)	13	30.0	70(66.5)	18(13)	146	216(/)	138.5(3)	114	32	55	50	10	35.5	27.0
	4#	250-1800 Light duty type (2#+4#)	469	130(185)	170(255)	210(239)	165(216)	13	47.5	70(66.5)	18(13)	146	216(/)	138.5(3)	114	32	55	50	10	35.5	30.0
	5#	250-1800 Standard type (3#+5#)	539	150(230)	210(310)	265(277)	203(255)	15	59	83	20(18)	146	255(/)	160(5)	114	40	65	60	10	43.5	46.0
	5#	Light duty type	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/

Allowance Torque

Power

Box

Number

Type

Speed frequency ratio

100

120

140

160

180

200

400W

1/2HP

Standard type

50Hz

0.70

1.10

2.30

60Hz

0.60

0.90

1.90

Light duty type

50Hz

3.00

4.10

5.10

6.10

8.10

9.10

10.1

10.3

60Hz

2.50

3.30

4.20

5.00

6.70

7.50

8.40

10.3

Standard type

50Hz

3.40

4.50

5.60

6.10

8.10

9.10

10.1

12.2

14.2

16.2

18.3

60Hz

2.80

3.70

4.60

5.0

6.70

7.50

8.40

10.0

11.7

13.4

15.0

Light duty type

50Hz

20.3

22.9

60Hz

16.7

20.1

22.9

Standard type

50Hz

20.3

24.4

28.4

32.5

36.5

40.6

60Hz

16.7

20.1

23.4

26.7

30.1

33.4

Light duty type

50Hz

60Hz

Power	Box Number	Type	Speed frequency ratio	250	300	350	400	450	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700	1800
400W 1/2HP	2#+4#	Light duty type	50Hz	27.1	27.1	27.1	27.1	27.1	27.1	27.1	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8
	2#+4#	Light duty type	60Hz	27.1	27.1	27.1	27.1	27.1	27.1	27.1	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8	51.8
	3#+5#	Standard type	50Hz	52.0	52.0	52.0	52.0	52.0	52.0	52.0	52.0	52.0	83.7	83.7	83.7	83.7	83.7	83.7	83.7	83.7	83.7	83.7
	3#+5#	Standard type	60Hz	52.0	52.0	52.0	52.0	52.0	52.0	52.0	52.0	52.0	83.7	83.7	83.7	83.7	83.7	83.7	83.7	83.7	83.7	83.7
