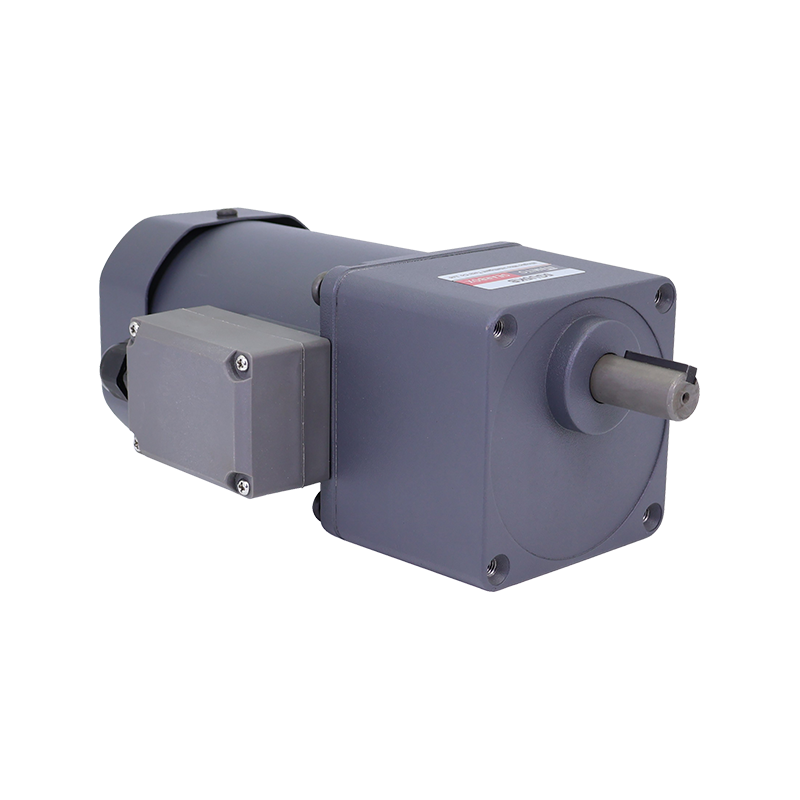

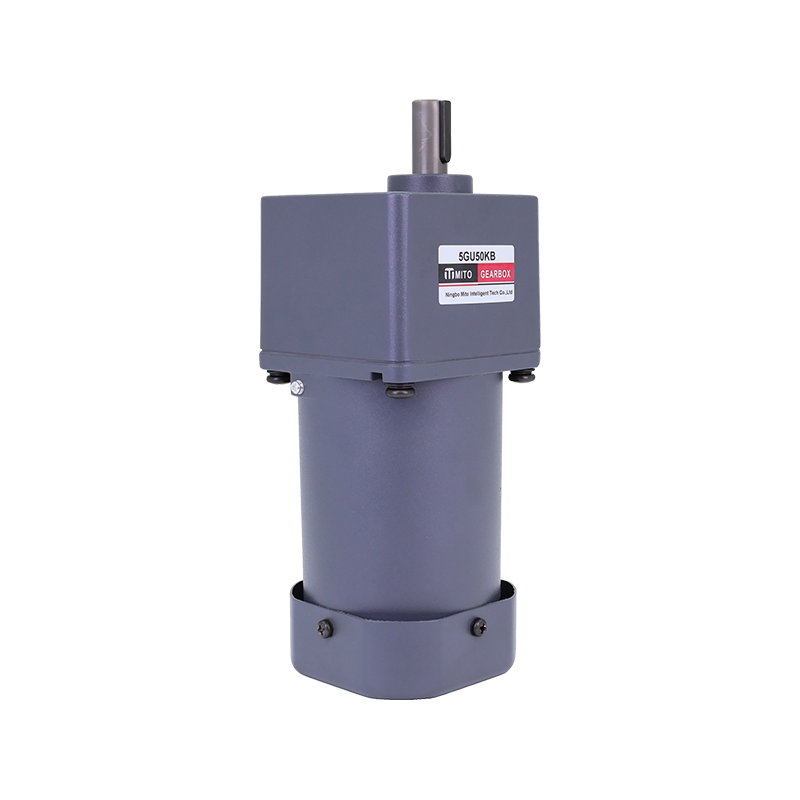

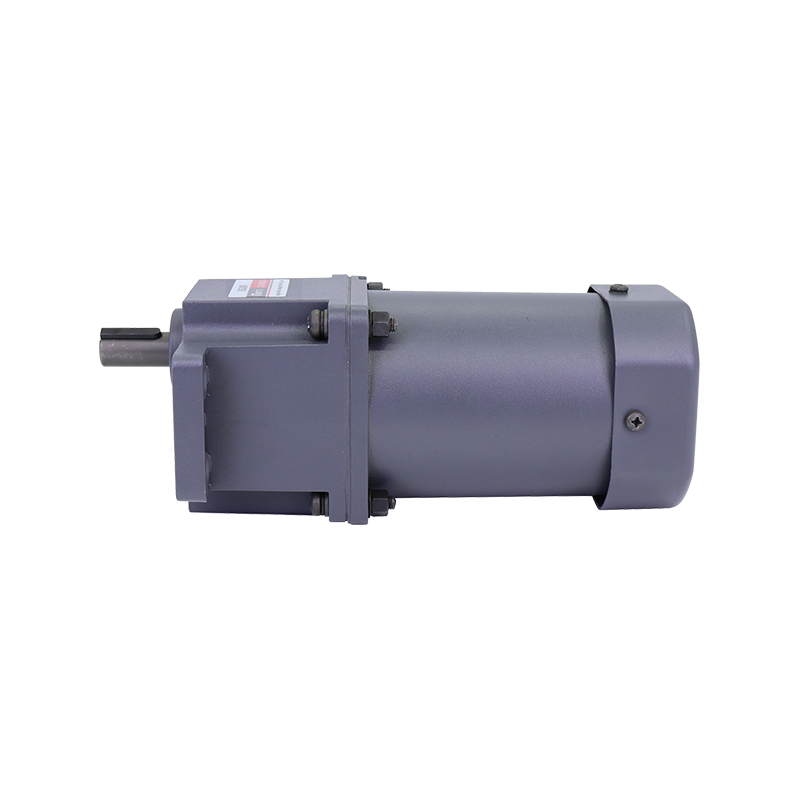

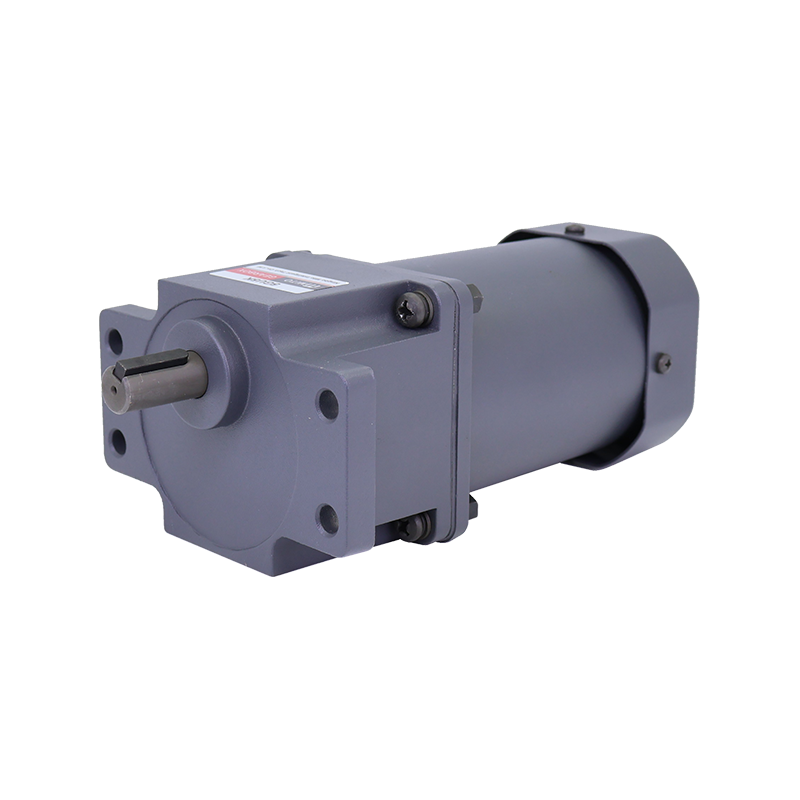

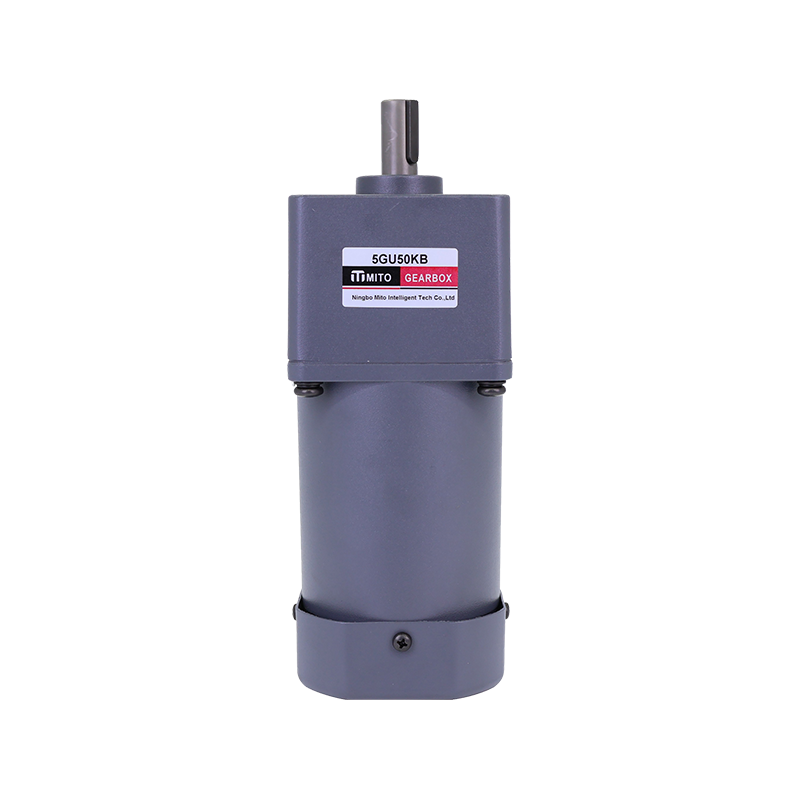

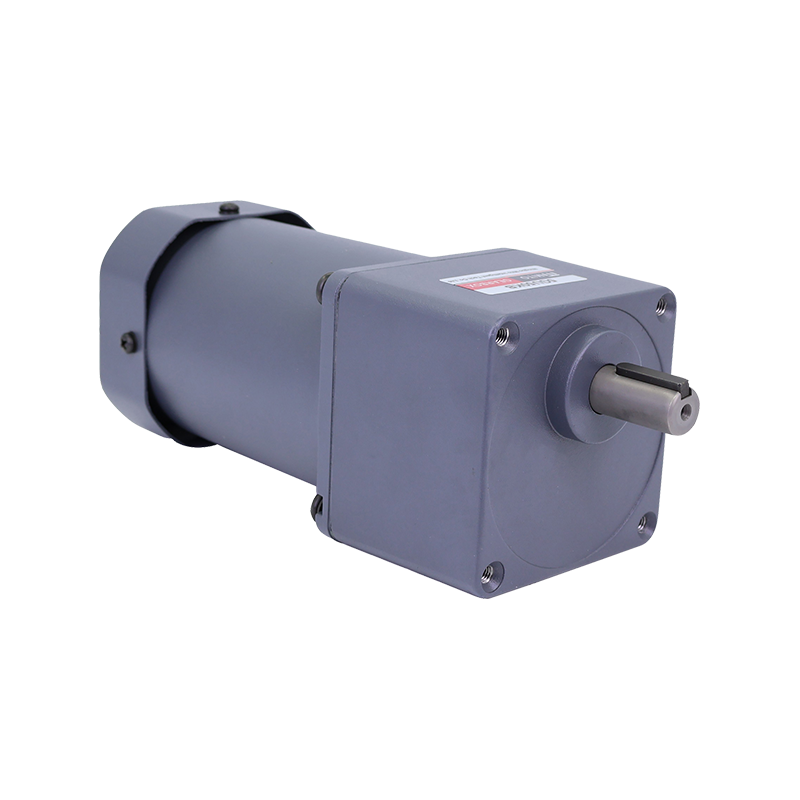

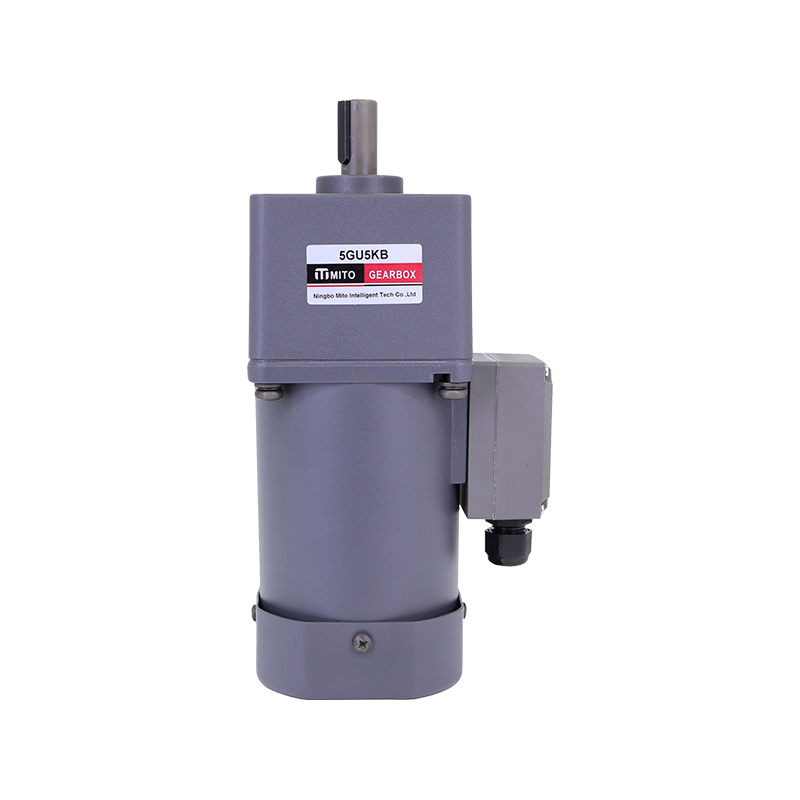

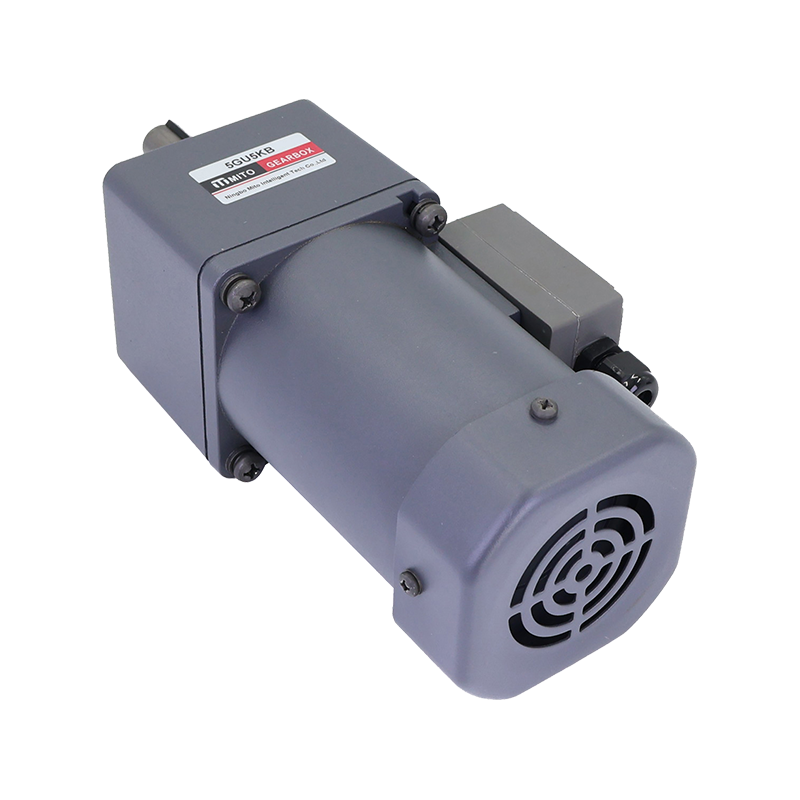

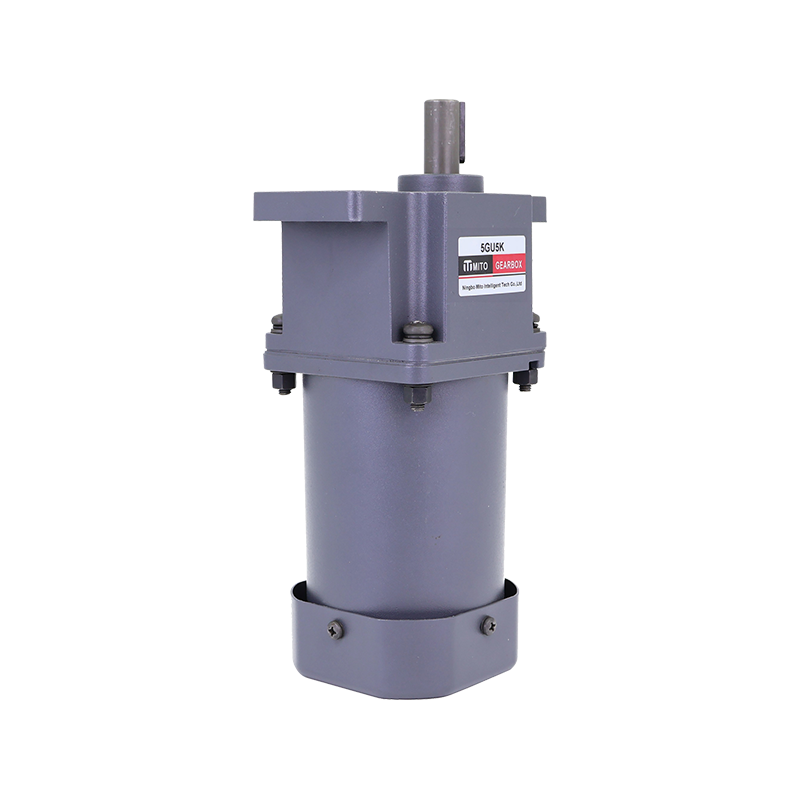

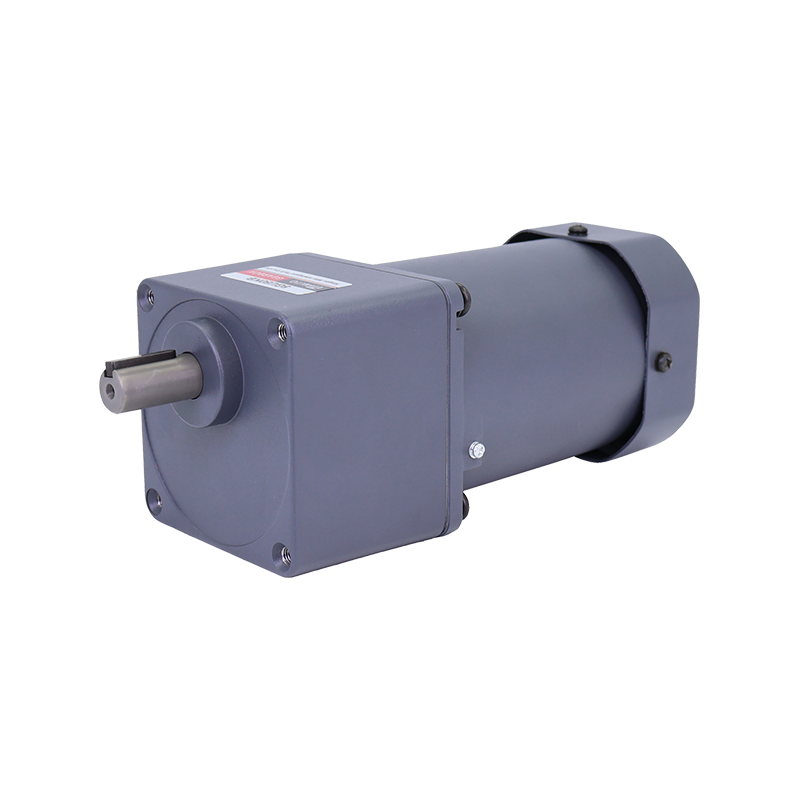

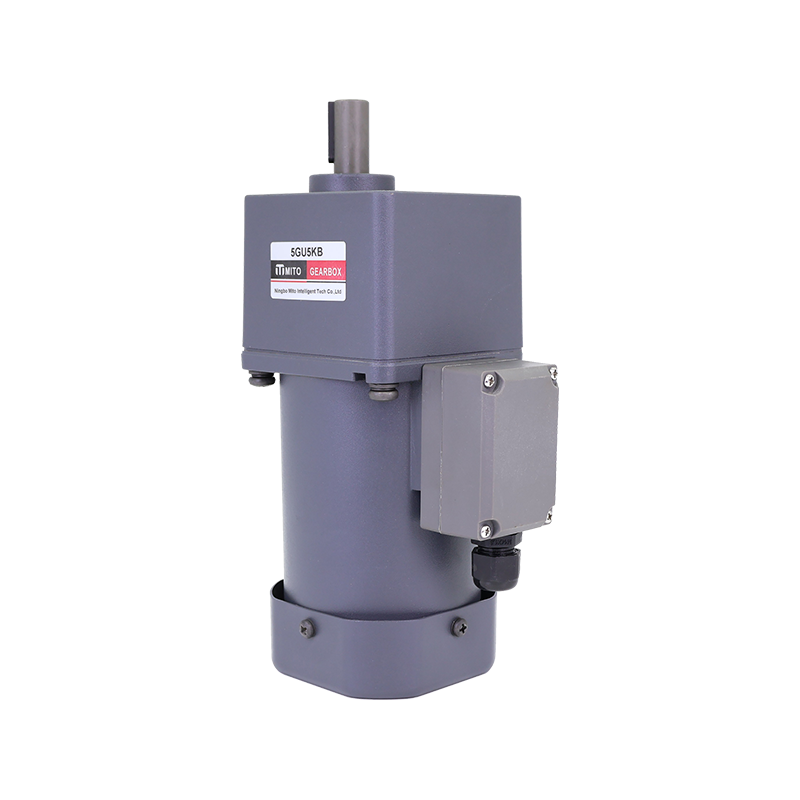

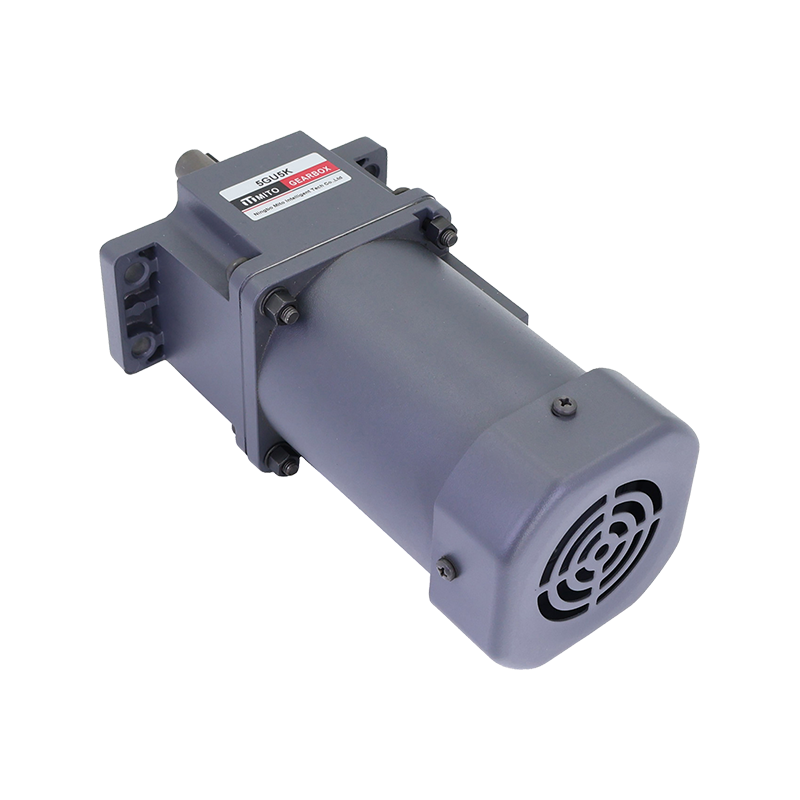

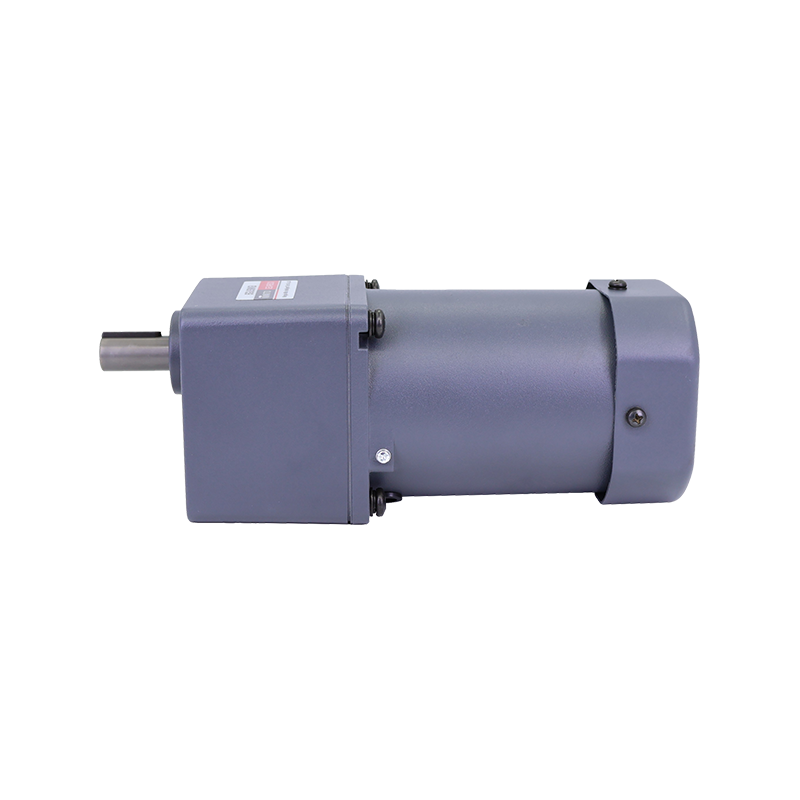

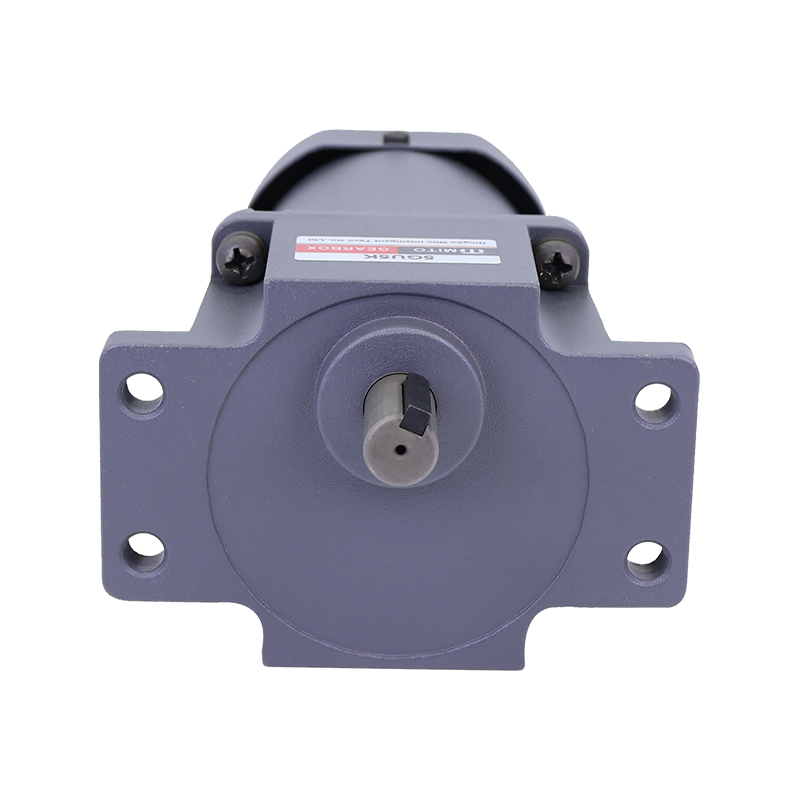

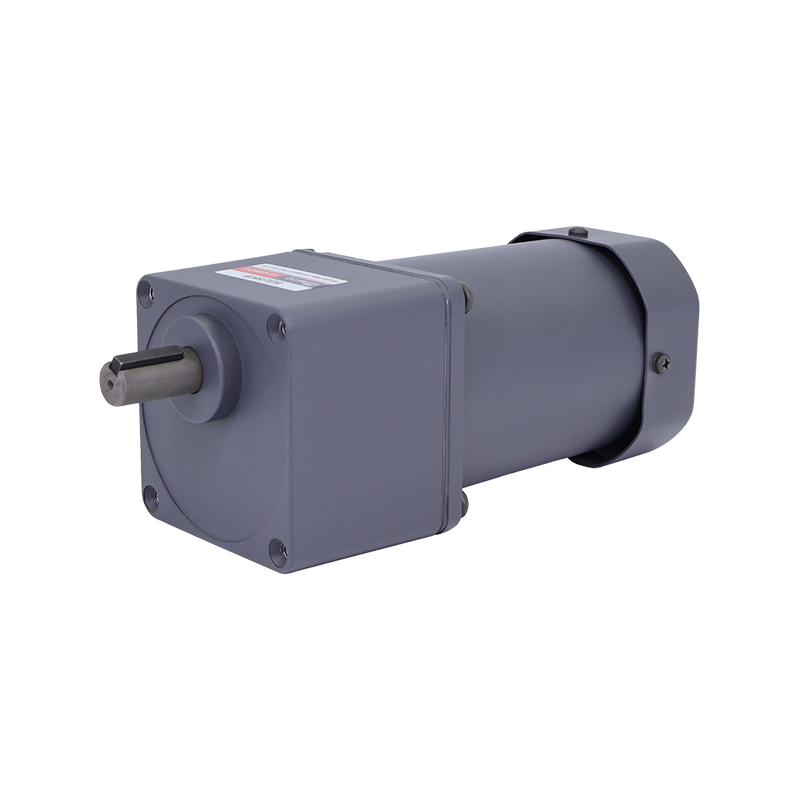

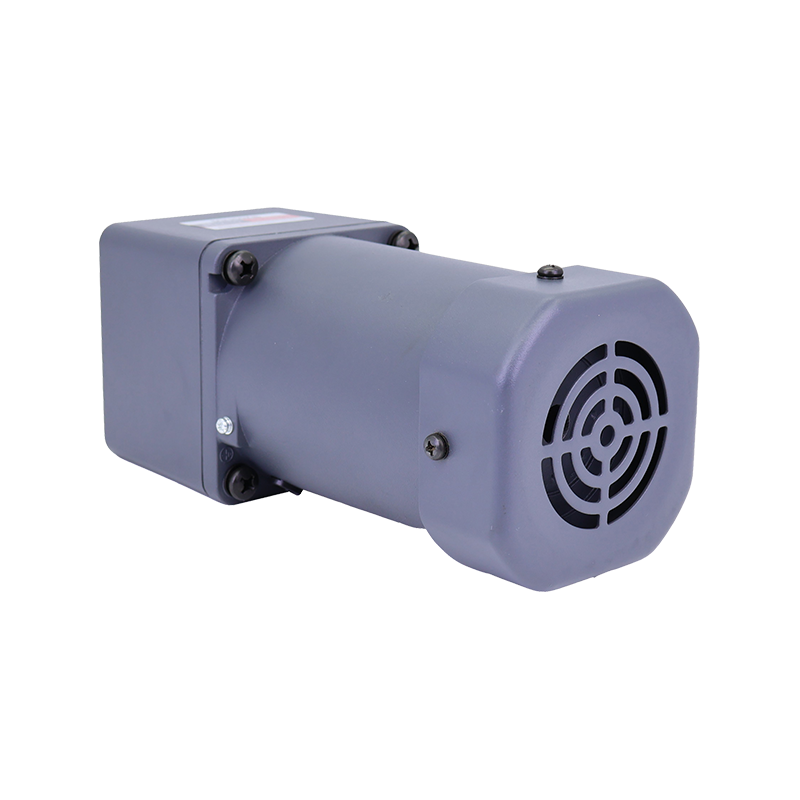

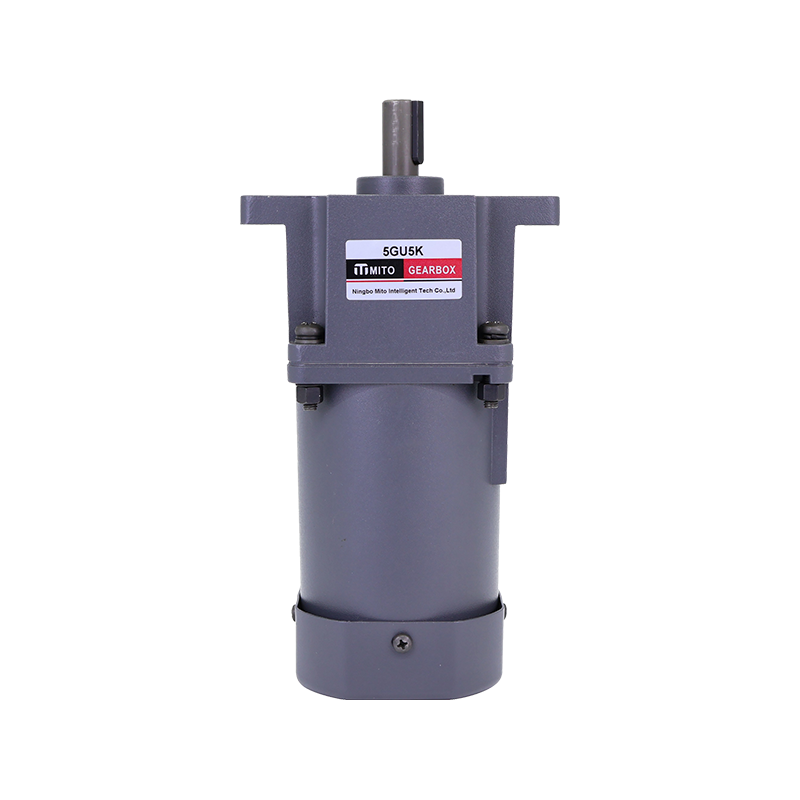

5IK 90mm 90W

AC Induction Motor

Motor Type: 5IK

Power: 90W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Upper: Pinion Shaft Below: Round Shaft		Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
5IK90GU-AF (5IK90A-AF)	5IK90GU-AFT (5IK90A-AFT)	90	1ph 100	50	1.55	450	700	1250	25.0
				60	1.85		570	1550
5IK90GU-EF (5IK90A-EF)	5IK90GU-EFT (5IK90A-EFT)	90	1ph 110	60	1.40	500	570	1550	20.0
			1ph 120		1.45
5IK90GU-CF (5IK90A-CF)	5IK90GU-CFT (5IK90A-CFT)	90	1ph 220	50	0.72	450	700	1250	5.0
			1ph 230		0.70
5IK90GU-HF (5IK90A-HF)	5IK90GU-HFT (5IK90A-HFT)	90	1ph 220	60	0.71	450	570	1550	5.0
			1ph 230		0.75
5IK90GU-SF (5IK90A-SF)	51K90GU-SFT (5IK90A-SFT)	90	3ph 220	50	0.60	1350	700	1250
				60	0.55	1100	570	1550
5IK90GU-S3F (5IK90A-S3F)	5IK90GU-S3FT (5IK90A-S3FT)	90	3ph 380	50	0.35	1350	700	1250
				60	0.32	1100	570	1550

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
5IK90GU-AF□ 5IK90GU-EF□ 5IK90GU-CF□ 5IK90GU-HF□ 5IK90GU-SF口	5GU□KB 5GU□K	50Hz	1.10	2.00	2.80	3.40	4.30	5.10	5.31	6.40	7.70	9.20	9.55	11.6	13.6	16.6	18.1	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
		50Hz	7.3	20.4	28.6	34.7	43.9	52.0	54.2	65.3	78.6	93.3	97.4	118	142	169	184	200	200	200	200	200	200	200	200	200
		60Hz	1.40	1.70	2.30	2.80	3.50	4.20	4.43	5.2	6.20	7.50	7.81	9.40	11.3	13.5	14.5	18.8	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
		60Hz	14.3	17.3	23.5	28.6	35.7	42.9	45.2	53.1	63.3	76.5	79.6	95.9	115	138	148	192	200	200	200	200	200	200	200	200

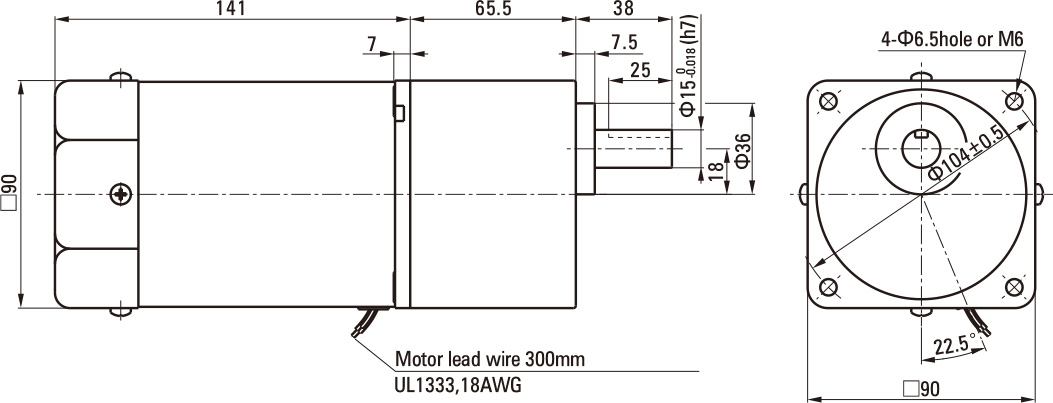

Lead Wiring Type

Description

The micro motor with optional gearbox is built on a 5IK structure, with a rated power of 90W, providing ample driving force for equipment while maintaining a compact form factor. It supports a wide voltage input of 110–380V, enabling its application in various industrial environments and power supply systems in different regions, reducing limitations caused by voltage matching. The motor can be paired with gearboxes ranging from 3–200K, allowing users to select the appropriate reduction ratio based on actual operating conditions, thus achieving flexible power output in high-speed, low-speed, steady-speed, or high-torque scenarios. The gearbox uses precision-manufactured gear sets for smooth meshing, balancing transmission efficiency and maintaining relatively stable operation, especially at high reduction ratios.
The motor employs an induction motor structure, possessing stable speed characteristics and good continuous operation capability. The start-up process is smooth, reducing the risk of sudden shocks. The optimized winding design helps control temperature rise during long-term operation, ensuring the overall machine maintains ideal stability under continuous working conditions. The compact and robust housing structure is suitable for installation in space-constrained equipment and provides multi-directional mounting holes for easy fixation in different mechanical layouts. With its adaptability thanks to its 90W power output, this motor can be used in small conveyor applications, lightweight automated equipment, motion modules for experimental devices, and continuous motion units for demonstration mechanisms. When paired with gearboxes of different reduction ratios, it demonstrates stable output characteristics in low-speed control, cycle time, and light-load mechanical propulsion.
