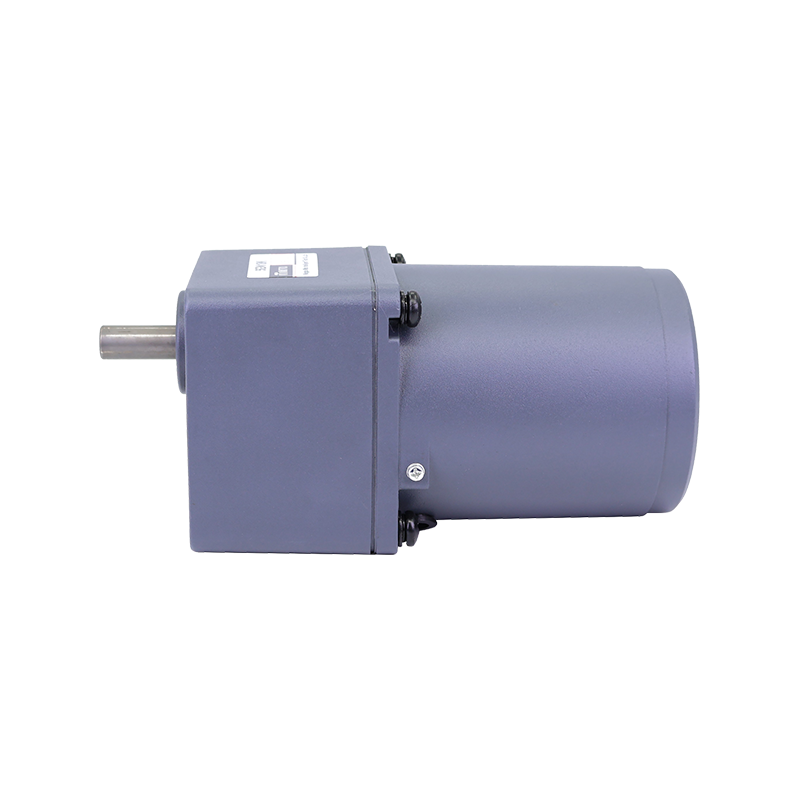

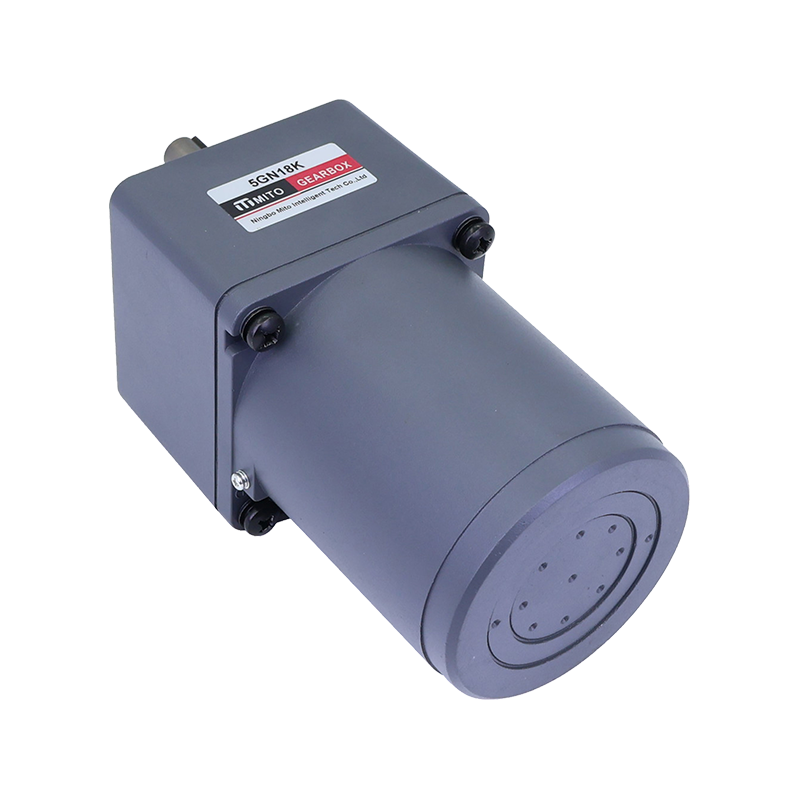

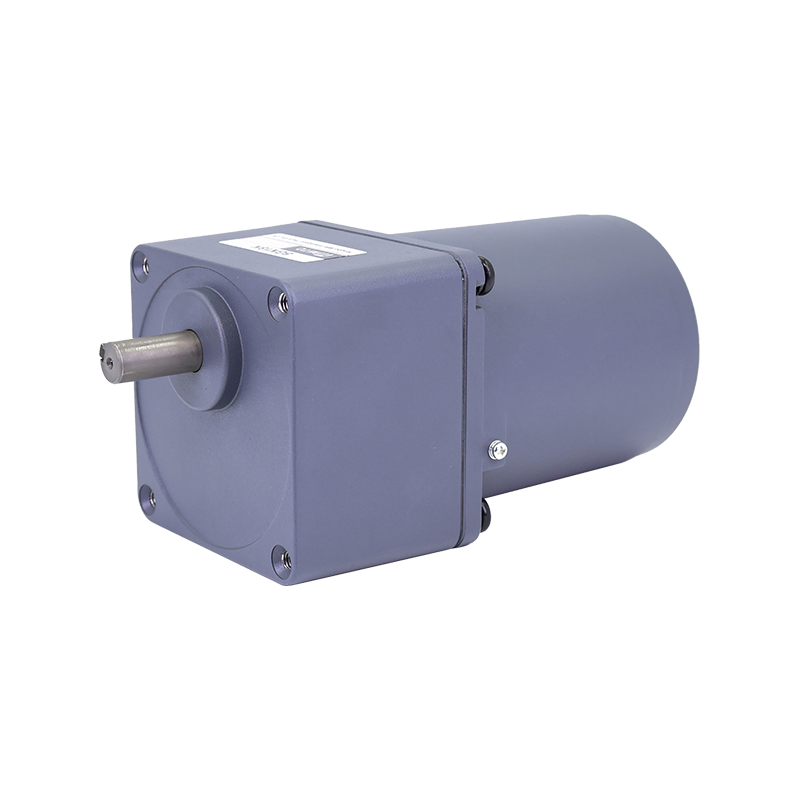

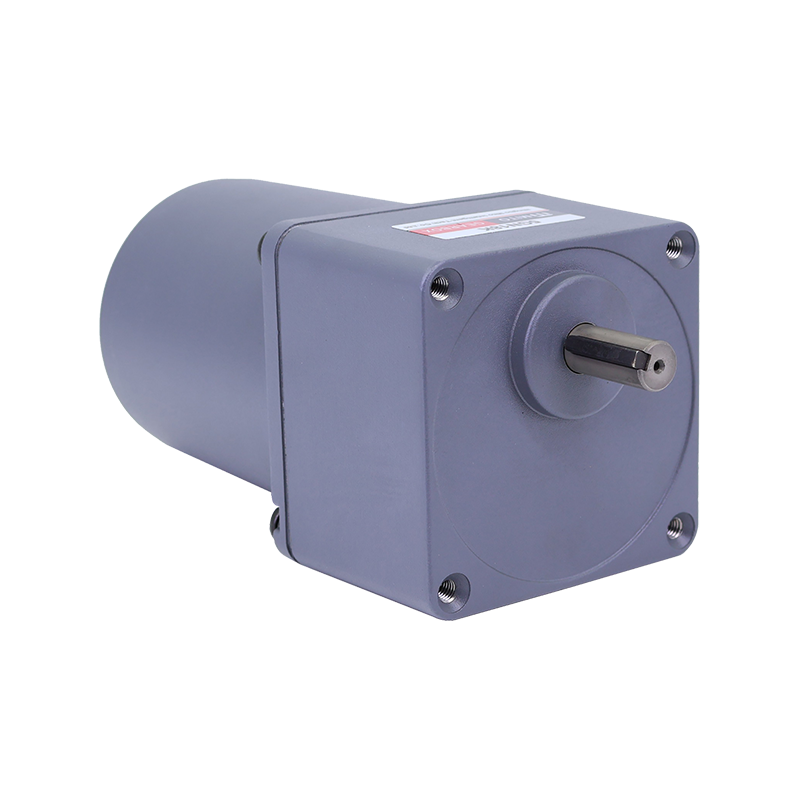

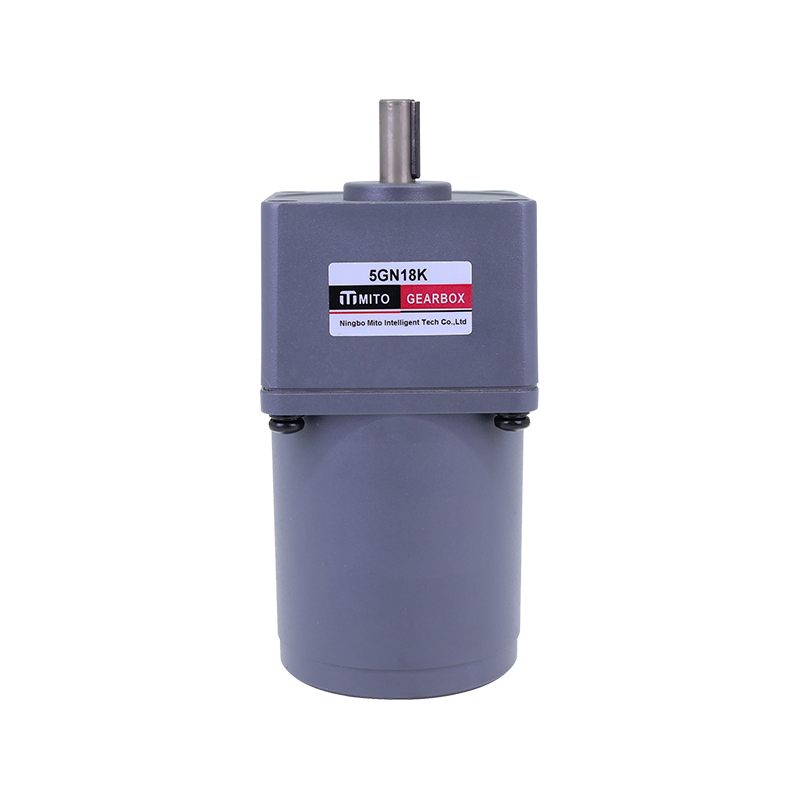

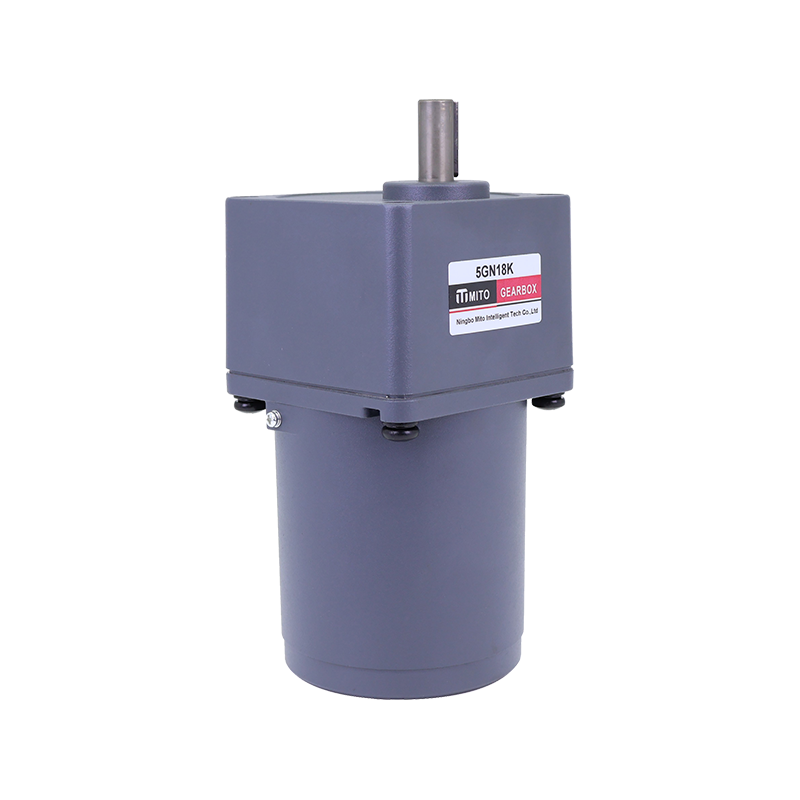

5IK 90mm 60W

Lead Wiring Type

Description

The micro induction motor with gear reducer features a 5IK structure and a 60W rated power configuration, supporting 110–380V voltage input to meet the power supply requirements of different regions and equipment, reducing the hassle of additional power supply configurations. Equipped with a reducer ranging from 3–200K, the motor allows for wide-range speed adaptation, especially at low speeds, maximizing torque utilization and maintaining smooth power output during continuous operation, intermittent operation, and frequent start-stop cycles. The GN-type output shaft features a robust end structure and excellent installation adaptability, facilitating direct connection to various mechanical structures and reducing the need for adapters or additional support structures.
The internal induction design ensures stable operation, low noise, and smooth performance from start-up to stable speed. The optimized winding layout improves heat dissipation efficiency, allowing for better temperature control during continuous operation and enhancing overall durability. The reducer is made of precision-machined gears with meticulously treated meshing surfaces, ensuring a relatively uniform force distribution during transmission and maintaining good transmission efficiency even under high reduction ratio conditions.
