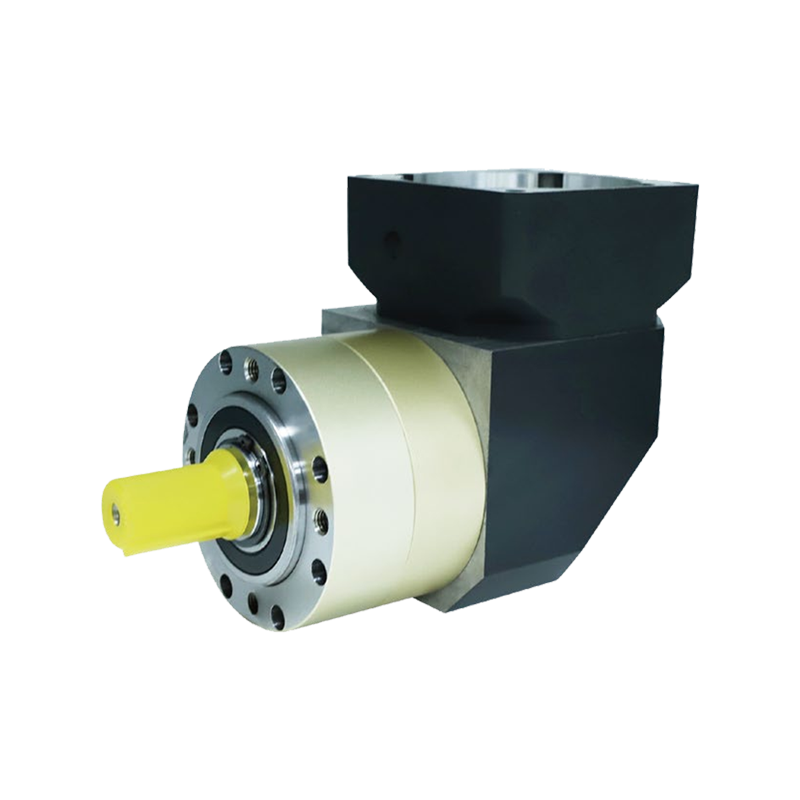

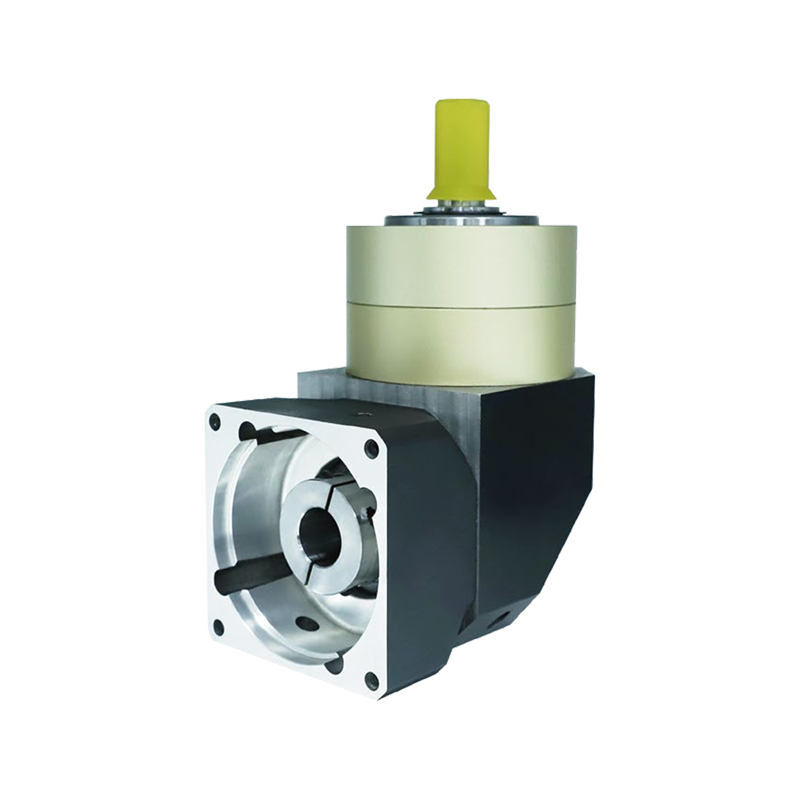

ZPLE Series Planetary Gearbox

Spur Series Planetary Gearbox

Product Type: Spur Gear Planetary Gearbox

Product Size: 60-160

Reduction Ratio: Stage 1:3-10
                            Stage 2:12-100
                            Stage 3:64-1000

Backlash: Stage 1: ≤25 arcmin
                  Stage 2: ≤30 arcmin
                  Stage 3: ≤35 arcmin

PREV：ZPLF Series Planetary GearboxNEXT：PLF Series Planetary Gearbox
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Reducer Rotation Inertia Gauge Table

Specification

Unit

Stage

Ratio

ZPLE60

ZPLE80

ZPLE120

ZPLE160

Rotational inertia meter

kg/cm²

1

3

0.064

0.77

2.63

12.14

4

0.064

0.77

2.63

12.14

5

0.064

0.77

2.63

12.14

7

0.064

0.77

2.63

12.14

8

0.77

2.63

12.14

10

0.064

0.77

2.63

12.14

2

12-40

0.064

0.50

2.63

12.14

50-100

0.064

0.50

2.63

12.14

Allowance Torque

ZPLE Series Performance Table

Specification

Unit

Stage

Ratio

ZPLE60

ZPLE80

ZPLE120

ZPLE160

Rated output torque T2N

Nm

1

4

42

142

280

585

5

42

142

280

585

7

33

92

198

378

10

15

54

95

310

2

16

42

142

280

585

20

42

142

280

585

25

42

142

280

585

35

42

142

280

585

40

42

142

280

585

50

42

142

280

585

70

33

92

198

378

100

15

54

95

310

3

64

42

142

280

585

80

42

142

280

585

100

42

142

280

585

125

42

142

280

585

140

42

142

280

585

175

42

142

280

585

245

42

142

280

585

350

42

142

280

585

400

42

142

280

585

500

42

142

280

585

700

33

92

198

378

1000

15

54

95

310

Max  torque T2NOT

Nm

1,2,3

Double-rated output torque

Max radial force F2aB

N

1,2,3

680

1750

3100

6550

Max axial force F2aB

1,2,3

340

875

1550

3275

Efficiency

%

1

98

2

96

3

94

Weight

kg

1

1.0

3.1

7.4

22

2

1.5

3.8

9.2

27.7

3

2.0

5.0

9.8

29

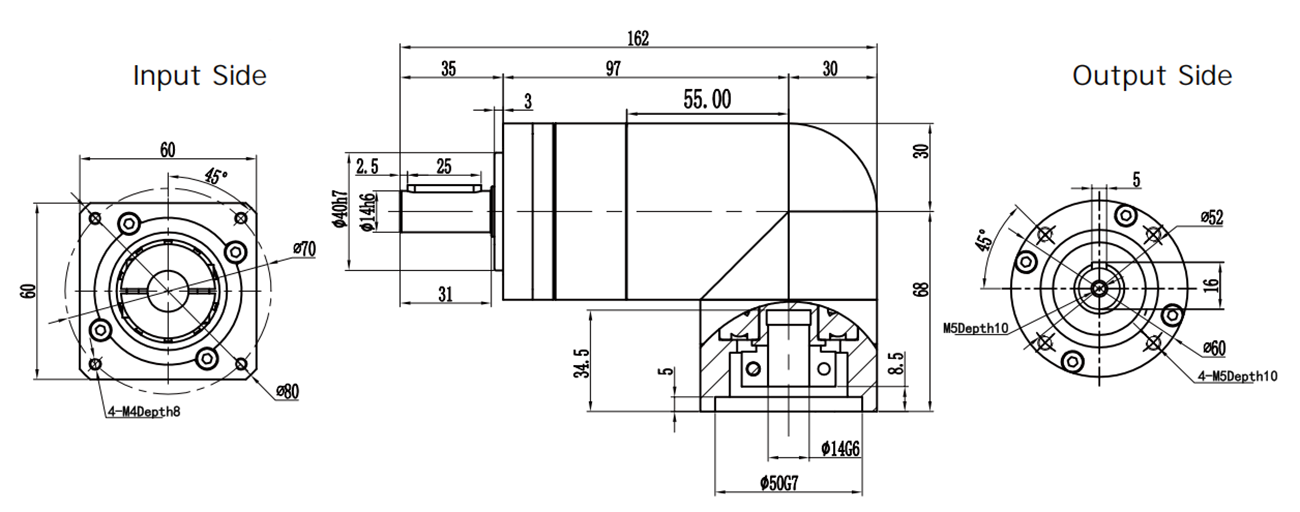

ZPLE60 Two-Stage Outline Diagram

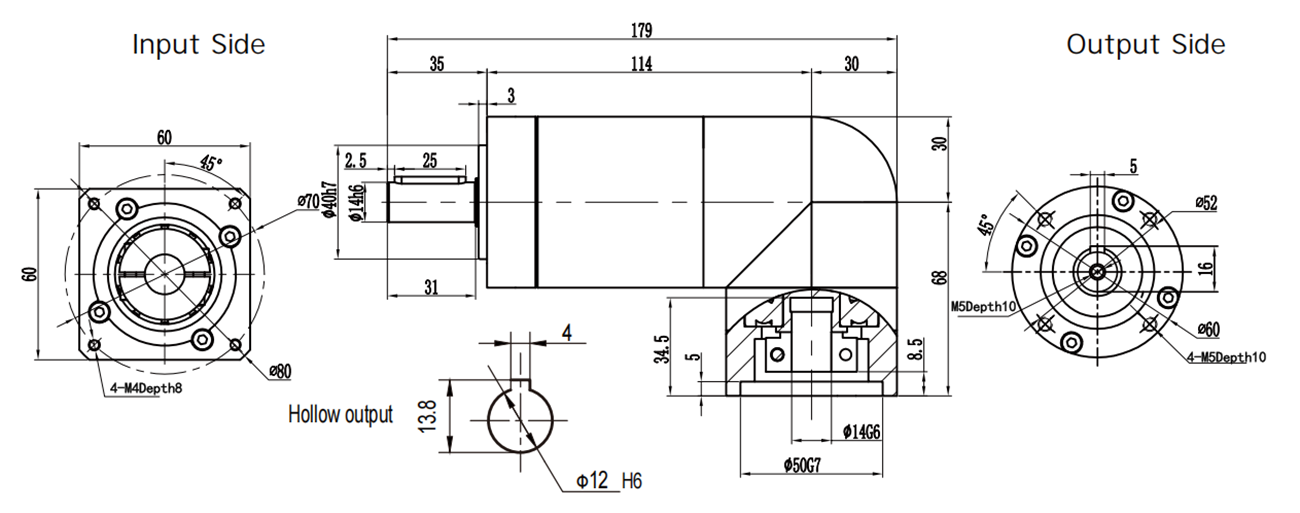

ZPLE60 Three-Stage Outline Diagram

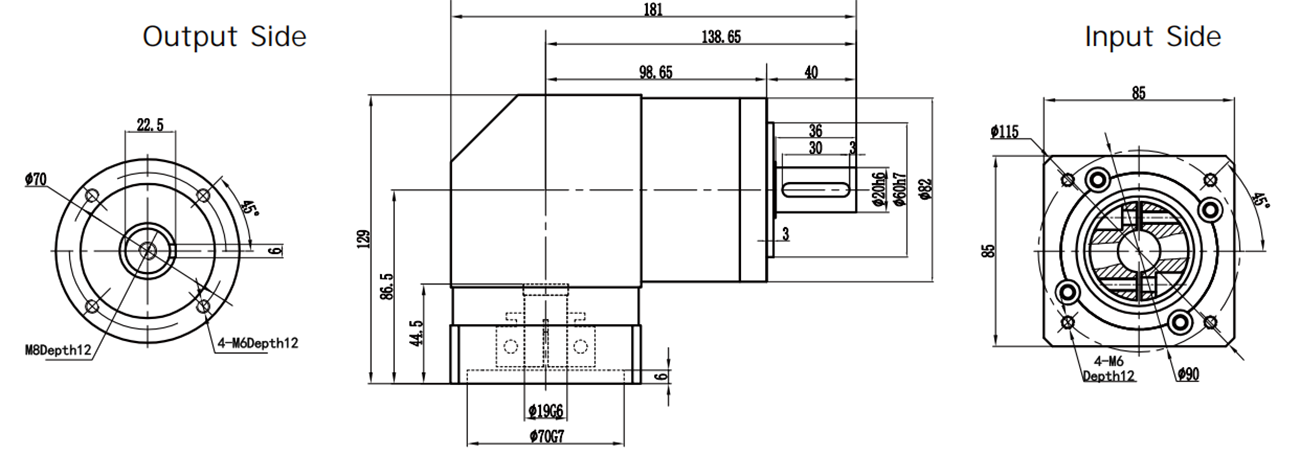

ZPLE80 One Stage Outline Diagram

Lead Wiring Type

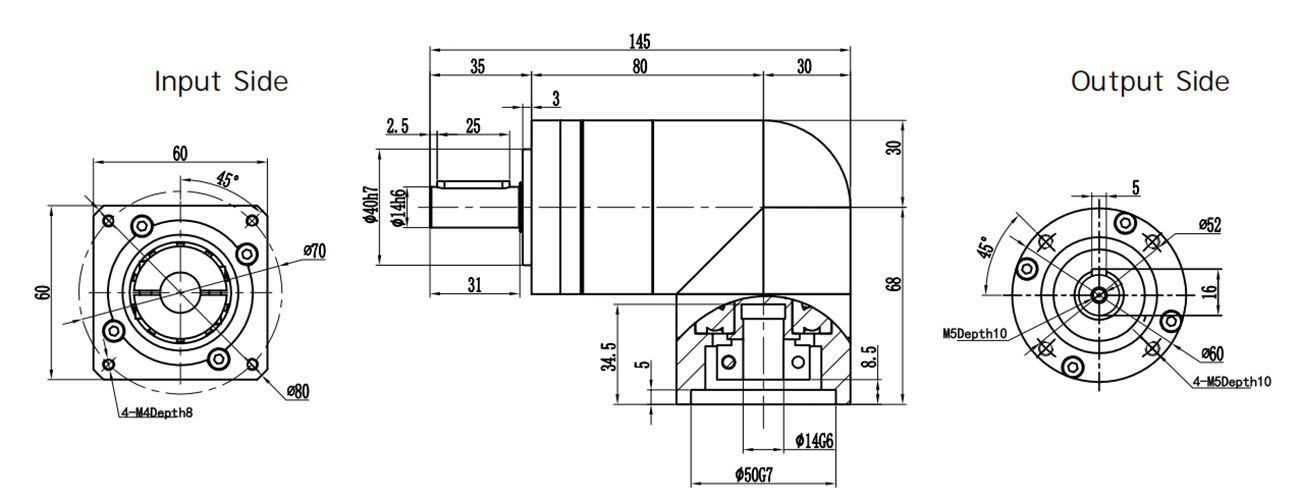

ZPLE60 One Stage Outline Diagram
