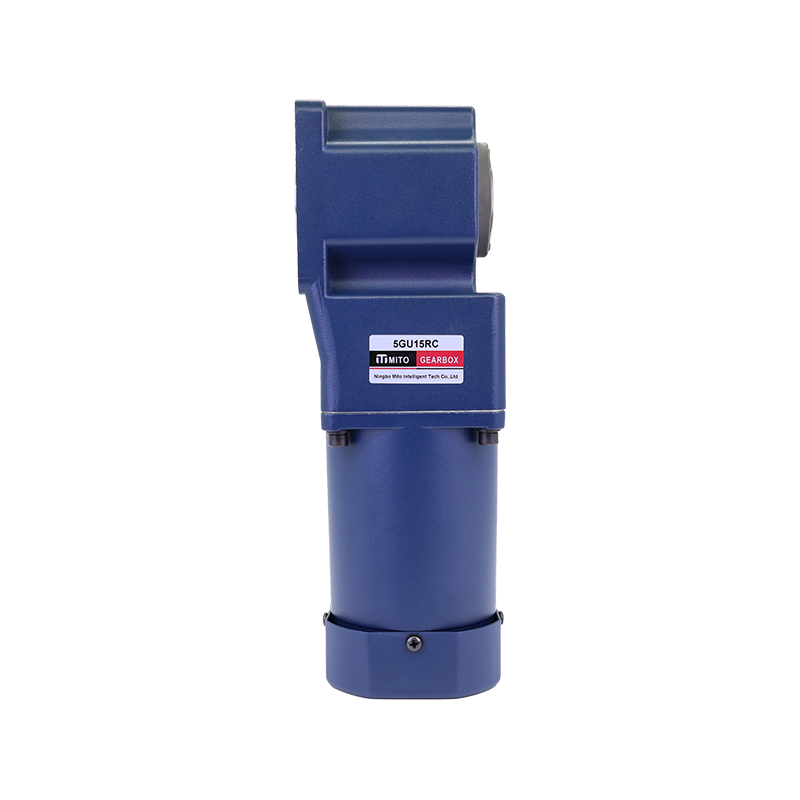

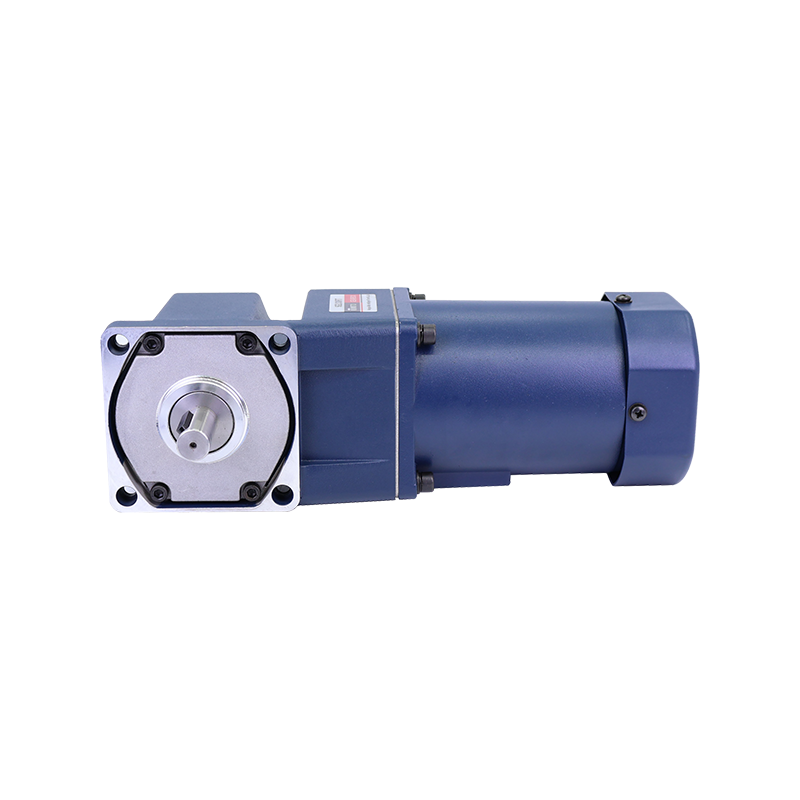

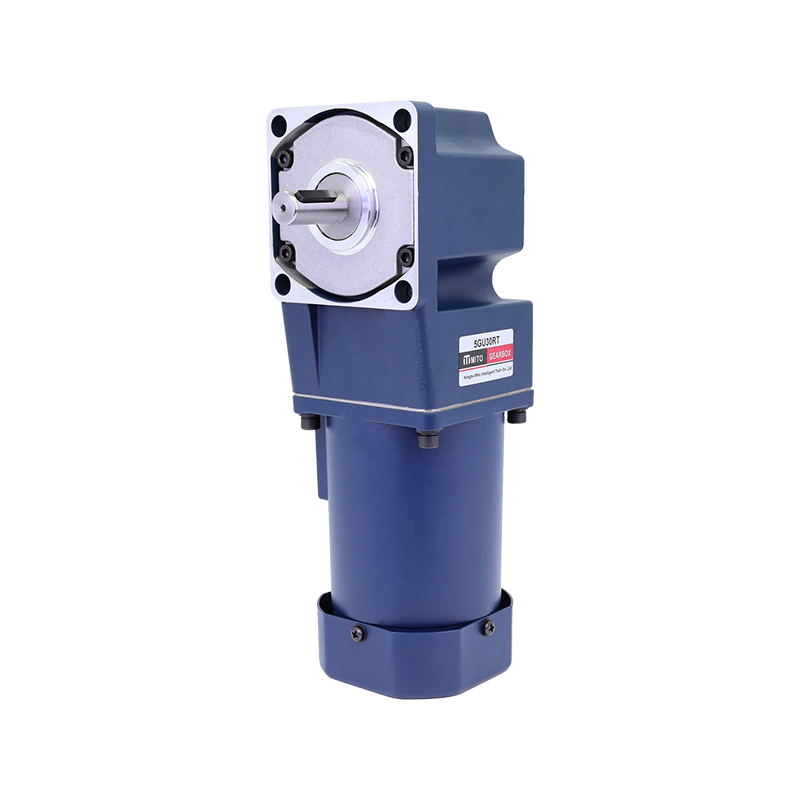

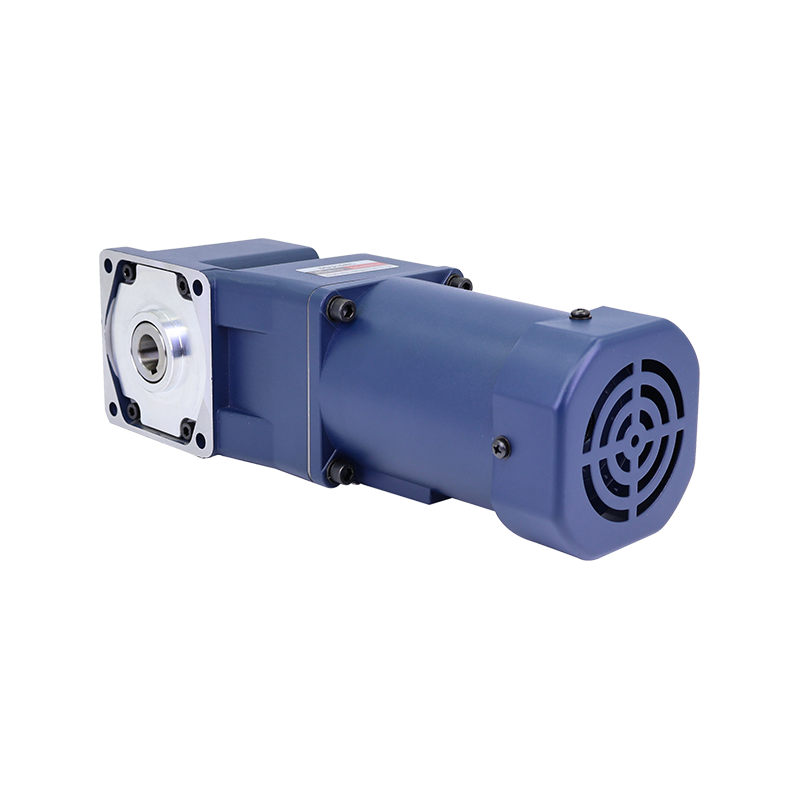

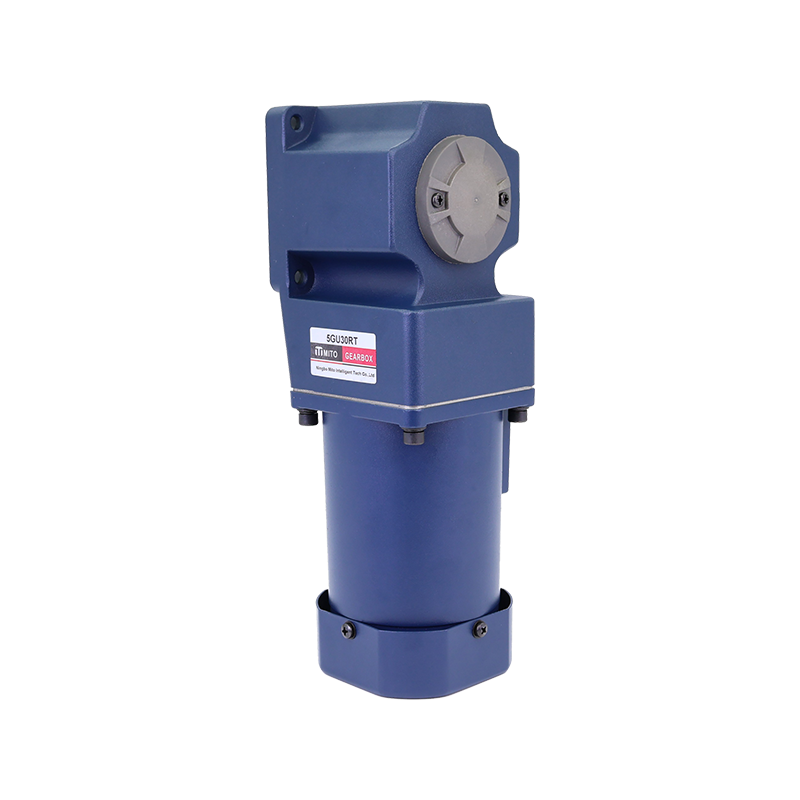

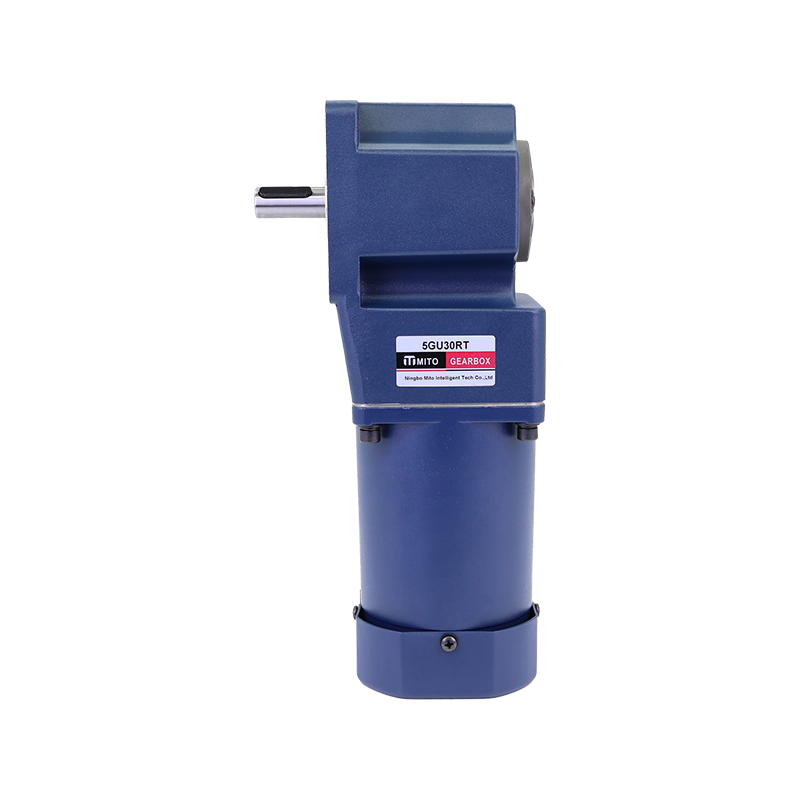

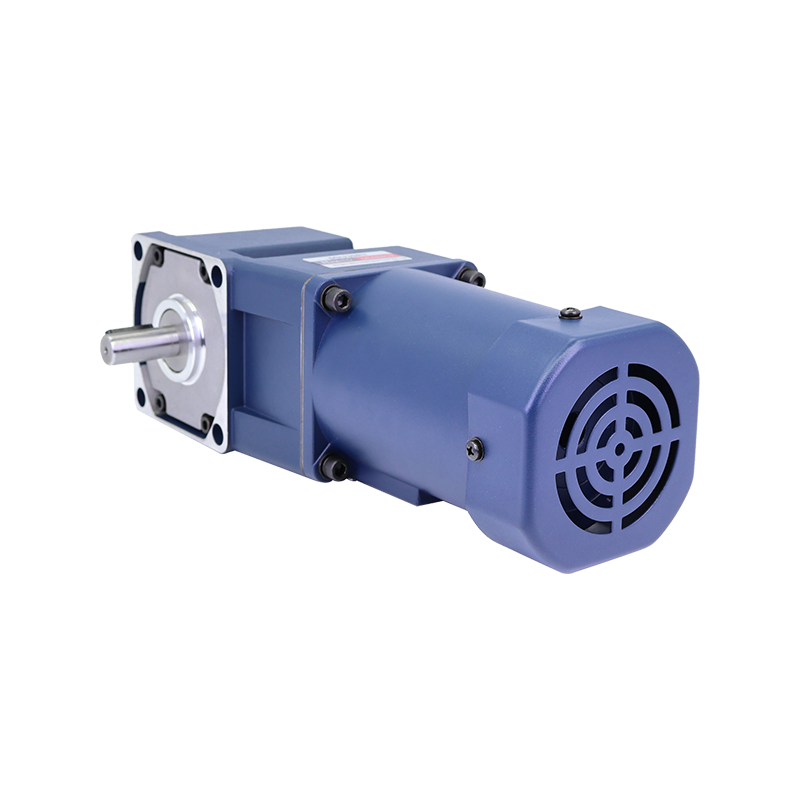

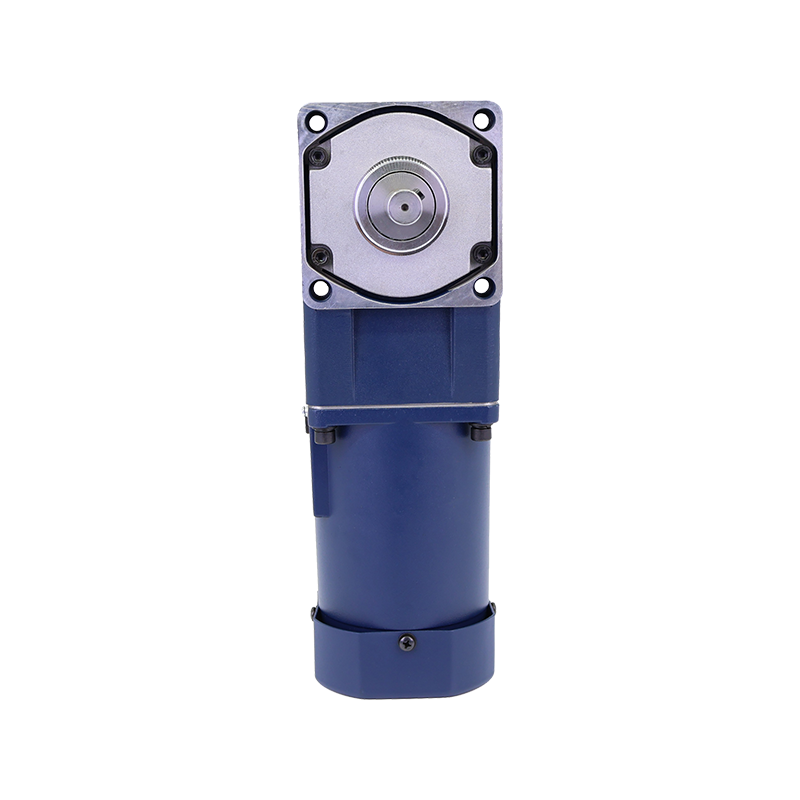

5IK 90mm 40W

Speed Control Motor

Motor Type: 5IK

Power: 40W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Lead Wire Type	Output power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
Pinion Shaft					1200r/min mN.m	90r/min mN.m
5IK40RGU-A	40	1ph 100	50	90~1400	260	70	180	0.65	12
			60	90~1700				0.70
5IK40RGU-E	40	1ph 110	60	90~1700	260	65	180	0.55	8.0
		1ph 120						0.60
5IK40RGU-C	40	1ph 220	50	90~1400	300	75	160	0.35	2.5
		1ph 230						0.40
5IK40RGU-H	40	1ph 220	60	90~1700	230	70	145	0.35	2.5
		1ph 230						0.40

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
5IK40RGU-A□ 5IK40RGUE□ 5IK40RGU-C□ 5IK40RGUH□	5GU□RC 5GU□RT	Allowance Torque	50Hz	0.50	0.60	0.84	1.00	1.58	1.67	1.86	2.63	3.16	3.34	3.71	5.26	6.31	6.80	9.50	11.4	14.2	17.0	18.9	20.0	20.0	20.0
			50Hz	4.91	5.89	8.19	9.82	16.1	16.4	18.19	26.8	32.2	32.8	36.4	53.7	64.4	70.0	97.0	116	145	174	193	200	200	200
			60Hz	0.42	0.50	0.70	0.84	1.27	1.39	1.55	2.12	2.55	2.78	3.09	4.24	5.09	5.50	7.64	9.16	11.5	13.7	15.3	18.3	20.0	20.0
			60Hz	4.09	4.91	6.82	8.19	13.0	13.7	15.16	21.6	26.0	27.3	30.3	43.3	51.9	56.1	77.9	93.5	117	140	156	187	200	200

Lead Wiring Type

Description

The high dynamic performance speed control motor is a high-response power unit specifically designed for industrial automation and light to medium-duty mechanical transmission systems. It is ideal for applications that require rapid speed adjustments, precise torque control, and continuous stable operation. This model has a rated power of 40W and supports a wide voltage input range of 110V–380V, making it compatible with various regional power standards and facilitating flexible deployment of equipment globally. The motor features a compact structure, allowing installation in space-constrained equipment while providing excellent heat dissipation and mechanical strength, ensuring reliable operation during prolonged high-frequency speed variation.
Through optimized stator and rotor design and winding parameter adjustments, this motor delivers fast response and stable torque output, maintaining smooth operation even under frequent start-stop cycles or sudden load changes. Its high dynamic speed control capability allows precise matching with the cycle requirements of automated production lines, making it suitable for conveyor systems, packaging equipment, sorting machinery, and small lifting devices. The motor ensures efficient and stable operation across different working loads, providing reliable and responsive power support for industrial automation applications.
