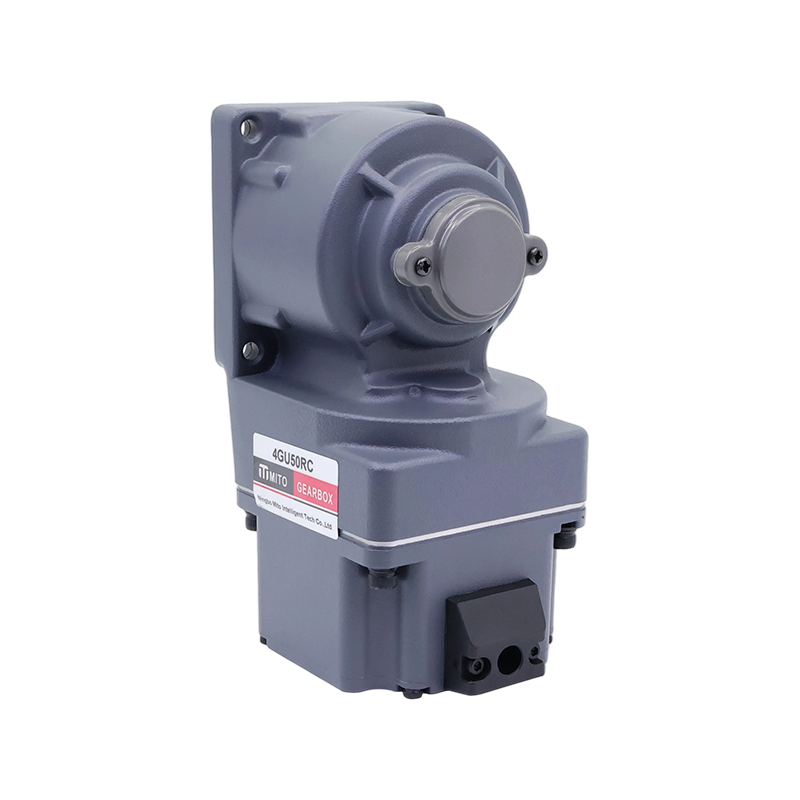

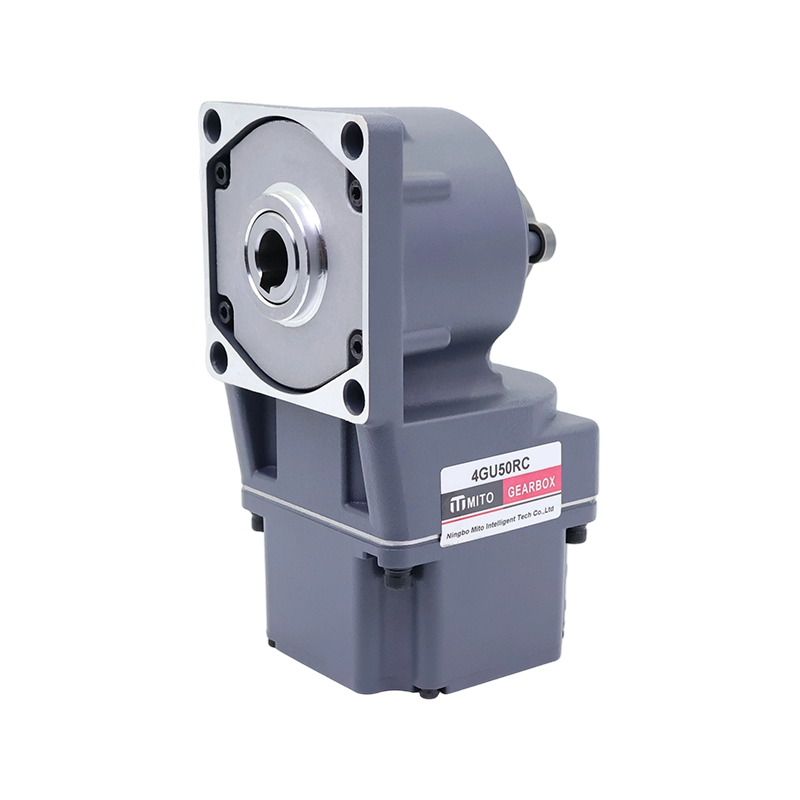

M4BLD 80mm 60W

K Series BLDC Gear Motor

Motor Type: M4BLD

Power: 60W

Voltage: 24-48V (Low Voltage)
              220V (High Voltage)

Gearbox Ratio: 3-200K (In-line)
                         5-200K (L Type)
                         7.5-180K(Right Angle)

Motor Parameter Table

Low Voltage Motor Parameters

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed

N.m

Grade protection

IP

M4BLD60-24GN-30S

60

24

3.8

0.382

0.191

3000

20

M4BLD60-48GN-30S

60

48

1.9

0.382

0.191

3000

20

High Voltage Motor Parameters

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed

N.m

Grade protection

IP

M4BLD60-220GN-30S

60

220

0.7

0.382

0.191

3000

20

Allowance Torque

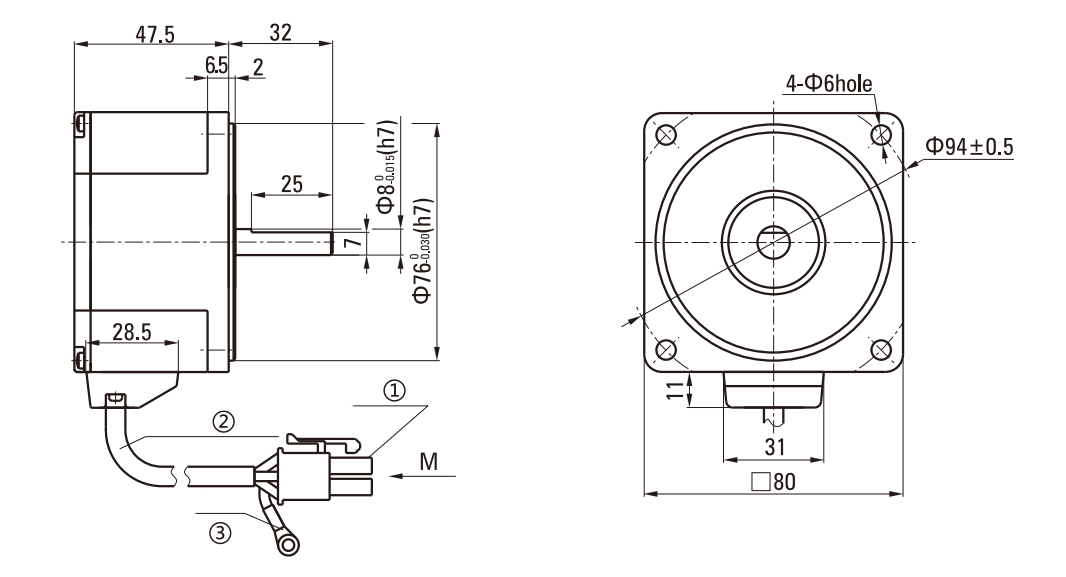

Lead Wiring Type

①Connector: 5557-8R/10R (MOLEX)

②The sheath length of lead line 300mm

③Round terminal: SRA-21T-4 (Low ground)
