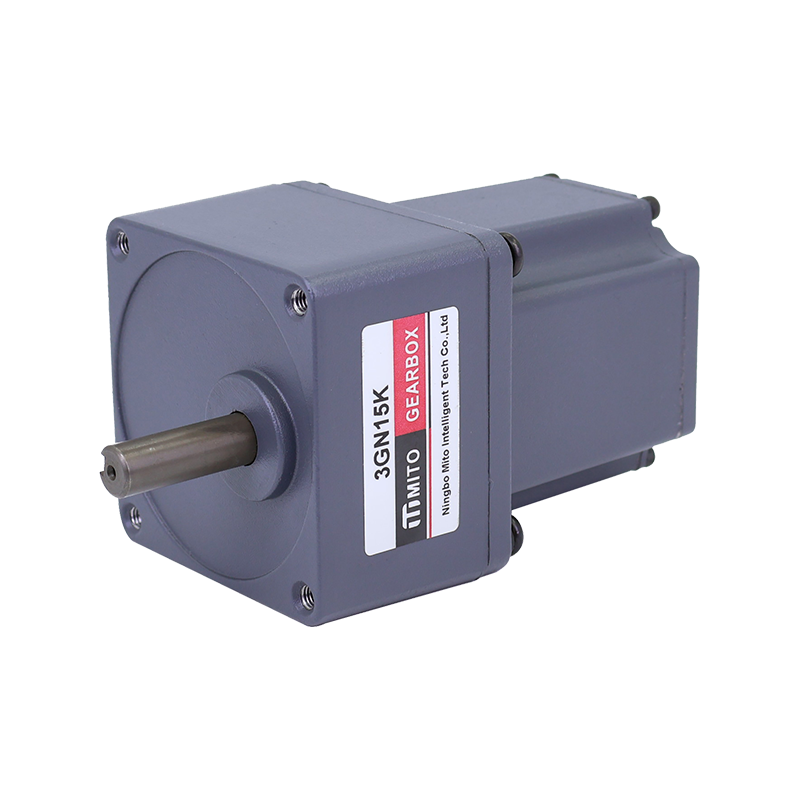

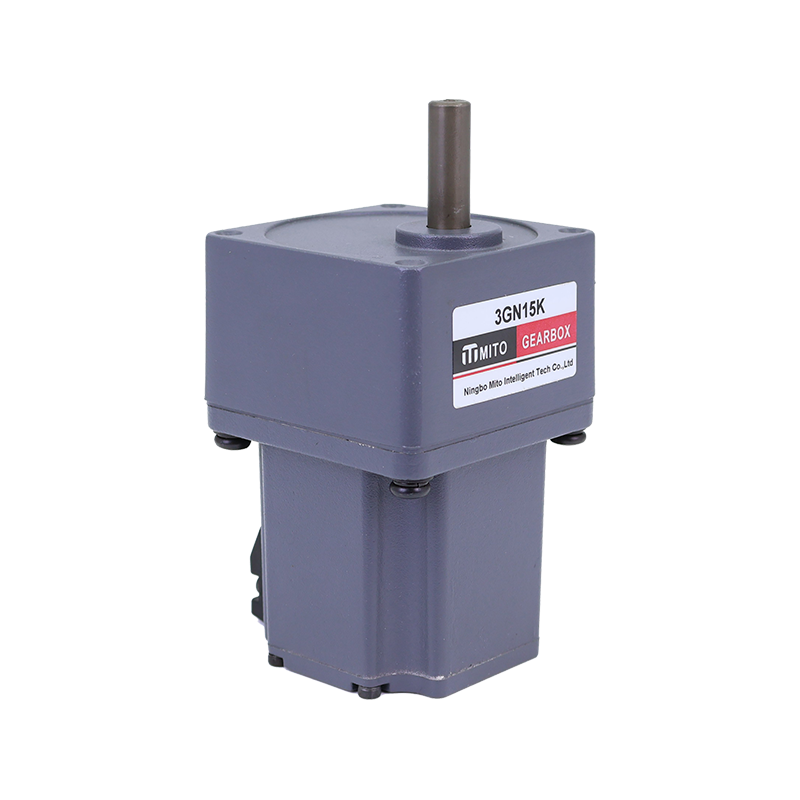

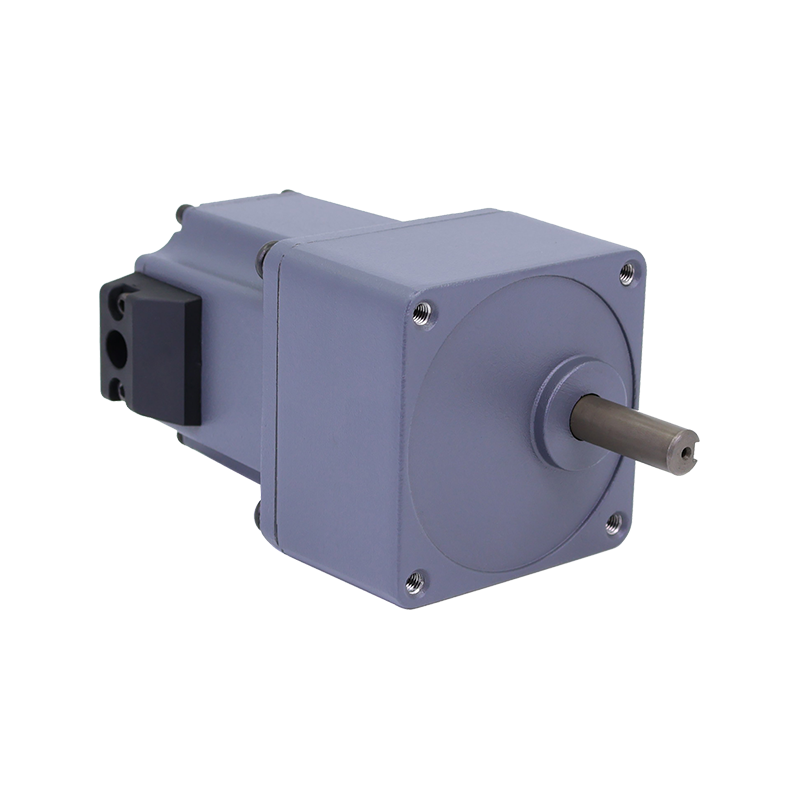

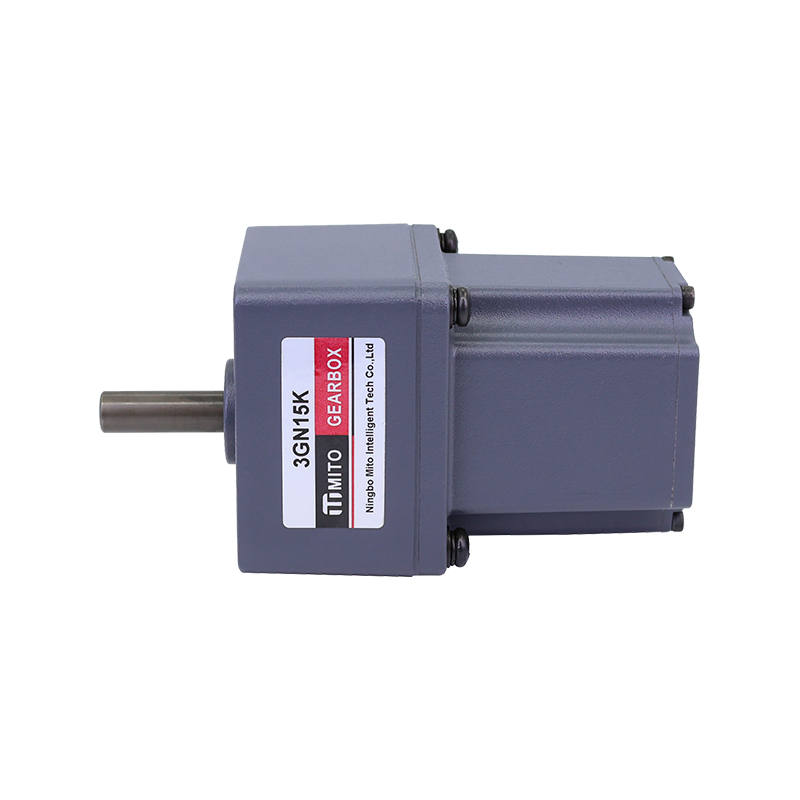

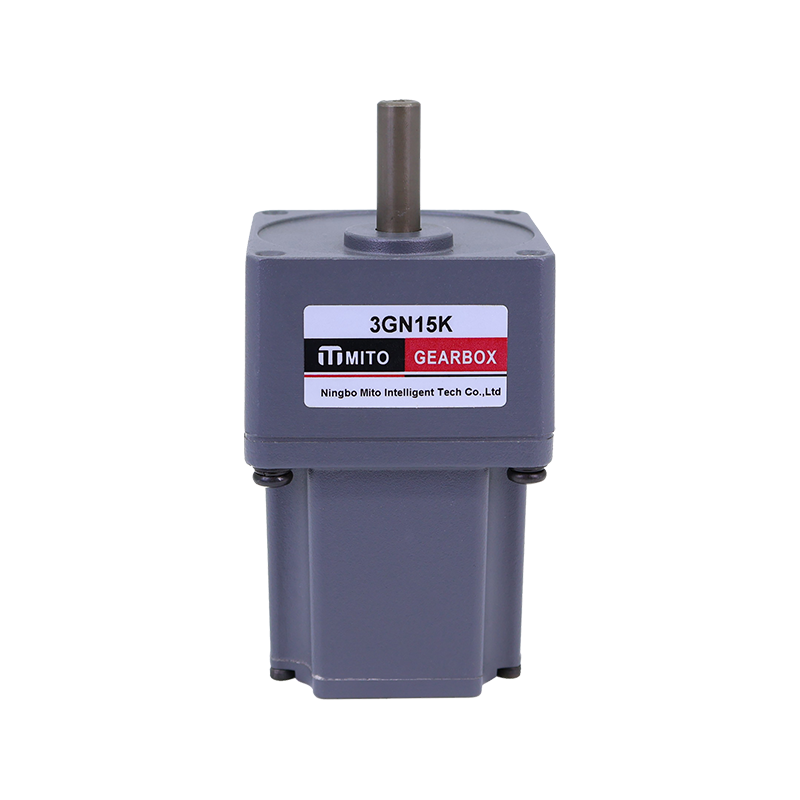

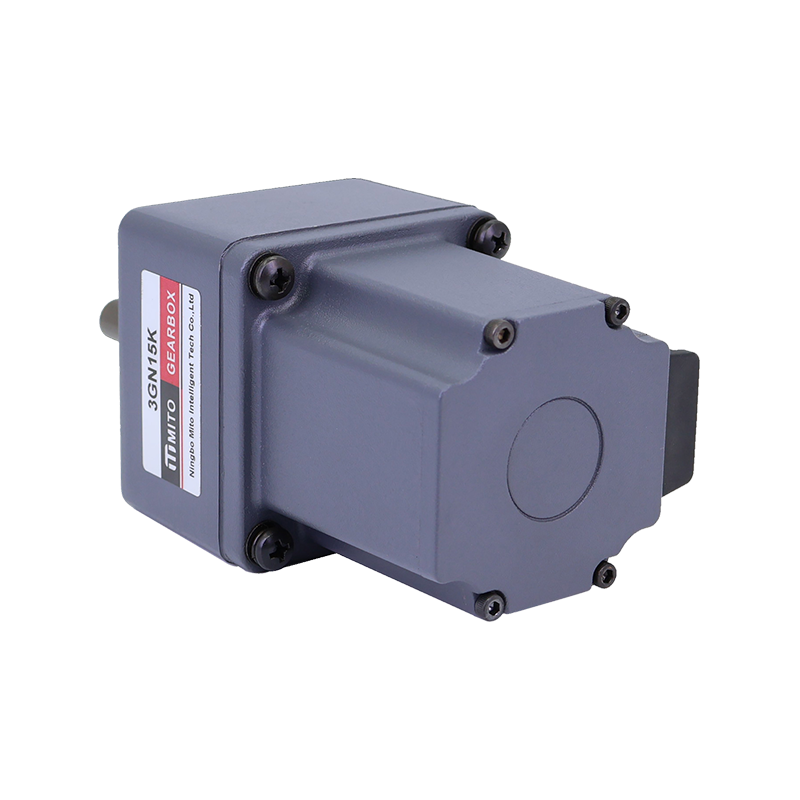

M3BLD 70mm 40W

K Series BLDC Gear Motor

Motor Type: M3BLD

Power: 40W

Voltage: 24V (Low Voltage)

Gearbox Ratio: 3-200K (In-line)
                         5-100K (L Type)

Motor Parameter Table

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed
N.m

Grade protection
IP

M3BLD40-24GN-18S

40

24

0.254

0.127

1800

20

M3BLD40-24GN-30S

40

24

0.254

0.127

3000

20

Allowance Torque

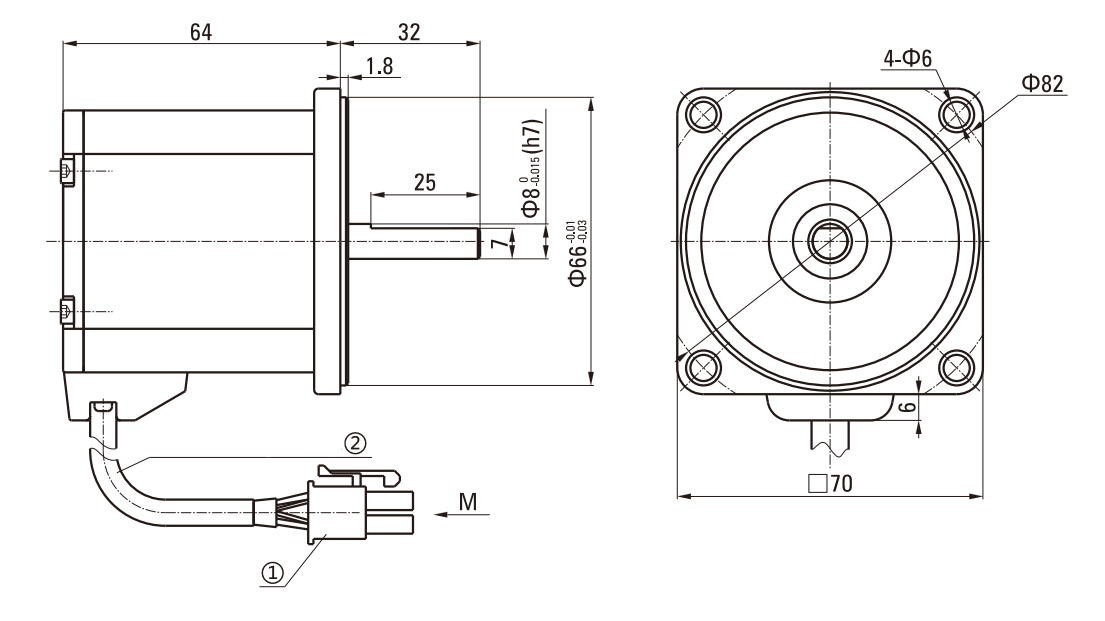

Lead Wiring Type

①Connector: 5557-8R

②The sheath length of lead line 300mm
