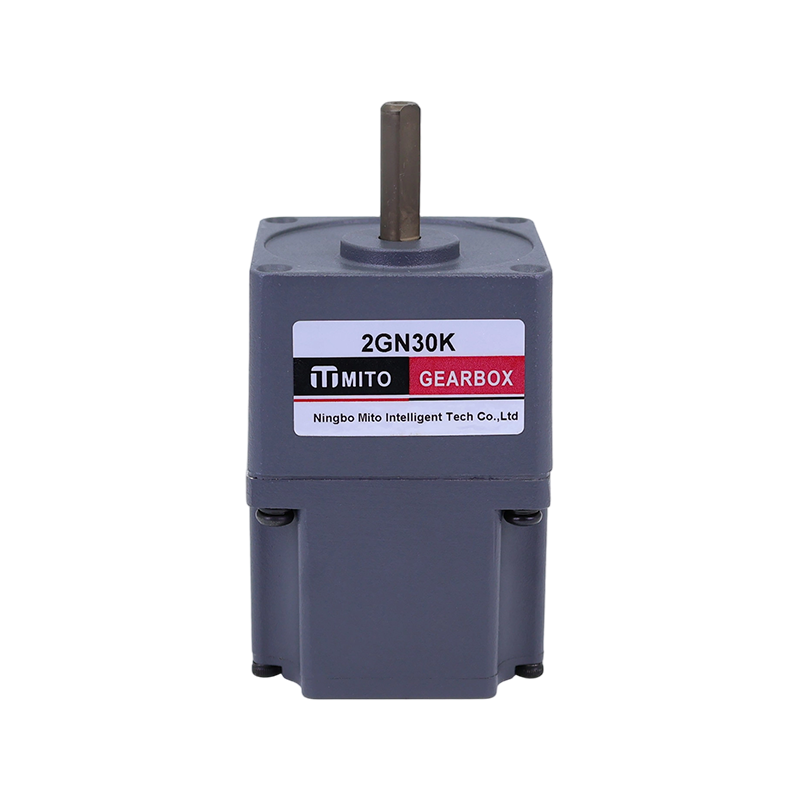

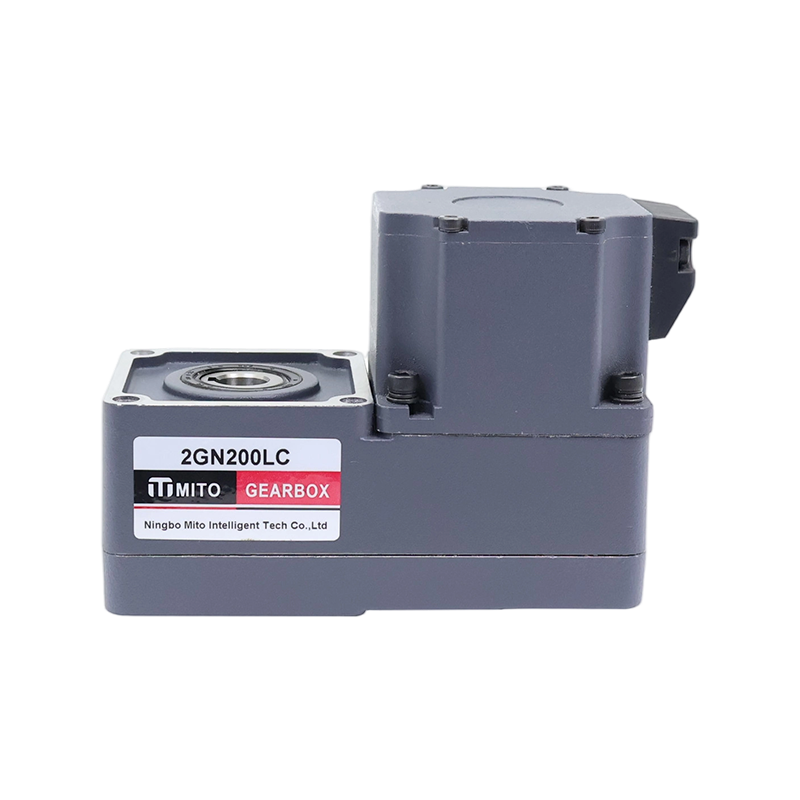

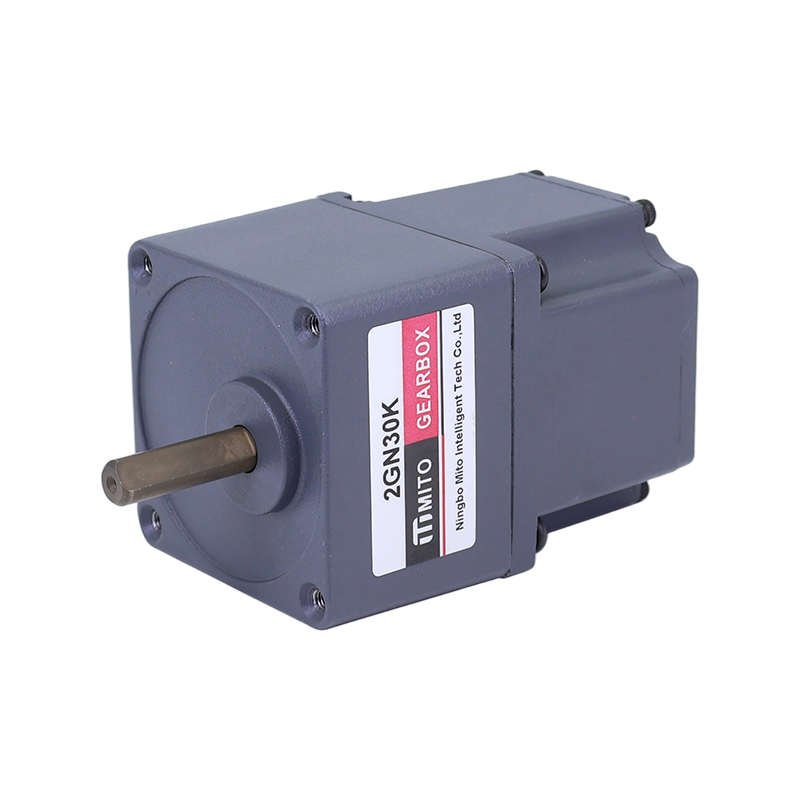

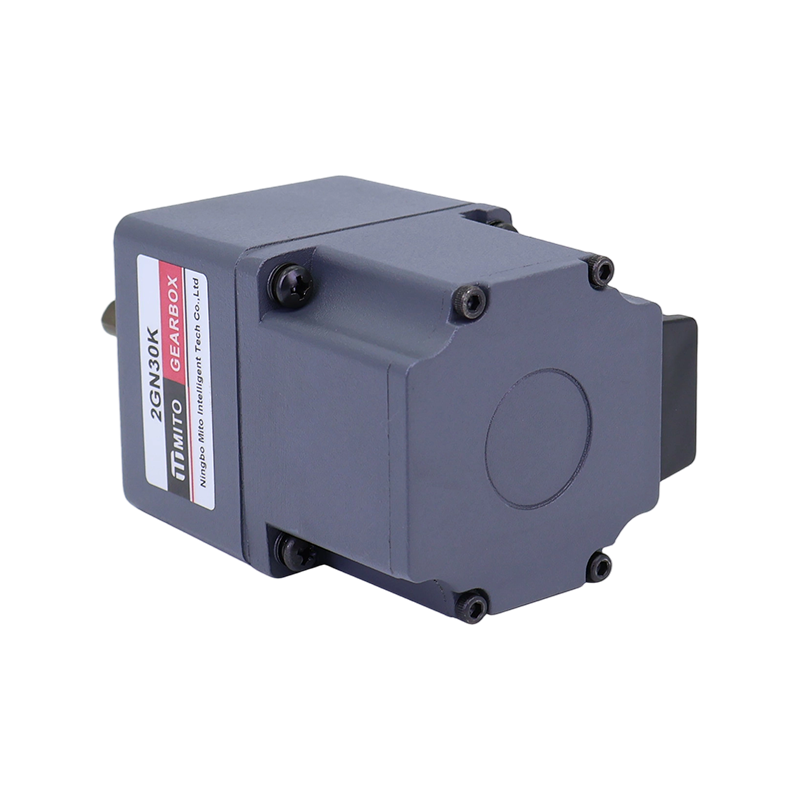

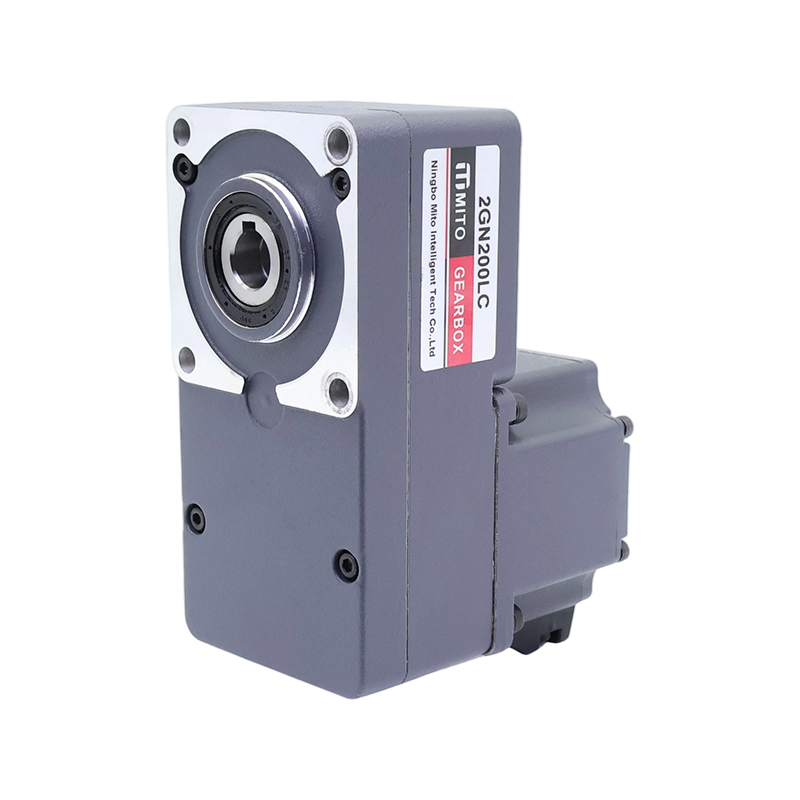

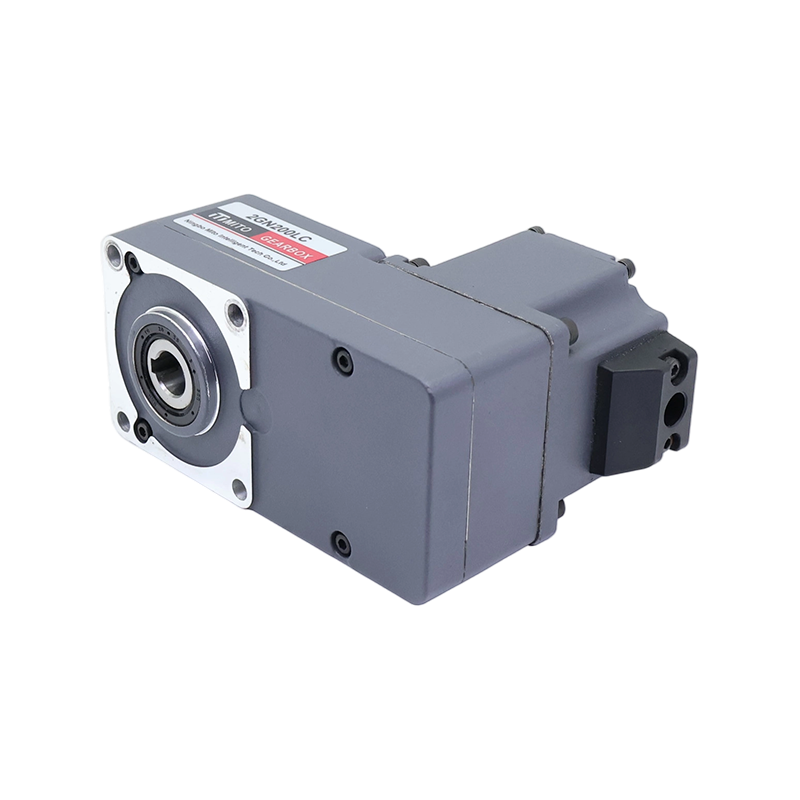

M2BLD 60mm 15&25W

K Series BLDC Gear Motor

Motor Type: M2BLD

Power: 15&25W

Voltage: 24-48V (Low Voltage)
              220V (High Voltage)

Gearbox Ratio: 3-200K (In-line)
                         5-200K (L Type)

PREV：M3BLD 70mm 40WNEXT：No next article
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Low Voltage Motor Parameters

Model

Rated power
W

Voltage
V

Rated current
A

Starting torque
N.m

Rated torque
N.m

Rated speed
N.m

Grade protection
IP

M2BLD15-24GN-30S

15

24

0.9

0.096

0.048

3000

20

M2BLD25-24GN-30S

25

24

2.4

0.192

0.096

3000

20

M2BLD25-48GN-30S

25

48

1.3

0.192

0.096

3000

20

High Voltage Motor Parameters

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed
N.m

Grade protection
IP

M2BLD15-220GN-30S

15

220

0.2

0.096

0.048

3000

20

M2BLD25-220GN-30S

25

220

0.5

0.192

0.096

3000

20

Allowance Torque

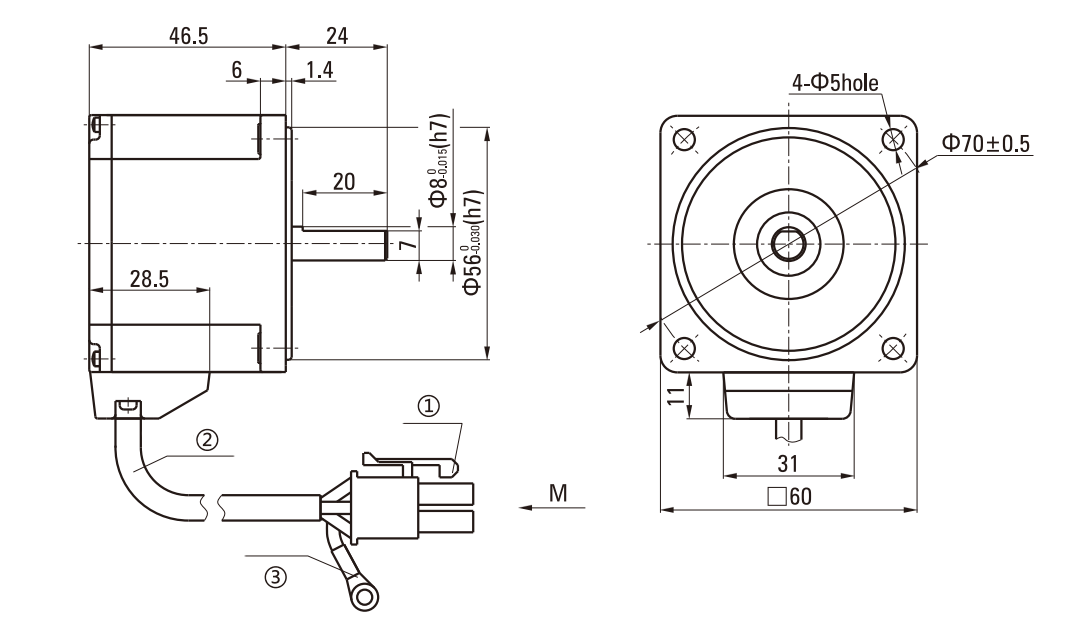

Lead Wiring Type

①Connector: 5557-8R/10R (MOLEX)

②The sheath length of lead line 300mm

③Round terminal: SRA-21T-4 (Low ground)

Description
