Home / Products / Intelligent Logistics Power Unit / 90DP+82PN Power Steering
  • 90DP+82PN Power Steering
  • 90DP+82PN Power Steering

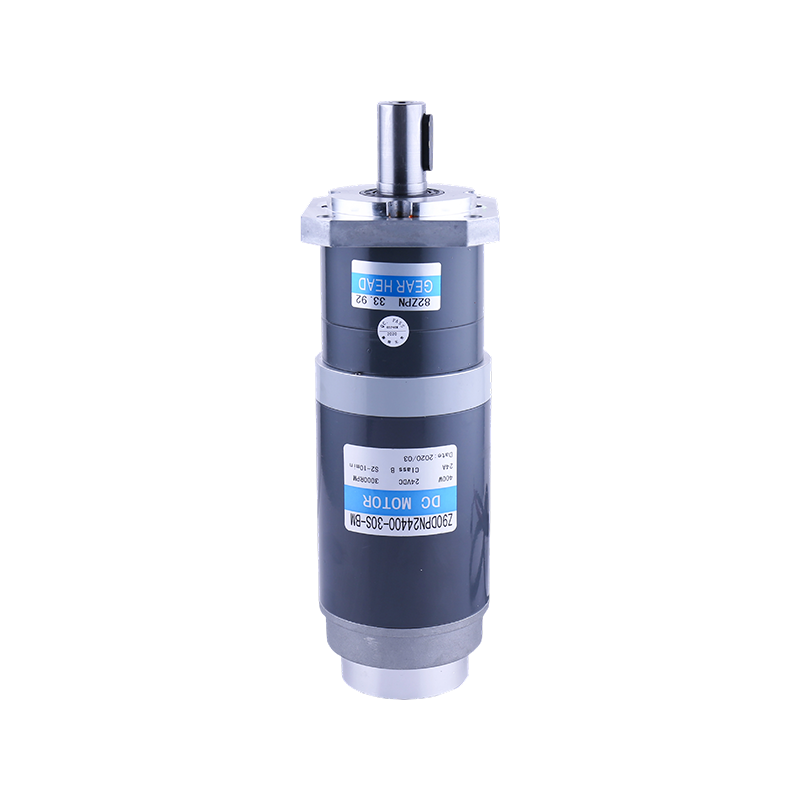

90DP+82PN Power Steering

Intelligent Logistics Power Unit

Motor Type: Z90DP

Voltage: 24V DC

Power: 200W

Motor Parameter Table

Type

Z90DP24200-32S-BM Gearbox direction Same as motor

Rated voltage

24V DC

Rated power

200W Bearing type Ball bearing

Rated current

13A±10% Gearbox structure Integrated

Rated speed

3200rpm±10% Efficiency 81%

Rated torque

0.597N.m Gearbox rated torque 16.4N.m

Noload current

≤3.5A

Noload speed

3600rpm±10% Gearbox max torque 1.5x rated

Work duty

S2(10min)

Insulation resistance

>20MΩ Ambient temperature -10℃~+40℃

Brush life

2000h Noise <60dB(L=100cm)

Electrical strength

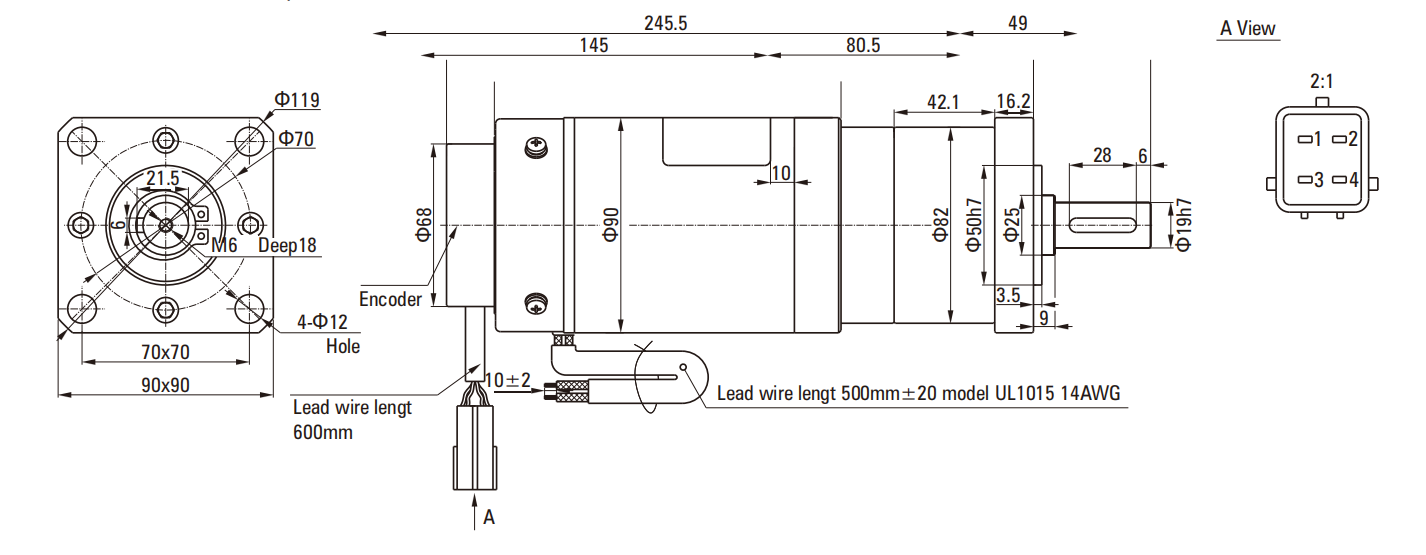

660V/S Wire diagram

Insulation class

B

Protection grade

IP20

Gearbox spec

82PN33.92K

Reduction stage

Allowance Torque

Lead Wiring Type

Description
