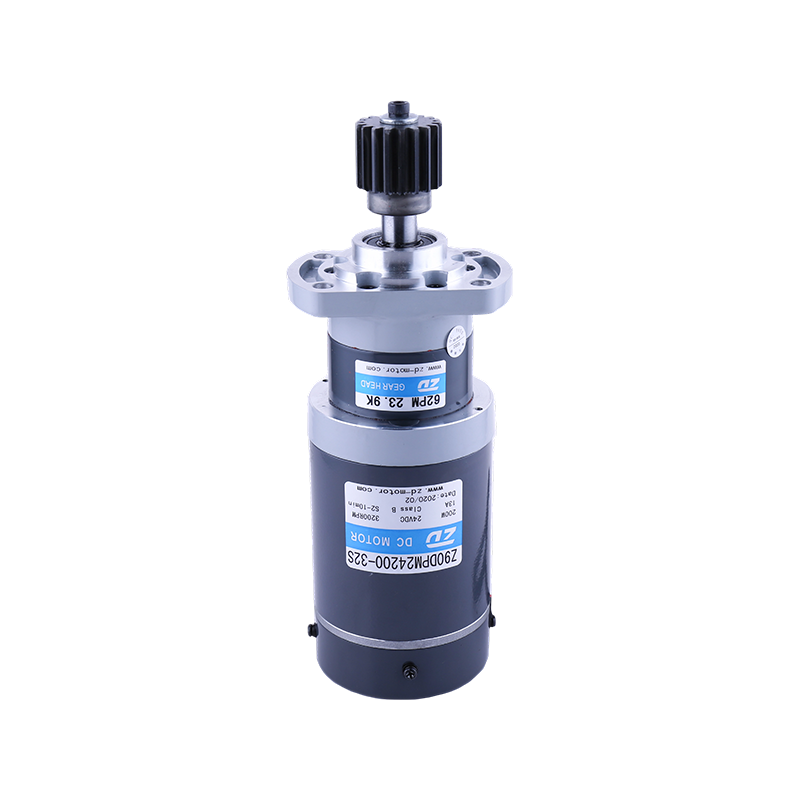

90DP+72PN Power Steering

Type

Z90DPN24200-32S

Gearbox direction

Same as motor

Rated voltage

24V DC

Rated power

200W

Bearing type

Ball bearing

Rated current

13.0A±10%

Gearbox structure

Integrated

Rated speed

3200rpm±10%

Efficiency

81%

Rated torque

0.597N.m

Gearbox rated torque

12.1N.m

Noload current

≤3.5A

Noload speed

3600rpm±10%

Gearbox max torque

2x rated

Work duty

S2(10min)

Insulation resistance

>20MΩ

Ambient temperature

-10℃~+40℃

Brush life

2000h

Noise

<60dB(L=100cm)

Electrical strength

660V/S

Wire diagram

Insulation class

B

Protection grade

IP20

Gearbox spec

72PN24.975K

Reduction stage

2
