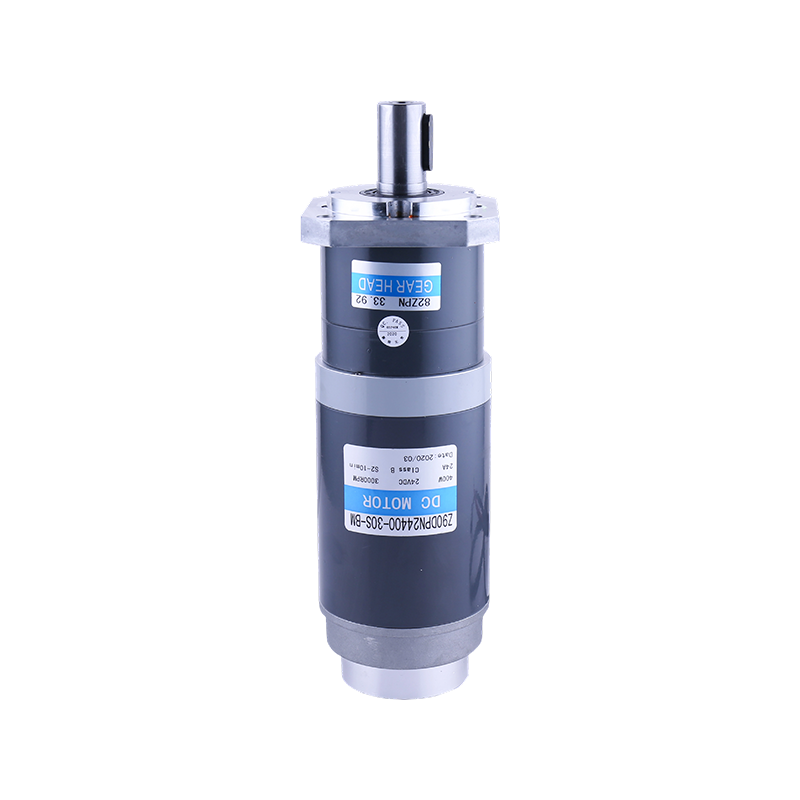

90DP+82PN Power Steering

Type

Z90DP24400-30S-BM

Gearbox direction

Same as motor

Rated voltage

24V DC

Rated power

400W

Bearing type

Ball bearing

Rated current

24A±10%

Gearbox structure

Integrated

Rated speed

3200rpm±10%

Efficiency

81%

Rated torque

1.27N.m

Gearbox rated torque

35N.m

Noload current

≤3.5A

Noload speed

3600rpm±10%

Gearbox max torque

1.5xrated

Work duty

S2(10min)

Insulation resistance

>20MΩ

Ambient temperature

-10℃~+40℃

Brush life

2000h

Noise

<60dB(L=100cm)

Electrical strength

660V/S

Wire diagram

Insulation class

B

Protection grade

IP20

Gearbox spec

82PN33.92K

Reduction stage

2
