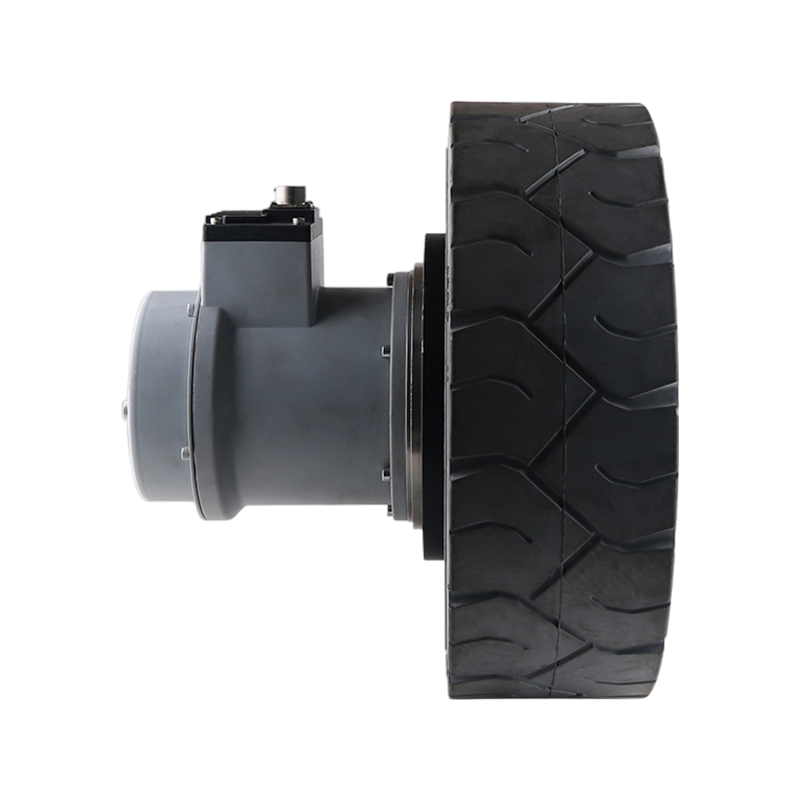

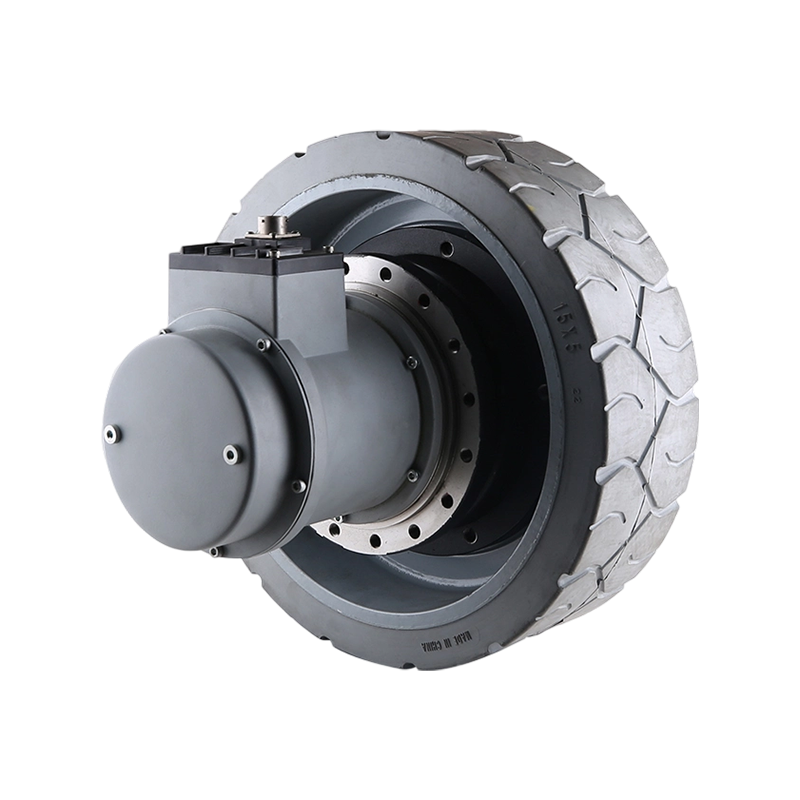

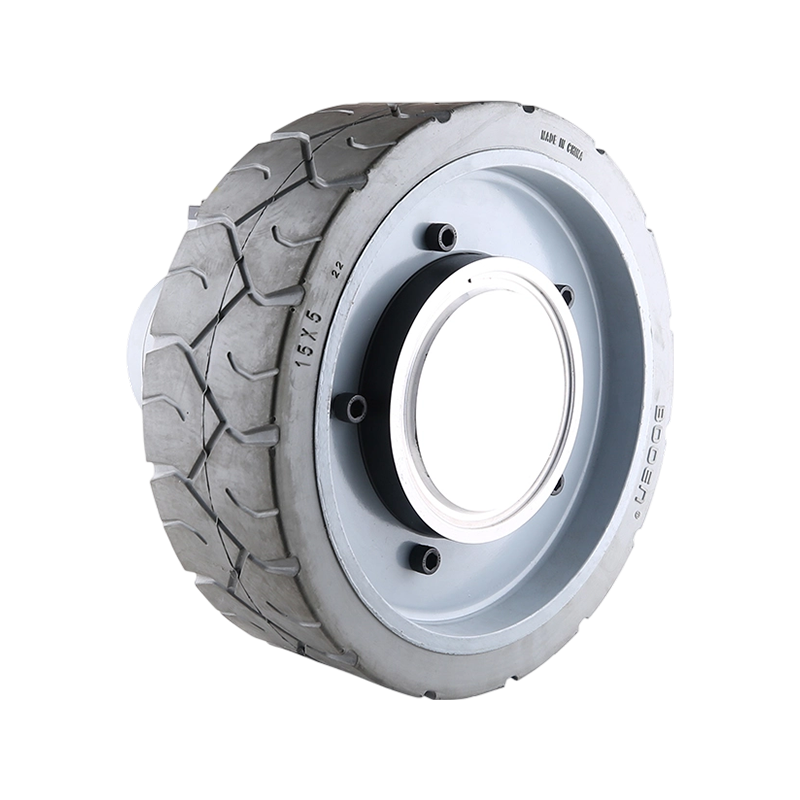

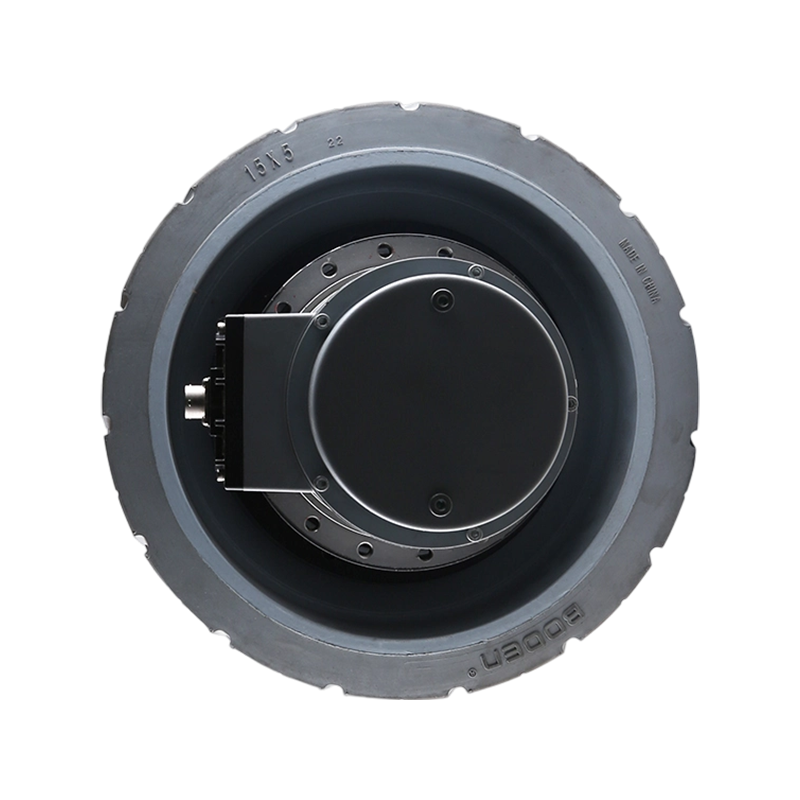

380AGV

Intelligent Logistics Power Unit

Motor Type: 380AGV51.4K

Voltage: 15V

Power: 800W

Motor Parameter Table

Basic parameter

Type

ZD0-800W-S15V

Powe

800W

Voltage

15V

Frequecncy

72HZ

Current

45A

Speed

2075r/min

Work duty

S2-60min

Level of protection

IP67

Insulation class

F



Table of reducer parameters

Type

380AGV51.4K

Reduction ratio

51.4:1

Deceleration progression

level 2

Gearbox rated torque

300N.m

Instantaneous maximum torque

600N.m

No load speed

40.36rpm

Noise

≤65dB  (L=1m)



Brake parameter table

Rated voltage

24V DC

Rated power

28W

The brake torque

25N.m

Allowance Torque

Lead Wiring Type
