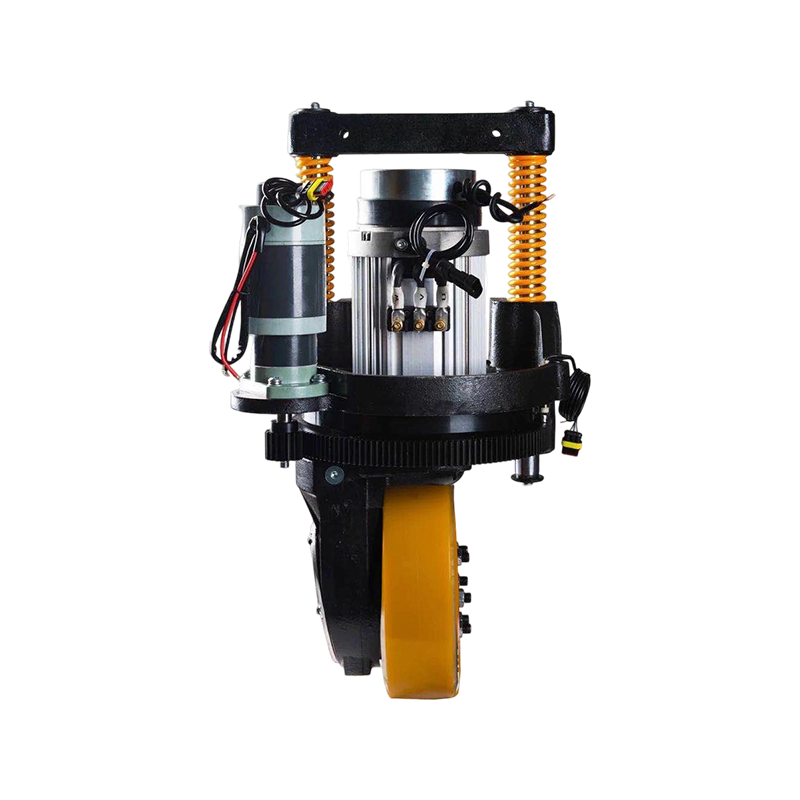

250 Verticall Servo Drive Wheel

Table of basic performance parameters of steering wheel drive motor

Rated voltage

48V DC

Rated power

1500W

Rated current

38A

Rated speed

3000rpm

Rated torque

4.7N.m

Working day

S2(60min)

Insulation grade

F

Level of protection

IP54

Deceleration ratio

21

The brake torque

8N.m

Encoder

Incremental 2500-line optical encoder

Use ambient temperature

-10℃~40℃

Noise

≤65dB(A)L=1m

Brake voltage V

24

Steering motor parameter table

Rated voltage

48V DC

Rated power

400W

Rated speed

3000rpm

Rated torque

1.27N.M

Deceleration ratio

24.975

Encoder

Incremental 2500 line

(Deg/sec)To speed

90DEG/SEC

Whole unit parameter table

Rotation radius

210

Linear velocity m/min

112.2

Wheels can withstand positive pressure kg

1500

Tractive force N

666.7
