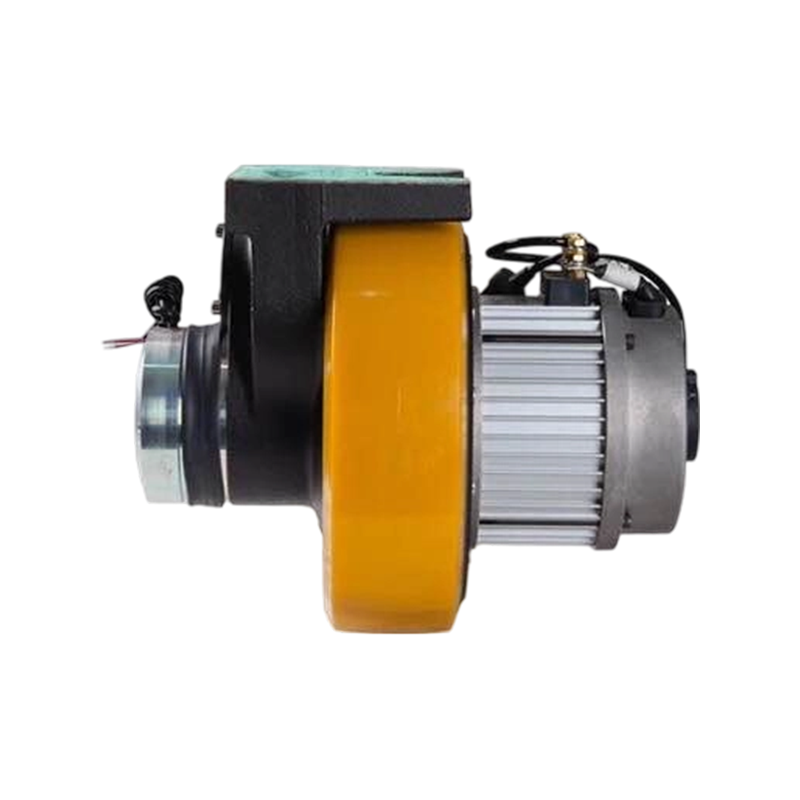

250 Low Voltage AC Horizontal Steering Wheel

Intelligent Logistics Power Unit

Motor Type: Steering Wheel

Voltage: 16V&33V

Power: 1500W

Motor Parameter Table

Basic parameter

Type

ZD0-1500W-S16V/33V

Power

1500W

Voltage

16V/33V

Frequecncy

85Hz

Current

65A/33A

Speed

2250r/min

Work duty

S2-60min

Protection grade

IP42

Insulation class

F



Other parameter

Reducer type

ZH-001

Reduction ratio

31.428K

Brake voltage

24V DC/48V DC

Brake torque

10.0N.m

Ambient temperature

-10℃~+40℃

Noise

<65dB(L=100cm)

Allowance Torque

Lead Wiring Type

Description
