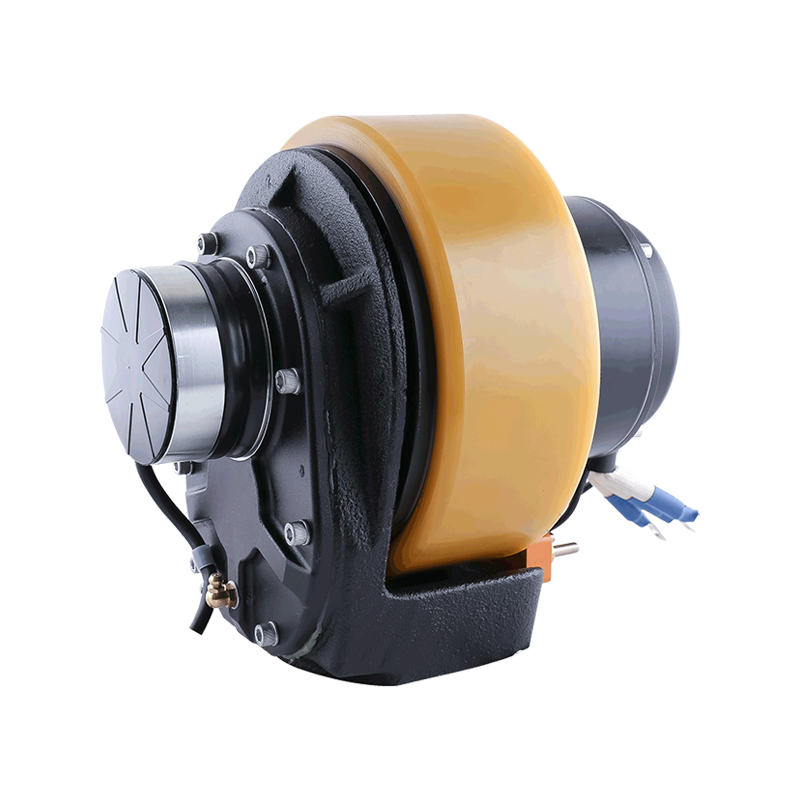

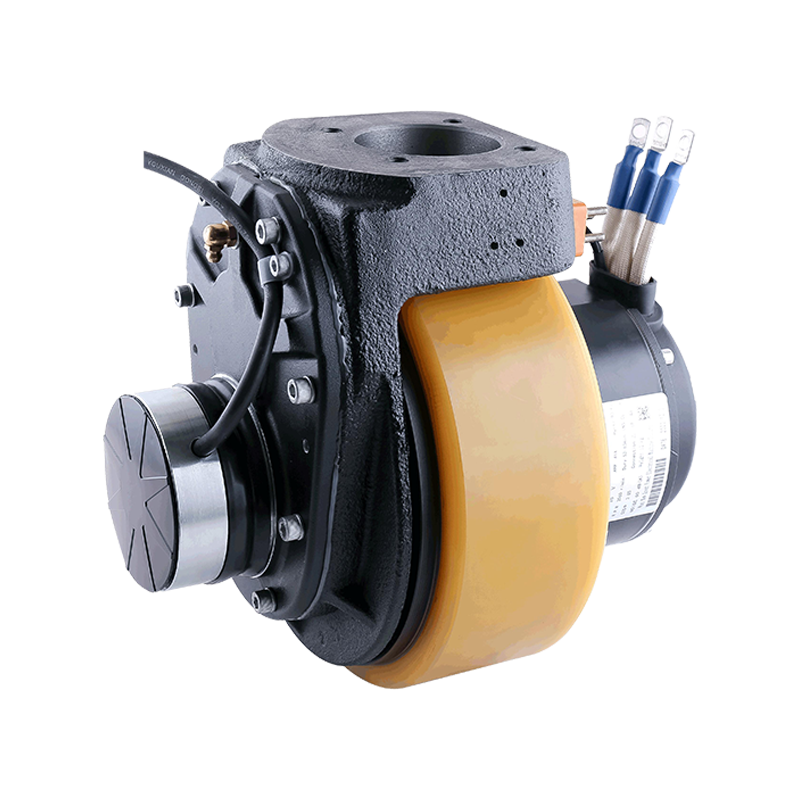

210 Low Voltage AC Horizontal Steering Wheel

Intelligent Logistics Power Unit

Motor Type: Servo Steering Wheel

Voltage: 16V

Power: 750W

Motor Parameter Table

Basic parameter

Type

ZDO-750W-S16V

Power

0.75kW

Voltage

16V

Frequecncy

90Hz

Current

41A

Speed

2560r/min

Work duty

S2-60min

Protection grade

IP42

Insulation class

F



Other parameter

Reducertype

NL24.68KL

Reduction ratio

24.685K/17K

Brake voltage

24V DC

Brake torque

8.0N.m

Ambient temperature

-10℃~+40℃

Noise

<65dB(L=100cm)

Allowance Torque

Lead Wiring Type

Description
