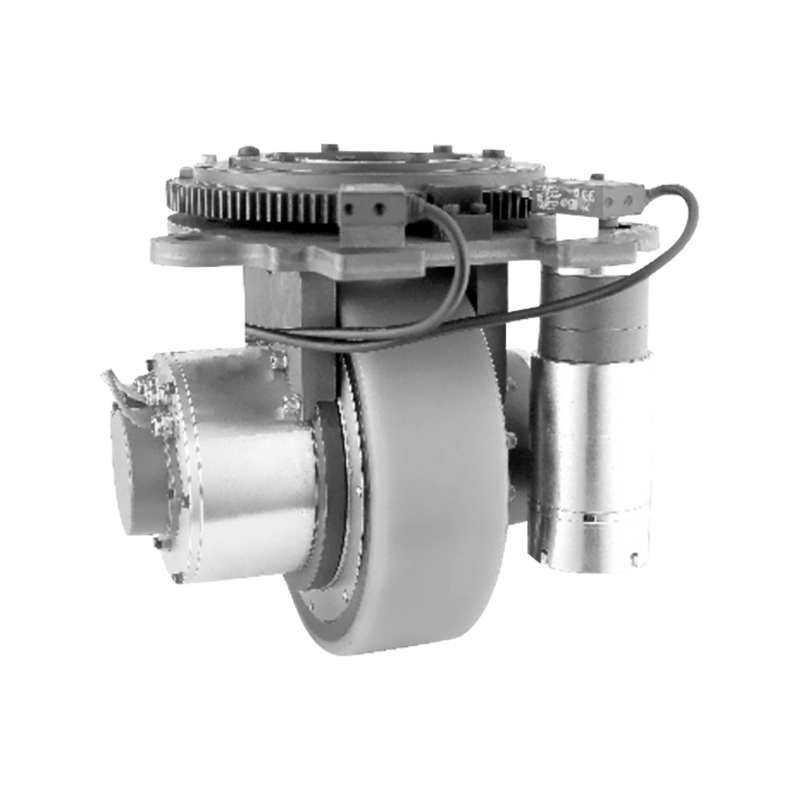

210 Conventional Servo Steering Wheel

Table of basic performance parameters of steering wheel drive motor

Rated voltage

48V DC

Rated powe

1500W

Rated current

39A±10%

Rated speed

3000rpm

Rated torque

4.775N.m

Working day

S2(60min)

Insulation grade

B

Level of protection

IP44

Deceleration ratio

24 .685

The brake torque

8N.m

Encoder

-

Use ambient temperature

-10~40℃

Noise

≤65dB(A)L=1m

Brake voltage V

48

Steering motor parameter table

Rated voltage

48V DC

Rated power

400W

Rated speed

3000rpm

Rated torque

28.93N.M

Deceleration ratio

28.05

Encoder

Incremental 2500 line

(Deg/sec)To speed

106.95

Whole unit parameter table

Rotation radius

142

Linear velocity m/min

80.14

Wheels can withstand positive pressure kg

1500

Tractive force N

909
