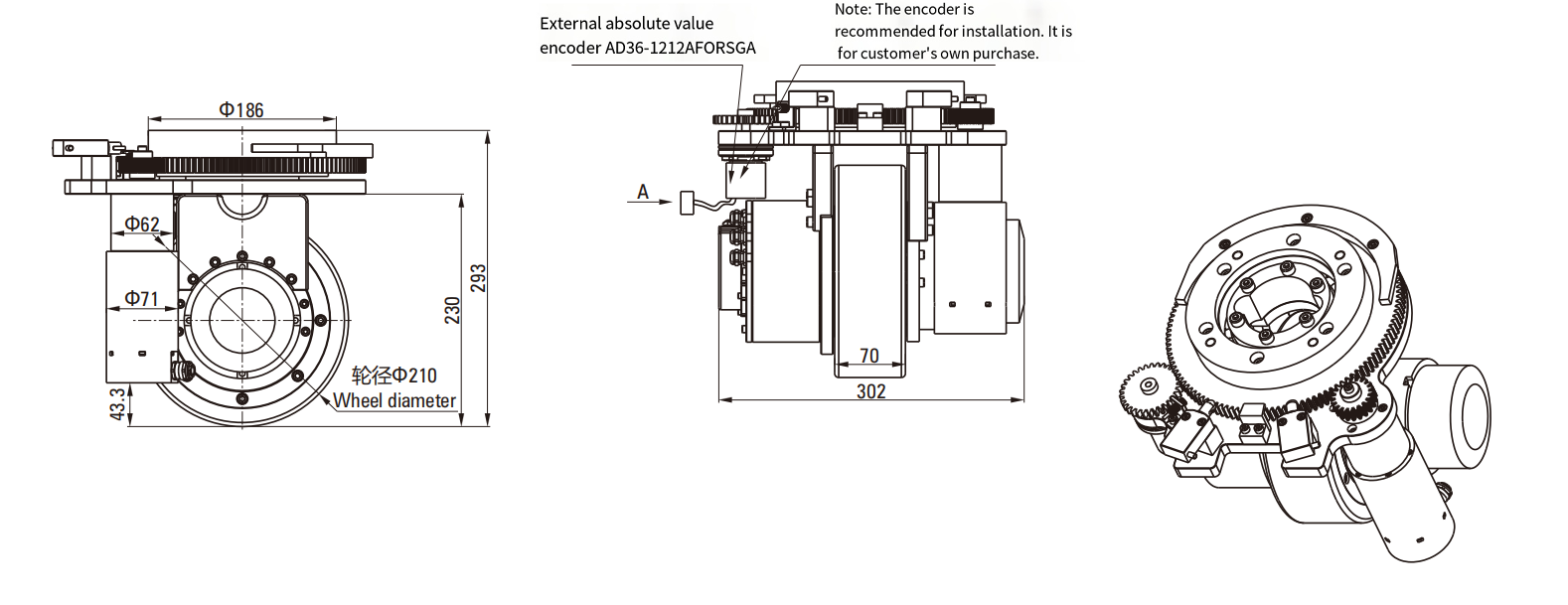

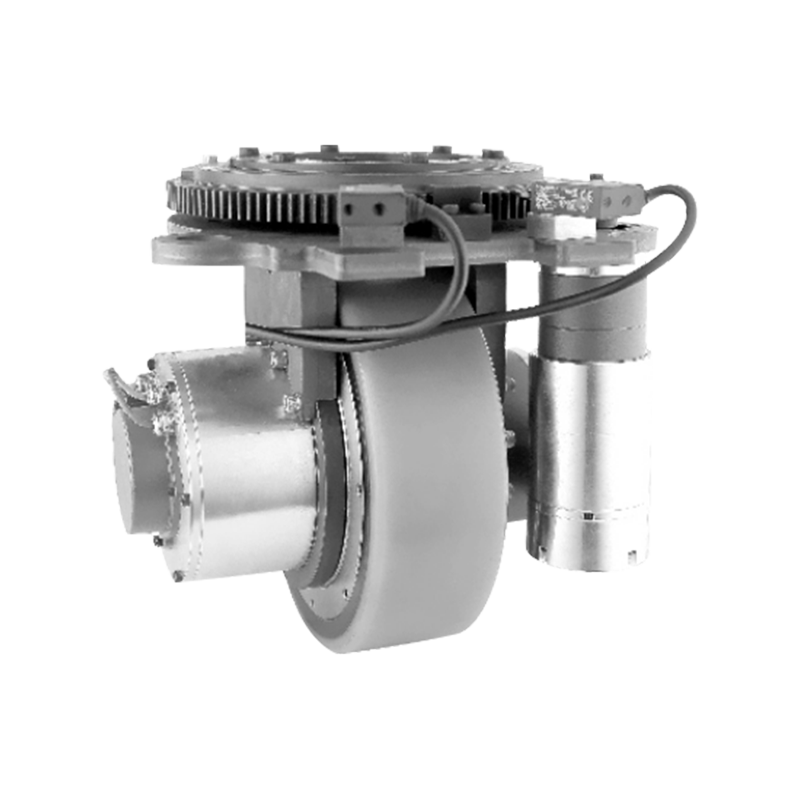

210 Horizontal Steering Wheel

Table of basic performance parameters of steering wheel drive motor

Rated voltage

48VDC

Rated power

1500W

Rated current

39A±10%

Rated speed

3000rpm

Rated torque

4.775N.m

Working day

S2(60min)

Insulation grade

F

Level of protection

IP54

Deceleration ratio

24

The brake torque

8N.m

Encoder

Incremental 2500-line optical encoder

Use ambient temperature

0~40℃

Noise

≤58dB(A)L=1m

Brake voltage V

48

Steering motor parameter table

Rated voltage

48V DC

Rated power

400W

Rated speed

3000rpm

Rated torque

28.93N.M

Deceleration ratio

28.05

Encoder

Incremental 2500 line

(Deg/sec)To speed

106.95

Whole unit parameter table

Rotation radius

200

Linear velocity m/min

82.425

Wheels can withstand positive pressure kg

1500

Tractive force N

884
