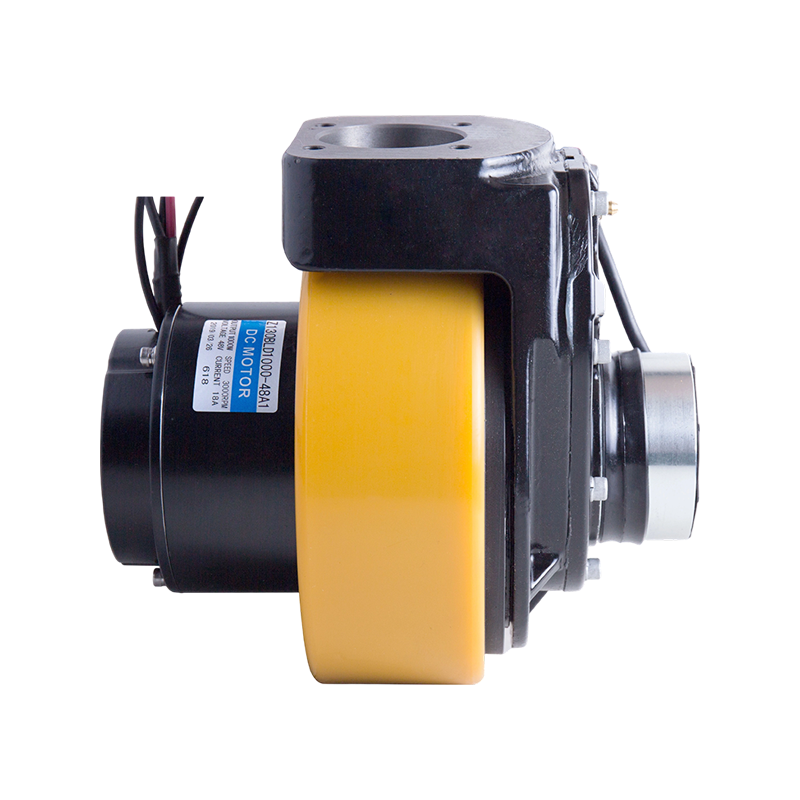

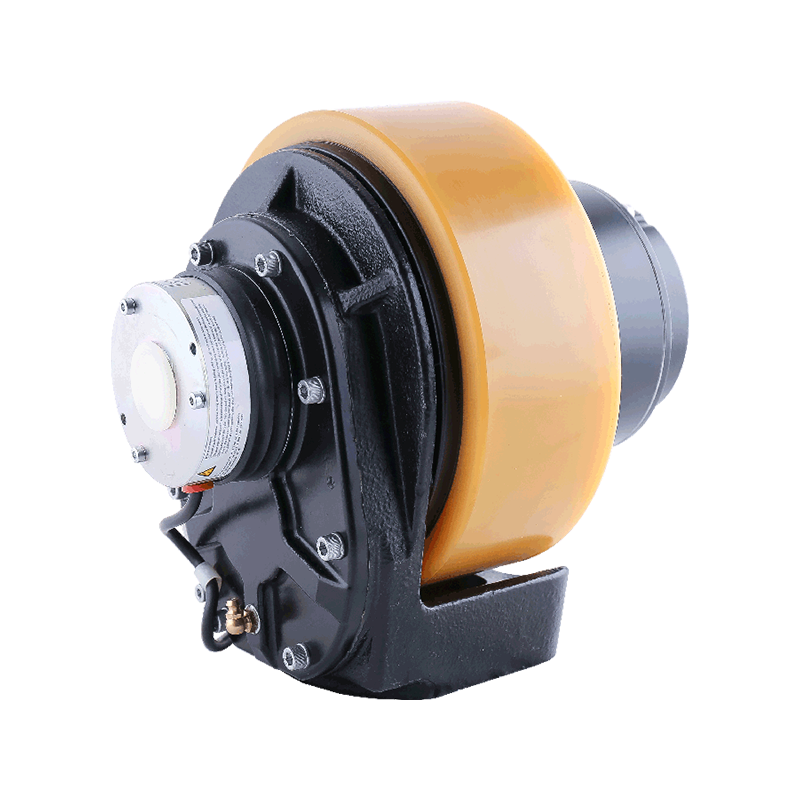

210 Brushless Drive Wheel

Intelligent Logistics Power Unit

Motor Type: Z130BLD

Voltage: 24V DC

Power: 1000W

Motor Parameter Table

Type

Z130BLD1000-48A1-30S

Brush life

5000h

Rated voltage

48V DC

Electrical strength

660V/S

Rated power

1000W

Insulation class

B

Rated current

28A±10%

Protection grade

IP44

Rated speed

3000rpm±10%

Reducer model

JP-210-002

Rated torque

3.18N.m

Reduction ratio

24.685K/17K

Noload current

≤6A

Brake voltage

48V DC

Noload speed

3800rpm±10%

Brake torque

8N.m

Work duty

S2(60min)

Ambient temperature

-10℃~+40℃

Insulation resistance

>20MΩ

Noise

<65dB(A)(L=100cm)

Allowance Torque

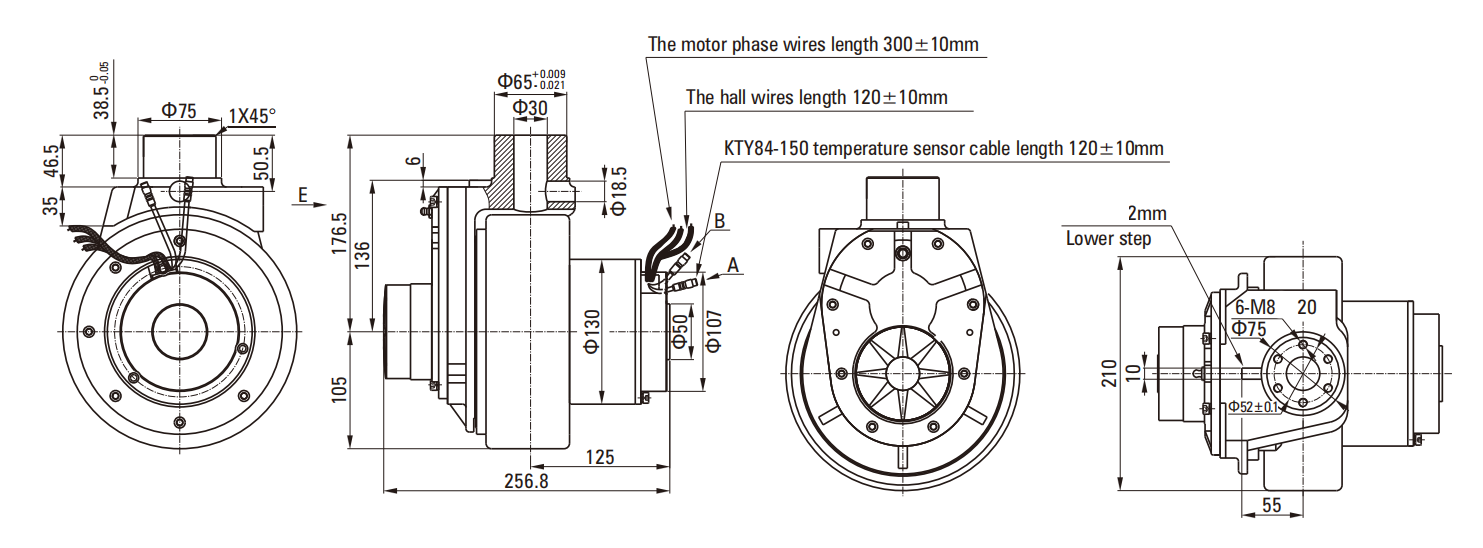

Lead Wiring Type

Description
