Home / Products / Intelligent Logistics Power Unit / 210 Brushed Drive Wheel
  • 210 Brushed Drive Wheel
  • 210 Brushed Drive Wheel

210 Brushed Drive Wheel

Intelligent Logistics Power Unit

Motor Type: Z130D

Voltage: 24V DC

Power: 650W

PREV：230 Low Voltage AC Vertical Steering WheelNEXT：210 Brushless Drive Wheel
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Type

Z130D650-24A1-26.5S-Q

Protection grade

IP44

Rated voltage

24V DC

Reducer model

NL-210-001

Rated power

650W

Reduction ratio

24.685K/17K

Rated current

38A±10%

Brake voltage

24V DC

Rated speed

2650rpm±10%

Brake torque

6N.m

Rated torque

2.34N.m

Ambient temperature

-10℃~+40℃

Noload current

≤11A

Noise

<65dB(A)(L=100cm)

Noload speed

3100rpm±10%

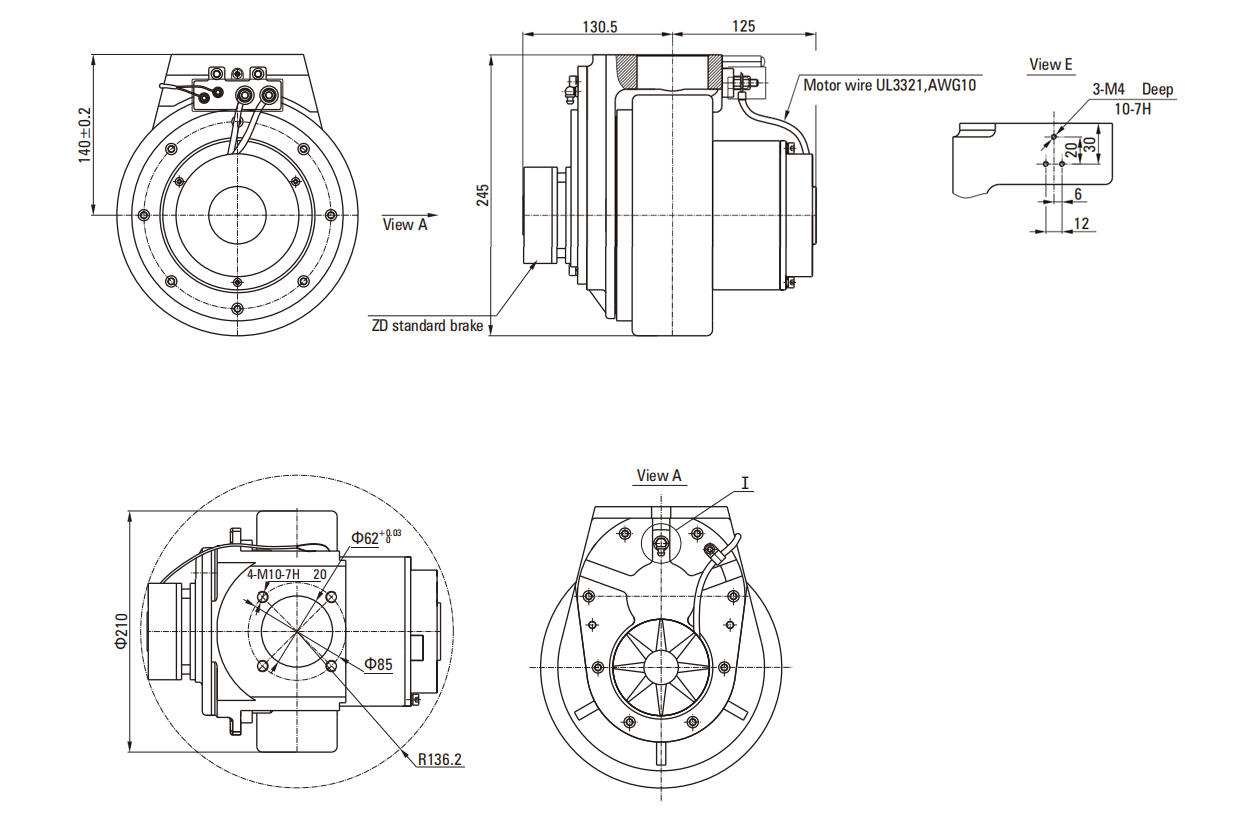

Wire diagram

view A

Work duty

S2(45min)

Insulation resistance

>20MΩ

Brush life

1200h

Electrical strength

660V/S

Insulation class

F

Allowance Torque

Lead Wiring Type

Description
