5IK 90mm 90W

Induction Motor

Motor Type: 5IK

Power: 90W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF

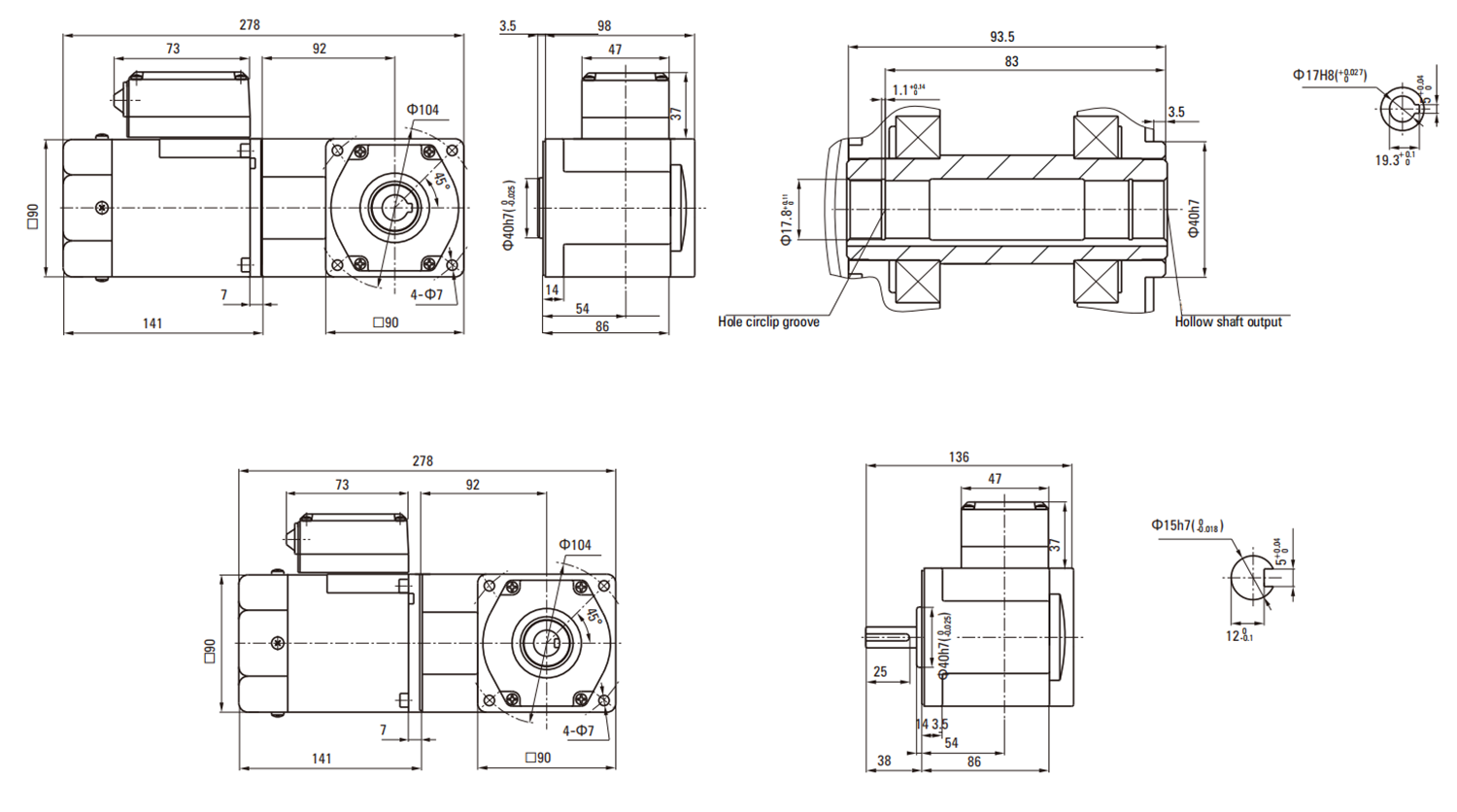

Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
5IK90GU-AF	5IK90GU-AFT	90	1ph 100	50	1.55	450	700	1250	25
				60	1.85		570	1550
5IK90GU-EF	5IK90GU-EFT	90	1ph 110	60	1.40	500	570	1550	20
			1ph 120		1.45
5IK90GU-CF	5IK90GU-CFT	90	1ph 220	50	0.72	450	700	1250	5.0
			1ph 230		0.70
5IK90GU-HF	5IK90GU-HFT	90	1ph 220	60	0.71	450	570	1550	5.0
			1ph 230		0.75
5IK90GU-SF	5IK90GU-SFT	90	3ph 220	50	0.60	1350	700	1250	-
				60	0.55	1100	570	1550
5IK90GU-S3F	5IK90GU-S3FT	90	3ph 380	50	0.35	1350	700	1250	-
				60	0.32	1100	570	1550

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
5IK90GU-AF□ 5IK90GUEF□ 5IK90GU-CF□ 5IK90GUHF□ 5IK90GUSF□ 5IK90GUS3F□	5GU□RC 5GU□RT	Allowance Torque	50Hz	1.13	1.35	1.88	2.26	3.55	3.76	4.18	5.92	7.10	7.52	8.35	11.8	14.2	15.3	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
			50Hz	11.1	13.3	18.4	22.1	36.2	36.8	40.9	60.4	72.5	73.7	81.9	121	145	157	200	200	200	200	200	200	200	200
			60Hz	0.94	1.13	1.57	1.88	2.86	3.13	3.48	4.77	5.73	6.27	6.96	9.54	11.5	12.4	17.2	20.0	20.0	20.0	20.0	20.0	20.0	20.0
			60Hz	9.21	11.1	15.4	18.4	29.2	30.7	34.1	48.7	58.4	61.4	68.2	97.4	117	126	175	200	200	200	200	200	200	200

Lead Wiring Type

Description

The standard torque induction motor is a high-performance power unit designed for industrial automation and light-to-medium mechanical transmission applications. It is suitable for continuous operating conditions that require stable torque output and reliable performance. This model features a rated power of 90W and supports a wide voltage input range of 110V–380V, making it compatible with power standards across different regions and facilitating multi-market deployment and equipment integration. The motor’s compact structure allows for easy installation in space-constrained environments while ensuring effective heat dissipation and mechanical strength, providing reliable support for long-term, stable operation.
In terms of performance, the standard torque induction motor adopts an optimized stator and rotor design, enabling stable torque output across low, medium, and high load conditions. This design minimizes operational vibration and reduces mechanical impact on the connected equipment. Its smooth start-up and continuous operation capabilities make it ideal for conveyor systems, small lifting devices, packaging equipment, and auxiliary transmission units in automated industrial setups.
This motor supports gearboxes with reduction ratios ranging from 3–180K, allowing flexible adjustment of output speed and torque according to specific application requirements. By effectively combining with reduction systems, the motor delivers higher torque output within a compact footprint, meeting the diverse demands of continuous operation and intermittent load scenarios. Overall, its design emphasizes precise power transmission and efficient load matching, making it a reliable choice for industrial automation, intelligent equipment, and light mechanical transmission systems.
