5IK 90mm 120W

Induction Motor

Motor Type: 5IK

Power: 120W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF

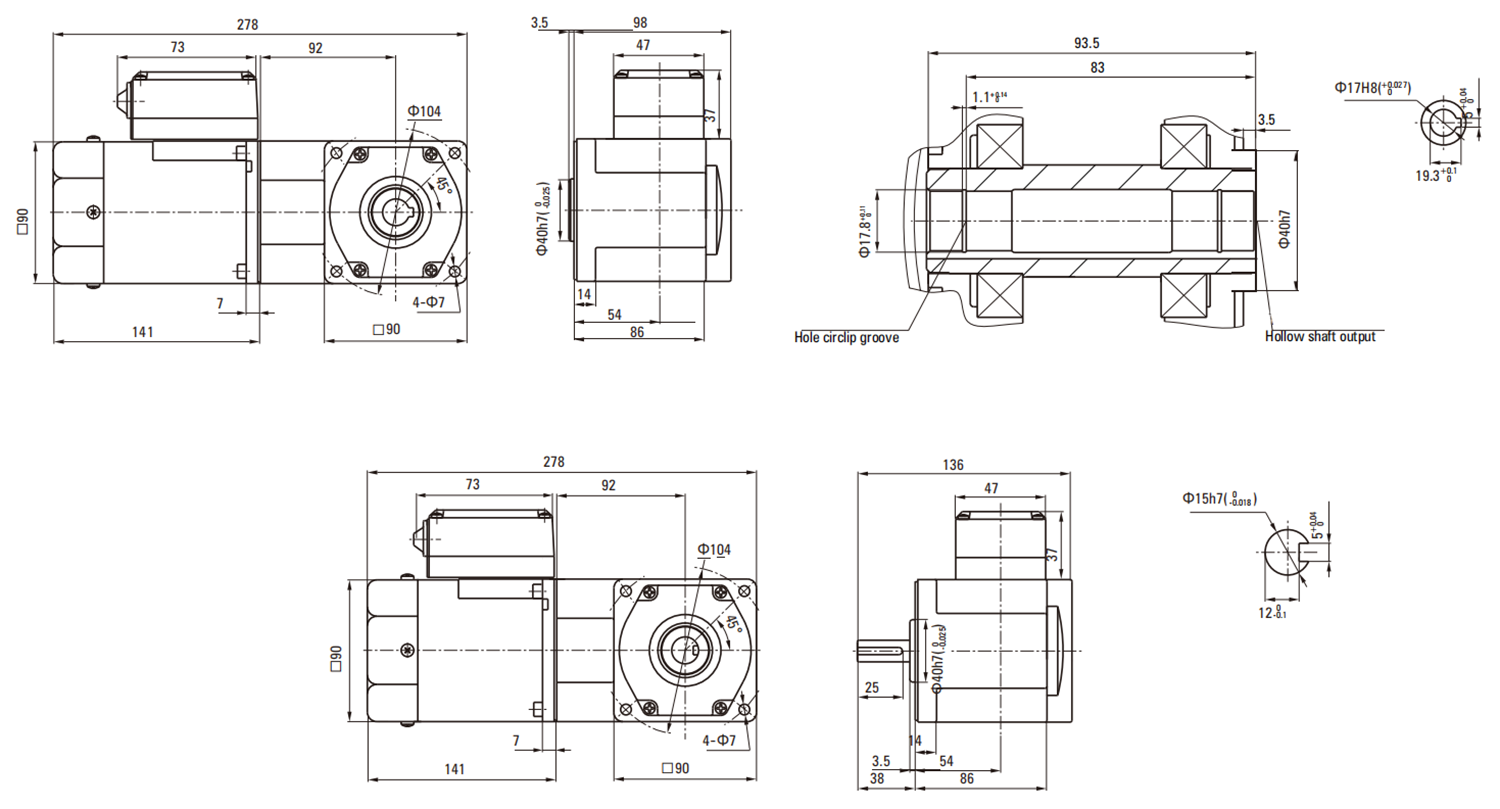

Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
5IK120GU-AF	5IK120GU-AFT	120	1ph 100	50	2.10	600	930	1250	30
				60	2.50		750	1550
5IK120GU-EF	5IK120GU-EFT	120	1ph 110	60	1.65	600	750	1550	25
			1ph 120		1.80
5IK120GU-CF	51K120GU-CFT	120	1ph 220	50	1.00	650	930	1250	7.0
			1ph 230		0.95
5IK120GU-HF	5IK120GU-HFT	120	1ph 220	60	1.00	600	750	1550	7.0
			1ph 230		0.95
5IK120GU-SF	51K120GU-SFT	120	3ph 220	50	0.70	1850	930	1250	-
				60	0.60	1600	750	1550
5IK120GU-S3F	5IK120GU-S3FT	120	3ph 380	50	0.40	1850	930	1250	-
				60	0.35	1600	750	1550

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
5IK120GUAF□ 5IK120GUEF□ 5IK120GU-CF□ 5IK120GUHF□ 5IK120GU-SF□ 5IK120GU-S3F□	5GU□RC 5GU□RT	Allowance Torque	50Hz	1.50	1.80	2.51	3.01	4.73	5.01	5.57	7.89	9.47	10.0	11.1	15.8	18.9	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
			50Hz	14.7	17.7	24.6	29.5	48.3	49.1	54.6	80.5	96.6	98.3	109	161	193	200	200	200	200	200	200	200	200	200
			60Hz	1.25	1.50	2.09	2.51	3.82	4.18	4.64	6.36	7.64	8.35	9.28	12.7	15.3	16.5	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
			60Hz	12.3	14.7	20.5	24.6	39.0	40.9	45.5	64.9	77.9	81.9	91.0	130	156	168	200	200	200	200	200	200	200	200

Lead Wiring Type

Description

The heavy-duty industrial induction motor is a high-performance power unit specifically designed for industrial automation and medium-to-large mechanical transmission systems. It is suitable for applications that require continuous and stable torque output under high load conditions. This model has a rated power of 120W and supports a wide voltage input range of 110V–380V, making it compatible with power standards across different regions and facilitating global deployment and integration of equipment. The motor features a compact structural design, offering excellent mechanical strength and heat dissipation performance, ensuring stable operation even in space-constrained installations and providing reliable power for long-term heavy-duty applications.
In terms of performance, the heavy-duty industrial induction motor is engineered with optimized stator and rotor structures, maintaining stable torque output at low, medium, and high load conditions. This reduces vibration and mechanical impact on the equipment structure. With smooth startup and continuous operation capabilities, the motor is ideal for both continuous operation and frequent start-stop scenarios. It is widely applicable to conveyor systems, industrial lifting platforms, packaging machinery, automated production lines, and various heavy-duty auxiliary transmission devices.
Regarding transmission compatibility, this motor can be paired with gearboxes offering a reduction ratio range of 3–180K, allowing flexible adjustment of output speed and torque according to application requirements. By intelligently combining the motor with suitable reduction systems, it achieves high torque output even within a compact form factor, meeting the dual demands of power strength and operational stability in heavy-duty industrial environments.
