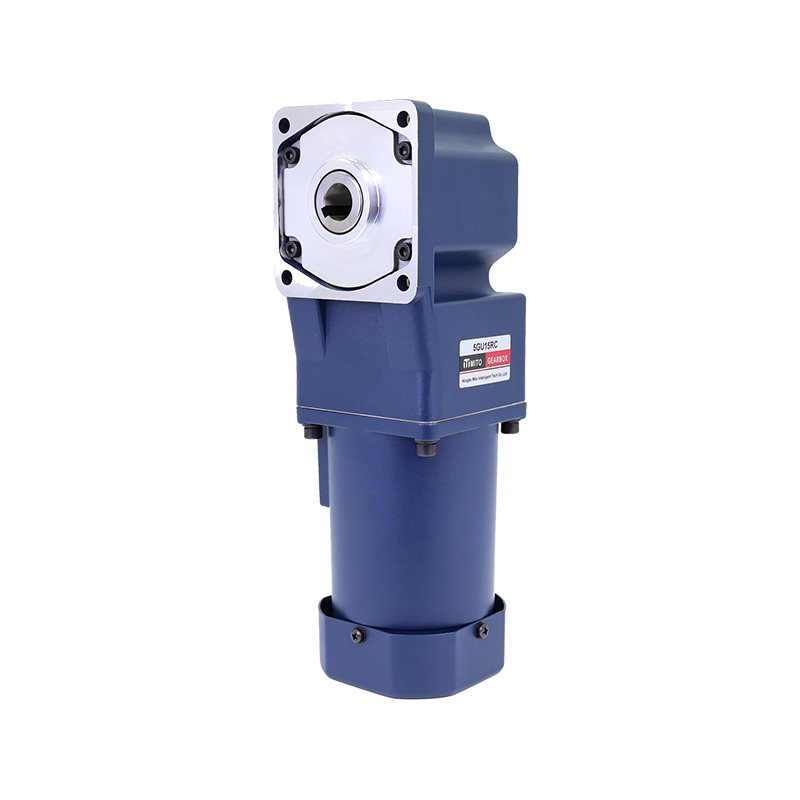

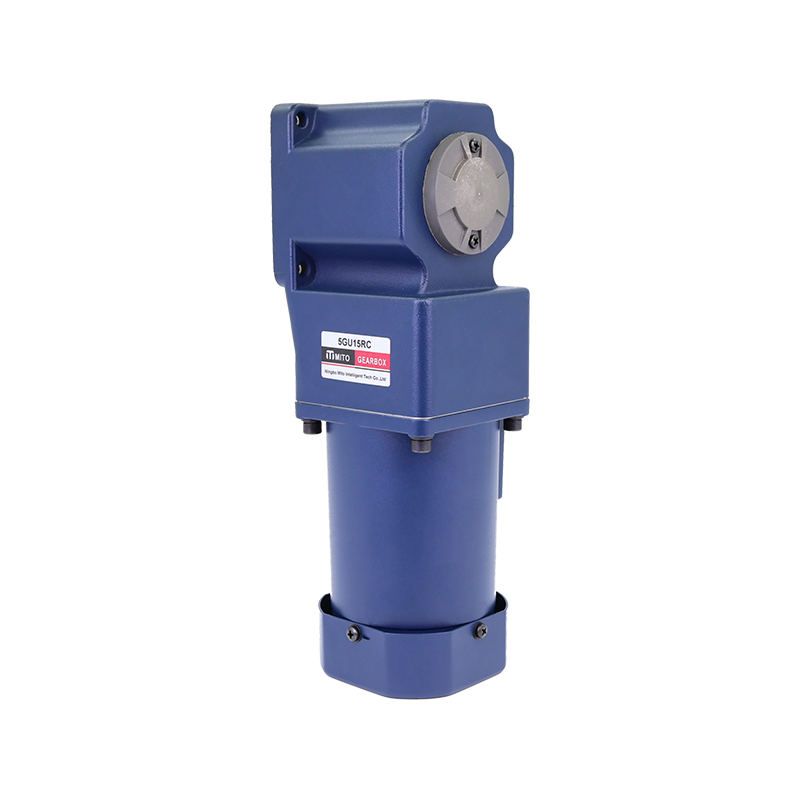

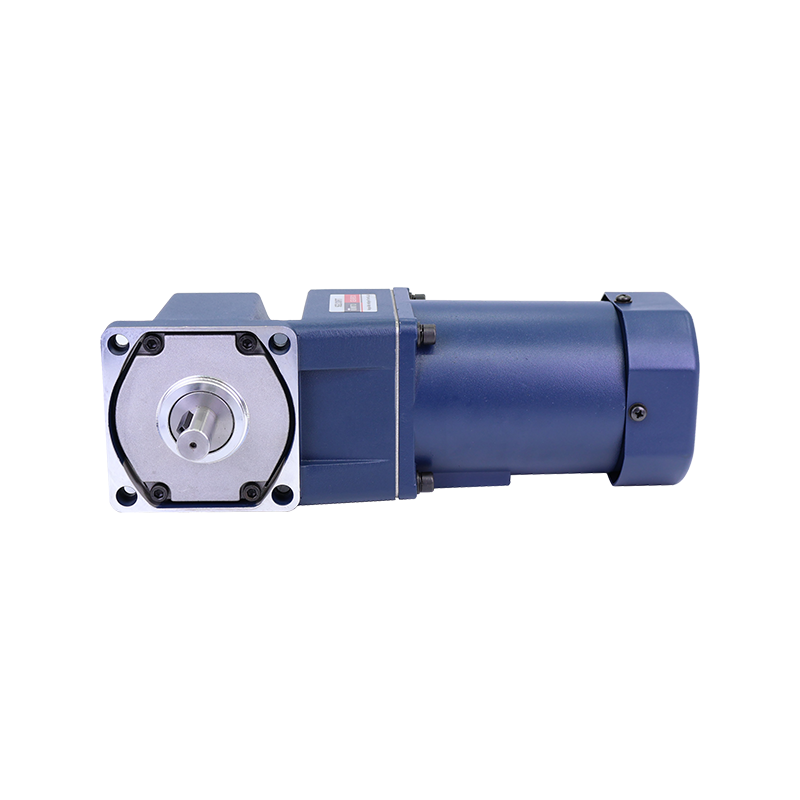

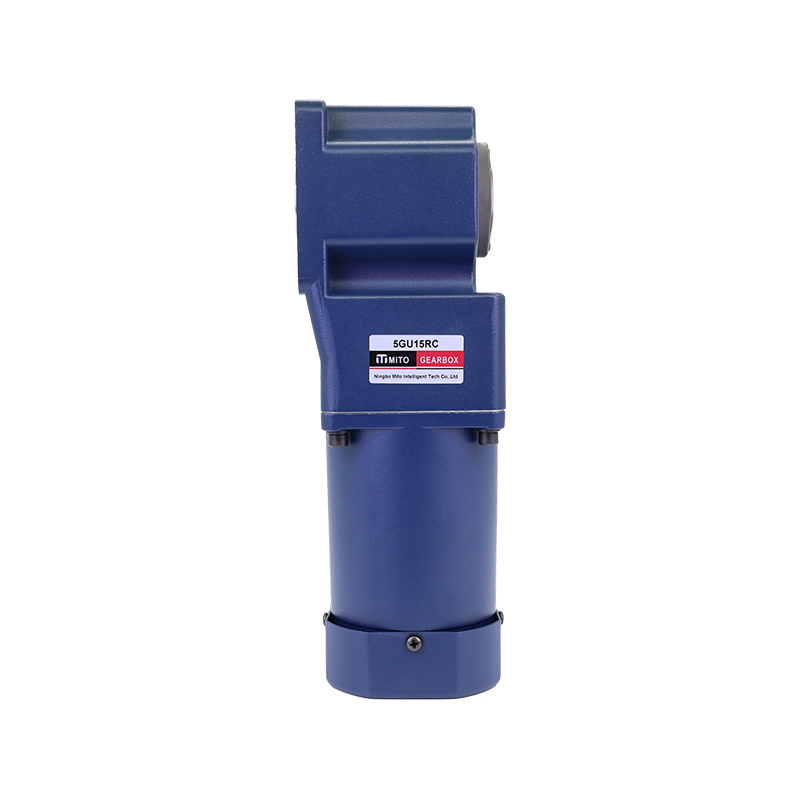

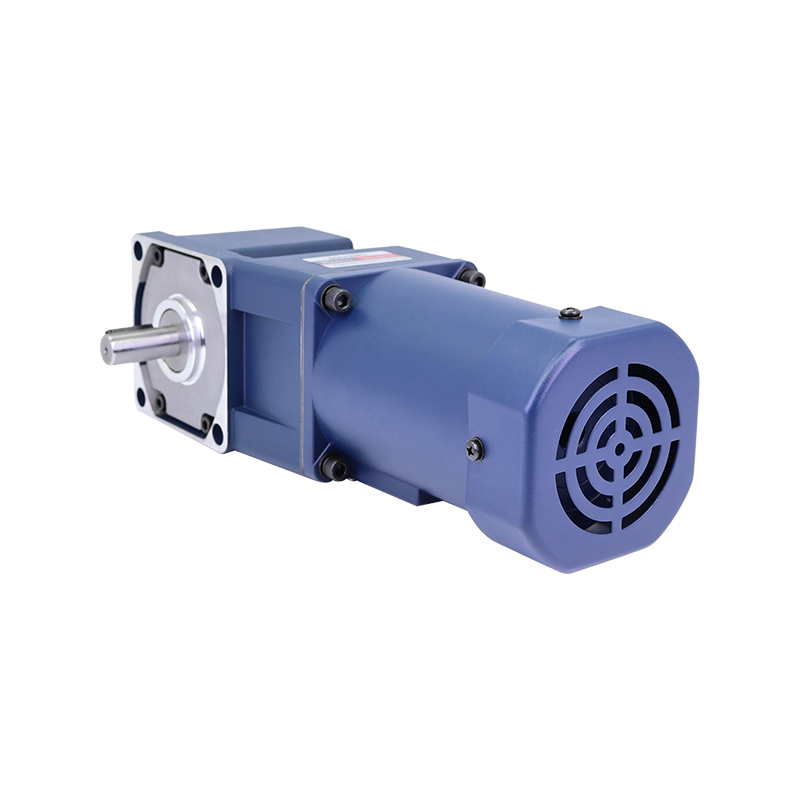

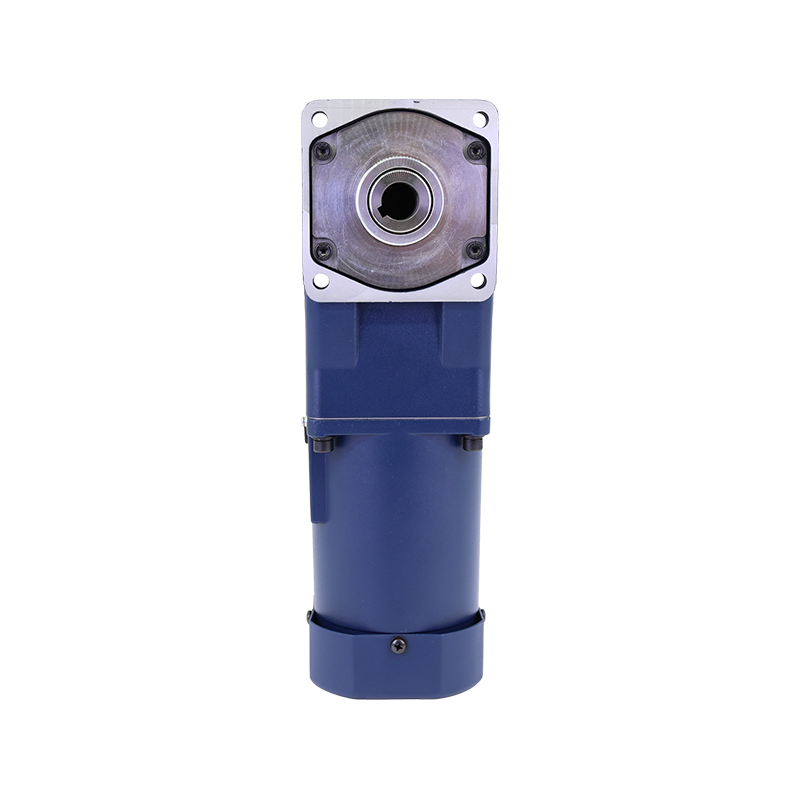

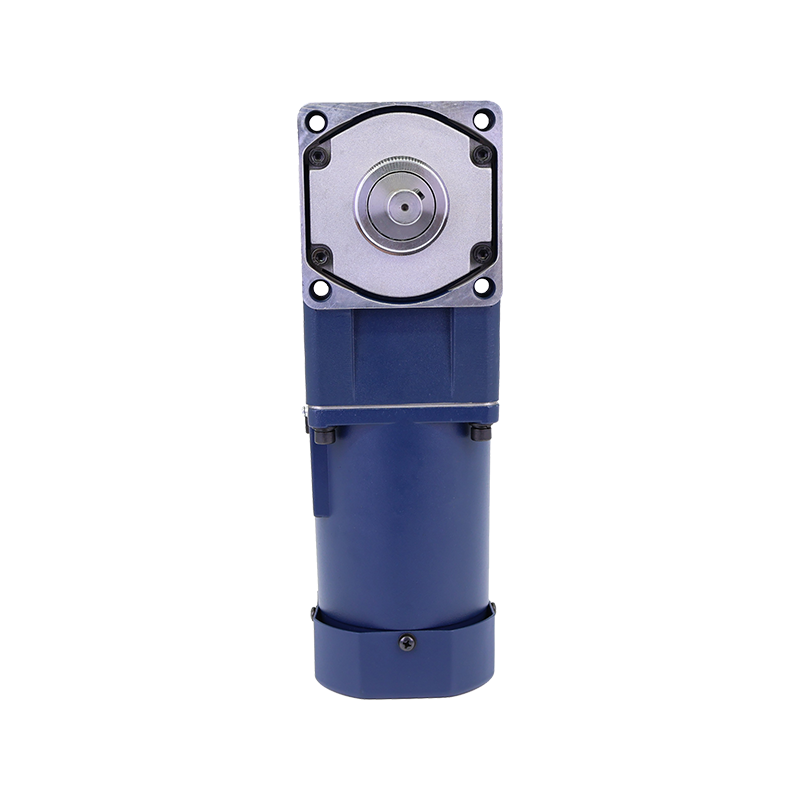

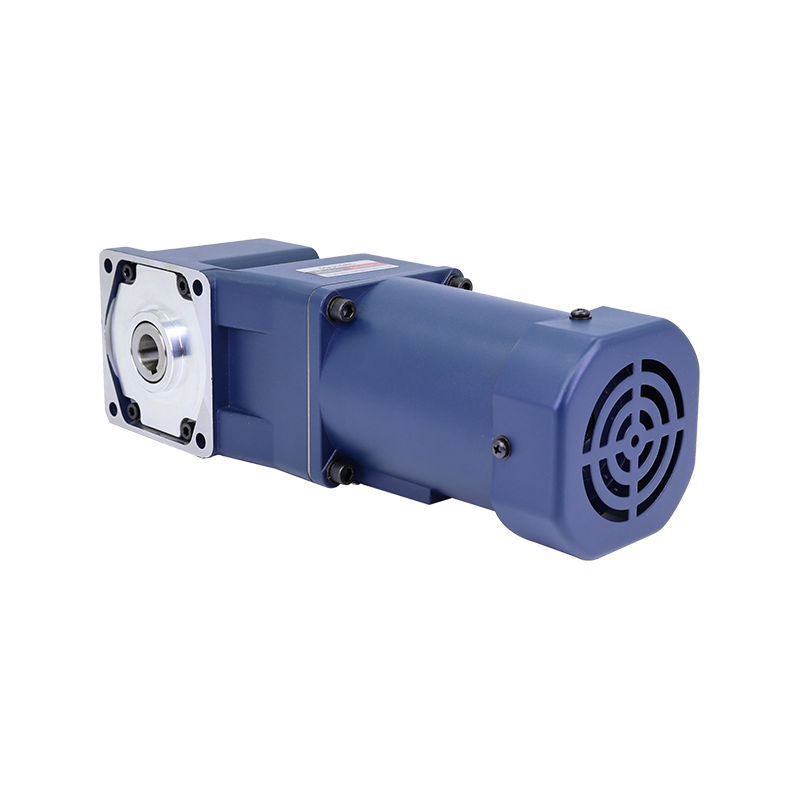

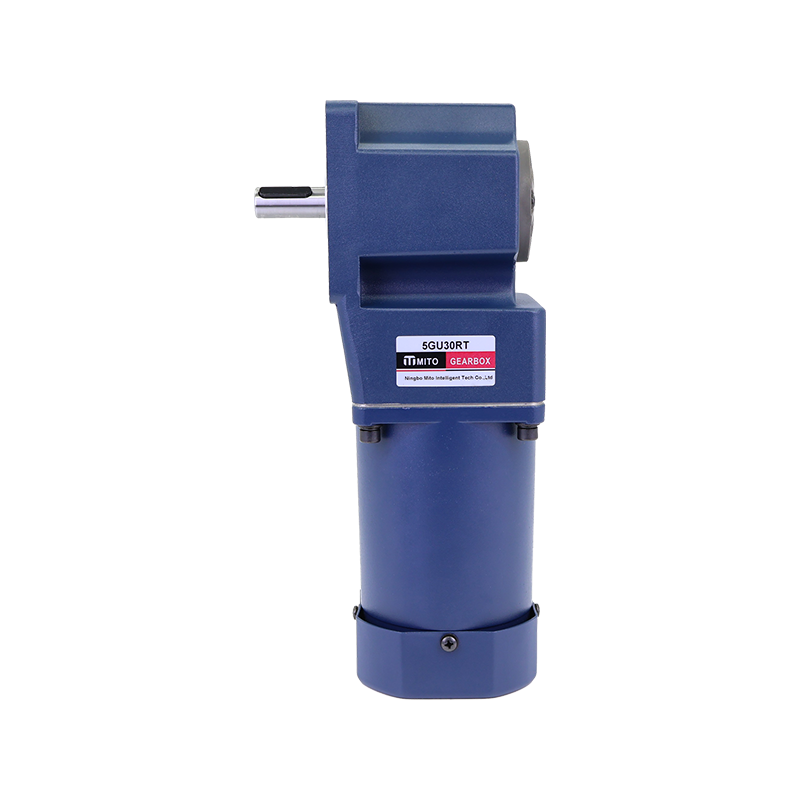

5IK 90mm 40W

Induction Motor

Motor Type: 5IK

Power: 40W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF

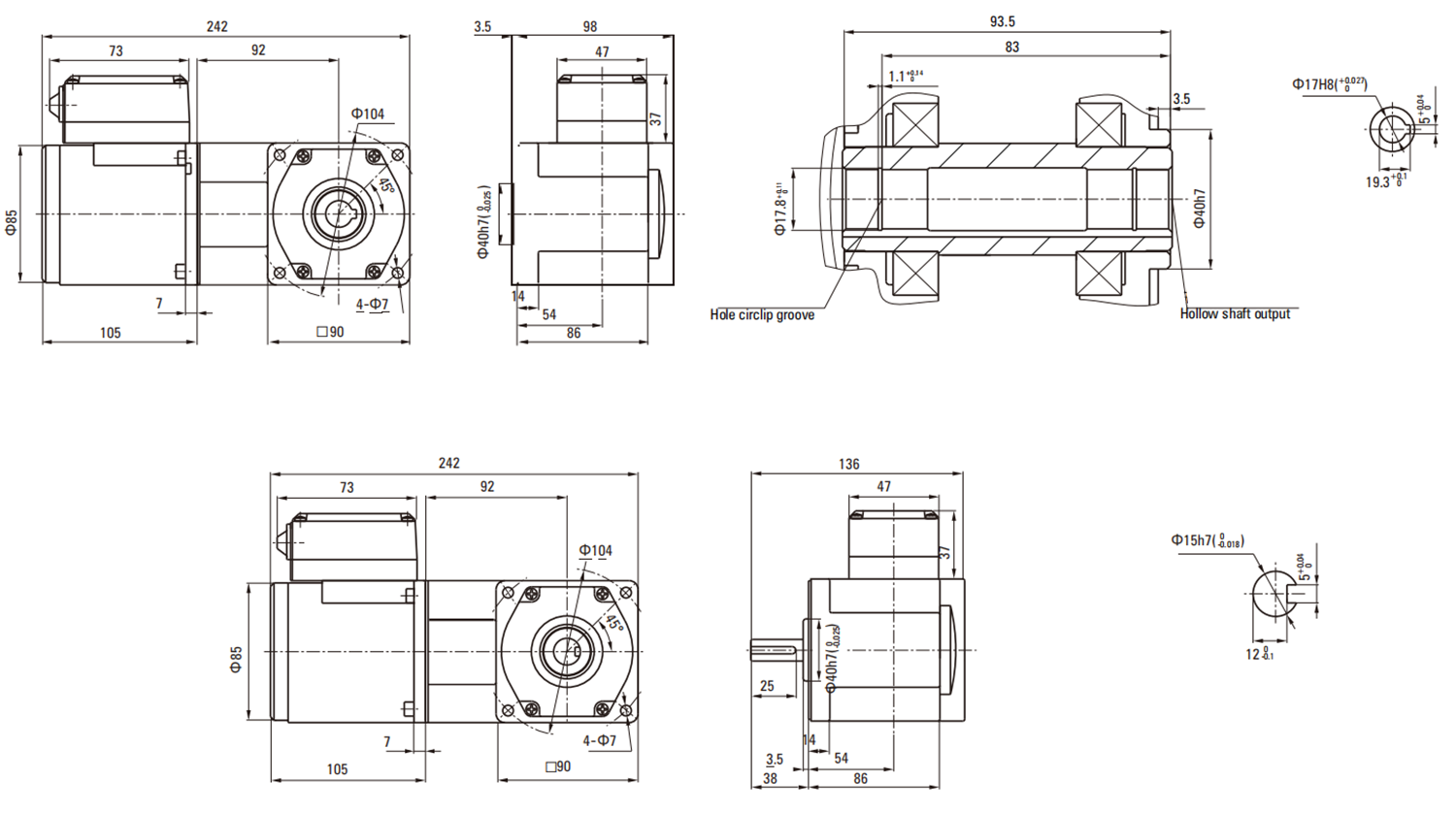

Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
5IK40GU-A	5IK40GU-AT	40	1ph 100	50	0.65	220	315	1250	12
				60	0.70		260	1550
5IK40GU-E	5IK40GU-ET	40	1ph 110	60	0.55	200	260	1550	8.0
			1ph 120		0.60
5IK40GU-C	5IK40GU-CT	40	1ph 220	50	0.35	220	315	1250	2.5
			1ph 230		0.40
5IK40GU-H	5IK40GU-HT	40	1ph 220	60	0.35	200	260	1550	2.5
			1ph 230		0.40
5IK40GU-S	5IK40GU-ST	40	3ph 220	50	0.30	800	315	1250	-
				60	0.25	660	250	1550
5IK40GU-S3	5IK40GU-S3T	40	3ph 380	50	0.17	800	315	1250	-
				60	0.14	660	250	1550

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
5IK40GU-A□ 5IK40GU-E□ 5IK40GU-C□ 5IK40GU-H□ 5IK40GU-S□ 5IK40GU-S3□	5GU□RC 5GU□RT	Allowance Torque	50Hz	0.50	0.60	0.84	1.00	1.58	1.67	1.86	2.63	3.16	3.34	3.71	5.26	6.31	6.80	9.50	11.4	14.2	17.0	18.9	20.0	20.0	20.0
			50Hz	4.91	5.89	8.19	9.82	16.1	16.4	18.2	26.8	32.2	32.8	36.4	53.7	64.4	70.0	97.0	116	145	174	193	200	200	200
			60Hz	0.42	0.50	0.70	0.84	1.27	1.39	1.55	2.12	2.55	2.78	3.09	4.24	5.09	5.50	7.64	9.16	11.5	13.7	15.3	18.3	20.0	20.0
			60Hz	4.09	4.91	6.82	8.19	13.0	13.7	15.2	21.6	26.0	27.3	30.3	43.3	51.9	56.1	77.9	93.5	117	140	156	187	200	200

Lead Wiring Type

Description

The variable frequency drive induction motor is designed for industrial automation applications that require adjustable speed control and stable operation. With a rated power of 40W and a compact structure, this model enables smooth starting and stepless speed regulation under inverter control, meeting production line requirements for speed accuracy and operational stability. Through optimized electromagnetic design and winding parameters, the motor maintains stable torque output across different frequency ranges, minimizing fluctuations caused by frequency variation.
The motor supports a wide voltage input range of 110V–380V, allowing compatibility with various regional power standards and multiple inverter drive systems. This flexibility facilitates equipment integration and export applications. Under low-frequency operation, the motor sustains stable output characteristics, making it suitable for conveyor systems, packaging equipment, inspection stations, and cycle-controlled units that require flexible speed adjustment. At higher frequency ranges, it continues to operate smoothly, reducing vibration and mechanical impact on the overall system structure.
In terms of transmission configuration, the motor can be paired with gearboxes offering reduction ratios from 3 to 180K, enabling flexible adjustment of output speed and torque according to specific application requirements. By combining variable frequency control with appropriate gear reduction, the motor can deliver higher torque output and a wider speed regulation range within a compact installation space, meeting diverse process cycle and load variation demands. The overall design emphasizes coordinated operation with inverter systems, making it suitable for integration into automated production lines and intelligent control systems, providing stable and adjustable power support for industrial motion control applications.
