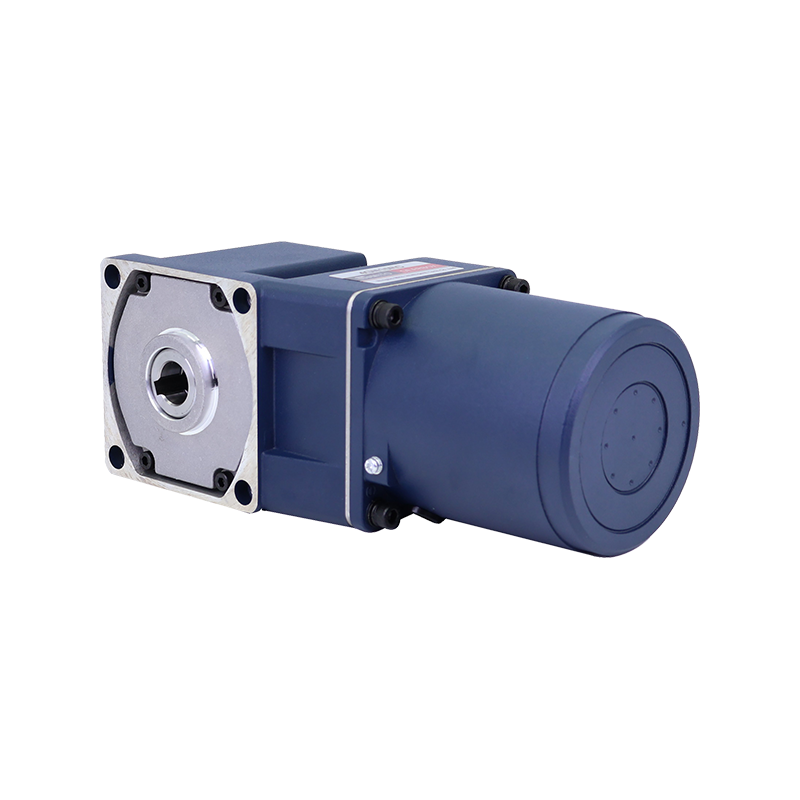

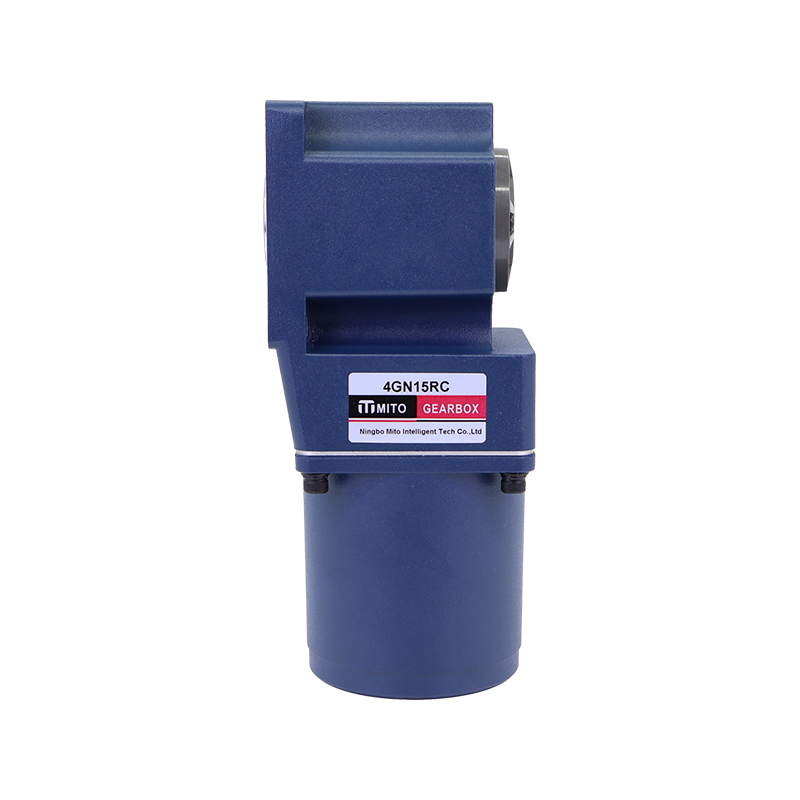

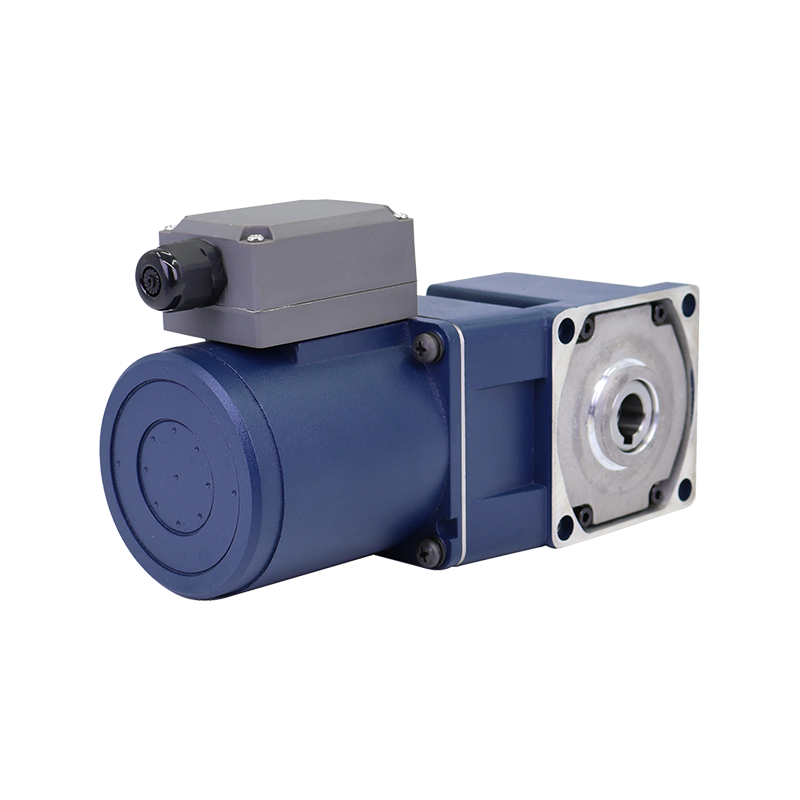

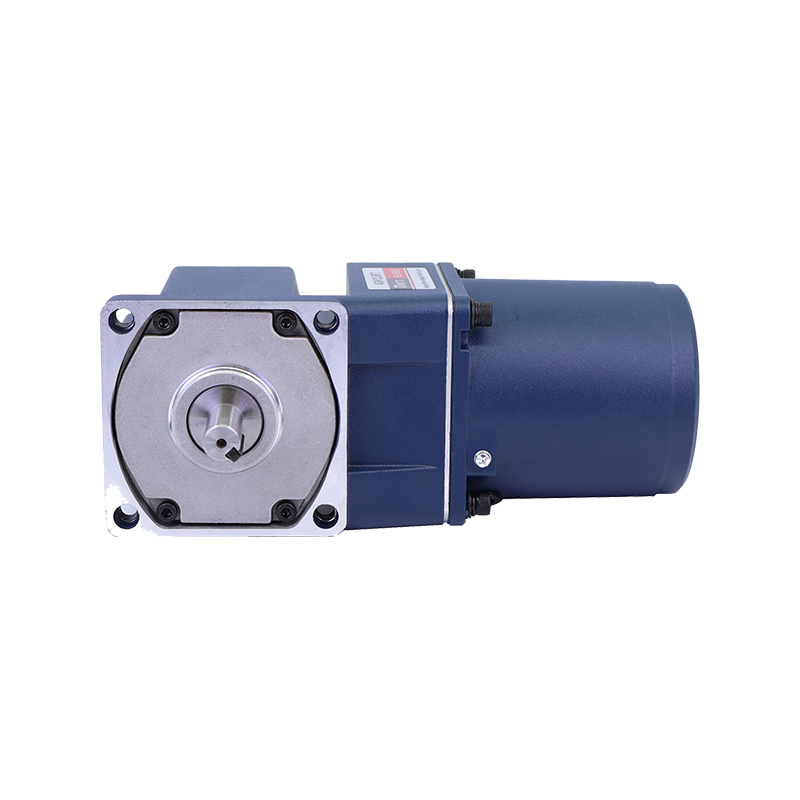

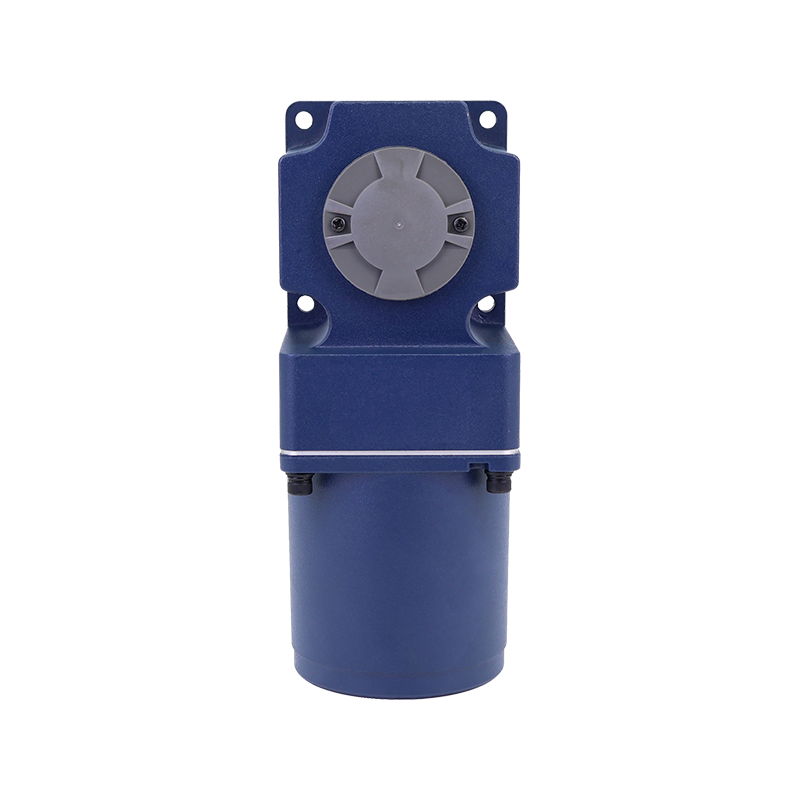

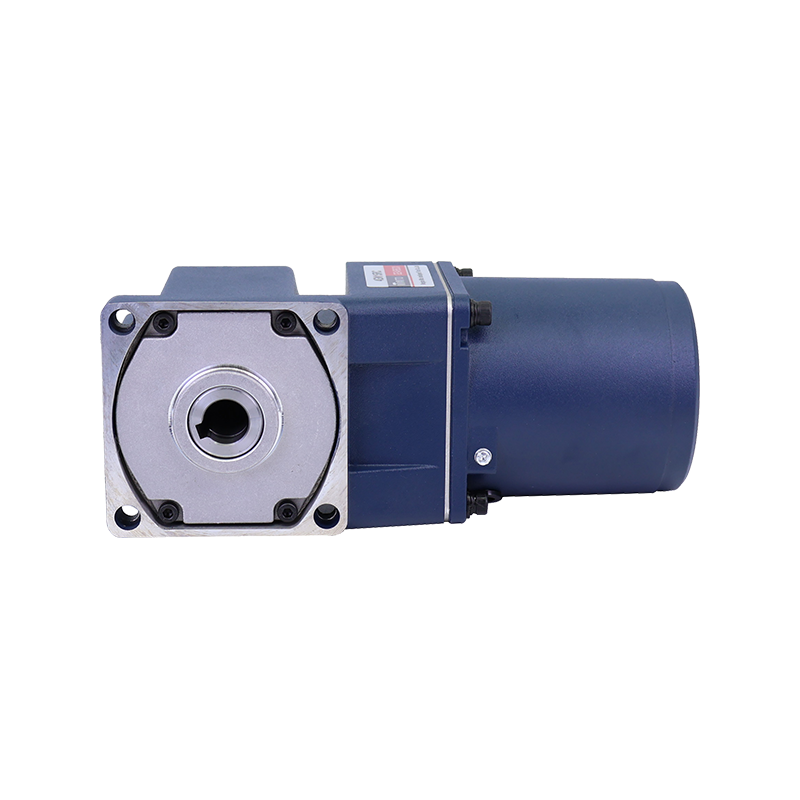

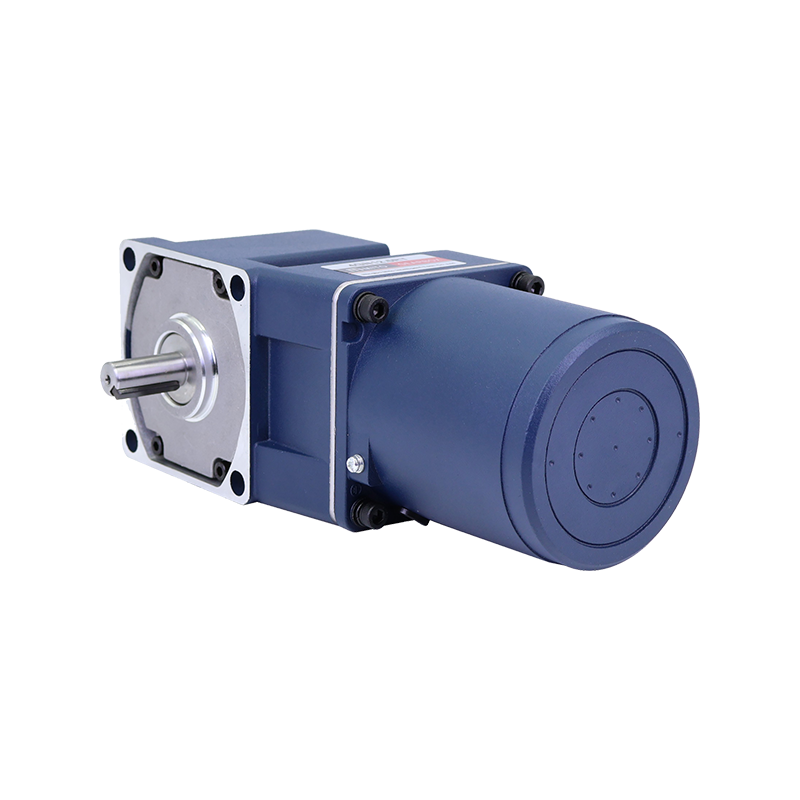

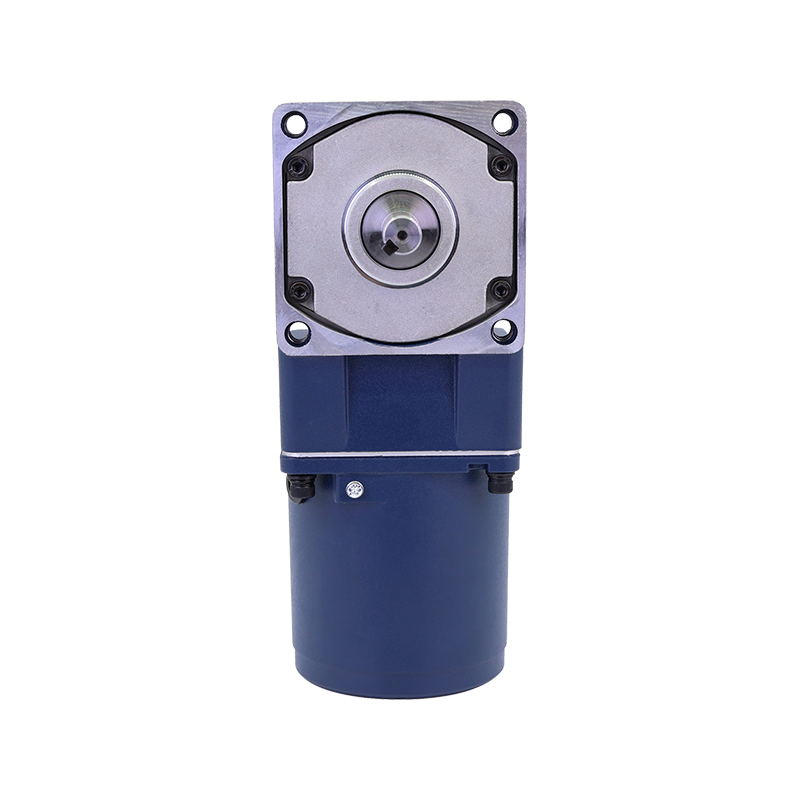

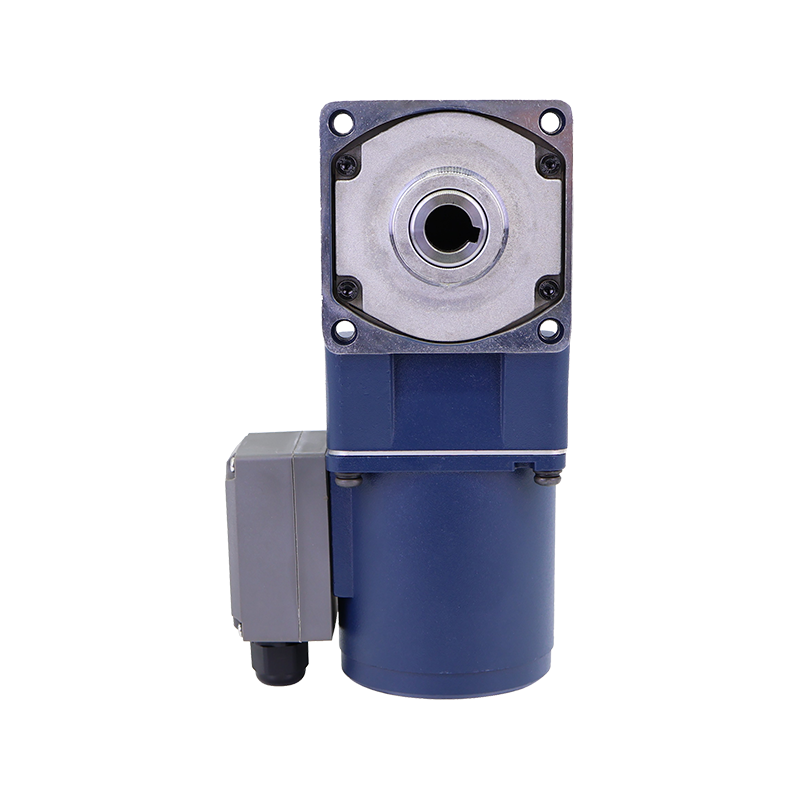

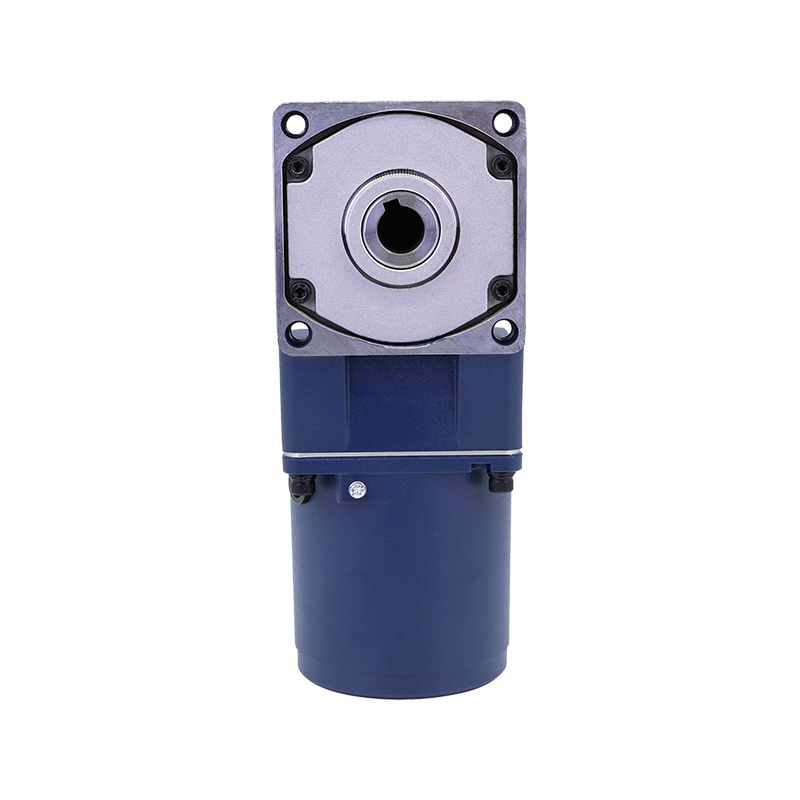

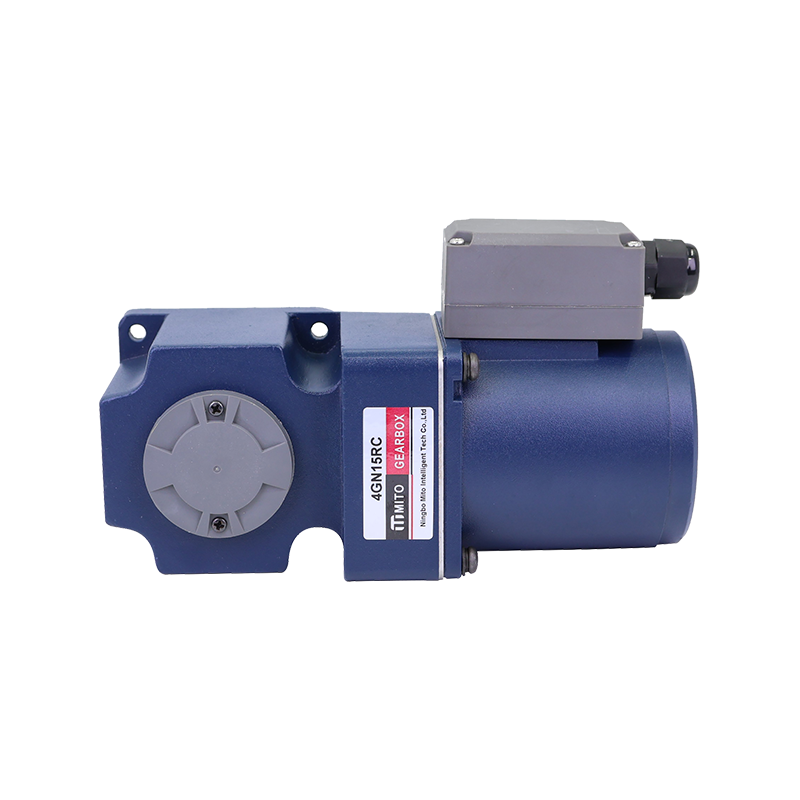

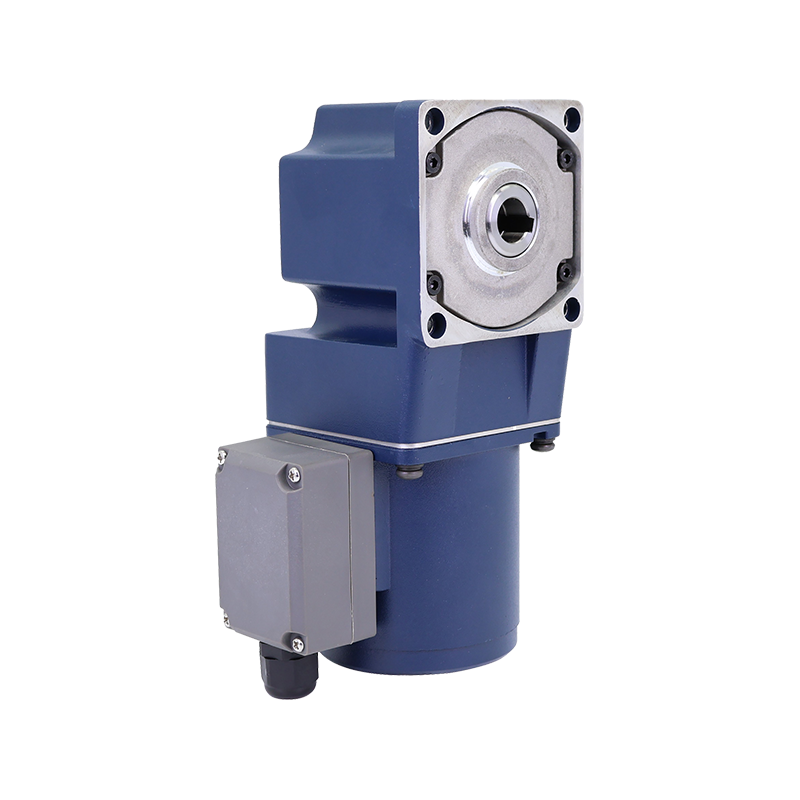

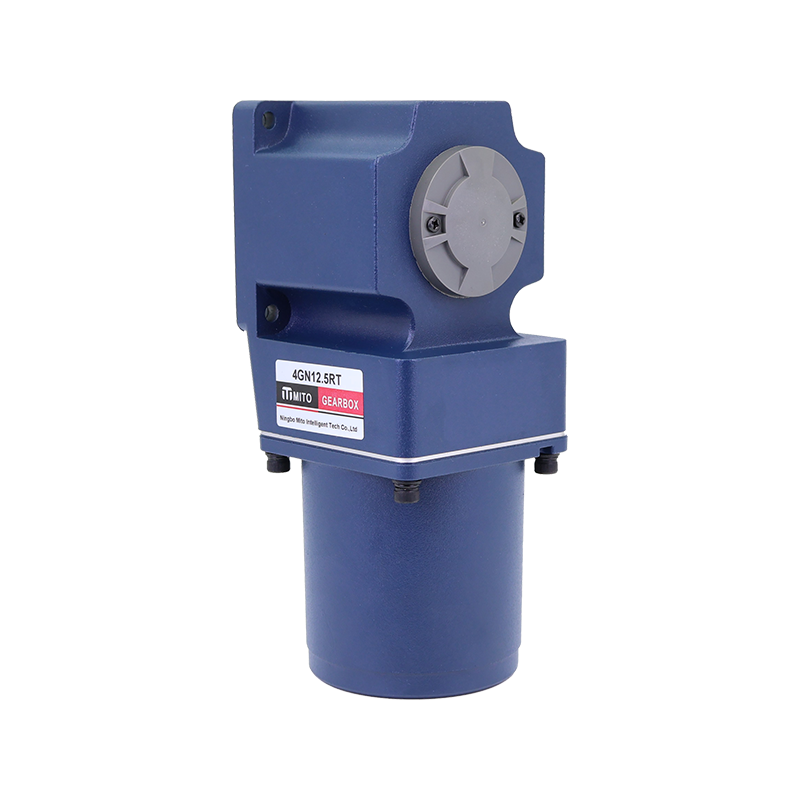

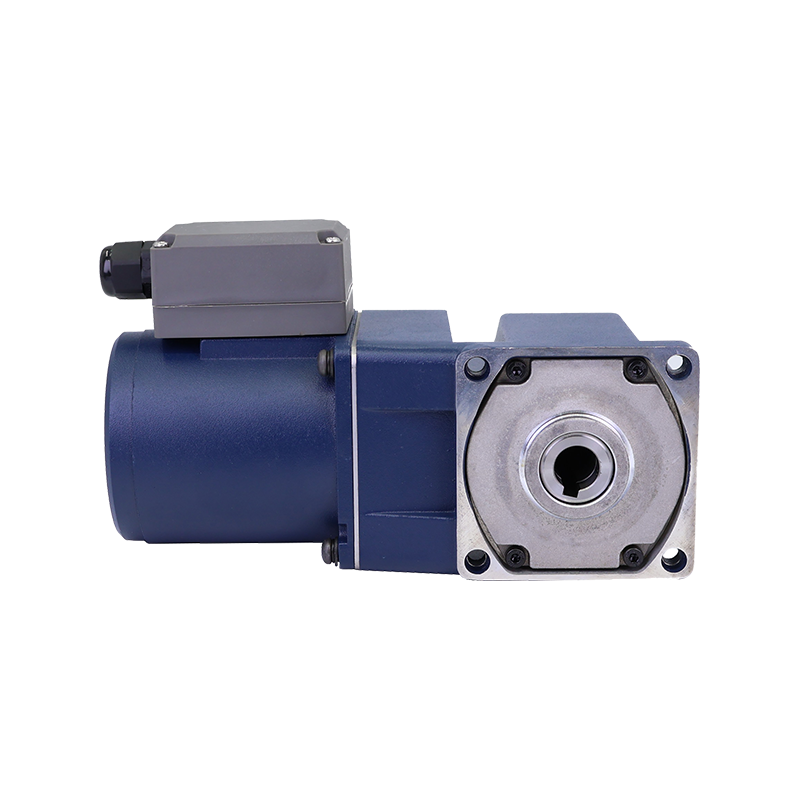

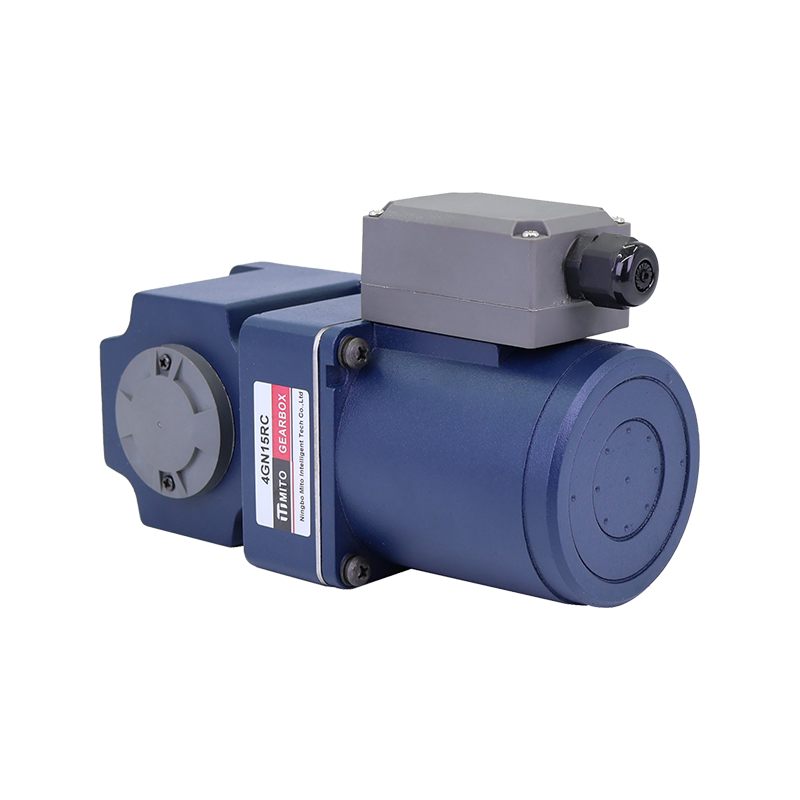

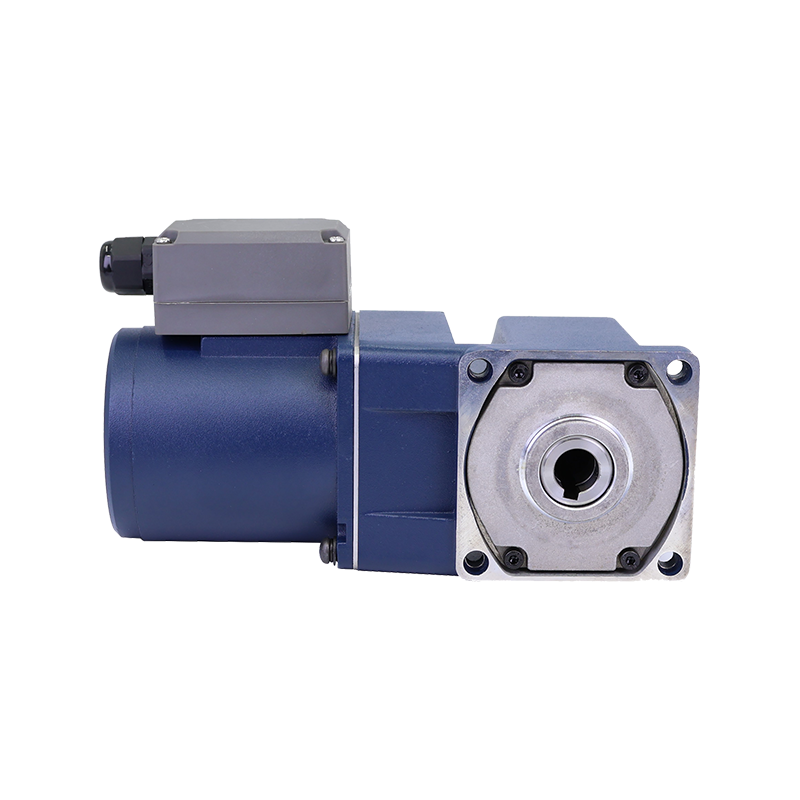

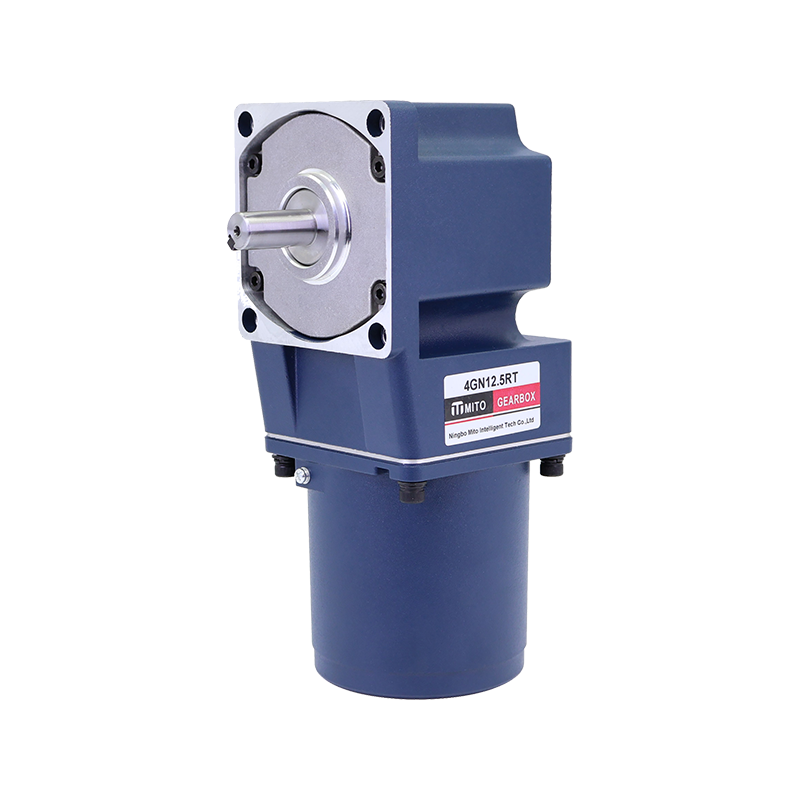

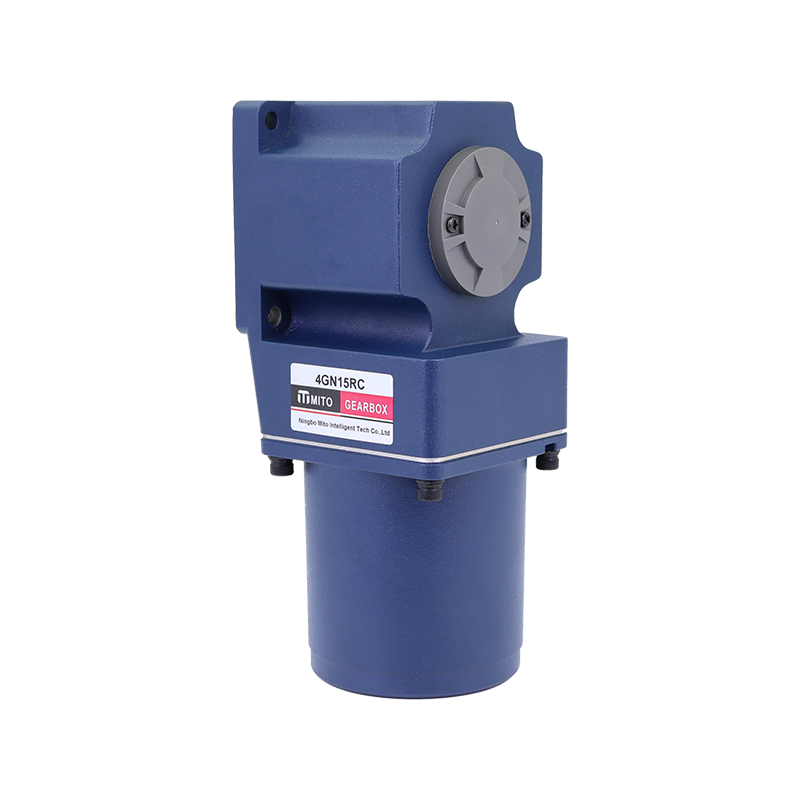

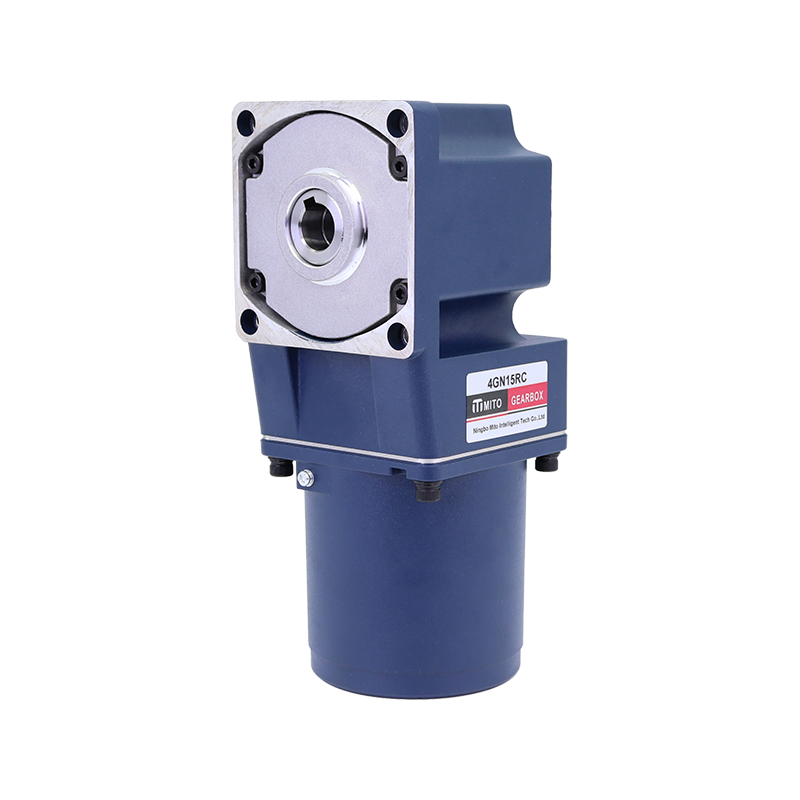

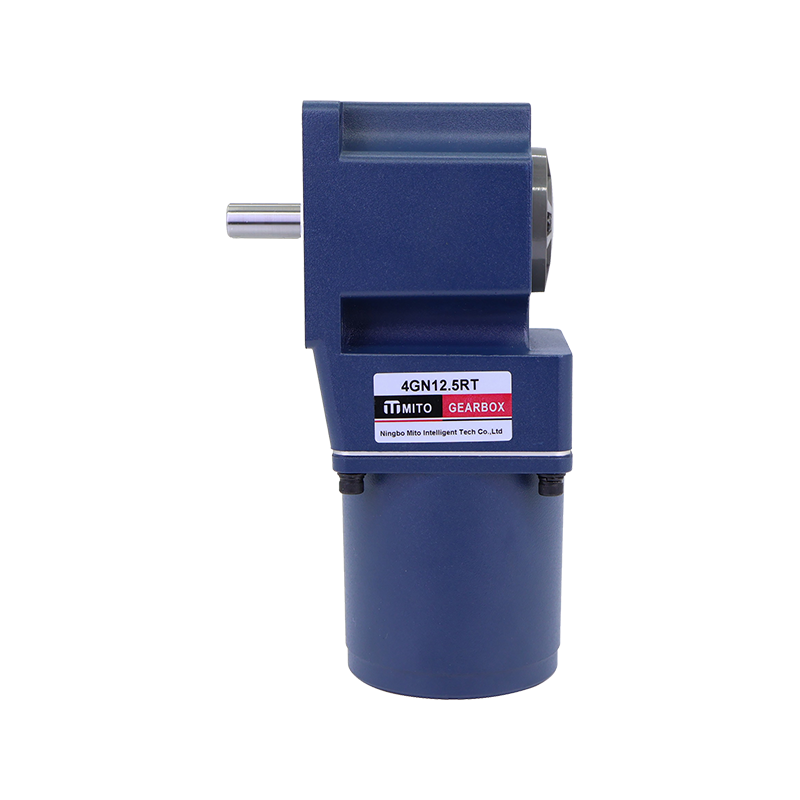

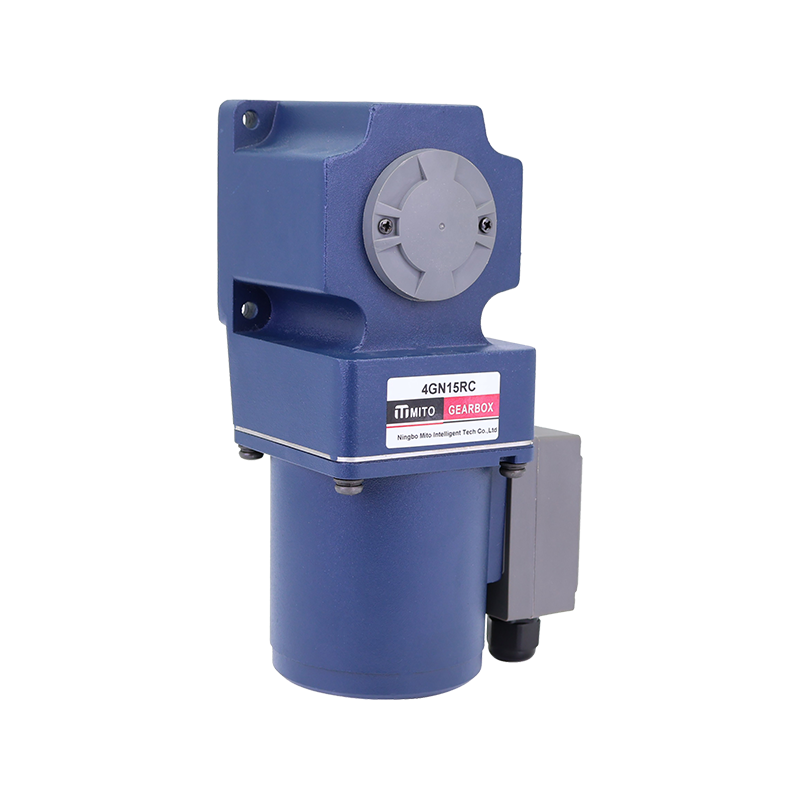

4IK 80mm 25W

Induction Motor

Motor Type: 4IK

Power: 25W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF

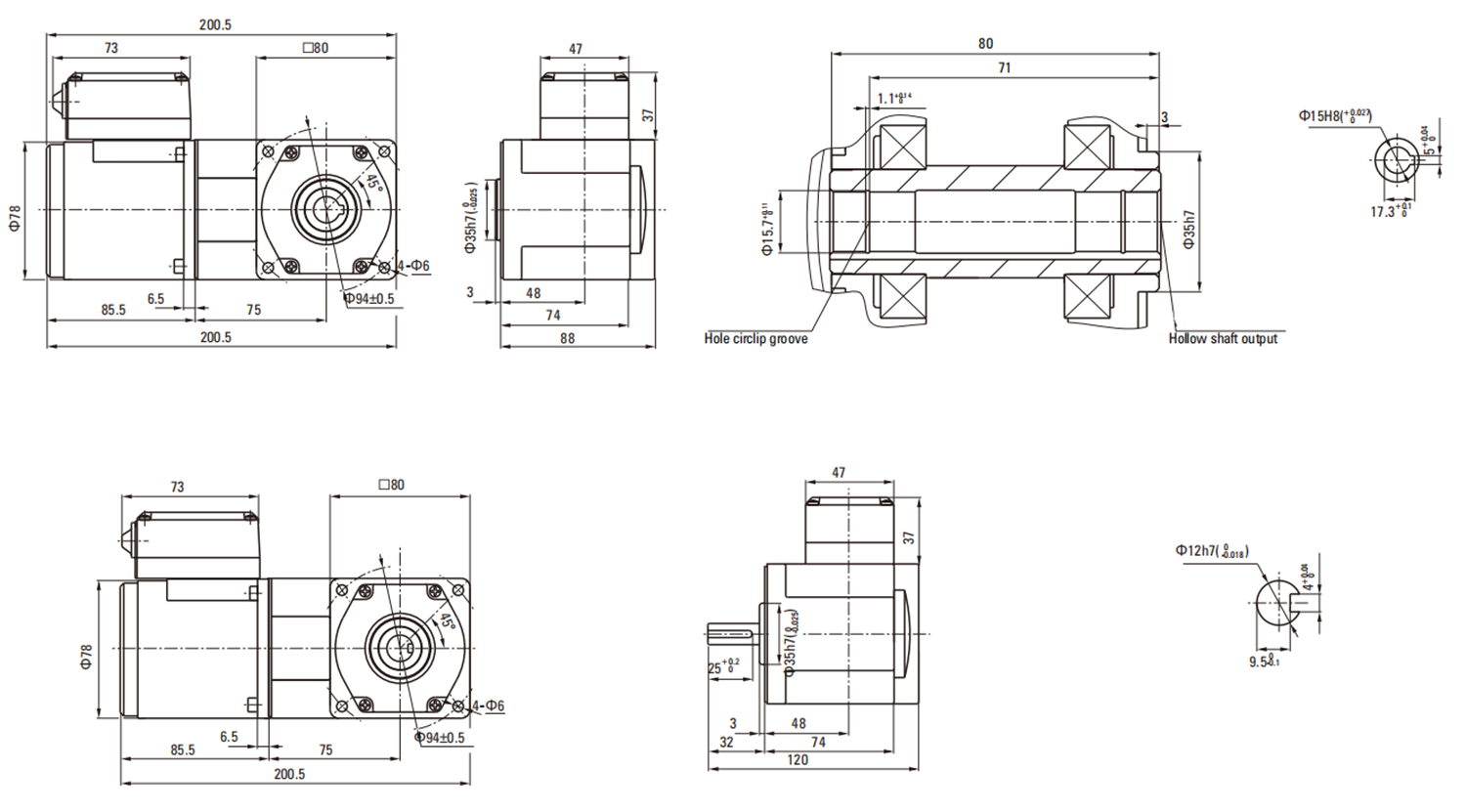

Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
4IK25GN-A	41K25GN-AT	25	1ph 100	50	0.500	120	200	1250	8.0
				60	0.550		165	1550
4IK25GN-E	4IK25GN-ET	25	1ph 110	60	0.450	120	165	1550	7.0
			1ph 120		0.500
4IK25GN-C	41K25GN-CT	25	1ph 220	50	0.250	120	200	1250	1.8
			1ph 230		0.230
4IK25GN-H	41K25GN-HT	25	1ph 220	60	0.230	120	165	1550	1.8
			1ph 230
41K25GN-S	41K25GN-ST	25	3ph 220	50	0.185	350	200	1250	-
				60	0.170	250	165	1550
4IK25GN-S3	4IK25GN-S3T	25	3ph 380	50	0.107	350	200	1250	-
				60	0.098	250	165	1550

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	5	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	300	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	360	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
4IK25GN-A□ 4IK25GN-E□ 4IK25GN-C□ 4IK25GN-H□ 4IK25GN-S□ 4IK25GN-S3□	4GNoRC 4GNORT	Allowance Torque	50Hz-	0.31	0.52	0.99	1.0	1.16	1.64	1.97	2.09	2.32	3.29	3.95	4.73	6.58	7.10	8.00	8.00	8.00	8.00	8.00	8.00
			50Hz-	3.07	5.12	10.1	10.2	11.4	16.8	20.1	20.5	22.7	33.5	40.3	48.3	67.1	72.5	80.0	80.0	80.0	80.0	80.0	80.0
			60Hz	0.26	0.44	0.80	0.87	0.97	1.33	1.59	1.74	1.93	2.65	3.18	3.82	5.30	5.73	7.16	8.00	8.00	8.00	8.00	8.00
			60Hz	2.56	4.26	8.12	8.53	9.48	13.5	16.2	17.1	19.0	27.1	32.5	39.0	54.1	58.4	73.0	80.0	80.0	80.0	80.0	80.0

Lead Wiring Type

Description

The cast iron housing heavy-duty induction motor is a power unit designed for continuous industrial operation, making it suitable for automation equipment and transmission systems that require high structural strength and stable performance. The motor features a cast iron enclosure, providing strong mechanical rigidity and vibration resistance. It can maintain stable operation in environments with high dust levels or impact loads. Compared with aluminum housing structures, the cast iron frame offers enhanced structural support and more balanced heat dissipation, contributing to an extended service life of the overall system.
This model has a rated power of 25W and supports a wide voltage range of 110V–380V, allowing it to adapt to different regional power standards and facilitating equipment export and multi-market deployment. The motor adopts an optimized stator and rotor design, ensuring smooth operation and stable output under low-speed and continuous load conditions. It is well suited for conveyor systems, small lifting mechanisms, and auxiliary drive units in automation applications.
In terms of transmission matching, the motor can be equipped with gearboxes offering reduction ratios from 3 to 180K, enabling flexible selection of output speed and torque according to specific application requirements. With appropriate gearbox configuration, the motor can achieve higher torque output within a compact structure, meeting the demands of various load conditions. The overall design emphasizes assembly stability and continuous operation capability, allowing seamless integration into automated production lines, sorting systems, and light industrial equipment, providing reliable power support for industrial drive systems.
