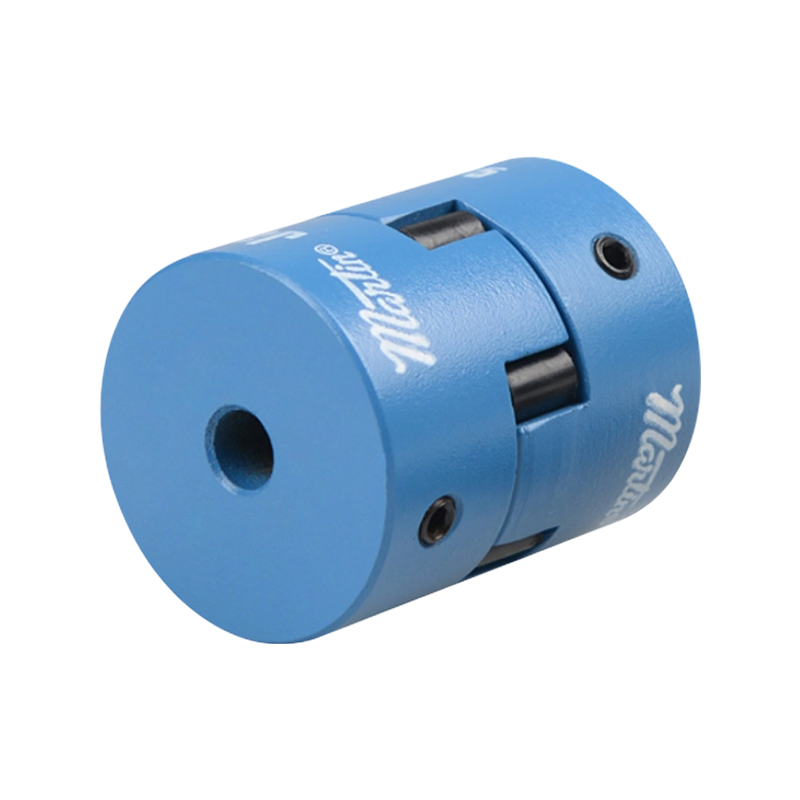

L Cast iron couplings

Coupling

Features

Directly by the powder metallurgy die casting, Good compact, Transmission torque.

Colloid can absorb vibration、parallel、angular misalignments and shaftend-play.

Detachable design, Easy installation.

Top tight type.

PREV：CY Pump special seriesNEXT：CLZ 45# Steel swelling sets of double diaphragm series
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

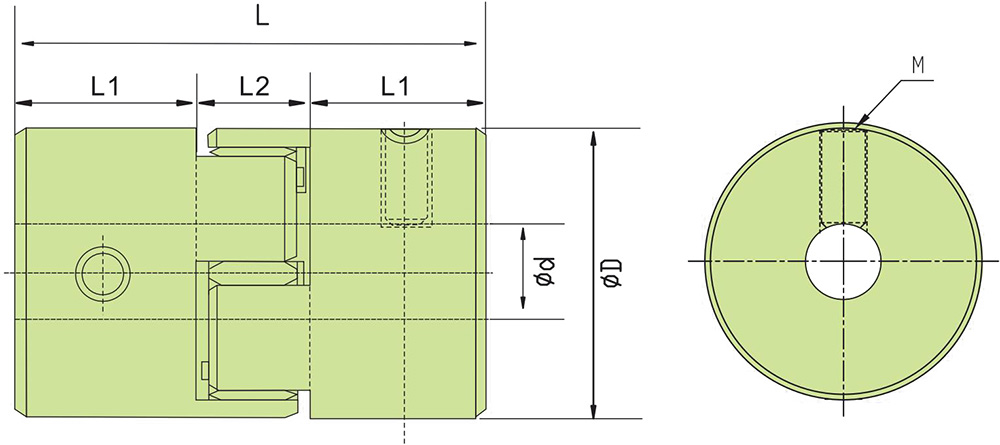

Dimensions (Unit): mm

Model

Ød  Bore

ØD

L

L1

L2

Pilot hole

Maximum

L-035

3.2

8

Ø16

20.5

6.5

7.5

L-050

6.35

18

Ø27.5

43.2

15.5

12.2

L-070

6

20

Ø35

50

18.5

12.2

L-075

8

26

Ø45

55.5

21

12.4

L-090

10

28

Ø54

55

21

13

L-095

10

28

Ø54

64

24

13

L-100

12

36

Ø66

88

35

18

L-110

12

48

Ø85

110

44

22

Allowance Torque

Specifications

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

L-035

0.5

1.5

0.1

0.5

±0.3

18000

0.38×10

Cast iron

NBR

Blue Spray painting

20

L-050

1.5

4.5

0.2

1.0

±0.5

12000

5.10×10

127

L-070

3

9

0.2

1.0

±0.5

9000

1.79×10

282

L-075

5

15

0.2

1.0

±0.5

7000

5.36×10

416

L-090

8

24

0.3

1.0

±0.5

6000

1.15×10

650

L-095

10

60

0.3

1.0

±0.5

6000

1.4×10

750

L-100

25

75

0.3

1.0

±0.7

5000

4.34×10

1465

L-110

50

150

0.3

1.0

±0.7

4000

1.43×10

3172

Note: The above technical parameters are measured based on the maximum aperture specification.
