Home / Products / Coupling / CY Pump special series
  • CY Pump special series
  • CY Pump special series

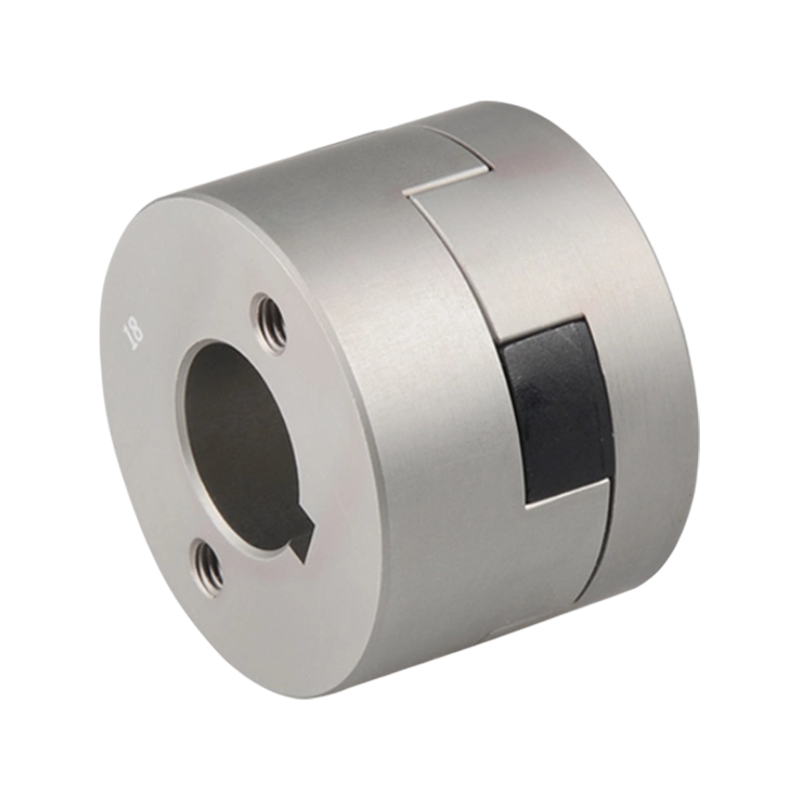

CY Pump special series

Coupling

Features

Pump special

Colloid using TPU, With good abrasion resistance、Oil resistance and Insulation.

Colloid can absorbvibration、parallel、angular misalignments and shaft end-play.

PREV：Aluminum bronze slider clamping seriesNEXT：L Cast iron couplings
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

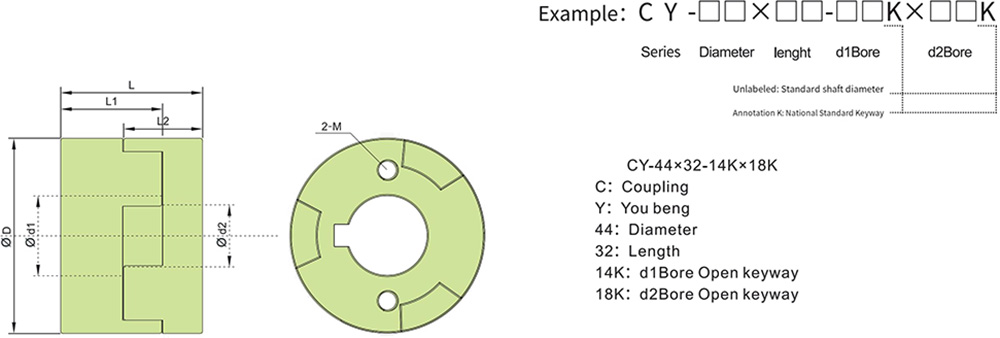

Dimensions (Unit): mm

Model

 d1, d2, Bore

ØD

L

L1

M

CY-44×32

 12,14,18,19,20

Ø44

32

29.6

4-M3×25

Allowance Torque

Specifications

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CY-44×32

17

34

0.1

1°

±0.1

10000

1200

1.8×10⁻⁵

High strength allnum

AL6061-T6

TPU

Oxidation treatment

103

Note: The above technical parameters are measured based on the maximum aperture specification.

Lead Wiring Type

Description
