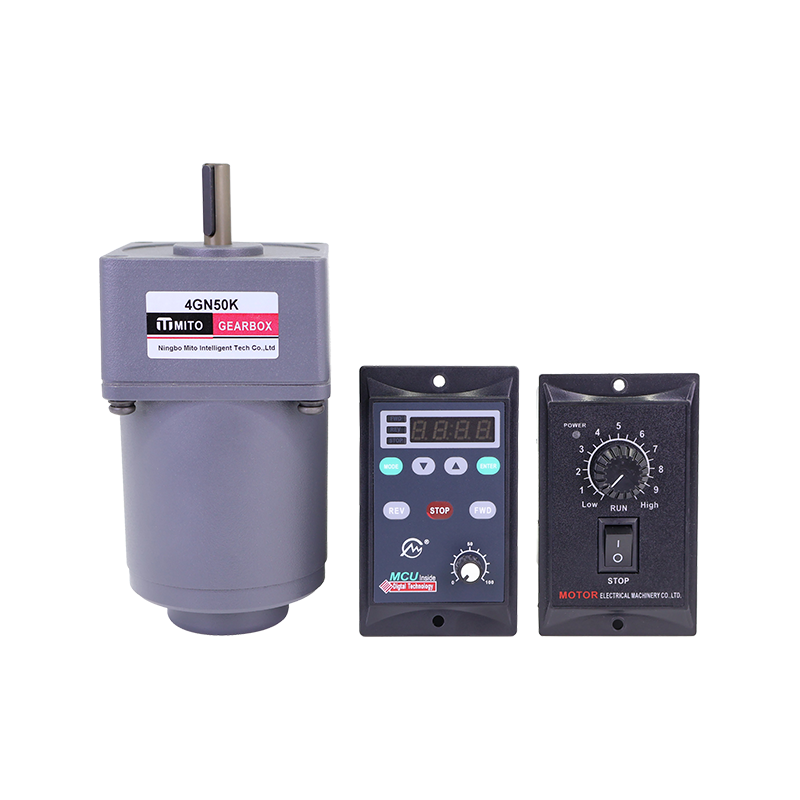

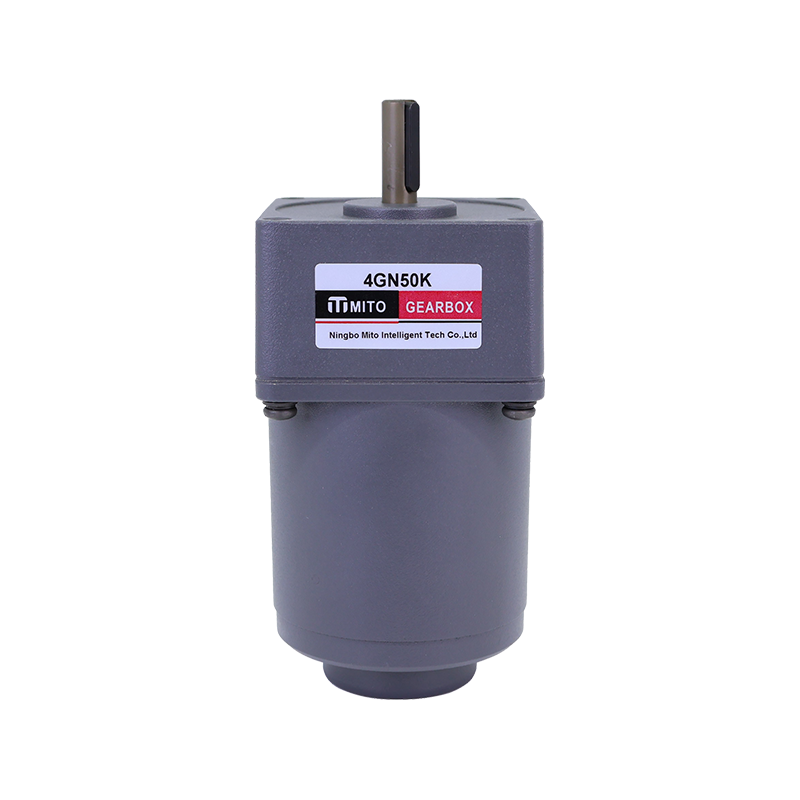

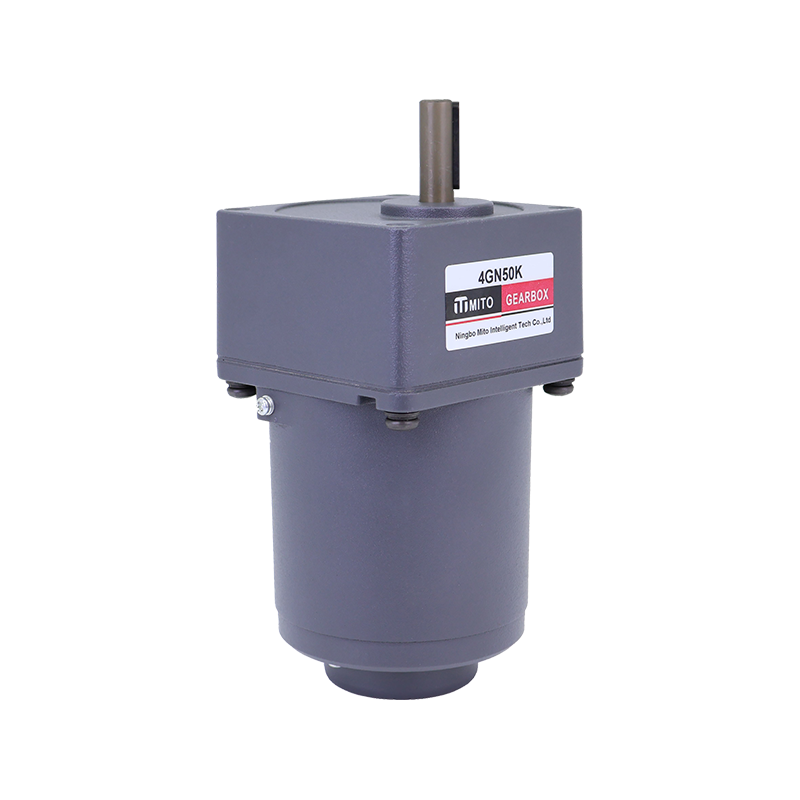

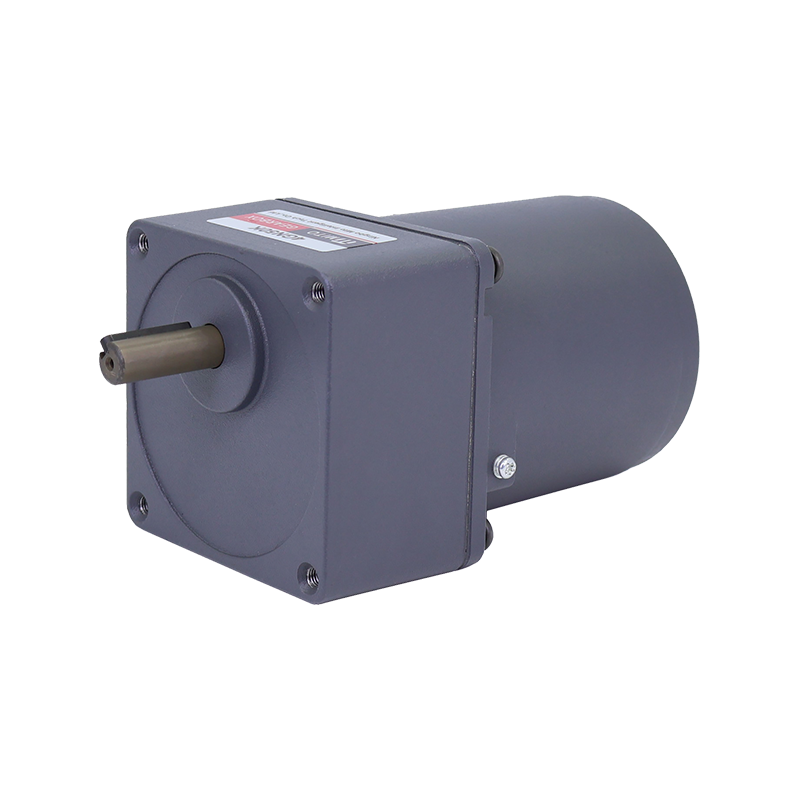

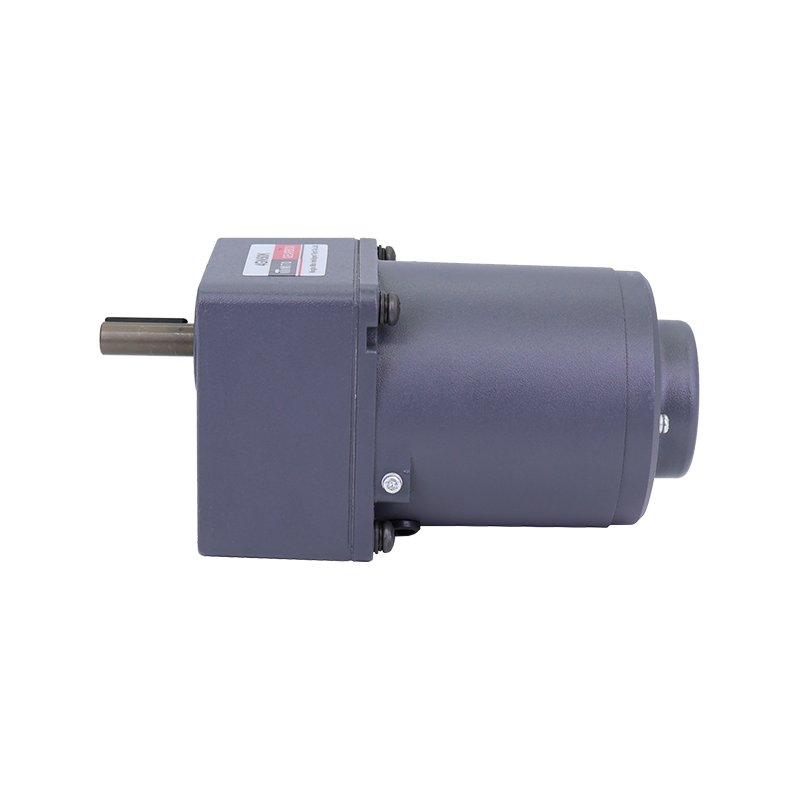

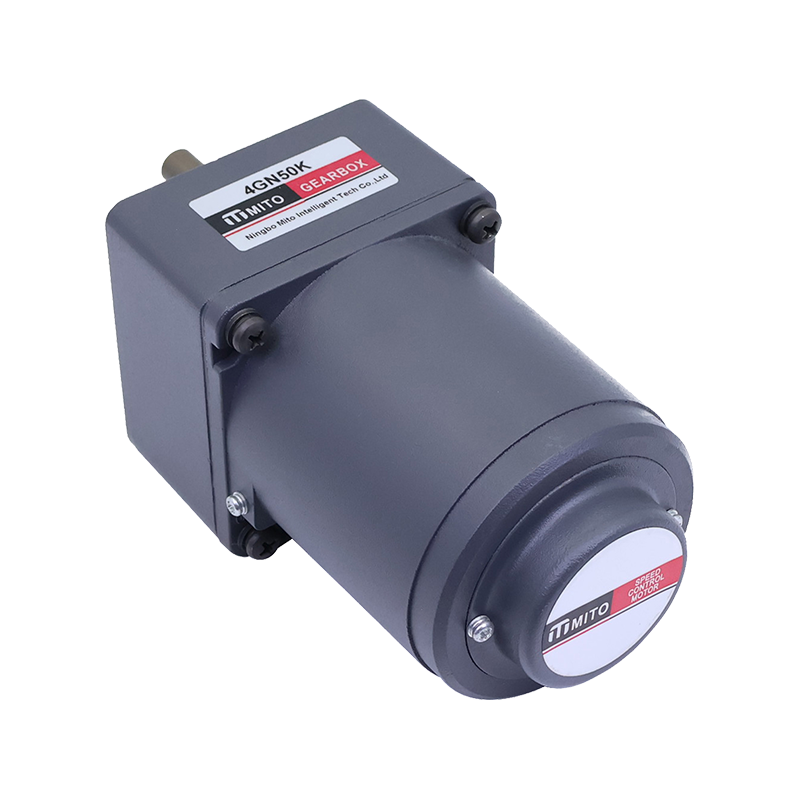

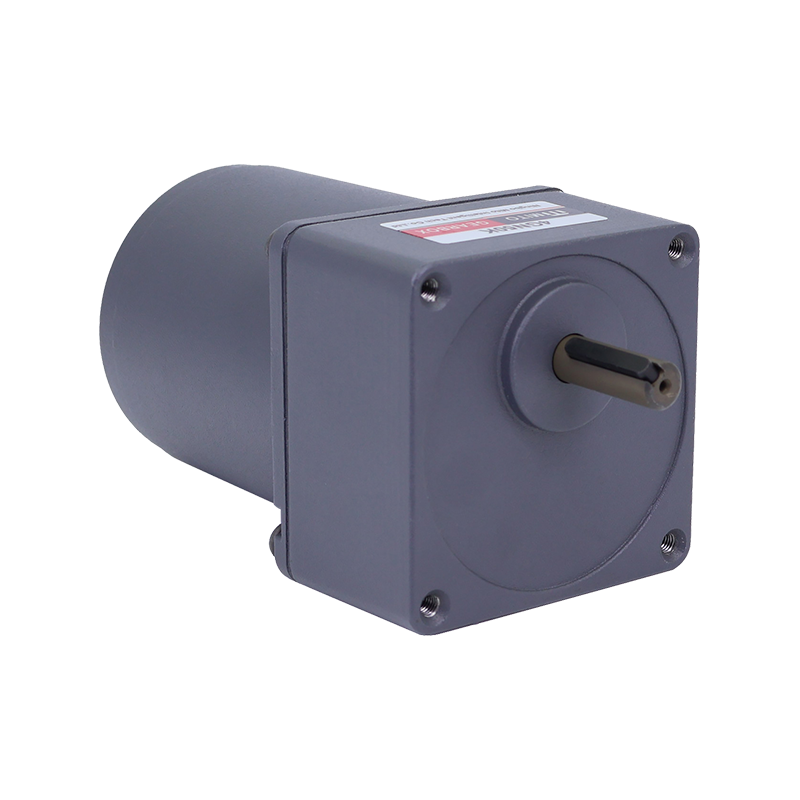

4IK 80mm 25W

AC Speed Control Motor

Motor Type: 4IK

Power: 25W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Lead Wire Type		Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
Pinion Shaft	Round Shaft					1200r/min mN.m	90r/min mN.m
4IK25RGN-A	4IK25RA-A	25	1ph 100	50	90~1350	190	47	88	0.50	8.0
				60	90~1650				0.55
4IK25RGN-E	4IK25RA-E	25	1ph 110	60	90~1650	190	50	105	0.45	7.0
			1ph 120						0.50
4IK25RGN-C	4IK25RA-C	25	1ph 220	50	90~1350	190	47	88	0.25	1.8
			1ph 230						0.23
4IK25RGN-H	41K25RA-H	25	1ph 220	60	90~1650	190	45	88	0.23	1.8
			1ph 230

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
4IK25RGN-A 41K25RGN-E 4IK25RGN-C 4IK25RGN-H	4GN□K	50Hz	0.49	0.58	0.81	0.97	1.20	1.50	1.55	2.00	2.40	2.90	3.17	3.70	4.40	5.30	5.57	6.60	7.90	8.00	8.00	8.00	8.00	8.00	8.00	8.00
		50Hz	5.00	5.91	8.26	9.89	12.2	5.3	15.8	20.4	24.4	29.6	32.3	37.7	44.9	54.1	56.8	67.3	80.0	80.0	80.0	80.0	80.0	80.0	80.0	80.0
		60Hz	0.40	0.48	0.67	0.80	1.00	1.20	1.25	1.70	2.00	2.40	2.64	3.00	3.60	4.30	4.49	5.40	6.50	8.00	8.00	8.00	8.00	8.00	8.00	8.00
		60Hz	4.08	4.89	6.83	8.16	10.2	12.2	12.8	17.3	20.4	24.4	26.9	30.6	36.7	43.8	45.8	55.1	66.3	80.0	80.0	80.0	80.0	80.0	80.0	80.0

Lead Wiring Type

Description

Precision variable speed AC motors are power components developed for multi-condition speed regulation. Their core structure employs a stator lamination process with finely divided poles and highly consistent winding technology, ensuring stable torque output across different speed ranges. The internal rotor undergoes balanced optimization to reduce vibration during long-term operation, thereby improving overall smoothness. These motors typically feature multi-stage or continuously adjustable speed control, allowing switching from low-speed operation to stable medium-to-high-speed operation via an external controller, making them suitable for environments requiring precise speed control.
The motor housing is mostly made of aluminum alloy or corrosion-resistant metal materials, with reinforced ribs enhancing structural strength and providing excellent heat dissipation. Combined with built-in ventilation channels, this effectively reduces operating temperature and extends the motor's lifespan under frequent speed adjustments. The bearings utilize a wear-resistant structure to withstand the pressure of prolonged load variations, ensuring operational stability even during multiple start-stop cycles or long periods of continuous operation. Precision variable speed AC motors generally support vertical or horizontal mounting and offer various shaft extension specifications and flange interfaces for easy compatibility with different mechanical equipment. The terminal block layout is relatively compact, facilitating quick wiring and equipment maintenance.
