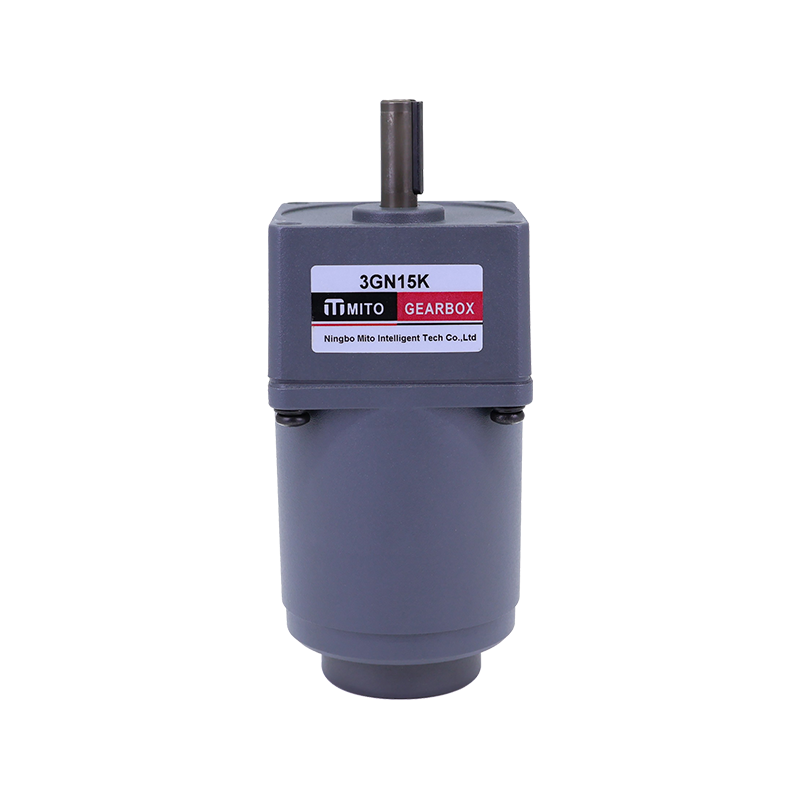

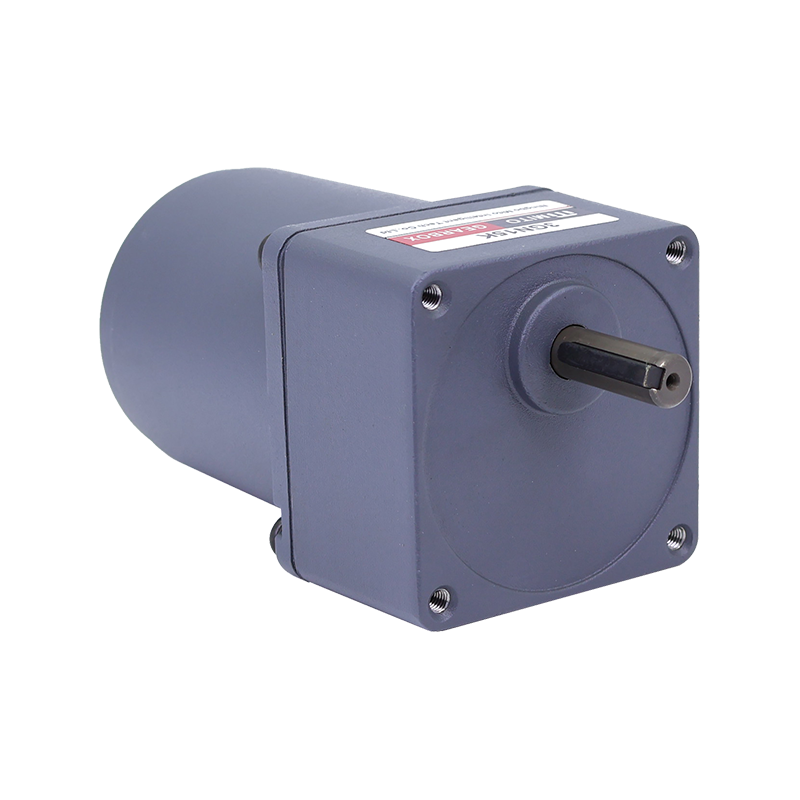

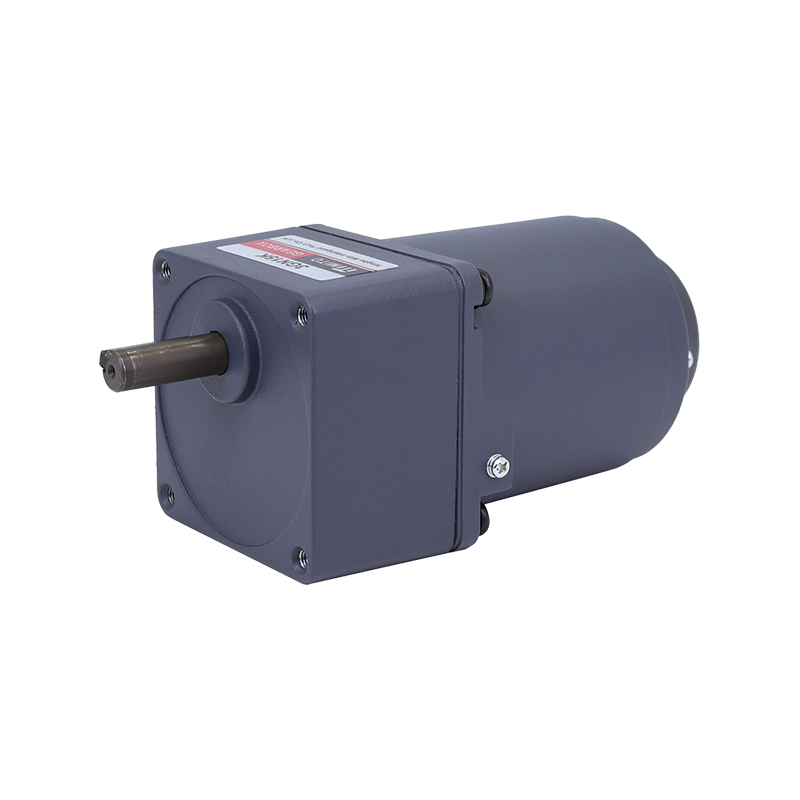

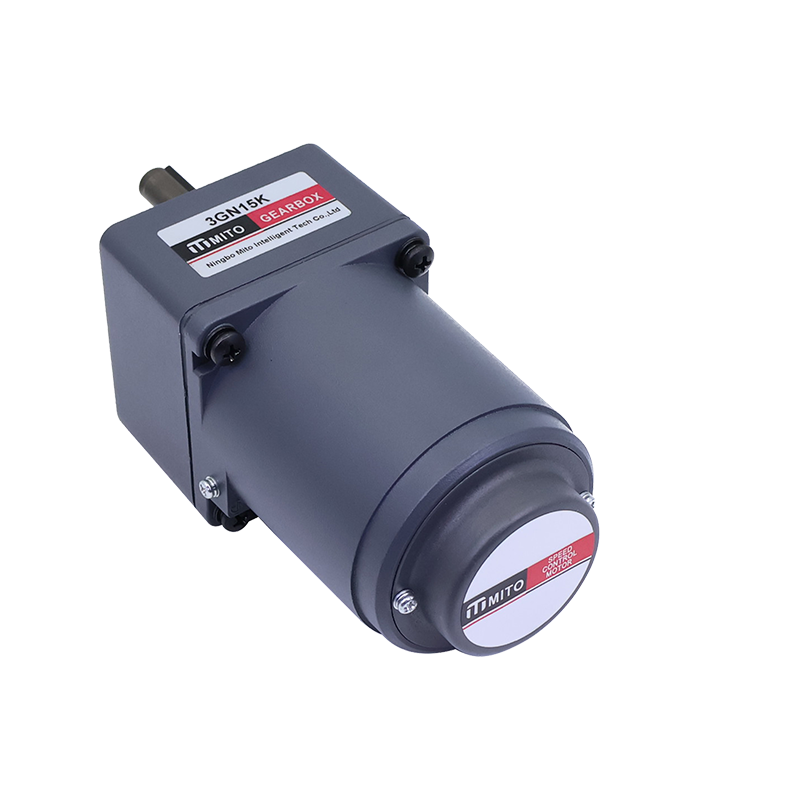

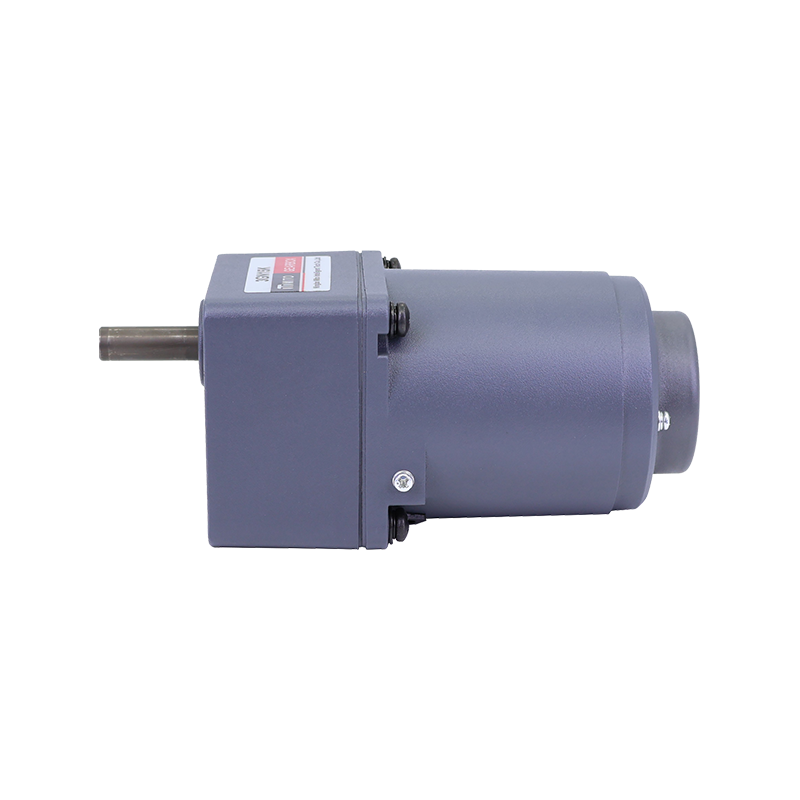

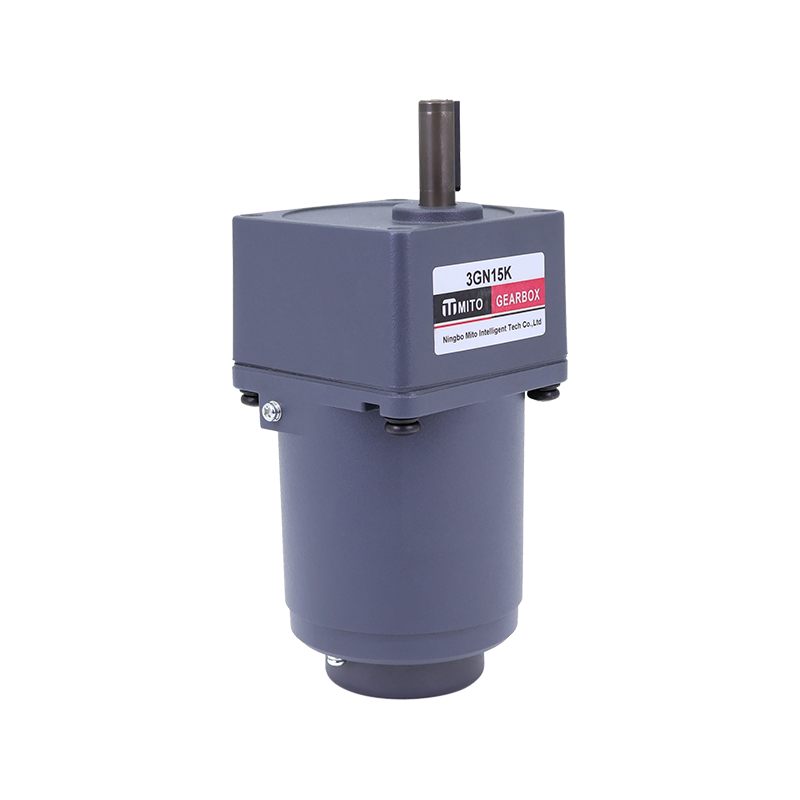

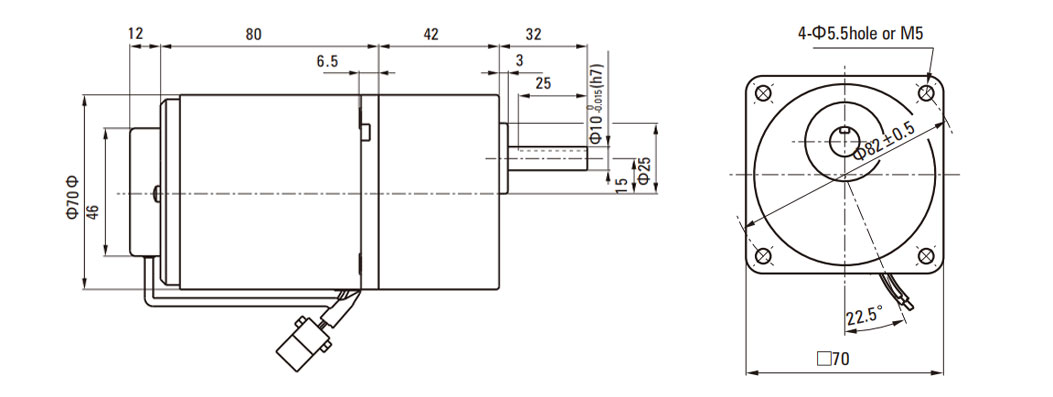

3IK 70mm 15W

AC Speed Control Motor

Motor Type: 3IK

Power: 15W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Lead Wire Type		Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
Pinion Shaft	Round Shaft					1200r/min mN.m	90r/min mN.m
3IK15RGN-A	3IK15RA-A	15	1ph 100	50	90~1350	120	35	55	0.35	6.0
				60	90~1650				0.33
3IK15RGN-E	3IK15RA-E	15	1ph 110	60	90~1650	125	35	55	0.30	5.0
			1ph 120						0.32
3IK15RGN-C	3IK15RA-C	15	1ph 220	50	90~1350	120	35	54	0.18	1.2
			1ph 230						0.20
3IK15RGN-H	3IK15RA-H	15	1ph 220	60	90~1650	85	35	52	0.16	1.2
			1ph 230			105		55	0.15

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
3IK15RGN-A 31K15RGN-E 3IK15RGN-C 3IK15RGN-H	3GN□K	50Hz	0.30	0.36	0.51	0.61	0.76	0.91	0.97	1.30	1.50	1.80	1.94	2.30	2.70	3.30	3.48	4.10	5.00	5.00	5.00	5.00	5.00	5.00	5.00	5.00
		50Hz	3.06	3.67	5.20	6.22	7.75	9.28	9.90	13.2	15.3	18.3	19.8	23.4	27.5	33.7	35.5	41.8	50.0	50.0	50.0	50.0	50.0	50.0	50.0	50.0
		60Hz	0.26	0.31	0.43	0.51	0.64	0.77	0.80	1.10	1.30	1.50	1.64	1.90	2.30	2.80	2.88	3.50	4.20	5.00	5.00	5.00	5.00	5.00	5.00	5.00
		60Hz	2.65	3.16	4.38	5.20	6.53	7.85	8.16	11.2	13.2	15.3	16.7	19.3	23.4	28.5	29.4	35.7	42.8	50.0	50.0	50.0	50.0	50.0	50.0	50.0

Lead Wiring Type

Description

The high-stability AC speed control drive motor is an AC power product designed specifically for equipment requiring continuous operation and precise speed control. It maintains stable speed output under varying loads. Through an optimized electromagnetic structure and a stable speed control system, the motor achieves a delicate speed response, making the adjustment process smoother and preventing additional impact on the mechanical structure, thus improving the overall operating quality of the equipment. Internally, it utilizes reinforced coil insulation and heat-resistant materials, along with a well-designed heat dissipation channel, enabling the motor to maintain stable performance under prolonged high-load conditions, providing reliable support for continuously operating industrial equipment. The motor has a wide speed adjustment range, allowing users to flexibly set the speed according to process requirements in practical applications, achieving a good balance between low-speed smooth operation and high-speed continuous output.

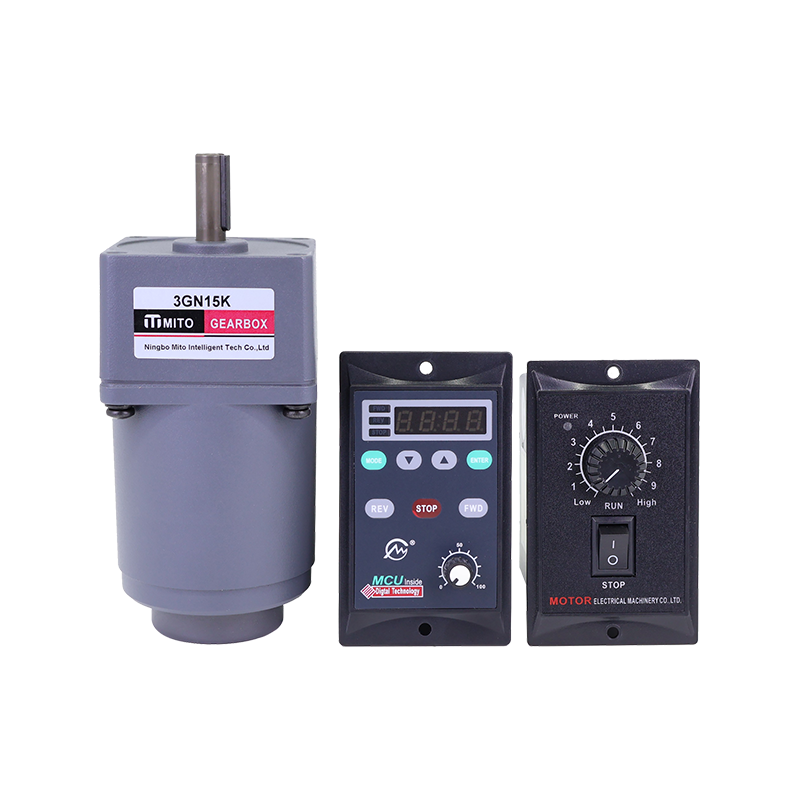

The high-stability AC speed control drive motor emphasizes mechanical strength and durability. Its reinforced housing design provides excellent shock resistance and is suitable for various installation methods in long-term working environments. Its simple terminal interface layout facilitates quick wiring and maintenance, while being compatible with various types of speed controllers, allowing for easy integration into automated production lines, transmission systems, packaging equipment, and precision speed-controlled machinery. To meet the needs of enterprises for production efficiency and stability, the motor has also been optimized in terms of operating noise control and vibration suppression, so that it can provide a quieter and smoother user experience while maintaining high-efficiency output.
