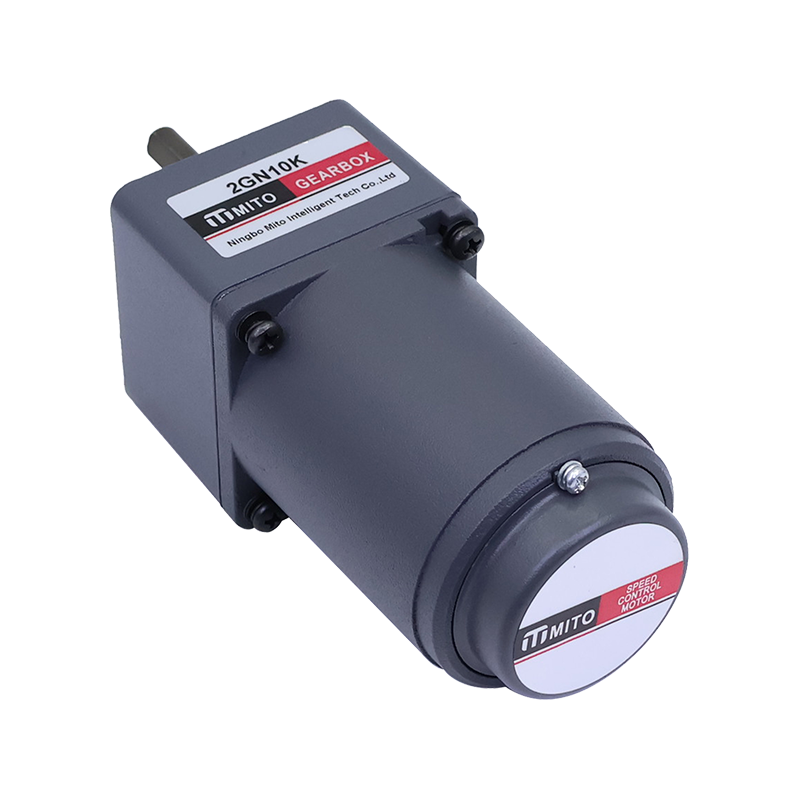

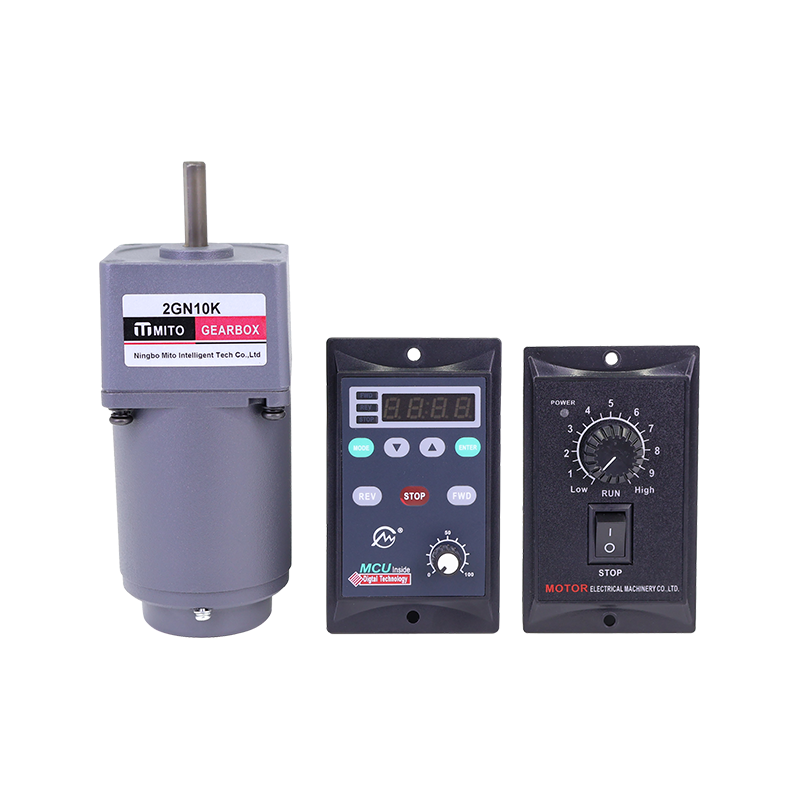

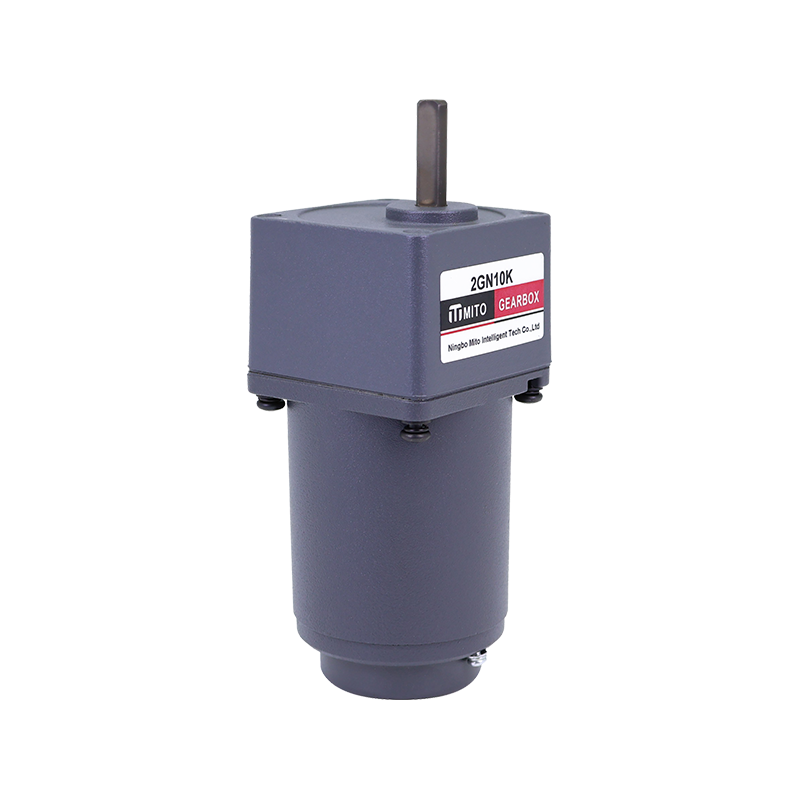

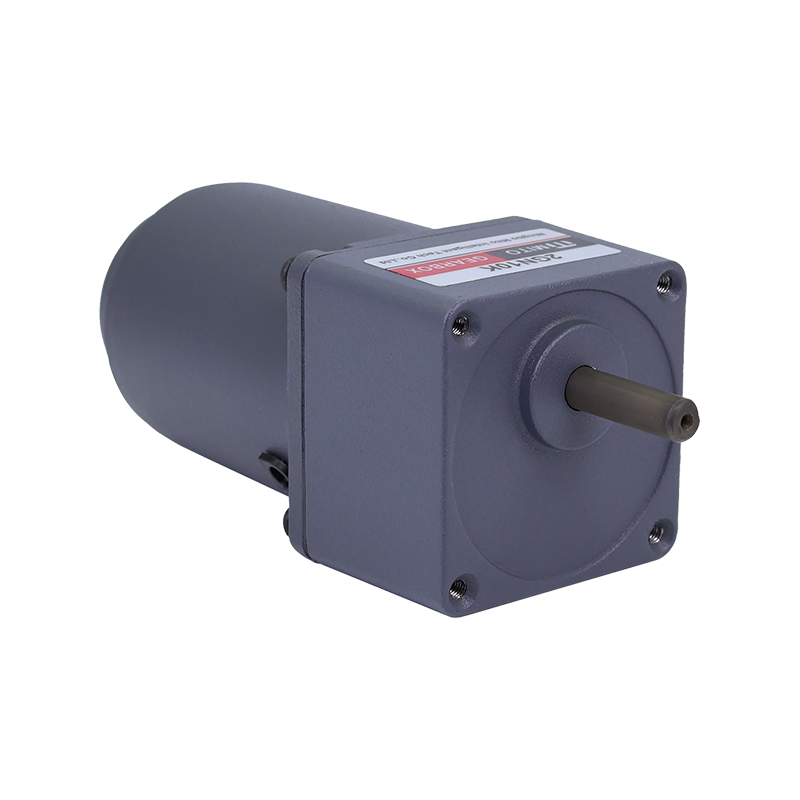

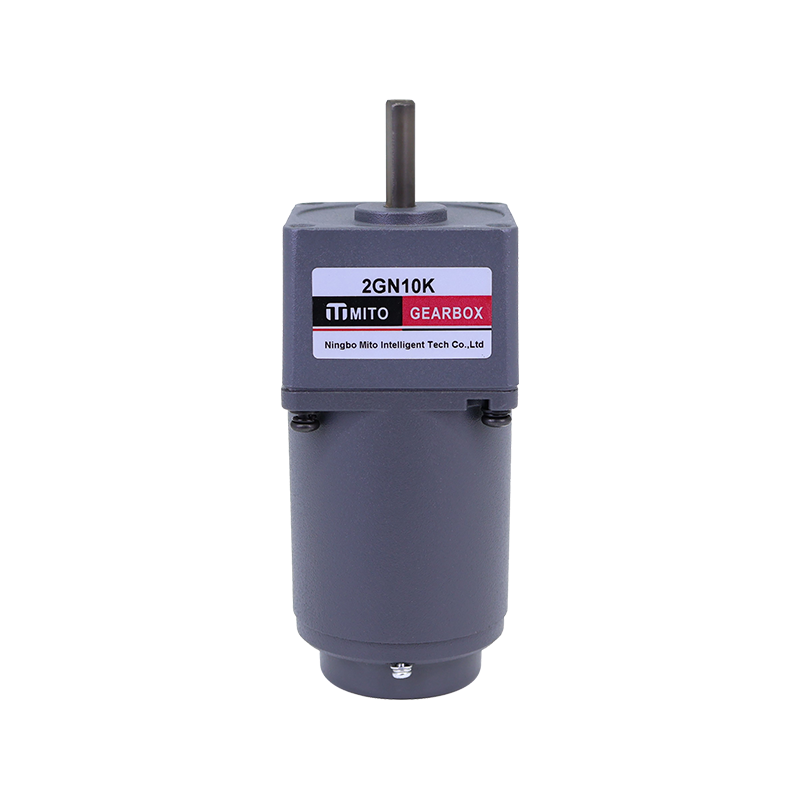

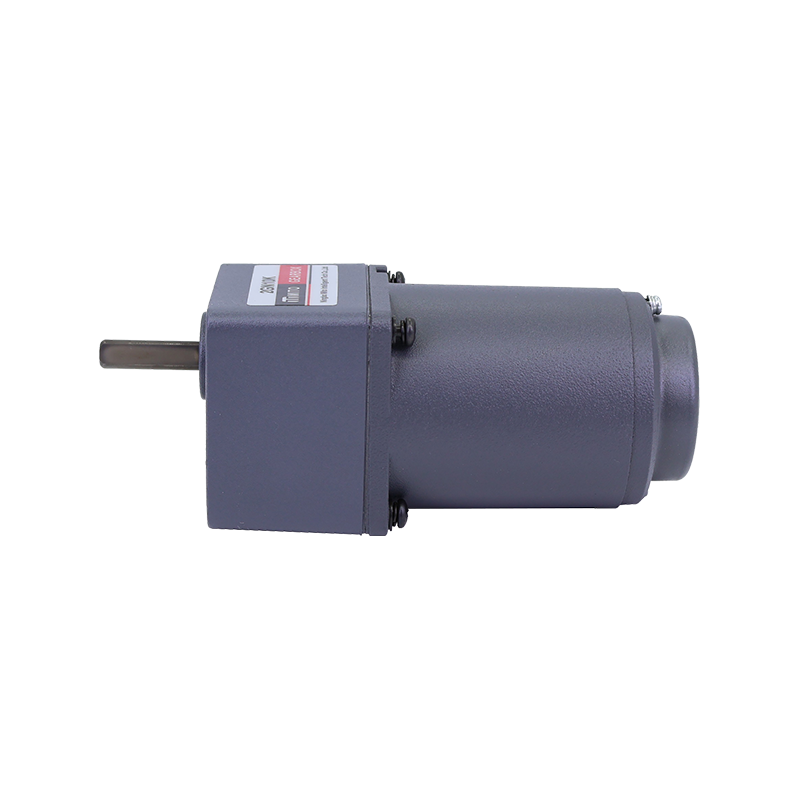

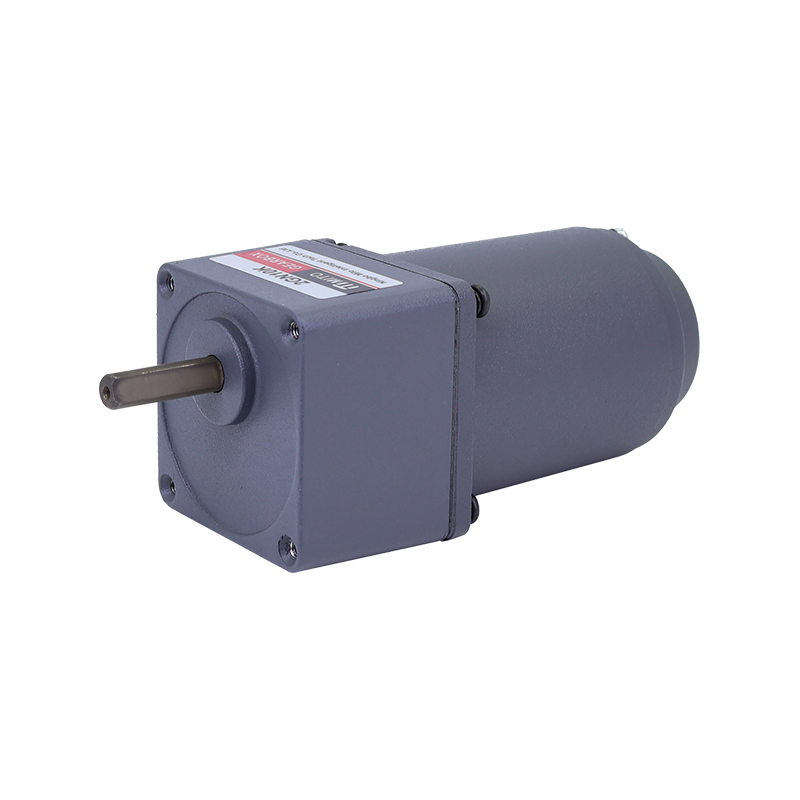

2IK 60mm 6W

AC Speed Control Motor

Motor Type: 2IK

Power: 6W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Lead Wire Type		Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
Pinion Shaft	Round Shaft					1200r/min mN.m	90r/min mN.m
2IK6RGN-A	2IK6RA-A	6	1ph 100	50	90~1350	50	30	35	0.240	3.5
				60	90~1650	50	29	35	0.250
2IK6RGN-E	2IK6RA-E	6	1ph 110	60	90~1650	50	29	30	0.160	2.0
			1ph 120						0.180
2IK6RGN-C	2IK6RA-C	6	1ph 220	50	90~1350	55	29	35	0.130	0.8
			1ph 230						0.110
2IK6RGN-H	2IK6RA-H	6	1ph 220	60	90~1650	55	29	35	0.140	0.8
			1ph 230						0.120

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
2IK6RGN-A 2IK6RGN-E 2IK6RGN-C 2IK6RGN-H	2GN□K	50Hz	0.12	0.14	0.19	0.23	0.29	0.35	0.39	0.49	0.58	0.70	0.75	0.88	1.10	1.30	1.39	1.60	1.90	2.40	2.90	3.00	3.00	3.00	3.00	3.00
		50Hz	1.22	1.43	1.94	2.35	2.96	3.57	3.98	5.00	5.92	7.14	7.65	8.98	11.2	13.3	14.2	16.3	19.4	24.5	29.6	30.0	30.0	30.0	30.0	30.0
		60Hz	0.10	0.12	0.16	0.19	0.24	0.29	0.32	0.41	0.49	0.58	0.62	0.73	0.88	1.10	1.15	1.30	1.60	2.00	2.40	2.60	3.00	3.00	3.00	3.00
		60Hz	1.02	1.22	1.63	1.94	2.45	2.96	3.26	4.18	5.00	5.92	6.32	7.45	8.98	11.2	11.7	13.3	16.3	20.4	24.5	2.65	30.0	30.0	30.0	30.0

Lead Wiring Type

Description

Adjustable speed AC control motors are AC drive devices designed for precise speed regulation and stable operation. These motors can achieve linear speed regulation via an external controller or integrated speed control module, maintaining stable output under various load conditions, thereby improving overall equipment operating efficiency and control quality. Their structural design emphasizes durability and stability, employing an optimized electromagnetic system and a well-designed heat dissipation layout to ensure reliable performance even during extended operation.
Adjustable speed AC control motors are widely used in conveyor equipment, packaging machinery, textile equipment, automated production lines, and production systems requiring flexible speed regulation. The speed regulation process is smooth, without mechanical shock, effectively reducing equipment wear and extending system life. To meet diverse operating conditions, the products typically have a wide speed regulation range, allowing operators to precisely set the output speed according to production requirements.
The motor's design fully considers ease of installation and maintenance. The robust housing structure provides excellent vibration resistance, ensuring stable operation in continuous working environments. Its terminal interfaces and mounting methods have also been optimized, making installation faster and maintenance simpler. With a highly compatible control system, the adjustable speed AC control motor can be easily integrated into various automated equipment, providing reliable support for users to achieve more flexible and efficient equipment operation.
