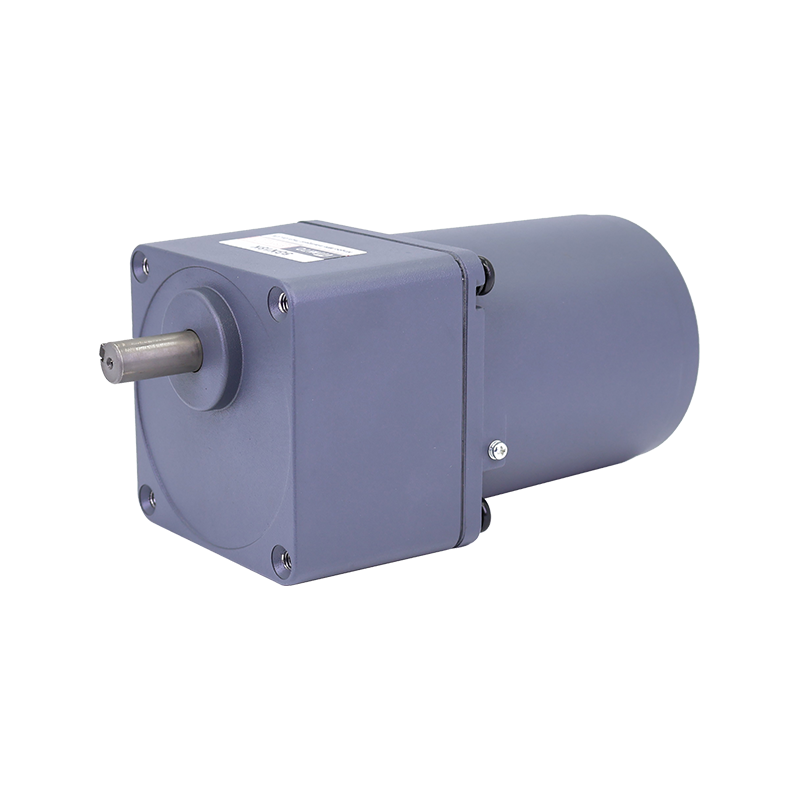

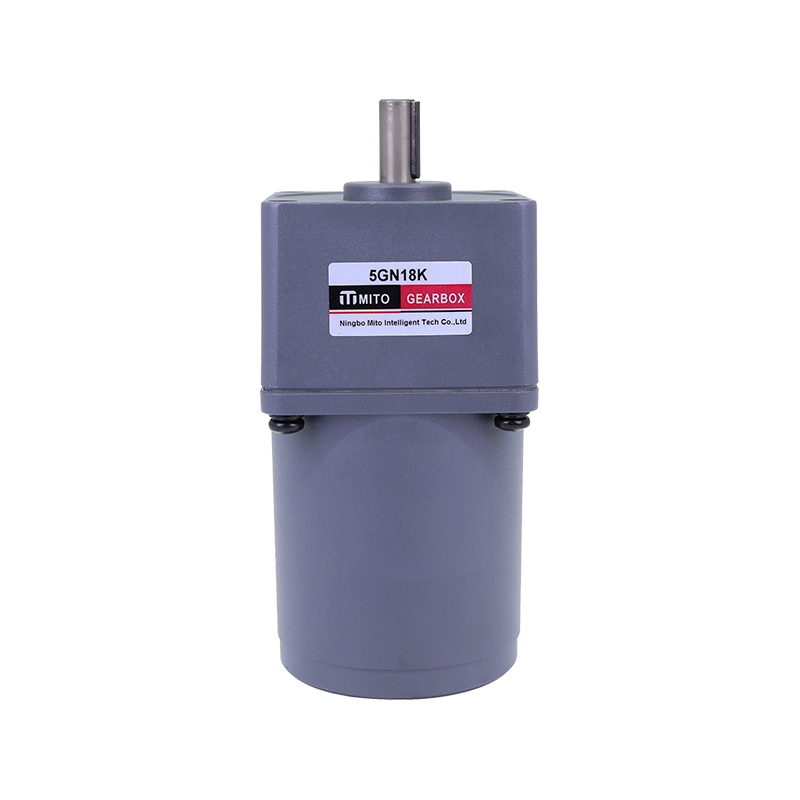

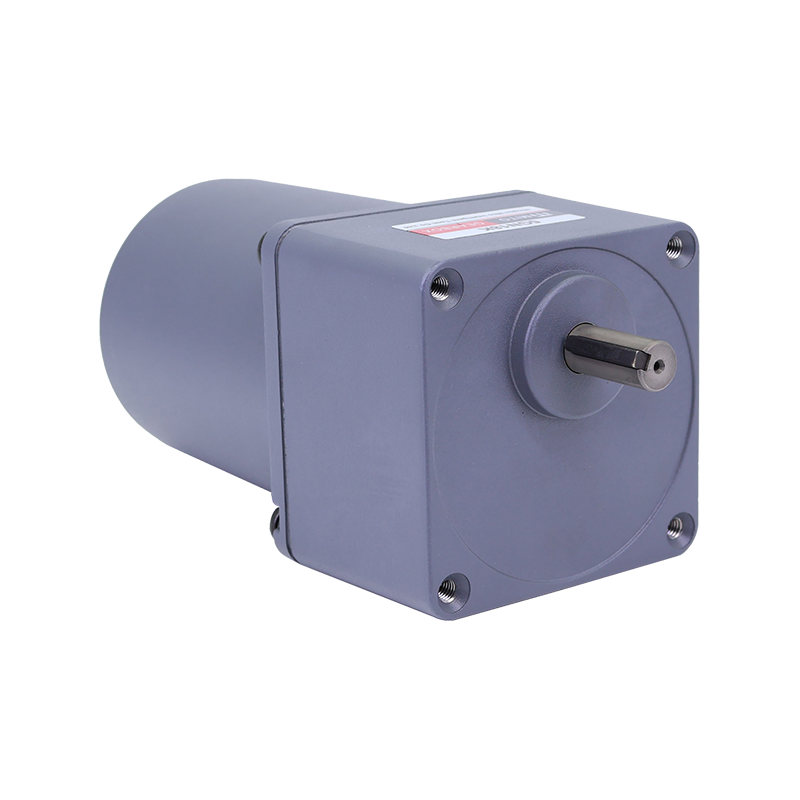

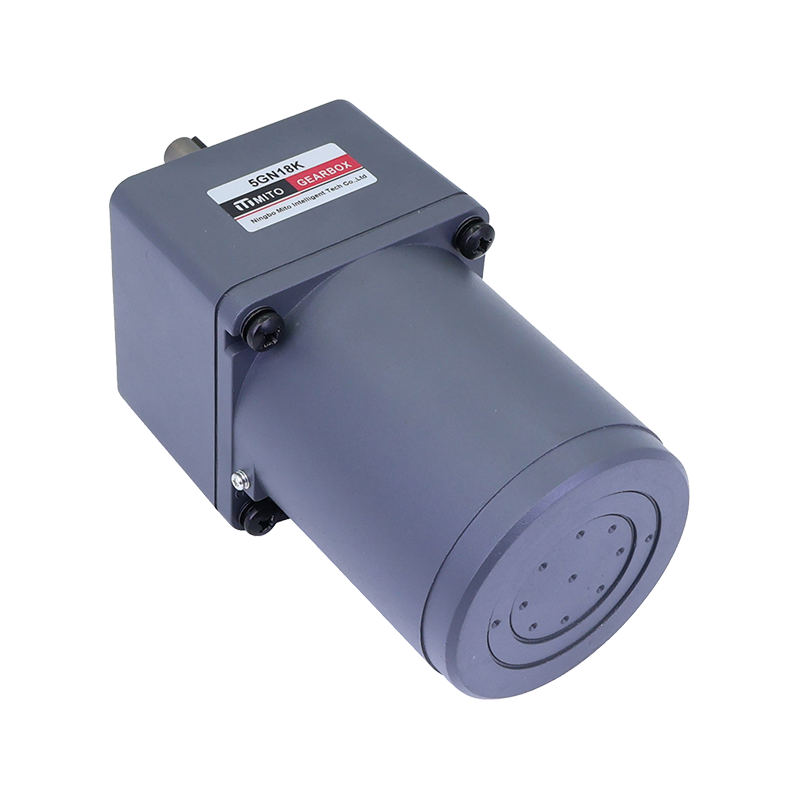

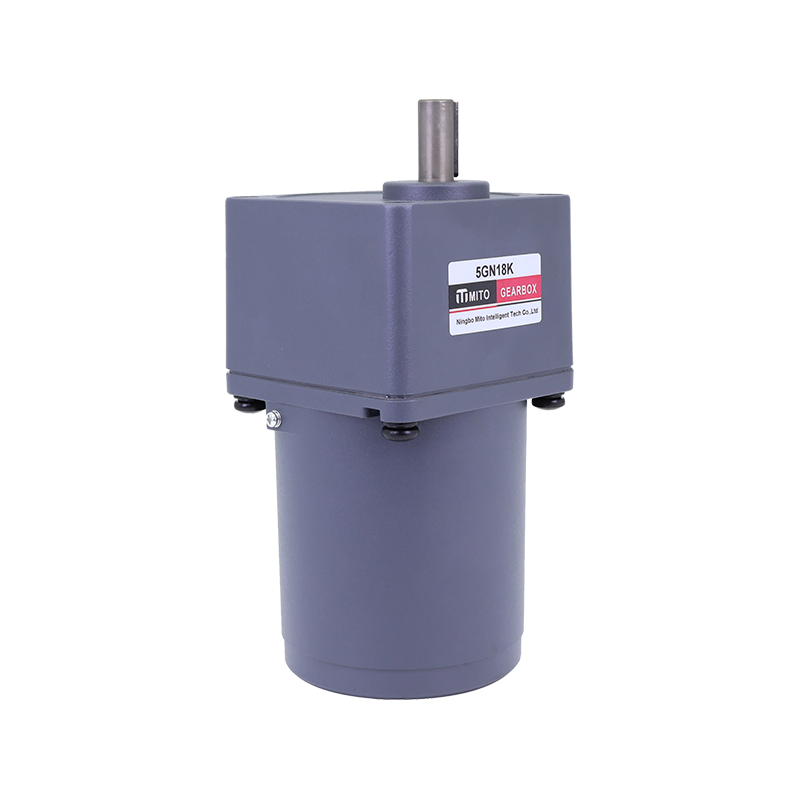

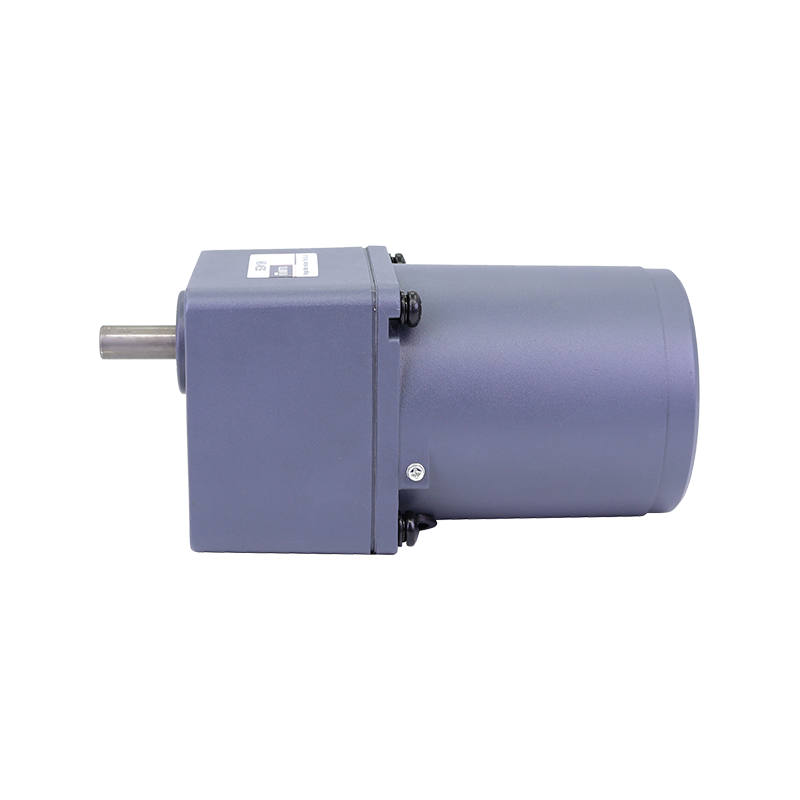

5RK 90mm 40W

AC Reversible Motor

Motor Type: 5RK

Power: 40W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Upper: Pinion Shaft Below: Round Shaft		Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
5RK40GN-A (5RK40A-A)	5RK40GN-AT (5RK40A-AT)	40	1ph 100	50	0.78	300	315	1250	15.0
				60	1.05		260	1550
5RK40GN-E (5RK40A-E)	5RK40GN-ET (5RK40A-ET)	40	1ph 110	60	0.79	260	260	1550	12.0
			1ph 120		0.80
5RK40GN-C (5RK40A-C)	5RK40GN-CT (5RK40A-CT)	40	1ph 220	50	0.45	270	315	1250	3.0
			1ph 230
5RK40GN-H (5RK40A-H)	5RK40GN-HT (5RK40A-HT)	40	1ph 220	60	0.45	270	260	1550	3.0
			1ph 230

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
5RK40GN-A□ 5RK40GN-E□ 5RK40GN-C□ 5RK40GN-H□	5GN□K	50Hz	0.77	0.92	1.30	1.50	1.90	2.30	2.38	3.20	3.80	4.60	4.88	5.70	6.90	8.30	8.57	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
		50Hz	7.85	9.38	13.2	15.3	19.4	23.4	24.3	32.6	38.7	46.9	49.8	58.1	70.4	84.7	87.4	100	100	100	100	100	100	100	100	100
		60Hz	0.63	0.76	1.10	1.30	1.60	1.90	2.00	2.60	3.20	3.80	4.07	4.70	5.70	6.80	7.19	8.60	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
		60Hz	6.42	7.75	11.2	13.2	16.3	19.3	20.4	26.5	32.6	38.7	41.5	47.9	58.1	69.3	73.4	87.7	100	100	100	100	100	100	100	100

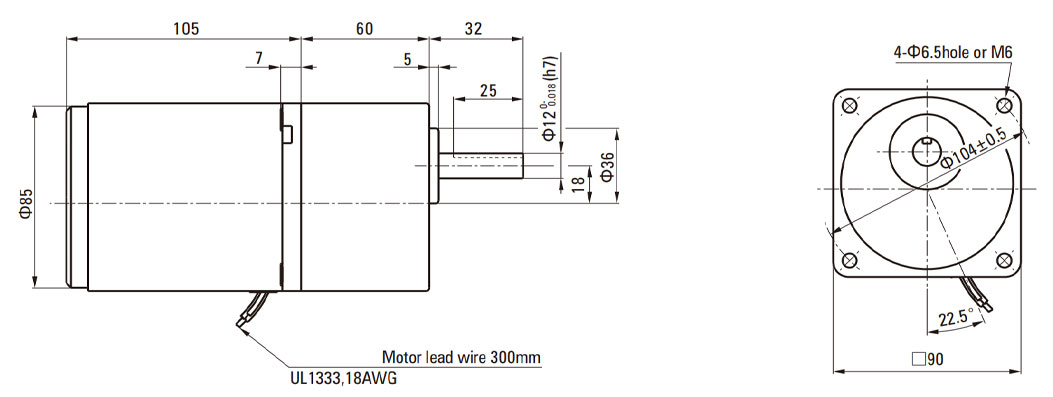

Lead Wiring Type

Description

This enhanced-durability AC reversible motor is built to the 5RK specification, prioritizing stability and adaptability in its structural design and material selection. This ensures reliable performance output under continuous operation or prolonged load conditions. Its 40W power configuration provides ample drive capability, maintaining smooth operation in applications with high torque demands while avoiding issues like delayed response or uneven operation due to insufficient power. Supporting a voltage range of 110V–380V, it is compatible with various equipment systems, offering users greater flexibility in power supply adaptation across different regions and equipment standards.

The motor's 3–200K reduction ratio range provides ample flexibility in adjusting output speed and torque, facilitating the fulfillment of diverse mechanical requirements regarding motion amplitude, positioning accuracy, and operating rhythm. Its internal structure, optimized for reversible operation, ensures a smooth transition between forward and reverse directions, reducing additional stress on the transmission system and contributing to improved overall equipment uptime.
