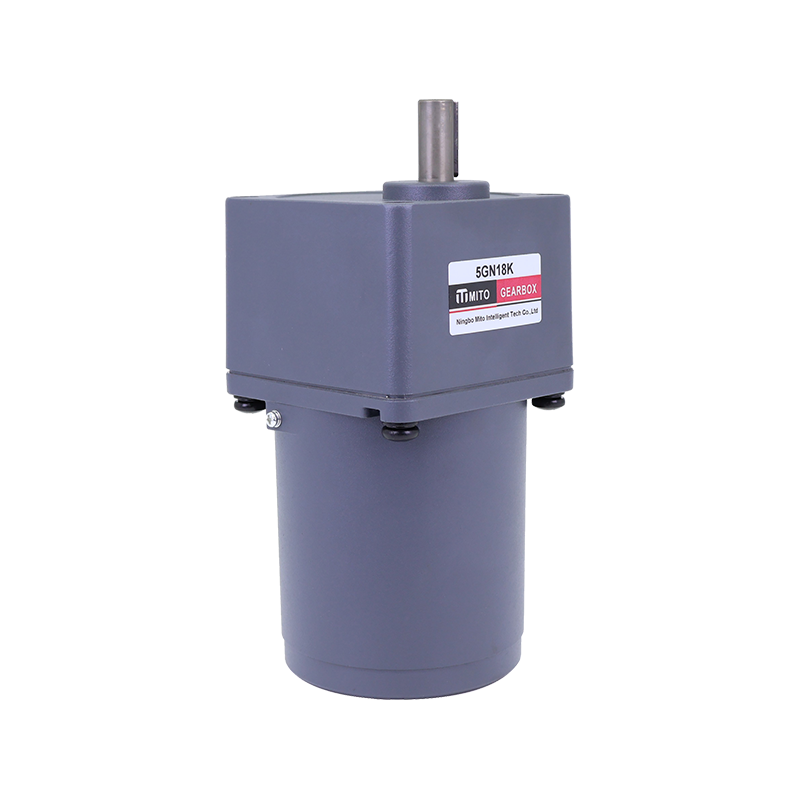

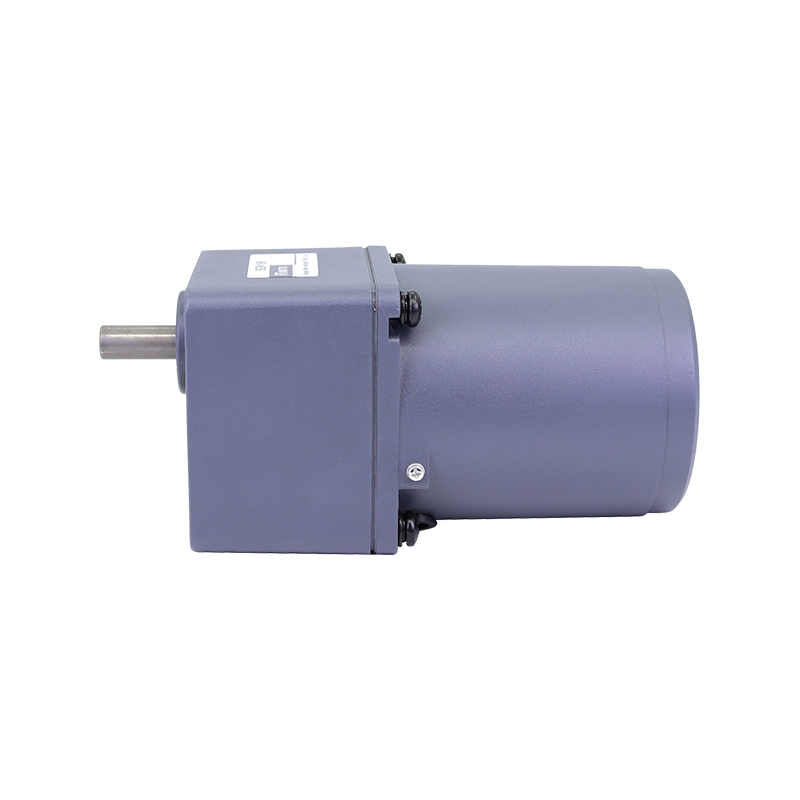

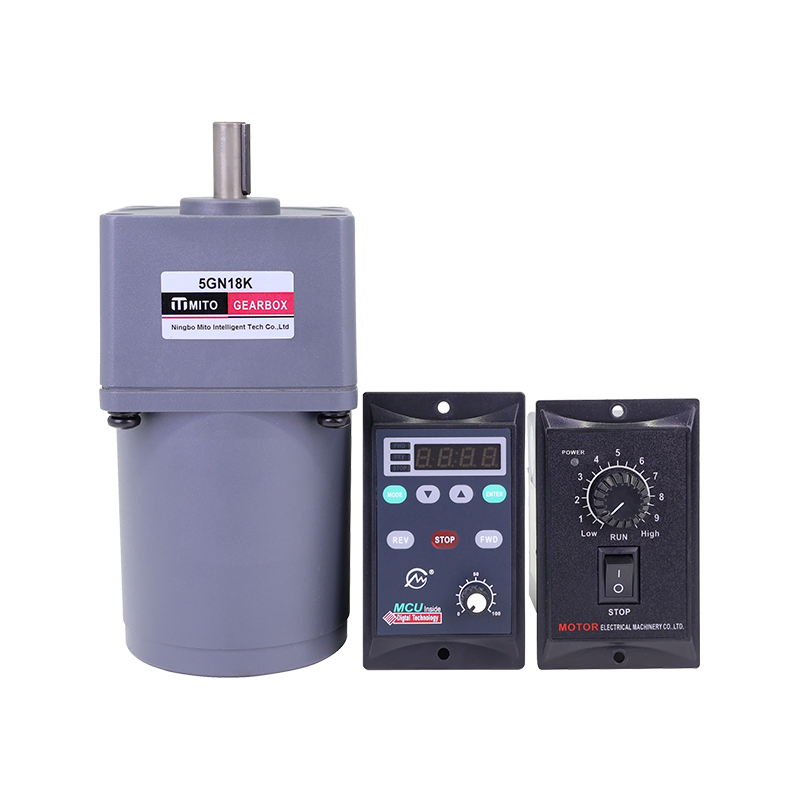

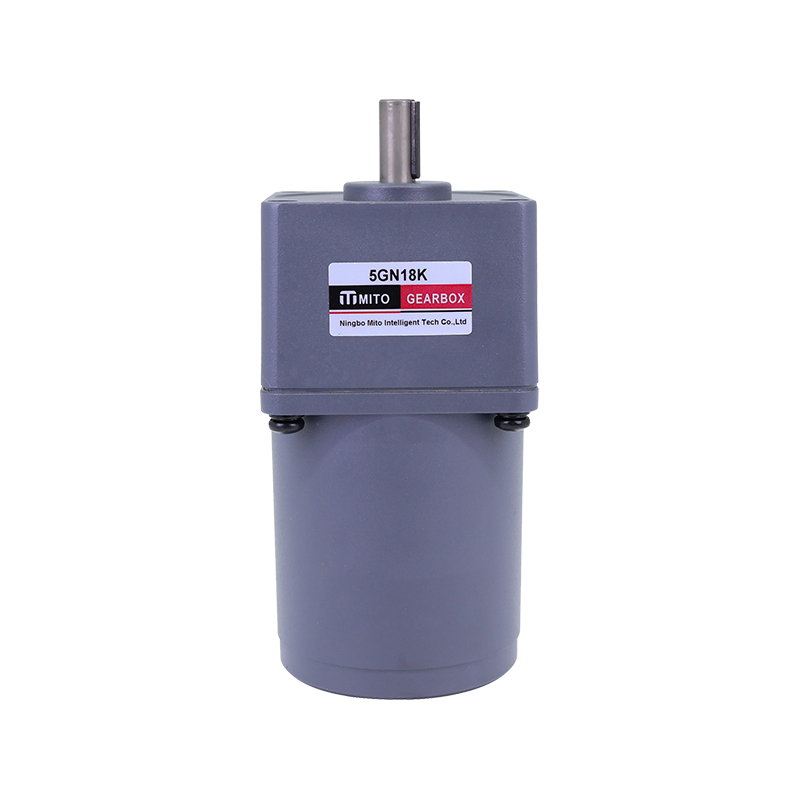

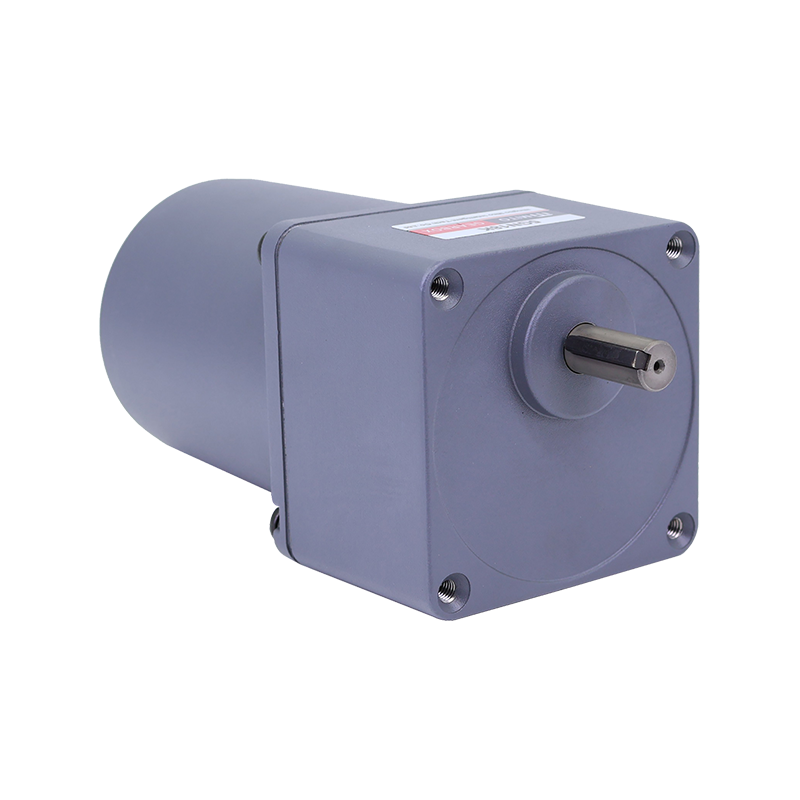

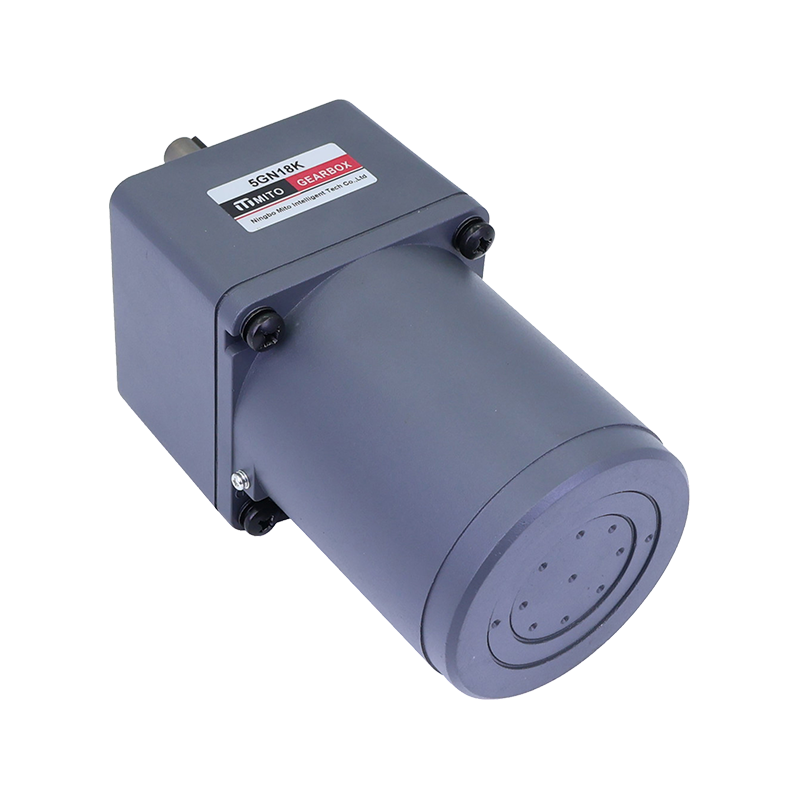

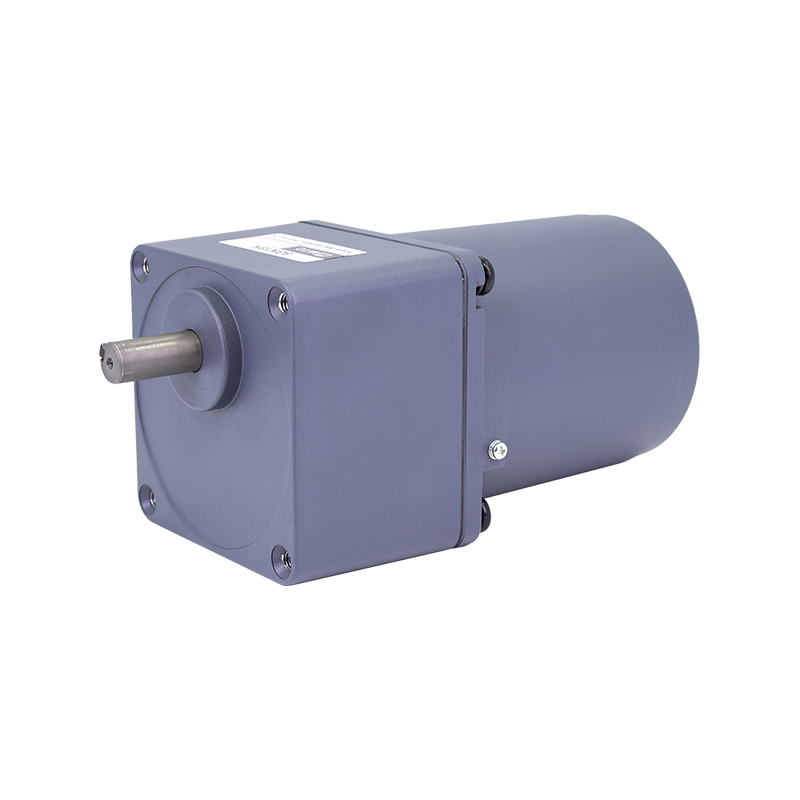

5RK 90mm 60W

AC Reversible Motor

Motor Type: 5RK

Power: 60W

Voltage:110-380V

Gearbox Ratio: 3-200K

Shaft Type: GN Shaft

Motor Parameter Table

Model ·Type Upper: Pinion Shaft Below: Round Shaft		Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
5RK60GN-AF (5RK60A-AF)	5RK60GN-AFT (5RK60A-AFT)	60	1ph 100	50	1.26	470	470	1250	25.0
				60	1.70		380	1550
5RK60GN-EF (5RK60A-EF)	5RK60GN-EFT (5RK60A-EFT)	60	1ph 110	60	1.05	330	380	1550	15.0
			1ph 120			380
5RK60GN-CF (5RK60A-CF)	5RK60GN-CFT (5RK60A-CFT)	60	1ph 220	50	0.55	420	470	1250	4.50
			1ph 230		0.60	460
5RK60GN-HF (5RK60A-HF)	5RK60GN-HFT (5RK60A-HFT)	60	1ph 220	60	0.55	420	380	1550	4.50
			1ph 230		0.60	460

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
5RK60GN-AF□ 5RK60GN-EF□ 5RK60GN-CF□ 5RK60GN-HF□	5GN□K	50Hz	1.10	1.40	1.90	2.30	2.90	3.40	3.57	4.80	5.70	6.80	7.03	8.60	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
		50Hz	11.2	14.2	19.3	23.4	29.6	34.7	36.4	48.9	58.	69.3	71.7	87.7	100	100	100	100	100	100	100	100	100	100	100	100
		60Hz	0.92	1.10	1.50	1.80	2.30	2.80	2.99	3.80	4.60	5.50	5.70	6.90	8.30	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
		60Hz	9.38	11.2	15.3	18.3	23.4	28.5	30.5	38.7	46.9	56.1	58.2	70.1	84.7	100	100	100	100	100	100	100	100	100	100	100

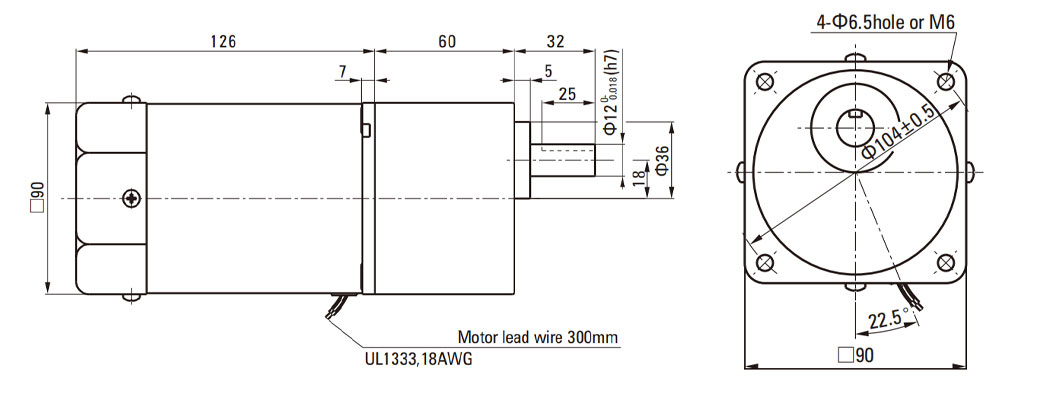

Lead Wiring Type

Description

Based on the 5RK specification and featuring a 60W power design, this gear-integrated AC reversible motor enables continuous and stable operation under medium load conditions. While maintaining a compact structure, it enhances torque output, making it suitable for mechanical systems requiring smooth movement, precise transmission, or constant speed control. Supporting a wide voltage input range of 110–380V facilitates adaptation to different power supply environments, providing users with more flexible configuration options for equipment integration or regional installations.

Utilizing a GN Shaft shaft structure, this type of shaft offers excellent transmission engagement performance and is suitable for various gearbox and coupling combinations, helping to reduce fit deviations during assembly and improve the overall stability of the transmission system. The shaft structure also provides the motor with better wear and impact resistance over long-term use, making it a reliable structural configuration for equipment requiring frequent starts, continuous operation, or bearing light to medium loads.
