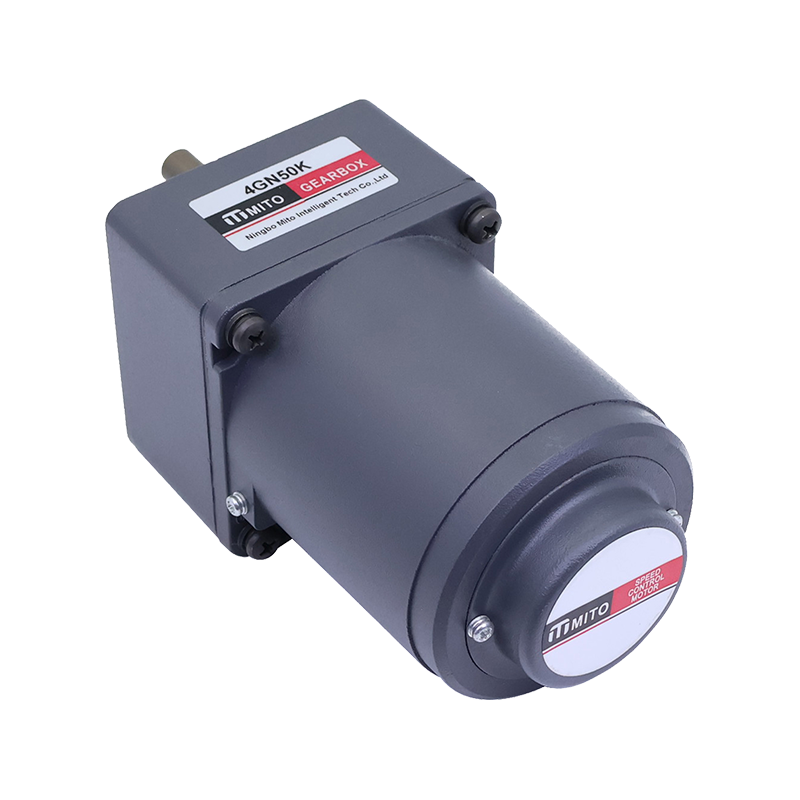

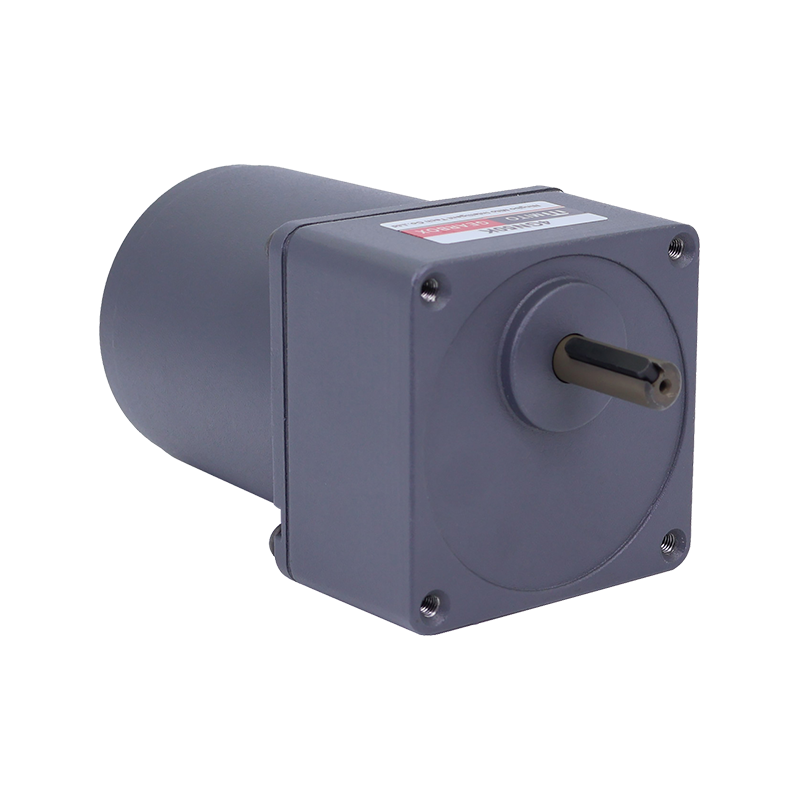

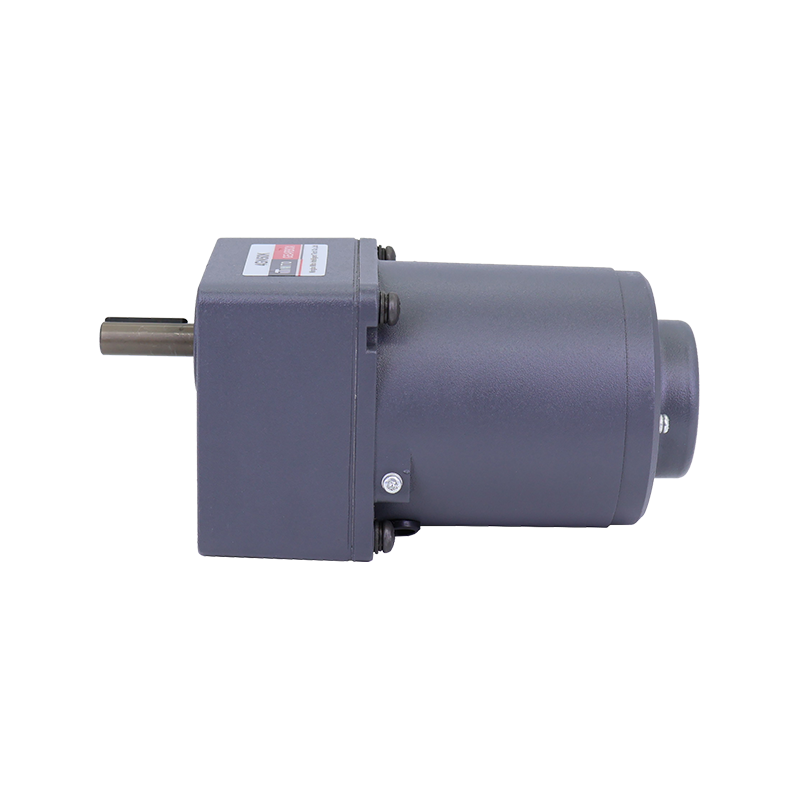

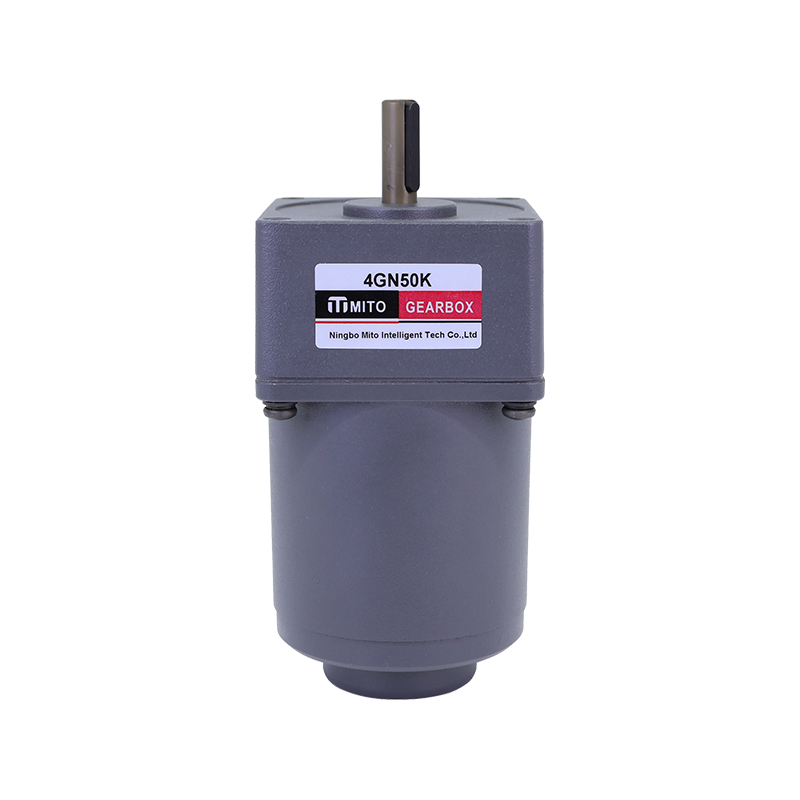

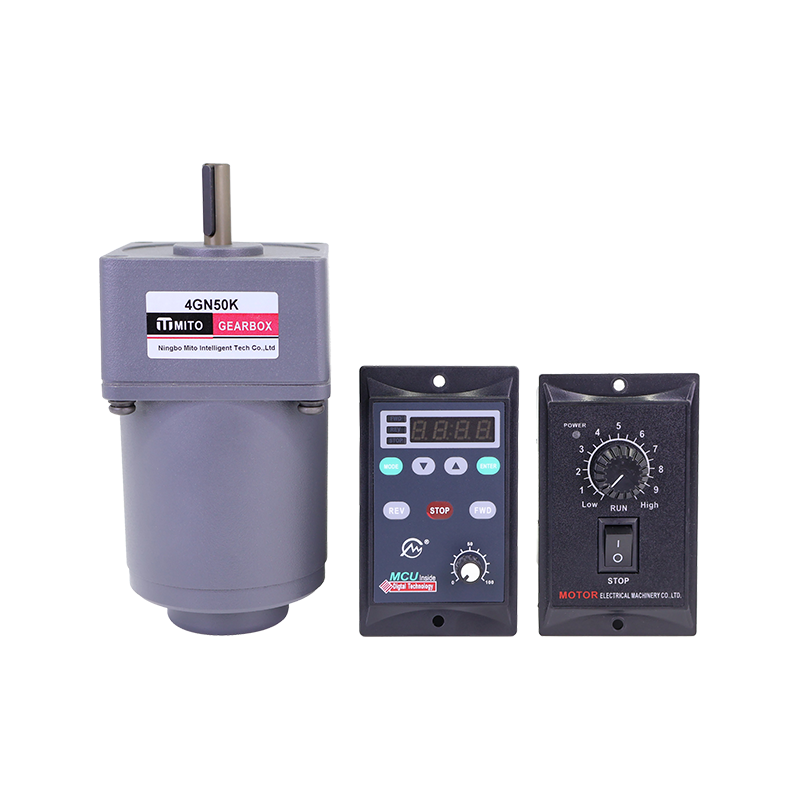

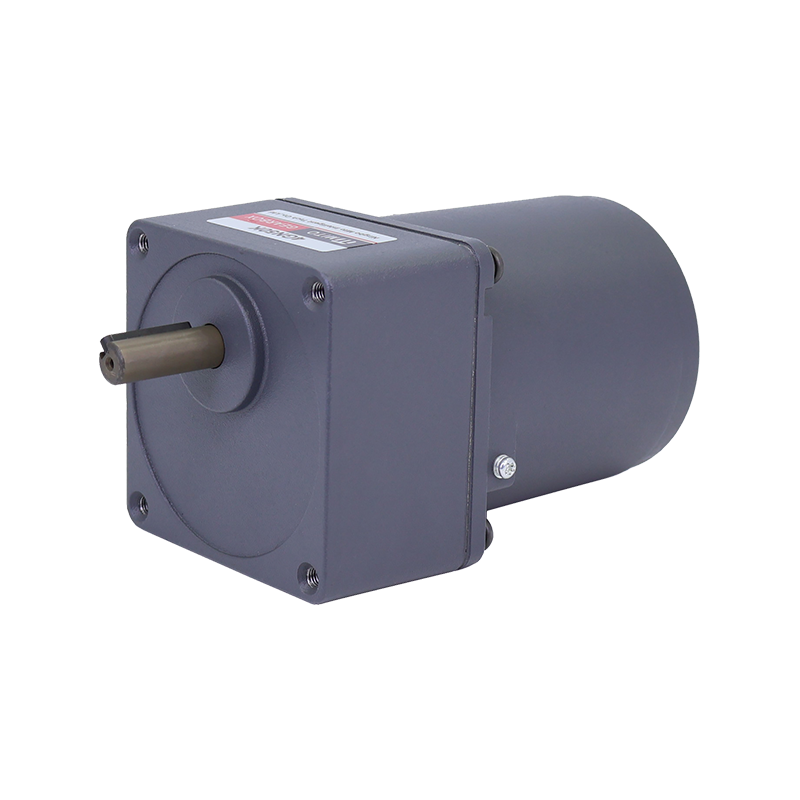

4RK 80mm 25W

AC Reversible Motor

Motor Type: 4RK

Power: 25W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Upper: Pinion Shaft Below: Round Shaft		Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
4RK25GN-A (4RK25A-A)	4RK25GN-AT (4RK25A-AT)	25	1ph 100	50	0.59	160	200	1250	10.0
				60	0.69	140	165	1550
4RK25GN-E (4RK25A-E)	4RK25GN-ET (4RK25A-ET)	25	1ph 110	60	0.45	140	165	1550	8.0
			1ph 120		0.50
4RK25GN-C (4RK25A-C)	4RK25GN-CT (4RK25A-CT)	25	1ph 220	50	0.29	140	200	1250	2.2
			1ph 230		0.30	160
4RK25GN-H (4RK25A-H)	4RK25GN-HT (4RK25A-HT)	25	1ph 220	60	0.35	140	165	1550	2.2
			1ph 230

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
4RK25GN-A□ 4RK25GN-E□ 4RK25GN-C□ 4RK25GN-H□	4GN□K	50Hz	0.49	0.58	0.81	0.97	1.20	1.50	1.55	2.00	2.40	2.90	3.17	3.70	4.40	5.30	5.57	6.60	7.90	8.00	8.00	8.00	8.00	8.00	8.00	8.00
		50Hz	5.00	5.91	8.26	9.89	12.2	15.3	15.8	20.4	24.4	29.6	32.3	37.7	44.9	54.1	56.8	67.3	80.0	80.0	80.0	80.0	80.0	80.0	80.0	80.0
		60Hz	0.40	0.48	0.67	0.80	1.00	1.20	1.25	1.70	2.00	2.40	2.64	3.00	3.60	4.30	4.49	5.40	6.50	8.00	8.00	8.00	8.00	8.00	8.00	8.00
		60Hz	4.08	4.89	6.83	8.16	10.2	12.2	12.8	17.3	20.4	24.4	26.9	30.6	36.7	43.8	45.8	55.1	66.3	80.0	80.0	80.0	80.0	80.0	80.0	80.0

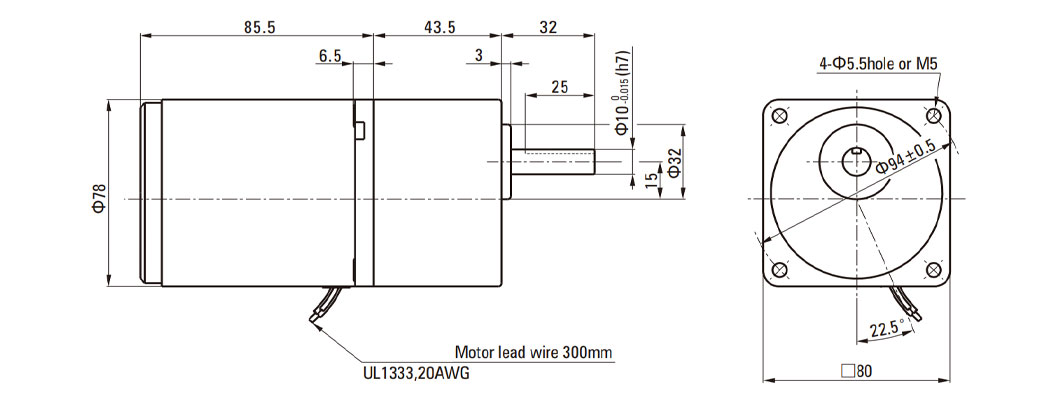

Lead Wiring Type

Description

This precision-mechanism AC reversible motor is designed based on the 4RK specification, emphasizing both structural stability and smooth operation, enabling reliable start-stop control in various drive applications. The entire unit utilizes a 25W power configuration, allowing for stable torque output within a compact size, suitable for mechanical environments requiring continuous operation or frequent forward and reverse rotation. The motor supports a multi-voltage input range of 110V to 380V, ensuring stable operation across different regions and equipment standards, facilitating flexible integration into complex systems.

Its core feature lies in its wide range of gear reduction ratios from 3 to 200K, allowing selection of the required output speed and torque level based on actual operating conditions, meeting the needs of mechanical structures such as precision positioning, slow propulsion, and synchronous operation. The internal structure has been specifically optimized to ensure smooth operation during forward and reverse switching, reducing impact on the mechanical transmission system and helping to extend the service life of related components. The motor's design prioritizes a compact layout and robust housing structure, making it more suitable for equipment with limited installation space or vibration restrictions. Its overall performance is more suitable for use in experimental equipment, precision machining devices, automated actuators, small transmission systems and other scenarios, and can help users obtain stable and controllable mechanical motion output.
