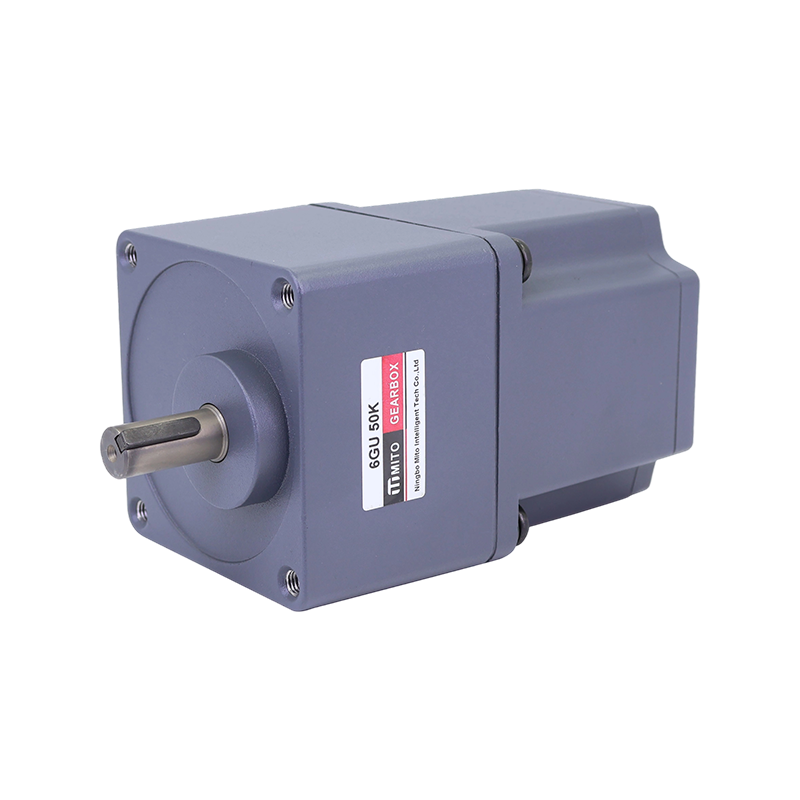

M6BLD 104mm 200W

K Series BLDC Gear Motor

Motor Type: M6BLD

Power: 200W

Voltage: 24-48V (Low Voltage)
              220V (High Voltage)

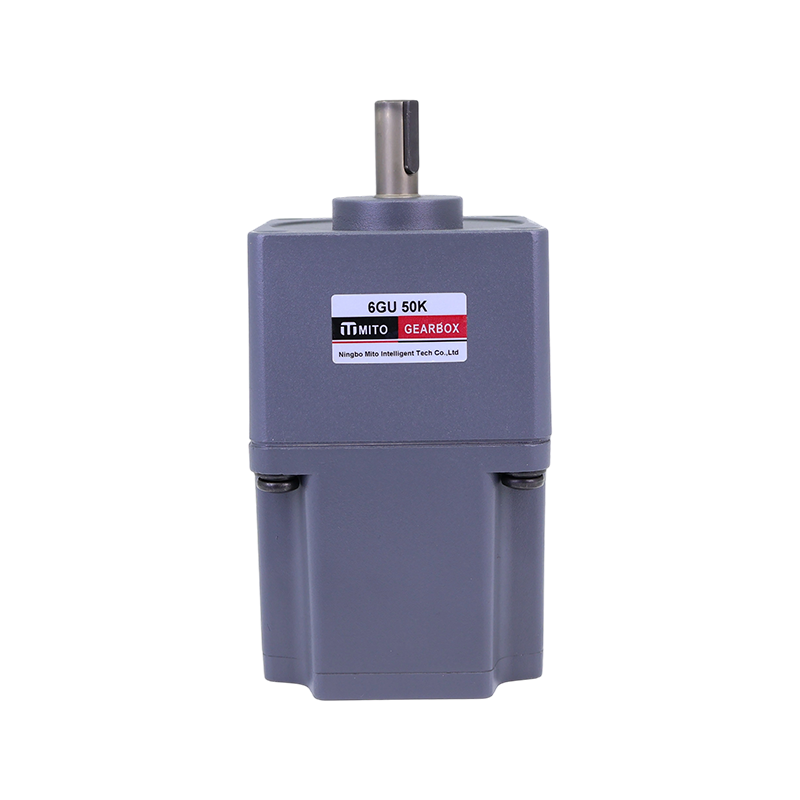

Gearbox Ratio: 3-200K (In-line)

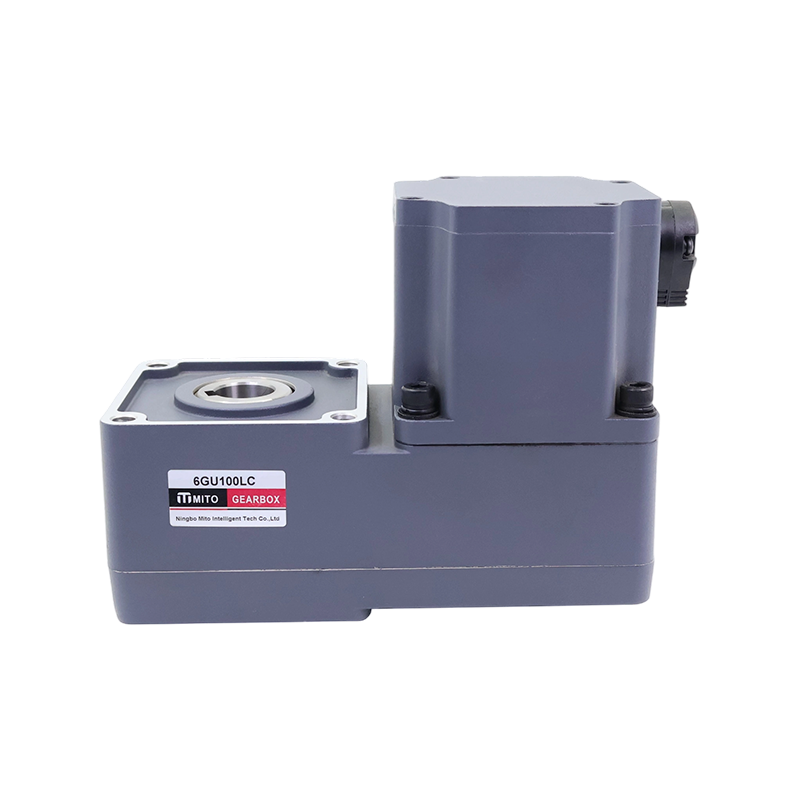

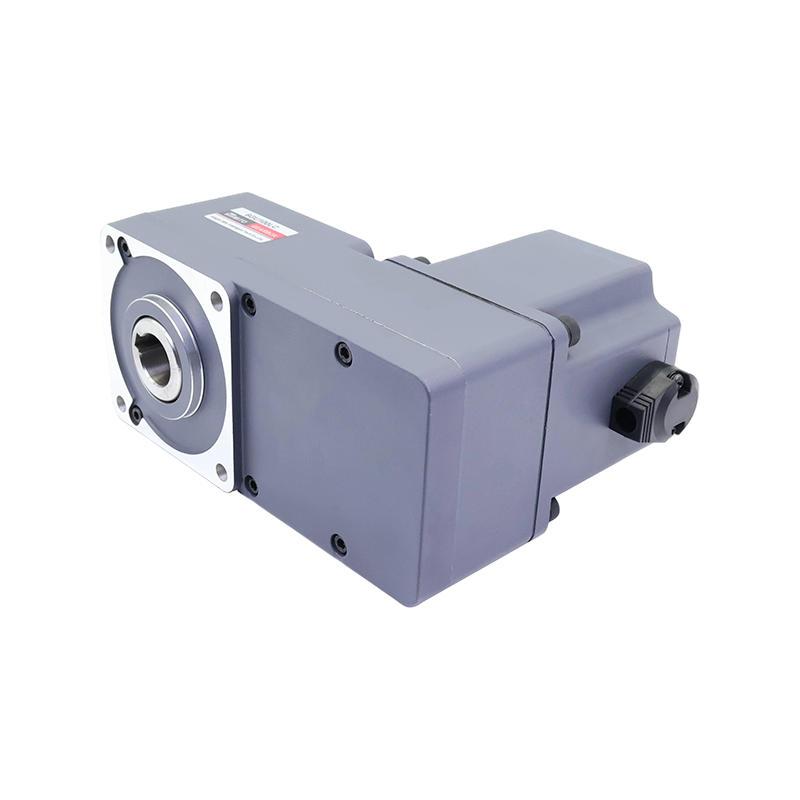

                         5-100K (L Type)

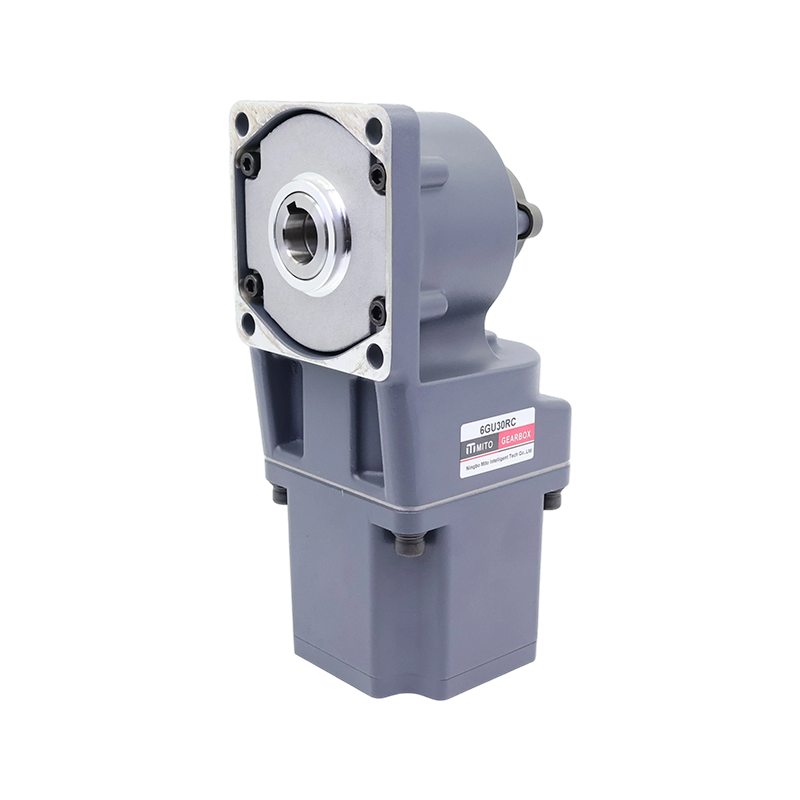

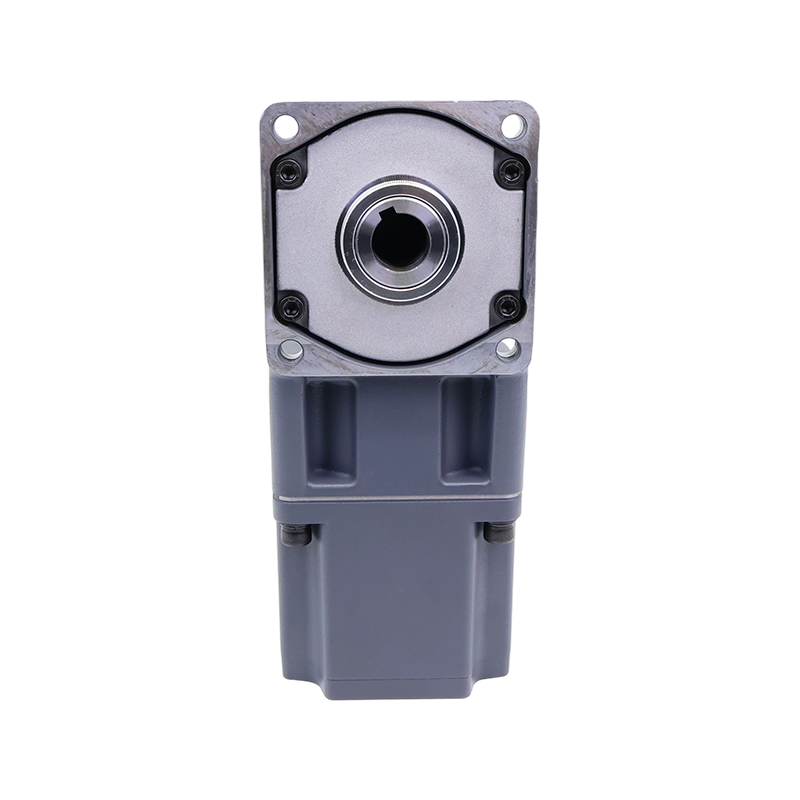

                         7.5-200K(Right Angle)

PREV：M7BLD 120mm 750W&1100WNEXT：M55BLD 86mm 200-750W
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Low Voltage Motor Parameters

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed

N.m

Grade protection

IP

M6BLD200-24GU-30S

200

24

10.5

1.274

0.637

3000

20

M6BLD200-36GU-30S

200

36

7.5

1.274

0.637

3000

20

M6BLD200-48GU-30S

200

48

5.3

1.274

0.637

3000

20

M6BLD400-24GU-30S

400

24

22

2.54

1.27

3000

20

M6BLD400-48GU-30S

400

48

11

2.54

1.27

3000

20

High Voltage Motor Parameters

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed

N.m

Grade protection

IP

M6BLD200-220GU-30S

200

220

2

1.274

0.637

3000

20

M6BLD400-220GU-30S

400

220

3.5

2.54

1.27

3000

20
