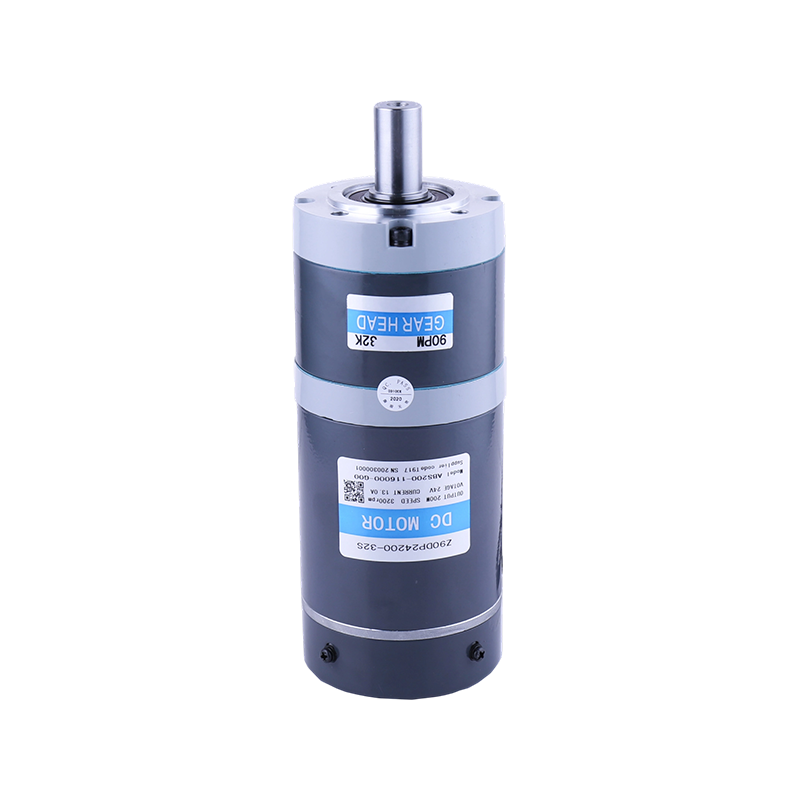

90DP+90PM Power Steering

Type

Z90DPM24400-32S

Gearbox direction

Same as motor

Rated voltage

24V DC

Rated power

400W

Bearing type

Ball bearing

Rated current

24A±10%

Gearbox structure

Integrated

Rated speed

3200rpm±10%

Efficiency

81%

Rated torque

1.19N.m

Gearbox output torque

30.5N.m

Noload current

≤5.0A

Gearbox rated torque

120N.m

Noload speed

3700rpm±10%

Gearbox max torque

2 x rated

Work duty

S2(10min)

Insulation resistance

>20MΩ

Ambient temperature

-10℃~+40℃

Brush life

1500h

Noise

<60dB(L=100cm)

Electrical strength

660V/S

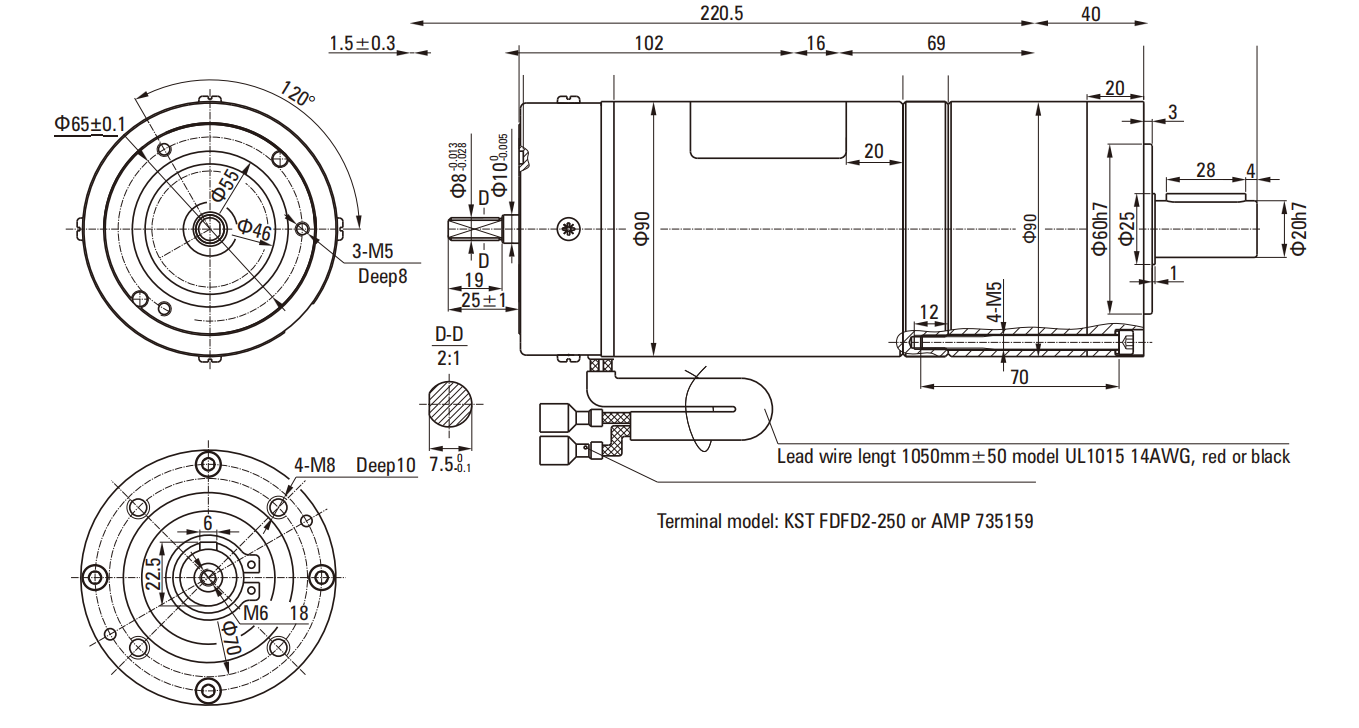

Wire diagram

Insulation class

B

Protection grade

IP20

Gearbox spec

Reduction stage

90PM32K

减速级数Reduction stage

2
