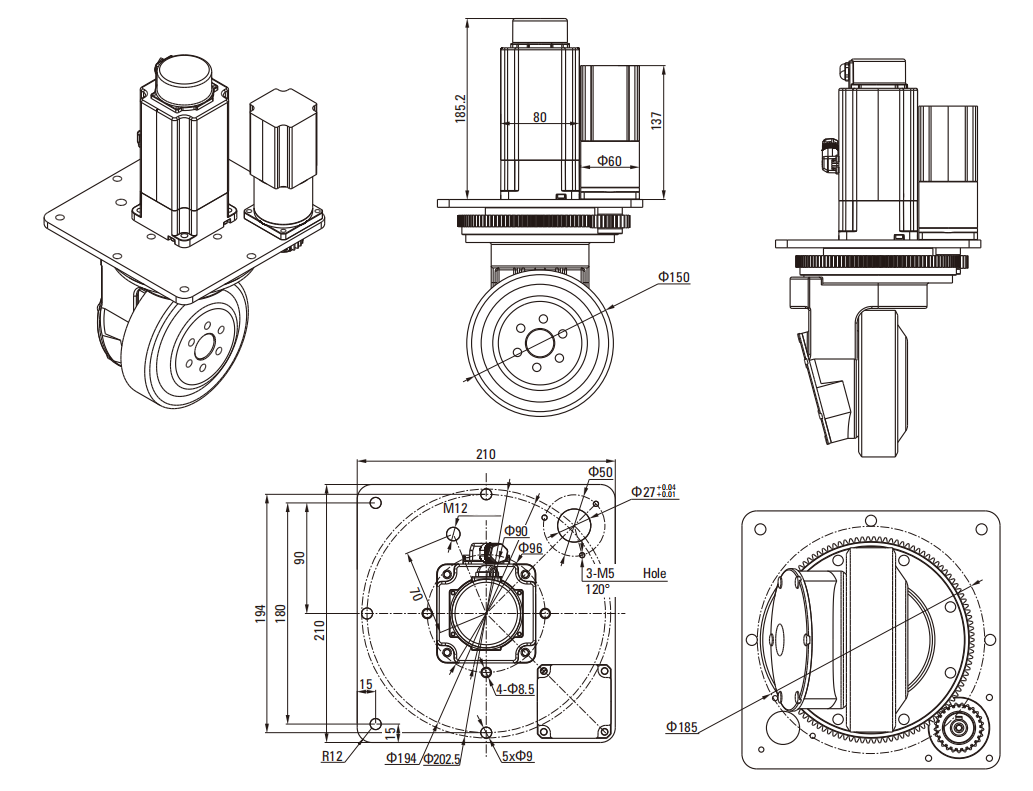

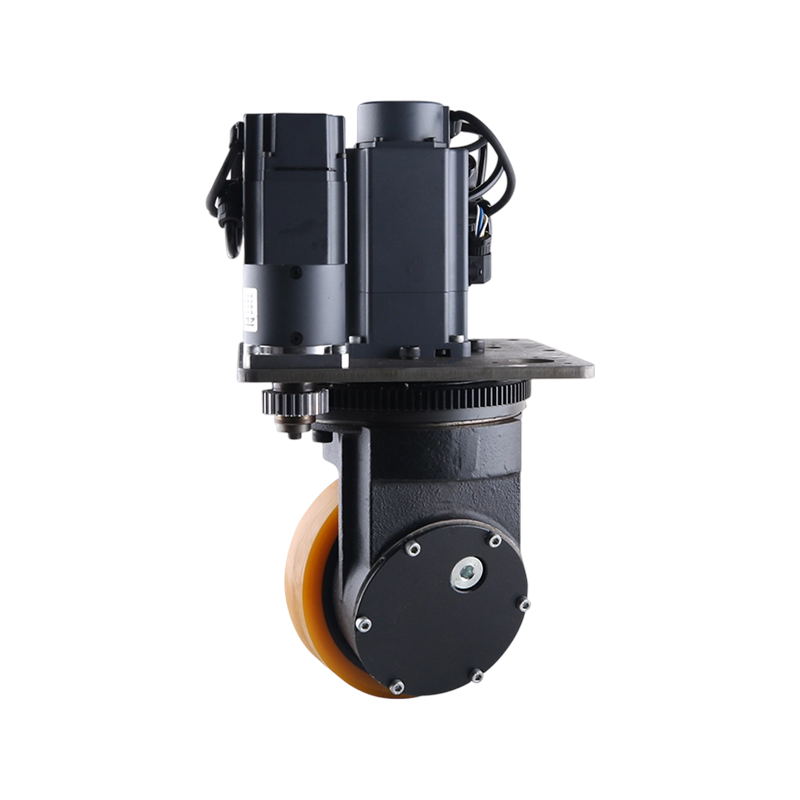

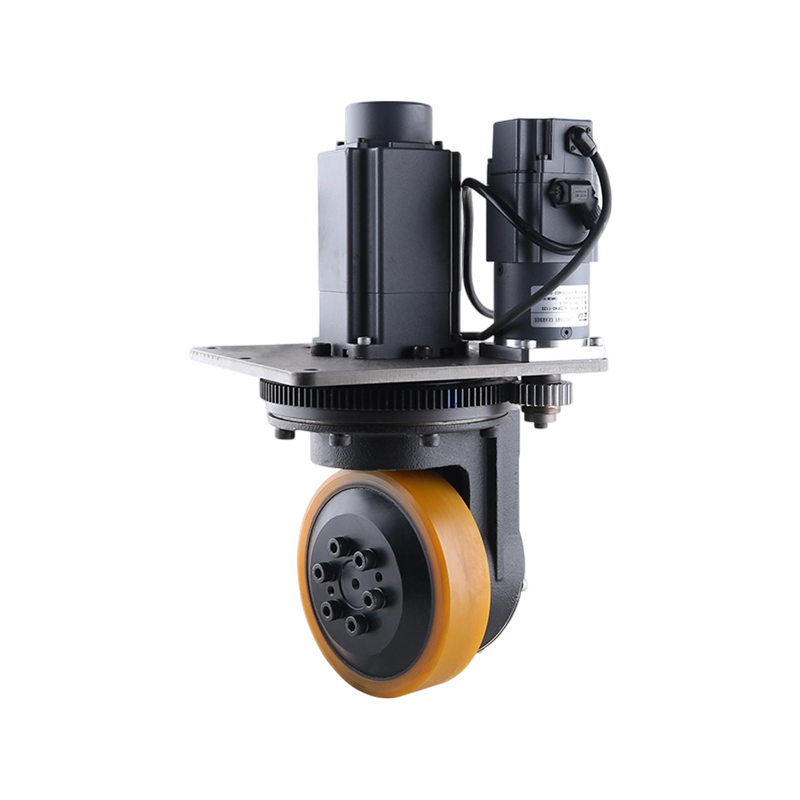

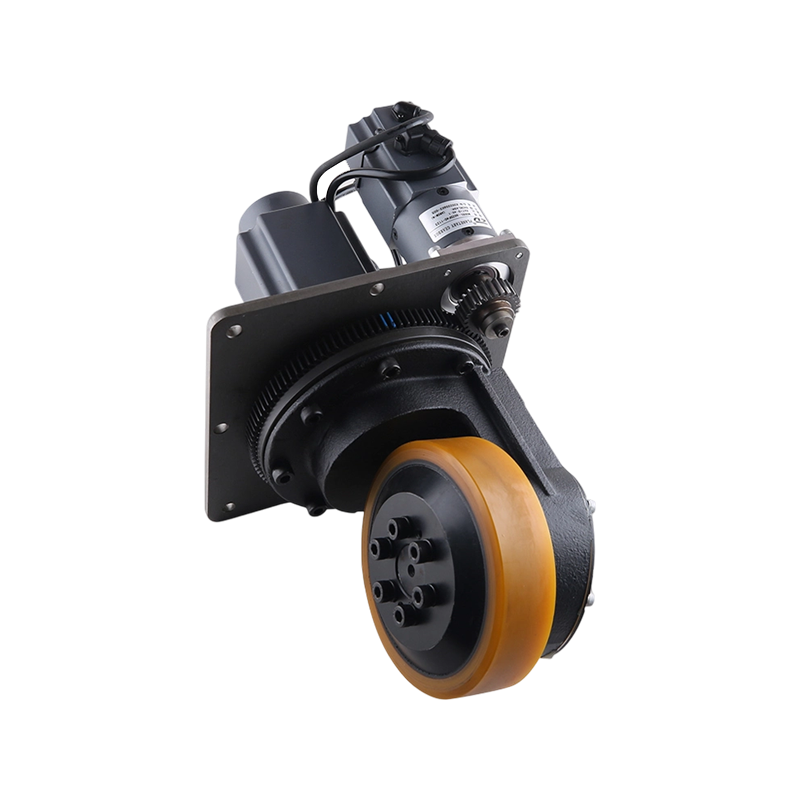

150 Vertical Steering Wheel

Table of basic performance parameters of steering wheel drive motor

Rated voltage

48V DC

Rated powe

400W/750W

Rated current

20A

Rated speed

3000rpm

Rated torque

2.38N.m

Working day

S2(60min)

Insulation grade

F

Level of protection

IP65

Deceleration ratio

22.5

The brake torque

6N.m

Encoder

2500-line magnetic braiding

Use ambient temperature

0~40℃

Noise

≤58dB(A)L=1m

Brake voltage V

24

Steering motor parameter table

Rated voltage

48V DC

Rated power

200W

Rated speed

3000rpm

Rated torque

-

Deceleration ratio

40

Encoder

Absolute value encoder

(Deg/sec)To speed

90-120DEG/SEC

Whole unit parameter table

Rotation radius

92.5

Linear velocity m/min

62.8

The wheel can withstand a normal pressure kg

600

Tractive force N

580
