Motor Type: Z100D
Voltage: 24V DC
Power: 550W
|
Type |
Z100D550-24A1-30S |
Protection grade |
IP20 |
|
Rated voltage |
24V DC |
Reducer model |
ZD-ZH180-25-001 |
|
Rated power |
550W |
Reduction ratio |
25K/17K |
|
Rated current |
30A±10% |
Brake voltage |
24V DC |
|
Rated speed |
3000rpm±10% |
Brake torque |
6N.m |
|
Rated torque |
1.75N.m |
Ambient temperature |
-10℃~+40℃ |
|
Noload current |
≤6A |
Noise |
<60dB(L=100cm) |
|
Noload speed |
3500rpm±10% |

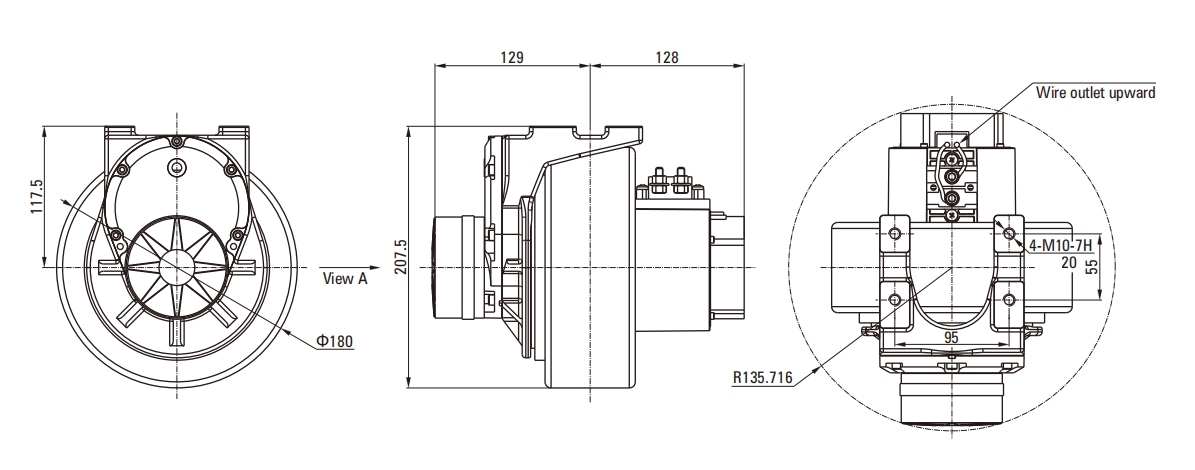

Wire diagram view A |
|
|
duty |
S2(45min) |
||
|
Insulation resistance |
>20MΩ |
||
|
Brush life |
1200h |
||
|
Electrical strength |
660V/S |
||
|
Insulation class |
F |
