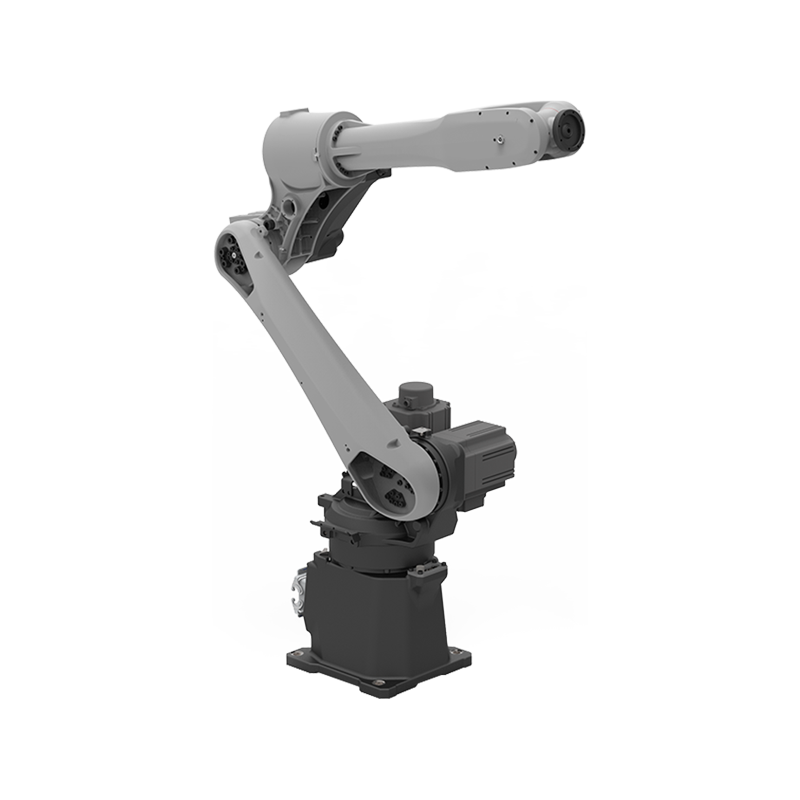

ZDGT1215D

Industrial Robot

Robot Model: ZDGT1215D

Maximum End Load: 12KG

PREV：ZDGT2518NEXT：ZDGT1020
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Model

 50C 42D 25D 32 Harmonic Quasi double sided

Reducer reduction ratio

 32.54 105 126 50 / /

Comprehensive reduction ratio

 97.62 105 126 102 105.3 90.9

Rated output speed(r/min)

 15 15 15 25 / /

Rated torque

 490 412 245 76 / /

Permissible torque for starting and stopping

 1225 1029 612 216 / /

Instantaneous maximum torque(N·m)

 2450 2058 1225 382 / /

Moment rigidity(N·m)

 1764 1660 784 / / /

Instantaneous maximum torque(N·m)

 3528 3320 1568 / / /





Joint

 J1 J2 J3 J4 J5 J6

Motor model

 130 130 80 60 50 50

Bated power(kW)

 2 2 0.75 0.4 0.2 0.2

Rated voltage(V)

 220

Rated current(A)

 10 10 5 2.6 1.5 1.5

Rated torque（N.m)

 6.36 6.36 2.38 1.27 0.63 0.63

(r/min) Rated speed

 3000 3000 3000 3000 3000 3000

Maximum speed(r/min)

 3200 3200 3200 4500 4500 4500

(*10e-4kgm²) Rotor inertia

 16.5 16.5 1.2 0.4 0.2 0.2

Line back electromotive force coefficient(V/Krpm)

 50.5 50.5 36.2 33 30 30

Number of pole pairs

 5

Encoder

 17 bit multi-turn insulation value Tamagawa agreement



Allowance Torque

Lead Wiring Type

Description
