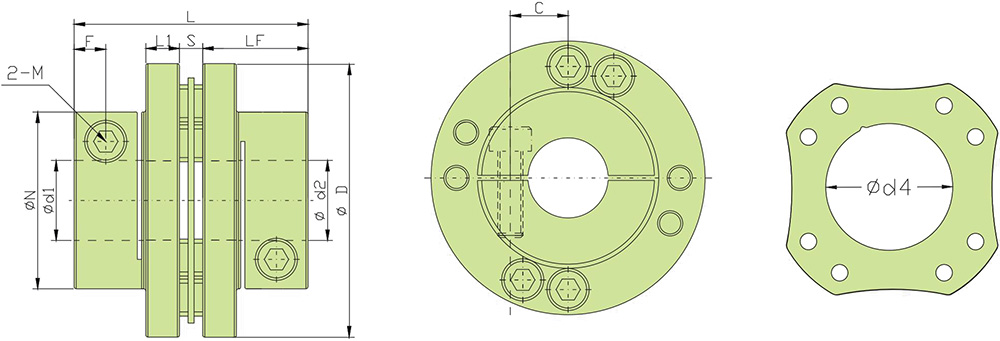

CSTBGC 45# Steel stepped 8 holes single disc damp series

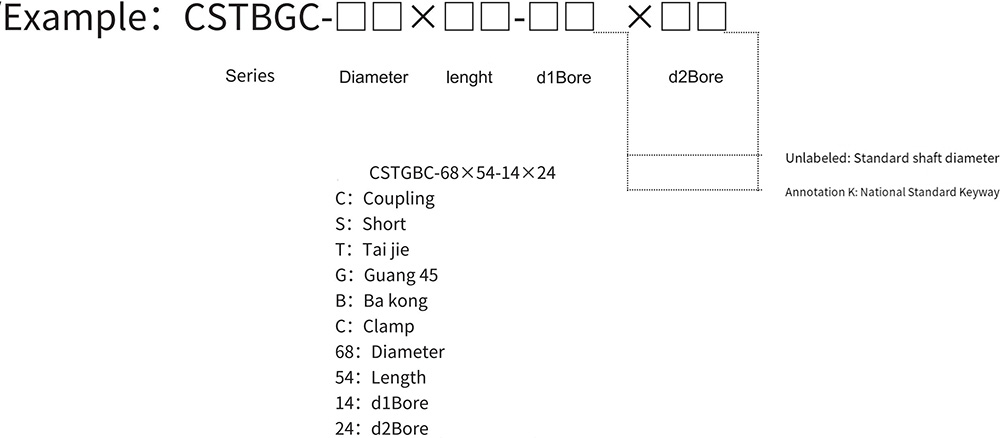

Model

ØD

ØN

L1

L

LF

Ød4

S

F

C

M

Wrench Torque(N ·M)

CSTBGC-56×45

Ø56

Ø38

5

45.6

19.9

Ø26

5.8

6.4

14.6

2-M5×20

10

CSTBGC-65×56

Ø65

Ø42

8

55.9

24.5

Ø36

6.9

7.5

15.5

2-M6×25

15

CSTBGC-68×55

Ø68

Ø46

6

54.9

24

Ø36

6.9

7.7

16.5

2-M6×30

15

CSTBGC-87×68

Ø87

Ø56

10

67.9

30

Ø46

7.9

9.4

21

2-M8×30

30

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CSTBGC-56×45

35

70

0.2

1°

±0.3

10000

96000

3.44×10⁻⁴

S45C

SUS 304

Nigrescence

420

CSTBGC-65×56

62

124

0.2

1°

±0.3

8000

120000

4.03×10⁻⁴

704

CSTBGC-68×55

72

144

0.2

1°

±0.3

8000

140000

5.04×10⁻⁴

700

CSTBGC-87×68

130

260

0.2

1°

±0.3

6000

330000

0.82×10⁻³

1548

Model

Standard axle diameter(ØD1、ØD2)mm

12

12.7

14

15

16

17

18

19

20

22

24

25

  28

  30

  32

  35

CSTBGC-56×45

●

●

●

●

●

●

●

●

●

●

CSTBGC-65×56

●

●

●

●

●

●

●

●

CSTBGC-68×55

●

●

●

●

●

●

●

●

●

CSTBGC-87×68

●

●

●

●

●

●

●

●
