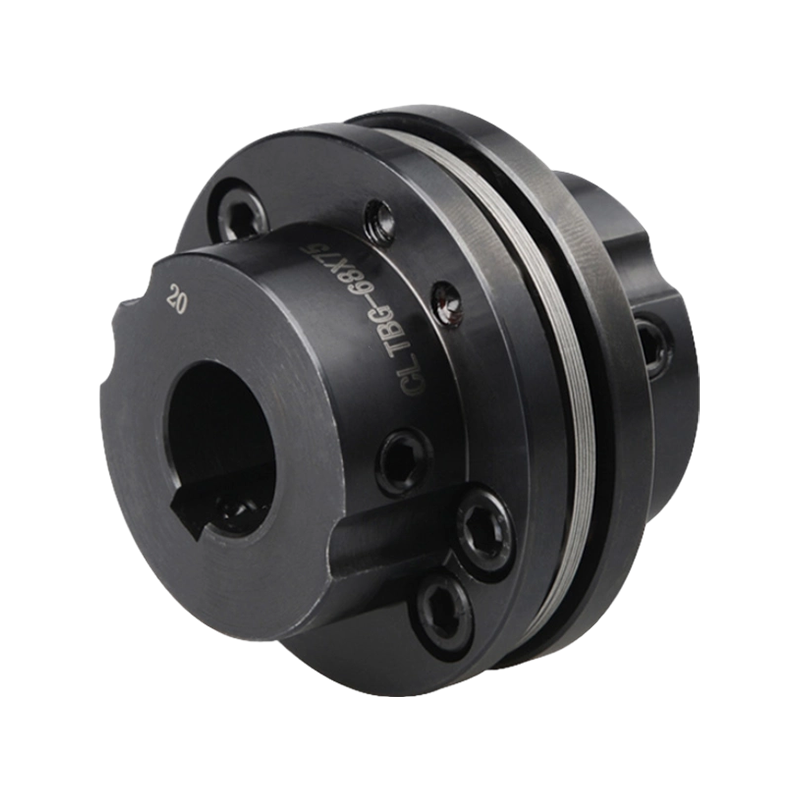

CSTBG 45# Steel stepped 8 holes single disc series

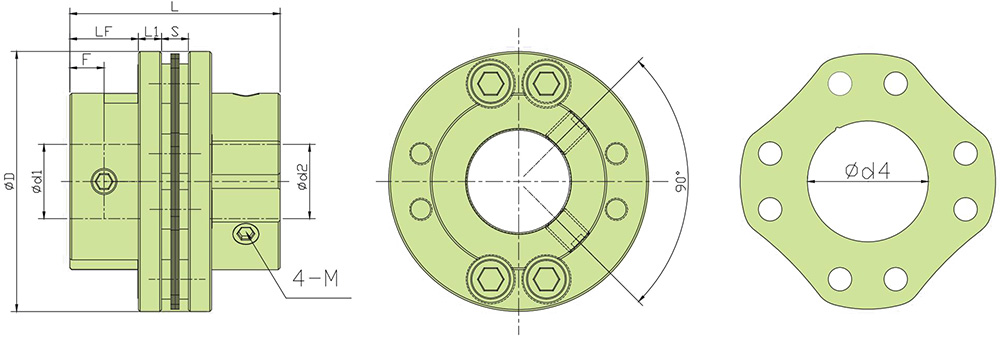

Model

ØD

ON

L1

L

LF

Ød3

S

F

M

Wrench Torque(N ·M)

CSTBG-56×45

Ø56

Ø38

5

45.3

19.75

Ø26

5.8

7.37

4-M6×10

8.4

CSTBG-65×56

Ø65

Ø42

8

55.9

24.5

Ø36

6.9

8.25

4-M8×12

16

CSTBG-68×55

Ø68

Ø46

6

54.9

24

Ø36

6.9

9

4-M8×12

16

CSTBG-87×68

Ø87

Ø56

10

67.9

30

Ø46

7.9

10

4-M8×14

16

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CSTBG-56×45

35

70

0.15

1°

±0.3

10000

96000

3.44×10⁻⁴

S45C

SUS 304

Nigrescence

693

CSTBG-65×56

62

124

0.15

1°

±0.3

8000

120000

4.03×10⁻⁴

1147

CSTBG-68×55

72

144

0.15

1°

±0.3

8000

140000

5.04×10⁻⁴

1208

CSTBG-87×68

130

260

0.15

1°

±0.3

6000

330000

0.82×10⁻³

2541

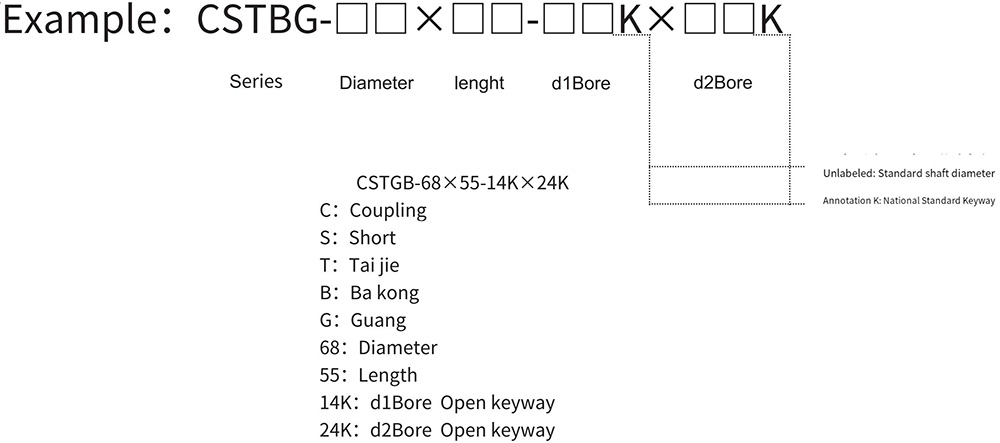

Model

Standard axle diameter(ØD1、ØD2)mm

12

12.7

14

15

16

17

18

19

20

22

24

25

28

30

32

35

CSTBG-56×45

●

●

●

●

●

●

●

●

●

●

●

CSTBG-65×56

●

●

●

●

●

●

●

●

●

●

●

●

CSTBG-68×55

●

●

●

●

●

●

●

●

●

●

CSTBG-87×68

●

●

●

●

●

●

●

●

●
