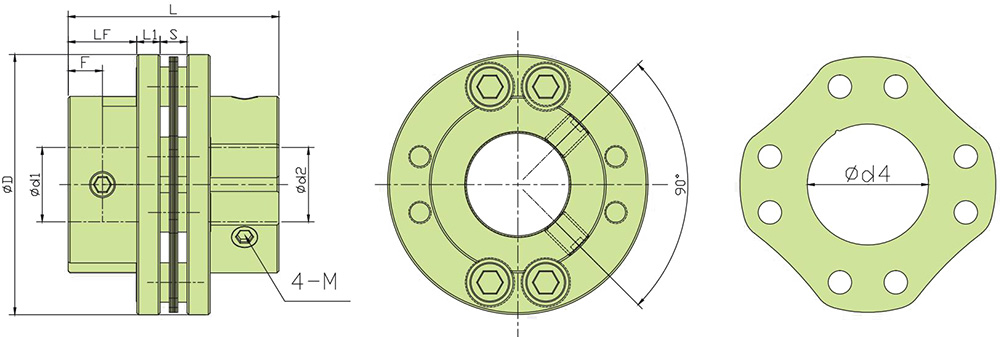

CSTB Stepped single disc series

Model

ØD

ØN

L1

L

LF

Ød4

S

F

M

Wrench Torque(N ·M)

CSTB-56×45

Ø56

Ø38

5

45.3

19.75

Ø26

5.8

7.4

4-M6×10

8.4

CSTB-65×55.5

Ø65

Ø42

8

55.9

24.5

Ø36

6.9

8.25

4-M8×12

16

CSTB-68×54

Ø68

Ø46

6

54.9

24

Ø36

6.9

9

4-M8×12

16

CSTB-87×68

Ø87

Ø56

10

67.9

30

Ø46

7.9

10

4-M8×14

16

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CSTB-56×45

35

70

0.2

1°

±0.3

10000

96000

5.1×10⁻⁵

AL6061-T6
High-strength aluminum alloy

SUS 304

Oxidation treatment

135

CSTB-65×55.5

62

124

0.2

1°

±0.3

8000

120000

1.2×10⁻⁴

235

CSTB-68×54

72

144

0.2

1°

±0.3

8000

140000

1.3×10⁻⁴

246

CSTB-87×68

130

260

0.2

1°

±0.3

6000

330000

2.0×10⁻⁴

452

Model

Standard axle diameter(ØD1、ØD2)mm

12

12.7

14

15

16

17

18

19

20

22

24

25

28

30

32

35

CSTB-56×45

●

●

●

●

●

●

●

●

●

●

●

CSTB-65×55.5

●

●

●

●

●

●

●

●

●

●

●

●

CSTB-68×54

●

●

●

●

●

●

●

●

●

●

CSTB-87×68

●

●

●

●

●

●

●

●

●
