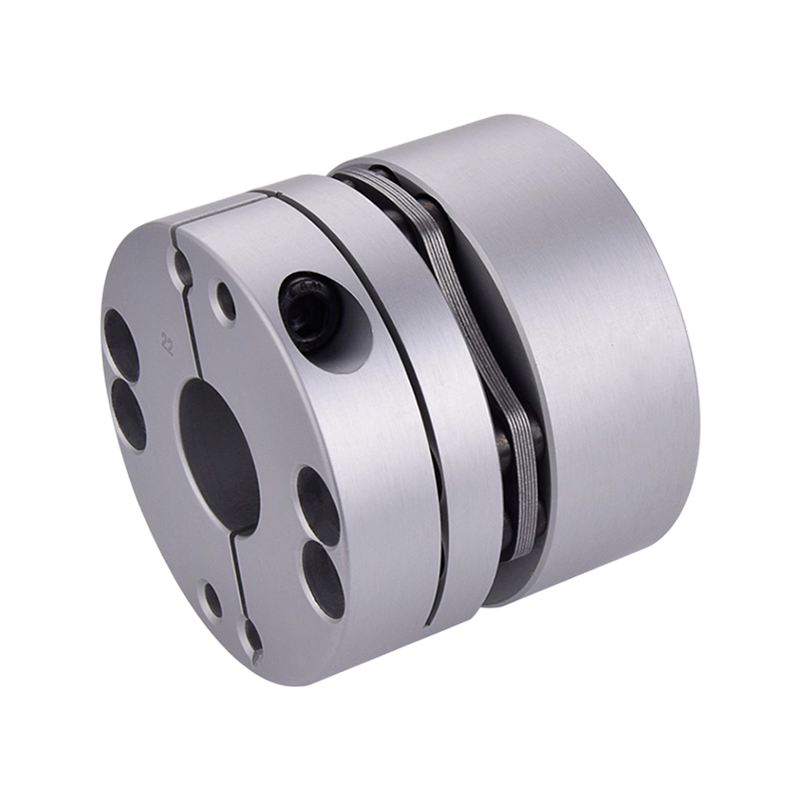

CSB 8 holes singledisc series

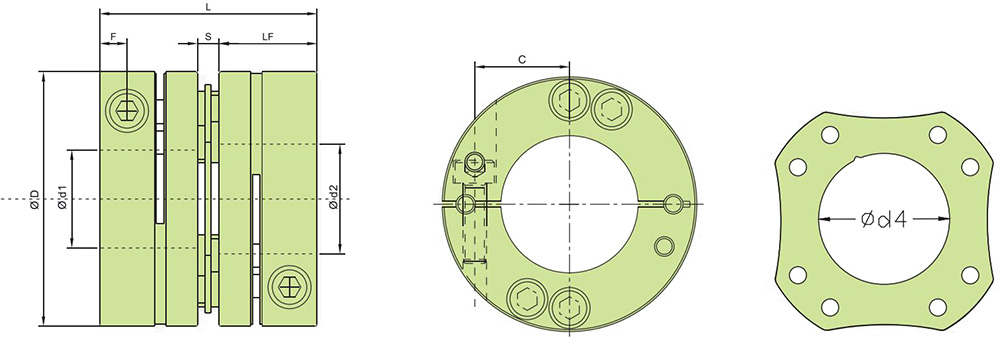

Model

ØD

L

LF

Ød4

S

F

C

M

Wrench Torque(N ·M)

CSB-56×45

Ø56

45.3

19.75

Ø26

5.8

6.4

19.5

2-M5×25

10

CSB-65×55.5

Ø65

55.4

24.5

Ø36

6.4

7.5

22.5

2-M6×30

15

CSB-68×54

Ø68

54.1

23.35

Ø36

7.4

7.7

23.5

2-M6×35

15

CSB-87×68

Ø87

67.9

30

Ø46

7.9

9.4

30

2-M8×35

30

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CSB-56×45

32.5

65

0.15

0.6°

±0.3

12000

96000

1.4×10⁻⁴

AL6061-T6
High-strength aluminum alloy

SUS 304

Oxidation treatment

770

CSB-65×55.5

62

124

0.15

0.6°

±0.3

10000

120000

2.1×10⁻⁴

1275

CSB-68×54

72

714

0.15

0.6°

±0.3

10000

140000

0.27×10⁻³

1343

CSB-87×68

120

240

0.15

0.6°

±0.3

8000

330000

0.85×10⁻³

2824

Model

Standard axle diameter( ØD1 、ØD2 )mm

12

12.7

14

15

16

17

18

19

20

22

24

25

28

30

32

35

38

40

45

48

50

CSB-56×45

●

●

●

●

●

●

●

●

●

●

●

●

CSB-65×55.5

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CSB-68×54

●

●

●

●

●

●

●

●

●

●

●

●

●

CSB-87×68

●

●

●

●

●

●

●

●

●

●

●

●

●

●
