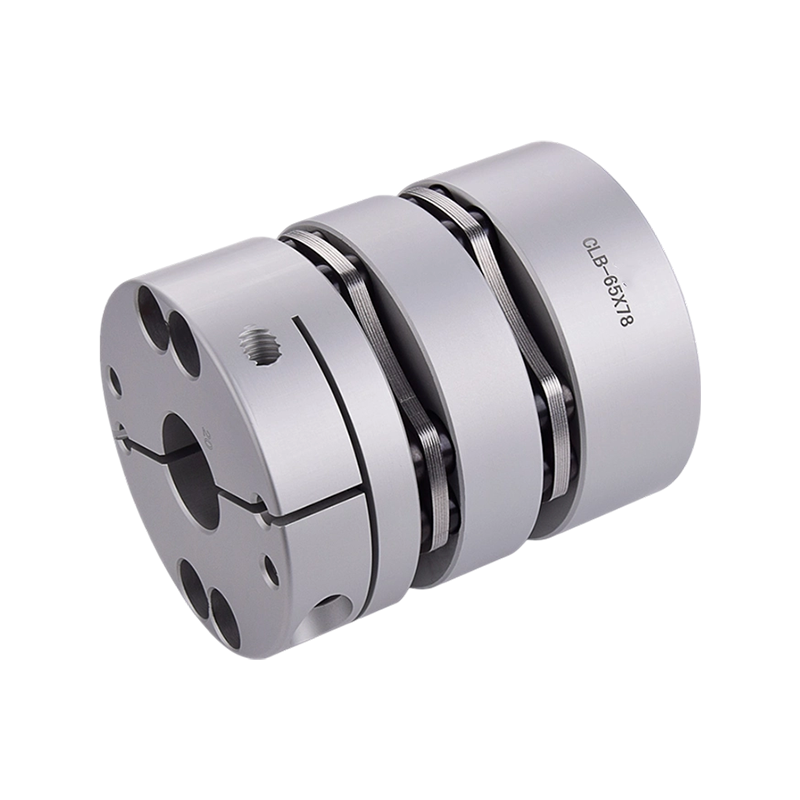

CLB 8 holesDouble diaphragm series

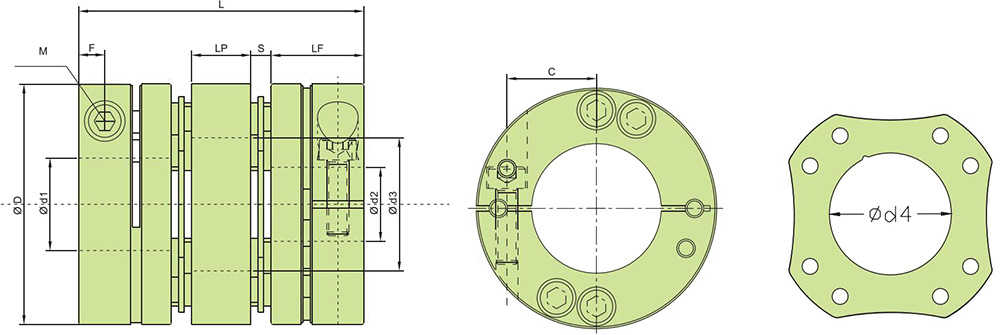

Model

ØD

L

LF

LP

Ød3

Ød4

S

F

C

M

Wrench Torque(N ·M)

CLB-56×65

Ø56

64.6

19.75

13.5

Ø25

Ø26

5.8

6.4

19.5

2-M5×25

10

CLB-65×78

Ø65

77.8

24.5

16

Ø31

Ø36

6.4

7.5

22.5

2-M6×30

15

CLB-68×76

Ø68

76.2

23.35

15.7

Ø35

Ø36

6.9

7.7

23.5

2-M6×35

15

CLB-87×96

Ø87

95.8

30

20

Ø46

Ø46

7.9

9.4

30

2-M8×35

30

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CLB-56×65

32.5

65

0.2

0.6°

±0.6

12000

48000

1.9×10⁻⁴

AL6061-T6

High-strength aluminum alloy

SUS 304

Oxidation treatment

1033

CLB-65×78

62

104

0.2

0.6°

±0.6

10000

58000

2.76×10⁻⁴

1695

CLB-68×76

72

144

0.2

0.6°

±0.6

10000

70000

0.36×10⁻³

1794

CLB-87×96

120

240

0.2

0.6°

±0.6

8000

140000

1.1×10⁻³

3812

Model

            Standard axle diameter(ØD1 、ØD2)mm

12

12.7

14

15

16

17

18

19

20

22

24

25

28

30

32

35

38

40

45

48

50

CLB-56×65

●

●

●

●

●

●

●

●

●

●

●

●

CLB-65×78

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CLB-68×76

●

●

●

●

●

●

●

●

●

●

●

●

●

CLB-87×96

●

●

●

●

●

●

●

●

●

●

●

●

●

●
