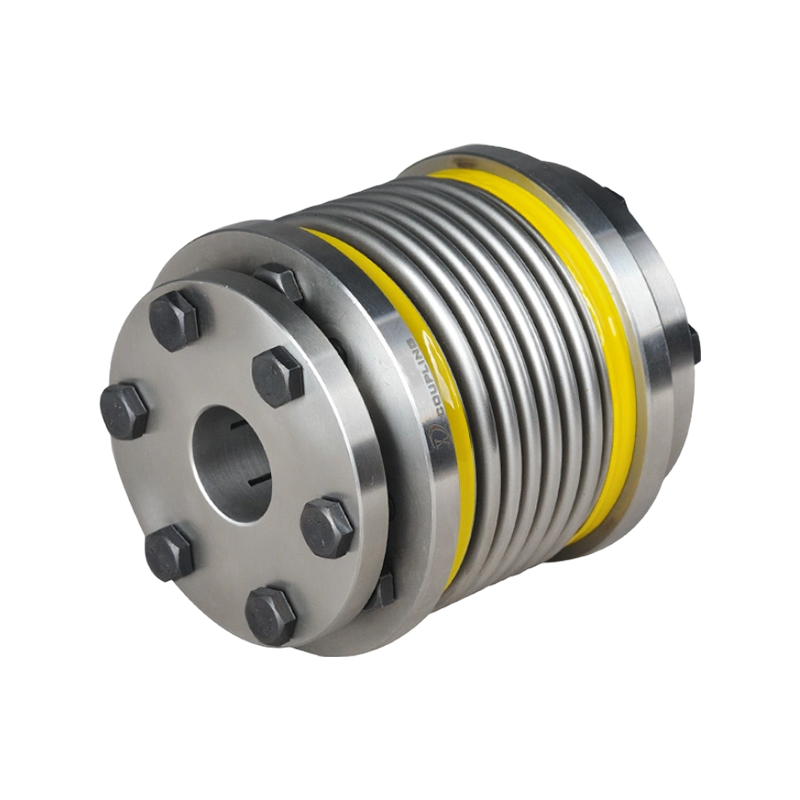

CRZ Plum flower expansion sets series

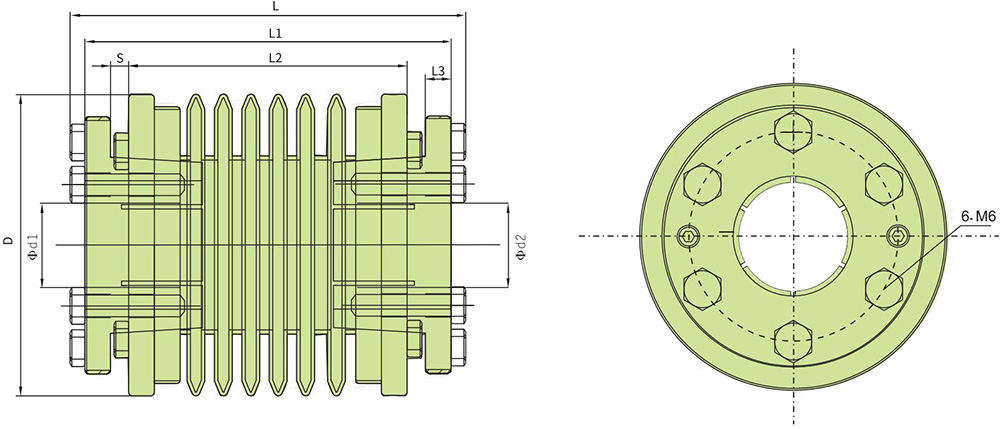

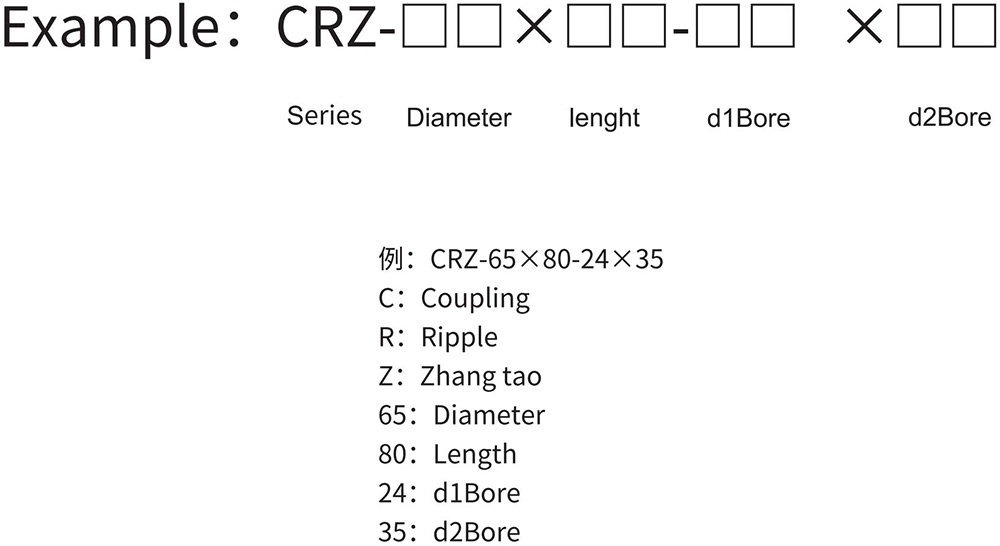

Model

d1, d2, Bore

ØD

L

L1

L2

L3

S

M

Wrench Torque(N ·M)

CRZ-55×68

11,12,12.7,14,15,16,18,19,20,22,24

Ø55

68

61

40

5

6

6-M5×16

10

CRZ-65×80

14,15,16,18,19,20,22,24,25

Ø65

80

73

52

5

6

6-M5×20

10

CRZ-82×92

19,20,22,24,25,28,30,32,35,38,40

Ø82

92

84

59

7

7

6-M6×20

15

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Flexible colloidal material

Surface Treatment

Weigh(g)

CRZ-55×68

30

  60

0.2

2

+0.8-2.5

12000

3.5×10⁴

  2.8×10⁻⁴

SUS

Oxidation treatment

390

CRZ-65×80

60

120

0.2

2

+0.8  -2.5

12000

6.8×10⁴

  4.5×10⁻⁴

780

CRZ-82×92

120

240

0.2

2

+0.8 -2.5

12000

1.2×10⁴

  1.1×10⁻³

1200

Model

Standard axle diameter(ØD1、ØD2)mm

12

14

15

16

17

18

19

20

22

24

25

28

30

32

35

38

40

CRZ-55×68

●

●

●

●

●

●

●

●

●

●

CRZ-65×80

●

●

●

●

●

●

●

●

●

●

CRZ-82×92

●

●

●

●

●

●

●

●

●

●

●
