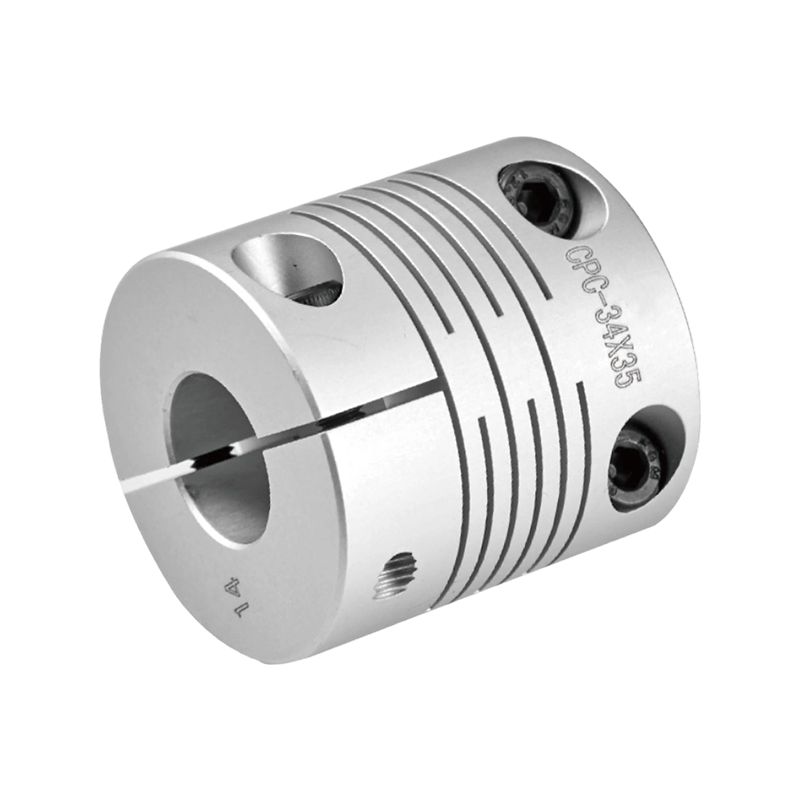

CPC Parallel lines aluminum clamp series

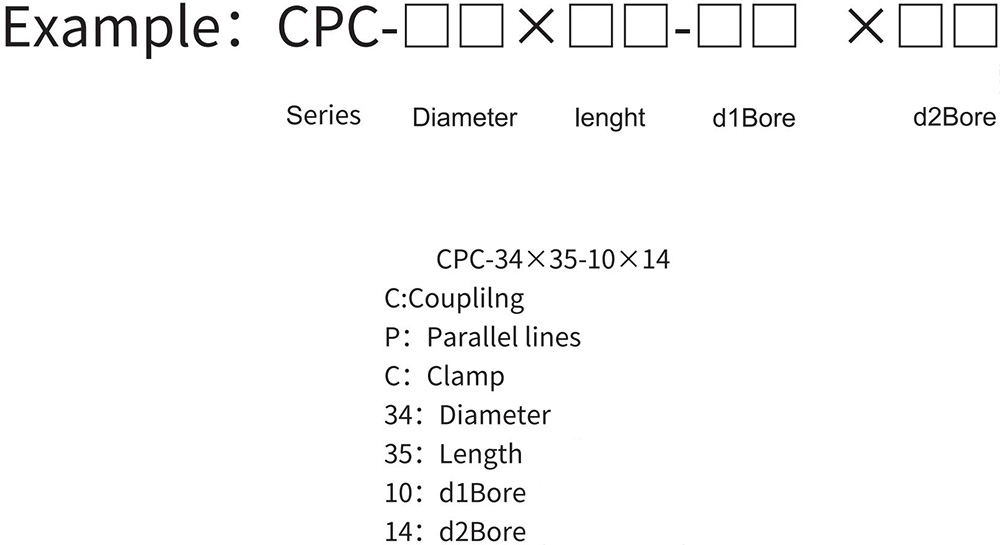

Model

ØD

L

L1

L2

C

F

M

Wrench Torque(N ·M)

CPC-16×17.5

Ø16

17.5

0.5

1

5.2

3

4-M2.5×6

1.5

CPC-19×20

Ø19

20

0.5

1.18

5.9

3.4

4-M2.5×8

1.5

CPC-24×25

Ø24

25

0.55

1.49

7

4.25

4-M3×12

3

CPC-29×30

Ø29

30

0.55

1.81

8.8

5.1

4-M3×14

3

CPC-34×35

Ø34

35

0.55

2.35

10.8

5.68

4-M4×16

7

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Flexible colloidal material

Surface Treatment

Weigh(g)

CPC-16×17.5

0.5

1

0.05

0.5

±0.1

8000

200

2.8×10⁻⁷

High-strength aluminum alloy

AL6061-T6

Oxidation treatment

7

CPC-19×20

1

2

0.05

0.5

±0.1

8000

270

5.8×10⁻⁷

11

CPC-24×25

1.5

3

0.05

0.5

±0.1

6200

790

1.8×10⁻⁶

22

CPC-29×30

2

4

0.05

0.5

±0.1

5000

1400

4.7×10⁻⁶

40

CPC-34×35

3

6

0.05

0.5

±0.1

4300

2200

1.1×10⁻⁵

61

Model

Standard axle diameter(ØD1、ØD2)mm

3

4

5

6

6.35

7

8

9

9.52

10

11

12

12.7

14

15

16

CPC-16×17.5

●

●

●

●

CPC-19×20

●

●

●

●

●

●

●

CPC-24×25

●

●

●

●

●

●

●

●

●

CPC-29×30

●

●

●

●

●

●

●

●

●

●

CPC-34×35

●

●

●

●

●

●

●

●

●

●
