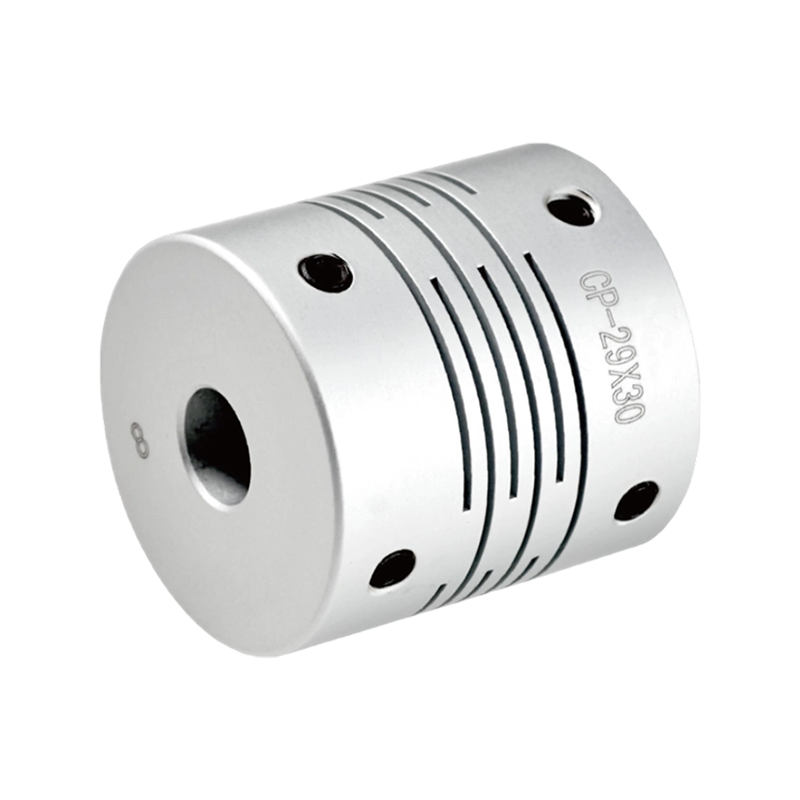

CP Parallel lines aluminum top tight series

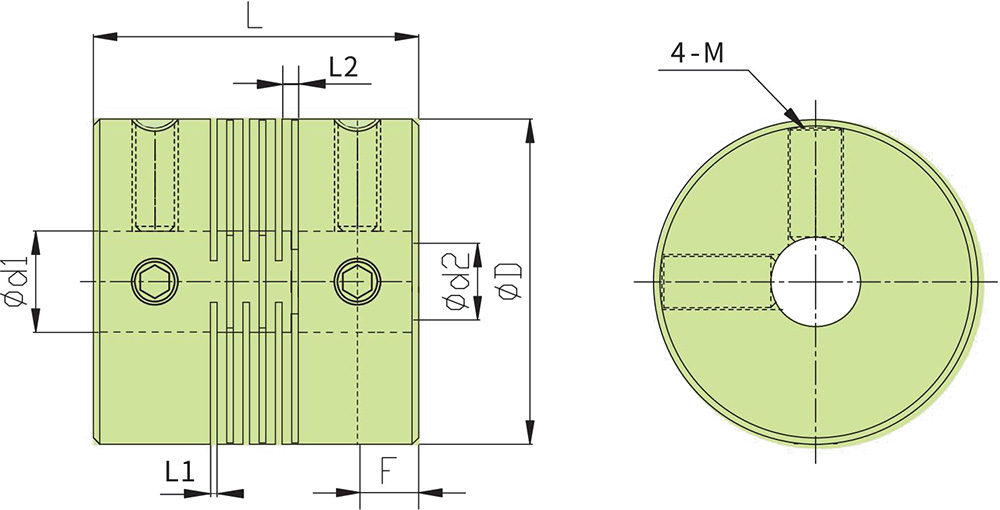

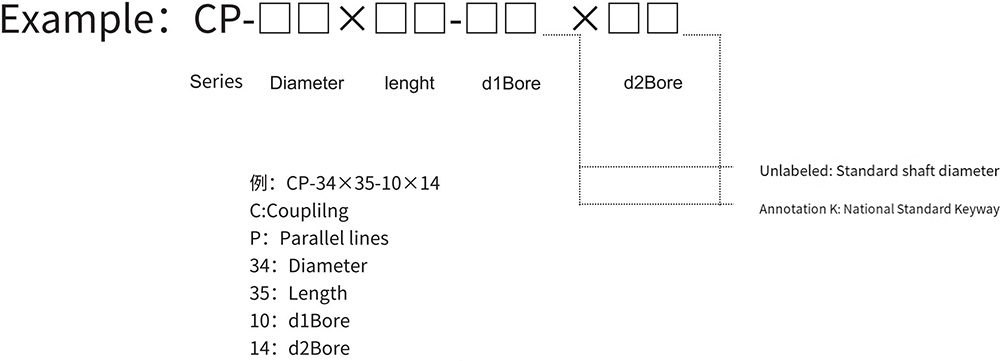

Model

ØD

L

L1

L2

F

M

Wrench Torque(N ·M)

CP-16×17.5

Ø16

17.5

0.5

1

3

4-M3×5

0.7

CP-19×20

Ø19

20

0.5

1.18

3.4

4-M3×6

0.7

CP-24×25

Ø24

25

0.55

1.49

4.25

4-M4×6

1.7

CP-29×30

Ø29

30

0.55

1.81

5.1

4-M4×8

4

CP-34×35

Ø34

35

0.55

2.35

5.68

4-M5×10

4

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Flexible colloidal material

Surface Treatment

Weigh(g)

CP-16×17.5

0.5

1

0.05

0.5

±0.1

24000

200

2.8×10⁻⁷

High-strength aluminum alloy

AL6061-T6

Oxidation treatment

7

CP-19×20

1

2

0.05

0.5

±0.1

20000

270

6.2×10⁻⁶

10

CP-24×25

1.5

3

0.05

0.5

±0.1

16000

790

2.0×10⁻⁶

22

CP-29×30

2

4

0.05

0.5

±0.1

13000

1400

5.2×10⁻⁶

40

CP-34×35

3

6

0.05

0.5

±0.1

11000

2200

1.1×10⁻⁵

64

Model

Standard axle diameter(ØD1、ØD2)mm

3

4

5

6

6.35

7

8

9

9.52

10

11

12

12.7

14

15

16

CP-16×17.5

●

●

●

●

CP-19×20

●

●

●

●

●

●

●

CP-24×25

●

●

●

●

●

●

●

●

●

CP-29×30

●

●

●

●

●

●

●

●

●

●

CP-34×35

●

●

●

●

●

●

●

●

●

●
