CFC Aluminum plum flower clamp series

Coupling

Features

High torque, small size, zero revolution clearance.

Colloid uses German TPU, manufactured by special processes.

The 24-hour compression variant is only 15%, which is better than 35%of ordinary materials.

95A moderate colloid hardness, Solve the problem of softness impact accuracy and insufficient hard buffer.

High and low temperature resistance.

Temperature range: -30 to+100℃.

Intermediate elastomer absorbs vibration, compensates for radial, angular and axial deviations.

PREV：CF Aluminium plum flower top tight seriesNEXT：No next article
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Dimensions (Unit): mm

Model

ØD

L

LF

LP

F

C

Ød3

M

Wrench Torque(N ·M)

CFC-14×22

Ø14

22

14.1

6.8

3.8

4.2

4.5

2-M2.5×8

1.5

CFC-20×25

Ø20

25

16.8

9.4

4

5.9

7.8

2-M3×10

3

CFC-20×30

Ø20

30

19.3

9.4

5.25

5.9

7.8

2-M3×10

3

CFC-25×30

Ø25

30

20.15

11.1

4.6

7.3

8.3

2-M4×12

7

CFC-25×34

Ø25

34

20.15

11.1

5.6

7.3

8.3

2-M4×12

7

CFC-30×35

Ø30

35

22.75

11.5

5.875

9.5

11

2-M4×14

7

CFC-30×42

Ø30

42

26.25

11.5

7.5

9.5

11

2-M4×14

7

CFC-35×35

Ø35

35

22.45

10.9

5.875

11.5

15.2

2-M4×14

7

CFC-35×45

Ø35

45

27.45

10.9

6

11.5

15.2

2-M4×14

7

CFC-35×50

Ø35

50

29.95

10.9

6.5

11.5

15.2

2-M4×14

7

CFC-40×40

Ø40

40

26.75

14.5

6.375

14

18.3

2-M5×16

10

CFC-40×45

Ø40

45

29.25

14.5

7.25

14

18.3

2-M5×16

10

CFC-40×50

Ø40

50

31.75

14.5

8.875

14

18.3

2-M5×16

10

CFC-40×55

Ø40

55

34.25

14.5

6.5

14

18.3

2-M5×16

10

CFC-40×66

Ø40

66

39.75

14.5

7.5

14

18.3

2-M5×16

10

CFC-45×50

Ø45

50

31.8

14.6

8.75

15

22

2-M5×16

10

CFC-45×55

Ø45

55

34.3

14.6

6.5

15

22

2-M5×16

10

CFC-45×66

Ø45

66

39.8

14.6

7.5

15

22

2-M5×16

10

CFC-55×58

Ø55

58

36.6

16.2

10.75

19

27.3

2-M6×25

15

CFC-55×78

Ø55

78

46.6

16.2

10.5

19

27.3

2-M6×25

15

CFC-65×80

Ø65

80

48.35

17.7

15.6

22.5

30

2-M8×25

30

CFC-65×85

Ø65

85

50.85

17.7

12

22.5

30

2-M8×25

30

CFC-65×90

Ø65

90

53.35

17.7

12

22.5

30

2-M8×25

30

CFC-65×110

Ø65

110

63.35

17.7

13.57

22.5

30

4-M8×25

30

CFC-80×114

Ø80

114

67.6

22.2

16

28.5

38.5

4-M8×35

30

CFC-95×126

Ø95

126

74.35

24.7

18

33

47.5

4-M10×40

50

CFC-105×140

Ø105

140

81.65

25.3

18

37

51.5

4-M10×40

50

Allowance Torque

Specifications

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CFC-14×22

2

4

0.1

1

-0.5+1

45000

22

1.6×10⁻⁷

AL6061-T6 High-strength aluminum

TPU

Anodic oxidation treatment

6

CFC-20×25

5

10

0.1

1

-0.5+1

31000

55

1.0×10⁻⁶

15

CFC-20×30

5

10

0.1

1

-0.5+1

31000

55

1.1×10⁻⁶

19

CFC-25×30

10

20

0.1

1

-0.5+1

26000

90

5.0×10⁻⁶

25

CFC-25×34

10

20

0.1

1

-0.5+1

26000

90

5.2×10⁻⁶

33

CFC-30×35

12.5

25

0.1

1

-0.5+1

21000

130

6.2×10⁻⁶

50

CFC-30×42

12.5

25

0.1

1

-0.5+1

21000

130

6.5×10⁻⁶

58

CFC-35×35

15

30

0.1

1

-0.5+1

17000

550

7.5×10⁻⁶

71

CFC-35×45

15

30

0.1

1

-0.5+1

17000

550

8.5×10⁻⁶

90

CFC-35×50

15

30

0.1

1

-0.5+1

17000

550

9.5×10⁻⁶

96

CFC-40×40

17

34

0.1

1

-0.5+1

15000

1200

2.5×10⁻⁵

95

CFC-40×45

17

34

0.1

1

-0.5+1

15000

1200

2.8×10⁻⁵

105

CFC-40×50

17

34

0.1

1

-0.5+1

15000

1200

3.0×10⁻⁵

115

CFC-40×55

17

34

0.1

1

-0.5+1

15000

1200

3.8×10⁻⁵

127

CFC-40×66

17

34

0.1

1

-0.5+1

15000

1200

3.9×10⁻⁵

154

CFC-45×50

25

50

0.1

1

-0.5+1

11000

1800

4.9×10⁻⁵

170

CFC-45×55

25

50

0.1

1

-0.5+1

11000

1800

5.9×10⁻⁵

183

CFC-45×66

25

50

0.1

1

-0.5+1

11000

1800

6.9×10⁻⁵

210

CFC-55×58

50

100

0.1

1

-0.5+1

10000

2500

1.1×10⁻³

250

CFC-55×78

50

100

0.1

1

-0.5+1

10000

2500

1.6×10⁻³

341

CFC-65×80

108

216

0.1

1

-0.5+1

9000

3800

2.6×10⁻³

480

CFC-65×85

108

216

0.1

1

-0.5+1

9000

3800

3.2×10⁻³

633

CFC-65×90

108

216

0.1

1

-0.5+1

9000

3800

3.8×10⁻³

583

CFC-65×110

108

216

0.1

1

-0.5+1

8500

3500

3.9×10⁻²

689

CFC-80×114

145

290

0.1

1

-0.5+1

8000

4000

1.8×10⁻²

1000

CFC-95×126

260

520

0.1

1

-0.5+1

7000

5000

2.0×10⁻²

1650

CFC-105×140

430

860

0.1

1

-0.5+1

6000

5500

2.5×10⁻²

2543

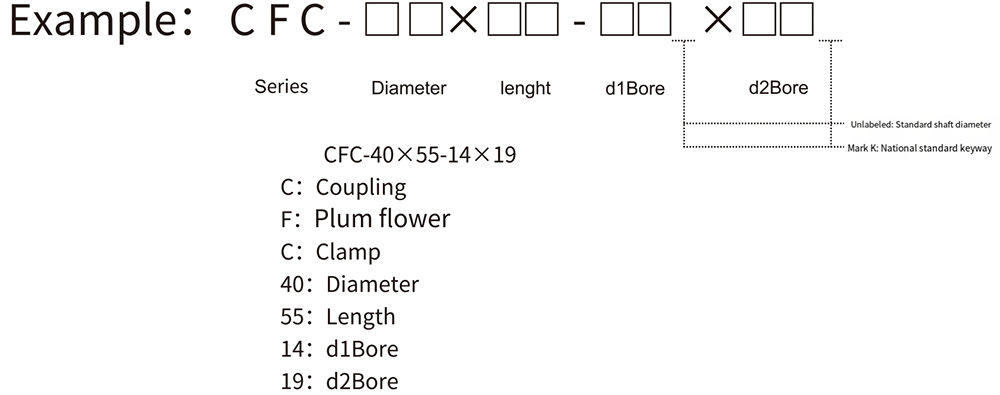

Standard axle diameter

Model

Standard shaft diameter(Ød1、Ød2)mm

3

4

5

6

6.35

7

8

9.52

10

11

12

12.7

14

15

16

17

18

19

20

22

24

CFC-14×22

●

●

●

CFC-20×25

●

●

●

●

●

●

●

●

CFC-20×30

 ●

●

●

●

●

●

●

●

CFC-25×30

●

●

●

●

●

●

●

●

●

●

CFC-25×34

●

●

●

●

●

●

●

●

●

●

CFC-30×35

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-30×42

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-35×35

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-35×45

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-35×50

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-40×40

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-40×45

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-40×50

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-40×55

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-40×66

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Model

Standard shaft diameter(Ød1、Ød2)mm

8

9.52

10

11

12

12.7

14

15

16

17

18

19

20

22

24

25

28

30

32

35

38

40

42

45

50

55

60

CFC-45×50

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-45×55

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-45×66

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-55×58

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-55×78

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-65×80

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-65×85

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-65×90

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-65×110

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-80×114

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-95×126

●

●

●

●

●

●

●

●

●

●

●

●

●

CFC-105×140

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Note: The above technical parameters are measured based on the maximum aperture specification

Lead Wiring Type

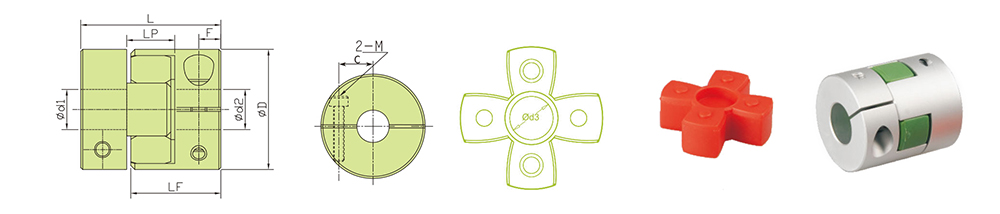

D14-D30 (4-plate colloid)

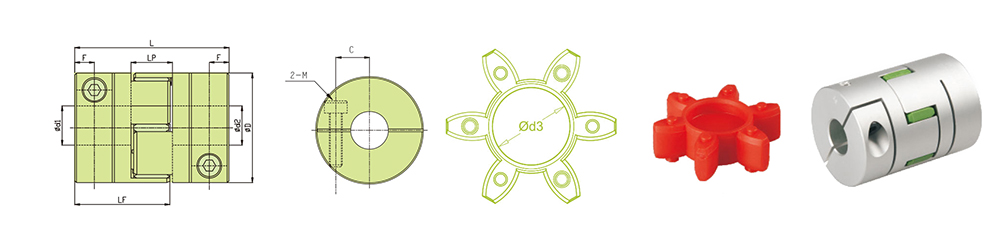

D35-D45 (6-plate colloid)

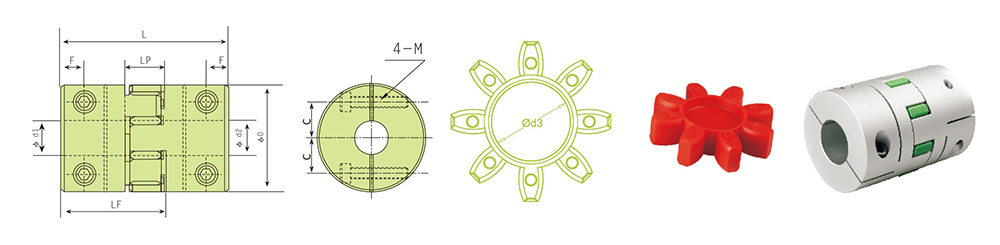

D55-D105 (8-valve colloid)


Description
