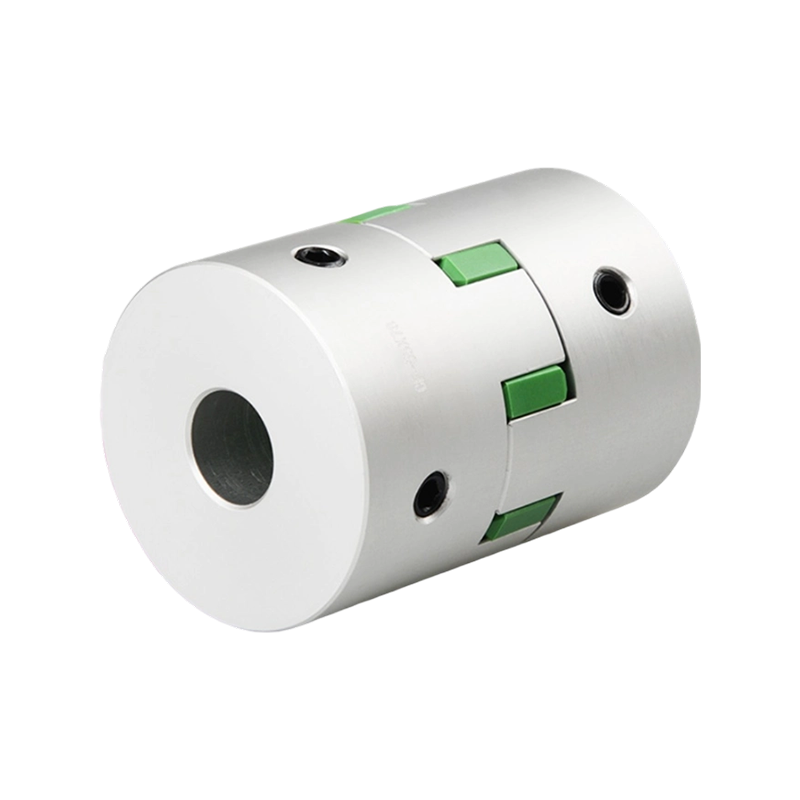

CF Aluminium plum flower top tight series

Coupling

Features

High torque, small size, zero revolution clearance.

Colloid uses German TPU, manufactured by special processes. The 24-hour compression variant is only 15%, which is better than 35% of ordinary materials.

95A moderate colloid hardness, Solve the problem of softness impact accuracy and insufficient hard buffer.

High and low temperature resistance, Temperature range: -30 to+100℃.

Intermediate elastomer absorbs vibration, compensates for radial, angularand axial deviations.

PREV：CFCG-S Stainless steelplum flower clamp seriesNEXT：CFC Aluminum plum flower clamp series
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Dimensions (Unit): mm

Model

ØD

L

LF

LP

F

Φd3

M

Wrench Torque(N-M)

CF-14×22

Ø14

22

14.1

6.8

3.8

4.5

4-M3×4

0.7

CF-20×25

Ø20

25

16.8

9.4

3.9

7.8

4-M4×5

1.7

CF-20×30

Ø20

30

19.3

9.4

5.15

7.8

4-M4×5

1.7

CF-25×30

Ø25

30

20.15

11.1

4.675

8.3

4-M4×6

1.7

CF-25×34

Ø25

34

22.15

11.1

5.675

8.3

4-M4×6

1.7

CF-30×35

Ø30

35

22.75

11.5

5.875

11

4-M4×8

1.7

CF-35×35

Ø35

35

22.45

10.9

6.025

15.2

4-M5×10

4

CF-35×45

Ø35

45

27.45

10.9

8.525

15.2

4-M5×10

4

CF-35×50

Ø35

50

29.95

10.9

9.775

15.2

4-M5×10

4

CF-40×55

Ø40

55

34.25

14.5

10.125

18.3

4-M5×10

4

CF-40×66

Ø40

66

39.75

14.5

12.875

18.3

4-M5×10

4

CF-45×50

Ø45

50

31.8

14.6

8.85

22

4-M6×12

8.4

CF-45×55

Ø45

55

34.3

14.6

10.1

22

4-M6×12

8.4

CF-45×66

Ø45

66

39.8

14.6

12.85

22

4-M6×12

8.4

CF-55×78

Ø55

78

46.6

16.2

15.45

27.3

4-M6×12

8.4

CF-65×90

Ø65

90

53.35

17.7

18.075

30

4-M8×14

12

CF-80×114

Ø80

114

67.6

22.2

22.95

38.5

4-M8×14

12

CF-95×126

Ø95

126

74.35

24.7

25.325

47.5

4-M10×20

28

CF-105×140

Ø105

140

81.65

25.3

28.675

51.5

4-M10×25

28

Allowance Torque

Specifications

Model

Rated torque(N ·M)

Maximum torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Bushings Material

Flexible colloidal material

Surface Treatment

Weigh(g)

CF-14×22

1.8

3.6

0.1

1

-0.5+1

45000

22

2.0×10⁻⁷

AL6061-T6 High-strength aluminum alloy

TPU

Oxidation treatment

7

CF-20×25

4

8

0.1

1

-0.5+1

31000

50

1.0×10⁻⁶

13

CF-20×30

4

8

0.1

1

-0.5+1

31000

53

1.0×10⁻⁶

18

CF-25×30

8

16

0.1

1

-0.5+1

26000

90

4.8×10⁻⁶

22

CF-25×34

8

16

0.1

1

-0.5+1

26000

90

5.0×10⁻⁶

30

CF-30×35

10

20

0.1

1

-0.5+1

21000

123

5.5×10⁻⁶

46

CF-35×35

12

24

0.1

1

-0.5+1

17000

550

7.3×10⁻⁶

66

CF-35×45

12

24

0.1

1

-0.5+1

17000

550

8.3×10⁻⁶

85

CF-35×50

12

24

0.1

1

-0.5+1

17000

550

9.3×10⁻⁶

91

CF-40×55

13.5

27

0.1

1

-0.5+1

15000

1100

3.5×10⁻⁵

120

CF-40×66

13.5

27

0.1

1

-0.5+1

15000

1140

3.8×10⁻⁵

145

CF45×50

20

40

0.1

1

-0.5+1

11000

1800

4.8×10⁻⁶

163

CF-45×55

20

40

0.1

1

-0.5+1

11000

1800

5.8×10⁻⁶

176

CF45×66

20

40

0.1

1

-0.5+1

11000

1800

6.8×10⁻⁶

202

CF-55×78

40

80

0.1

1

-0.5+1

10000

2500

1.5×10⁻³

320

CF-65×90

86

172

0.1

1

-0.5+1

9000

4800

3.6×10⁻³

560

CF-80×114

116

232

0.1

1

-0.5+1

8000

4000

1.8×10⁻²

1000

CF-95×126

208

415

0.1

1

-0.5+1

7000

5000

2.2×10⁻²

1650

CF-105×140

340

680

0.1

1

-0.5+1

6000

5500

2.5×10⁻²

2543

Standard axle diameter

Model

Standard shaft diameter(Ød1、Ød2)mm

3

4

5

6

6.35

7

8

9.52

10

11

12

12.7

14

15

16

18

19

20

22

24

CF-14×22

●

●

●

●

●

●

CF-20×25

●

●

●

●

●

●

●

●

CF-20×30

●

●

●

●

●

●

●

●

CF-25×30

●

●

●

●

●

●

●

●

●

●

CF-25×34

●

●

●

●

●

●

●

●

●

●

CF-30×35

●

●

●

●

●

●

●

●

●

●

 ● ● ●

CF-35×35

●

●

●

●

●

●

●

●

●

●

●

 ● ● ●

CF-35×45

●

●

●

●

●

●

●

●

●

●

 ● ● ● ●

CF-35×50

●

●

●

●

●

●

●

●

●

●

●

 ● ● ●

CF-40×55

●

●

●

●

●

●

●

●

●

●

●

 ● ● ●

CF-40×66

●

●

●

●

●

●

●

●

●

●

●

 ● ● ●

Model

Standard shaft diameter(Ød1、Ød2)mm

8

9.52

10

11

12

12.7

14

15

16

17

18

19

20

22

24

25

28

30

32

35

38

40

42

45

50

55

60

CF-45×50

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CF-45×55

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CF-45×66

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CF-55×78

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CF-65×90

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

CF-80×114

●

●

●

●

●

●

●

●

●

●

●

●

●

CF-95×126

●

●

●

●

●

●

●

●

●

●

●

●

●

CF-105×140

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Note: The above technical parameters are measured based on the maximum aperture specification

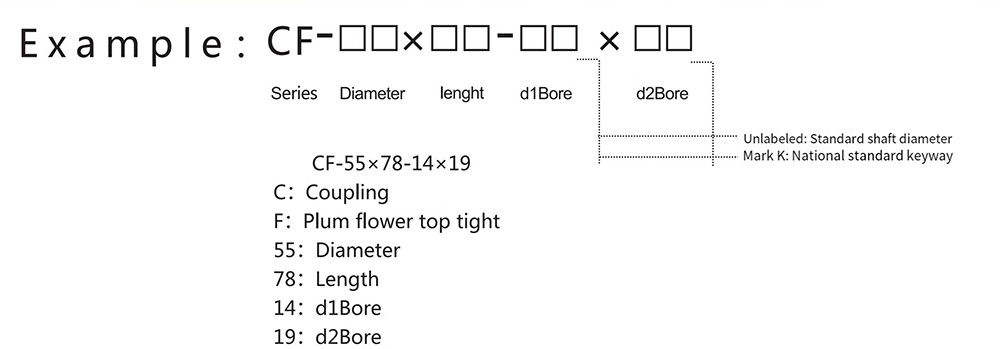

Lead Wiring Type

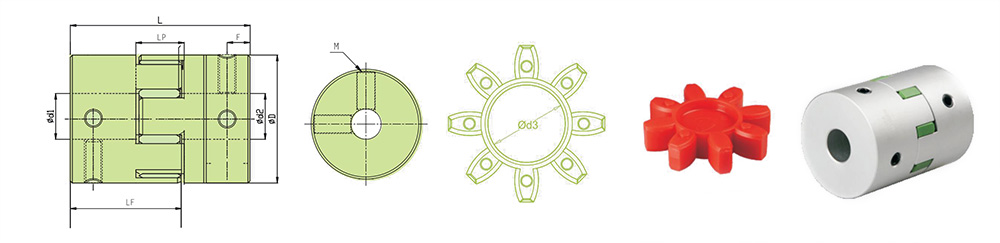

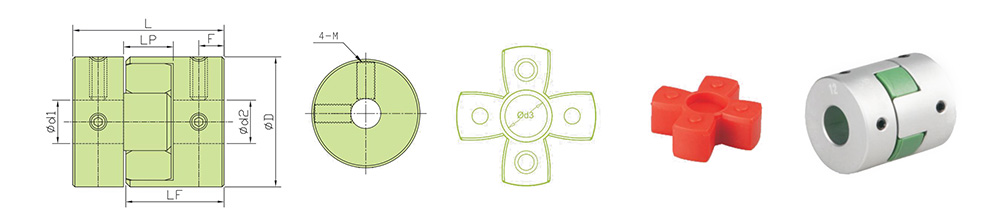

D14-D30 (4-plate colloid)


D35-D45 (6-plate colloid)


D55-D105 (8-valve colloid)
