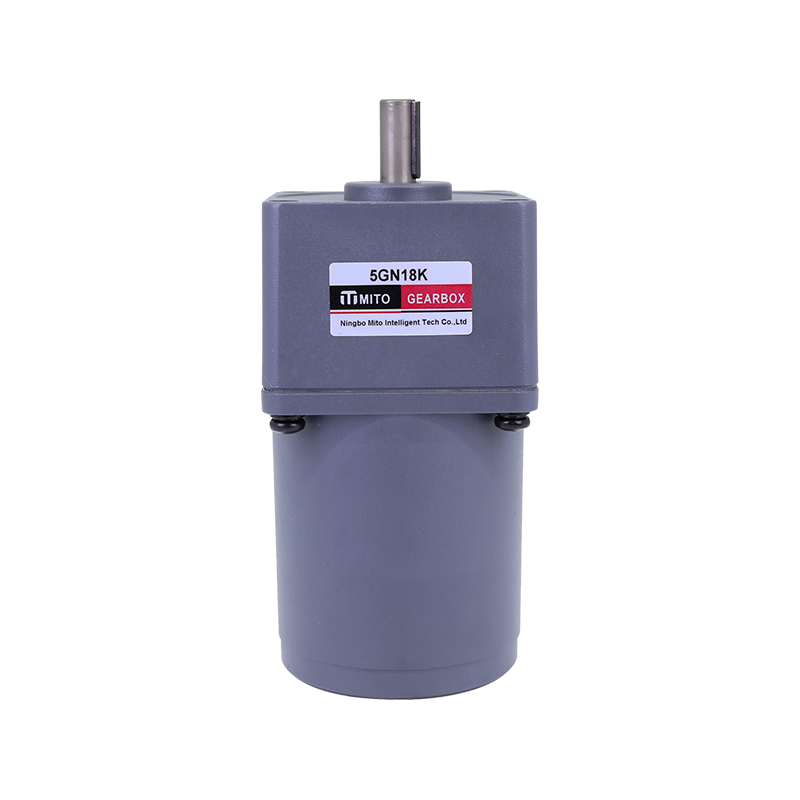

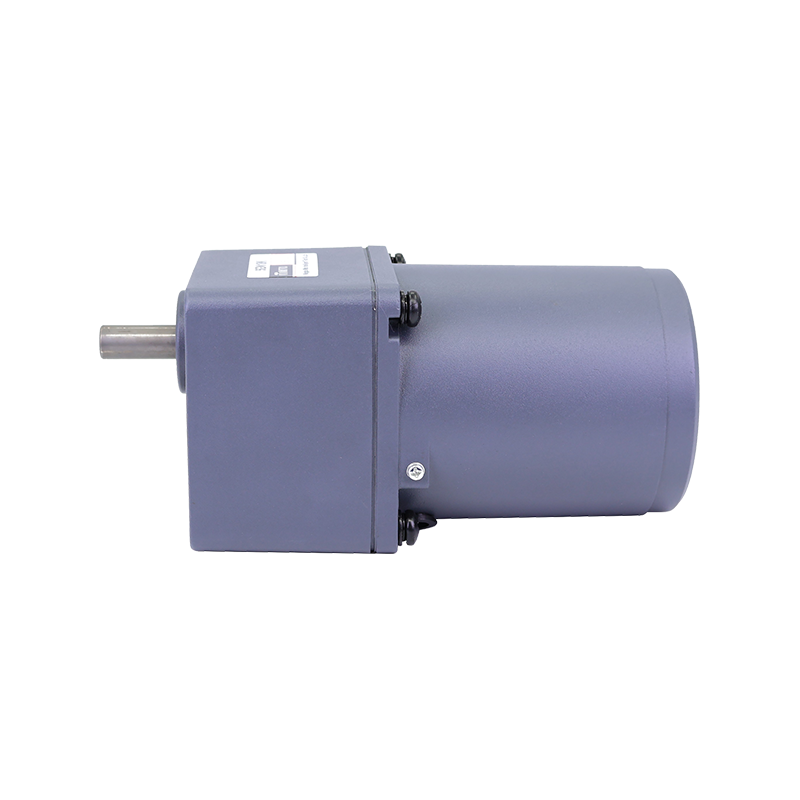

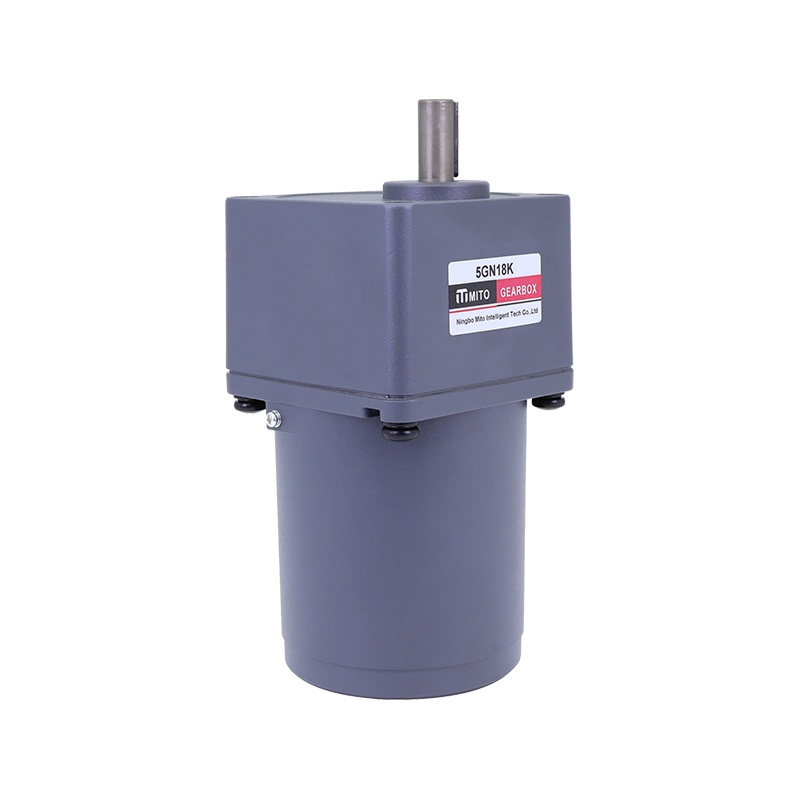

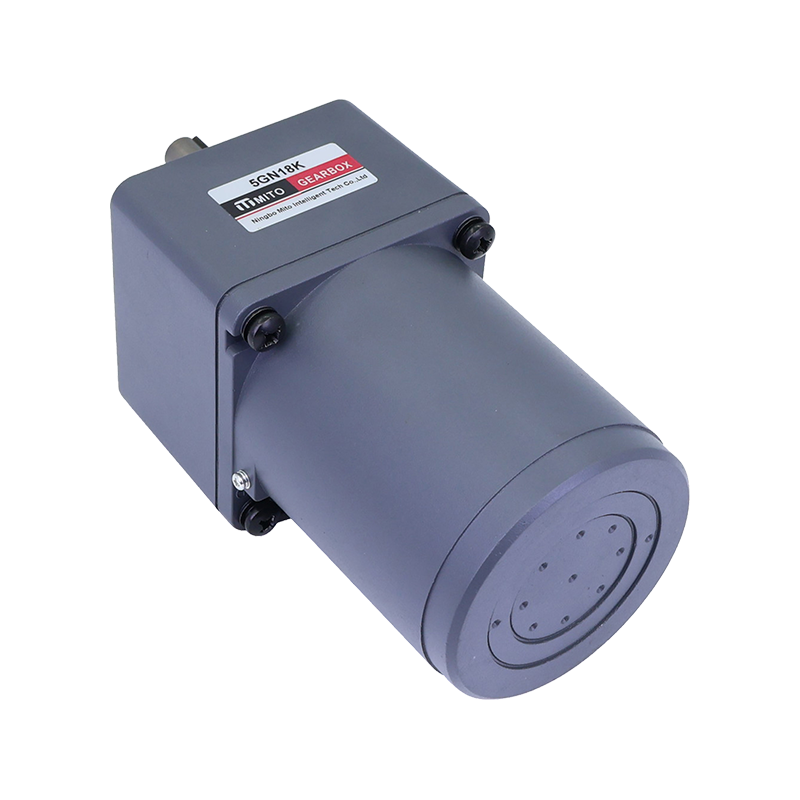

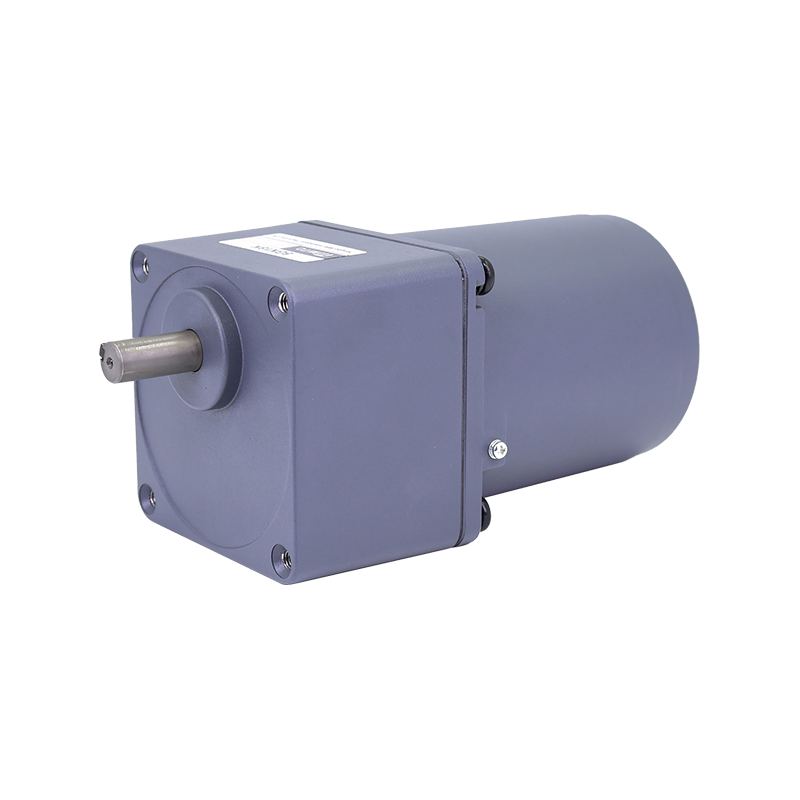

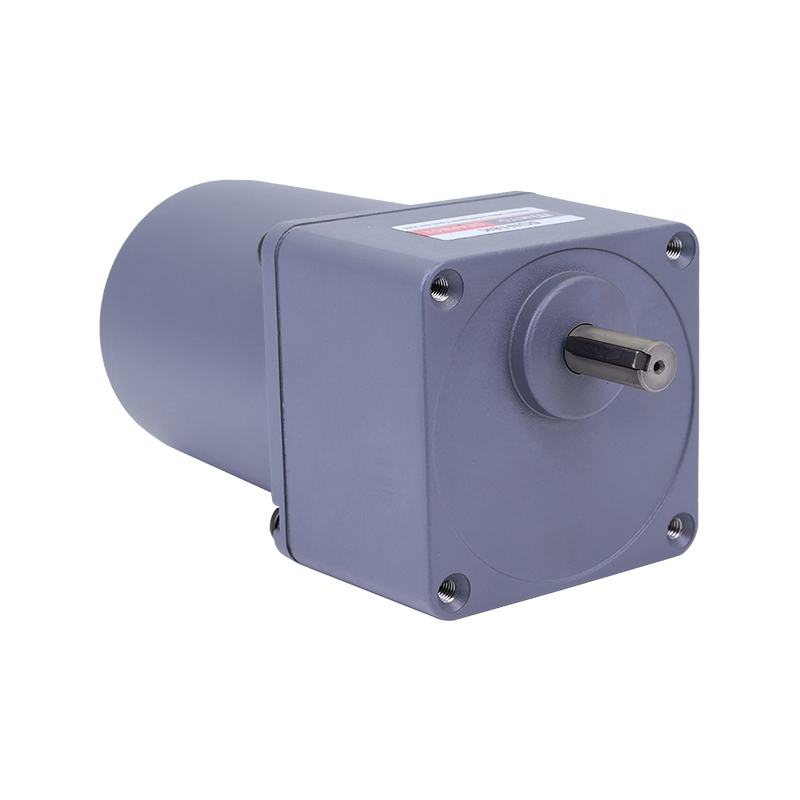

5IK 90mm 60W

AC Speed Control Motor

Motor Type: 5IK

Power: 60W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Shaft Type: GN Shaft

Motor Parameter Table

Model ·Type Lead Wire Type		Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
Pinion Shaft	Round Shaft					1200r/min mN.m	90r/min mN.m
5IK60RGN-AF	5IK60RA-AF	60	1ph 100	50	90~1350	460	140	265	1.00	20.0
				60	90~1650	490	160		1.10
5IK60RGN-EF	5IK60RA-EF	60	1ph 110	60	90~1650	490	160	265	0.80	12.0
			1ph 120						0.85
5IK60RGN-CF	5IK60RA-CF	60	1ph 220	50	90~1350	490	140	265	0.50	4.0
			1ph 230						0.55
5IK60RGN-HF	5IK60RA-HF	60	1ph 220	60	90~1650	490	160	265	0.50	4.0
			1ph 230						0.55

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
5IK60RGN-A 5IK60RGN-E 5IK60RGN-C 5IK60RGN-H	5GN□K	50Hz	1.10	1.40	1.90	2.30	2.90	3.40	3.57	4.80	5.70	6.80	7.03	8.60	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
		50Hz	11.2	14.2	19.3	23.4	29.6	34.7	36.4	48.9	58.1	69.3	71.7	87.7	100	100	100	100	100	100	100	100	100	100	100	100
		60Hz	0.92	1.10	1.50	1.80	2.30	2.80	2.99	3.80	4.60	5.50	5.70	6.90	8.30	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
		60Hz	9.38	11.2	15.3	18.3	23.4	28.5	30.5	38.7	46.9	56.1	58.2	70.1	84.7	100	100	100	100	100	100	100	100	100	100	100

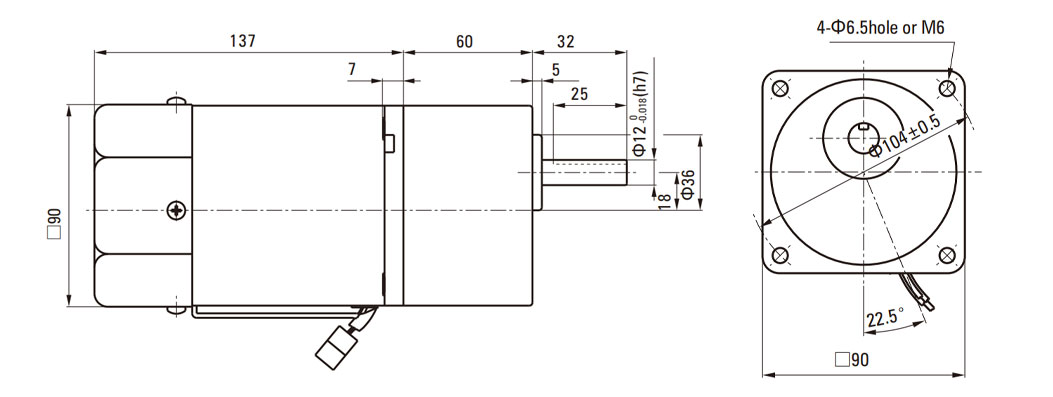

Lead Wiring Type

Description

The integrated speed-control AC induction motor is a power structure that integrates the speed control unit with the motor body. Its core advantage lies in reducing external controller wiring, achieving a more compact and unified power management approach. Internally, the motor incorporates an improved stator lamination structure and a highly consistent winding layout, resulting in a more stable electromagnetic driving force. With the integrated speed control module, the output can be automatically adjusted according to load changes, ensuring relatively stable operation across different speed ranges. This design not only improves the sensitivity of speed control response but also simplifies the overall system structure, reducing installation and maintenance complexity.
The housing is made of reinforced metal materials, and through internal heat dissipation channels and external cooling fins, the extra heat generated by speed control can be quickly dissipated, helping the motor maintain stable operation over a wide frequency range. In terms of speed control performance, the integrated speed-control AC induction motor supports smooth speed changes, maintaining a relatively stable output at low speeds and achieving smooth acceleration at higher frequencies. Regarding equipment integration, it offers various shaft extensions and mounting flanges to meet the needs of different mechanical structures. The terminal box layout is reasonable, making the wiring process more convenient and reducing the risk of interference from long-distance signal lines.
